| Product Series | CP35 |
| Display Dimension | 3.5-inch HD display |
| Display Resolution | 640*480 |
| Digital Zoom | Support real-time 4xzoom,8x partial zoom when playback |
| LED Brightness Level | 0-7 level adjustment |
| Photo/Video | Can take images and videos,and snapshot when recording |
| Night vision ability | It can recognize A4 paper size objects 10m away in full black environment |
| Document Format | Image:JPEG/BMP;Video:MP4 |
| Image Rotation | 0°/90°/180°1270° |
| Host Dimension | 240mm*102mm*126mm |
| Package Dimension | 411mm*321mm*165mm |

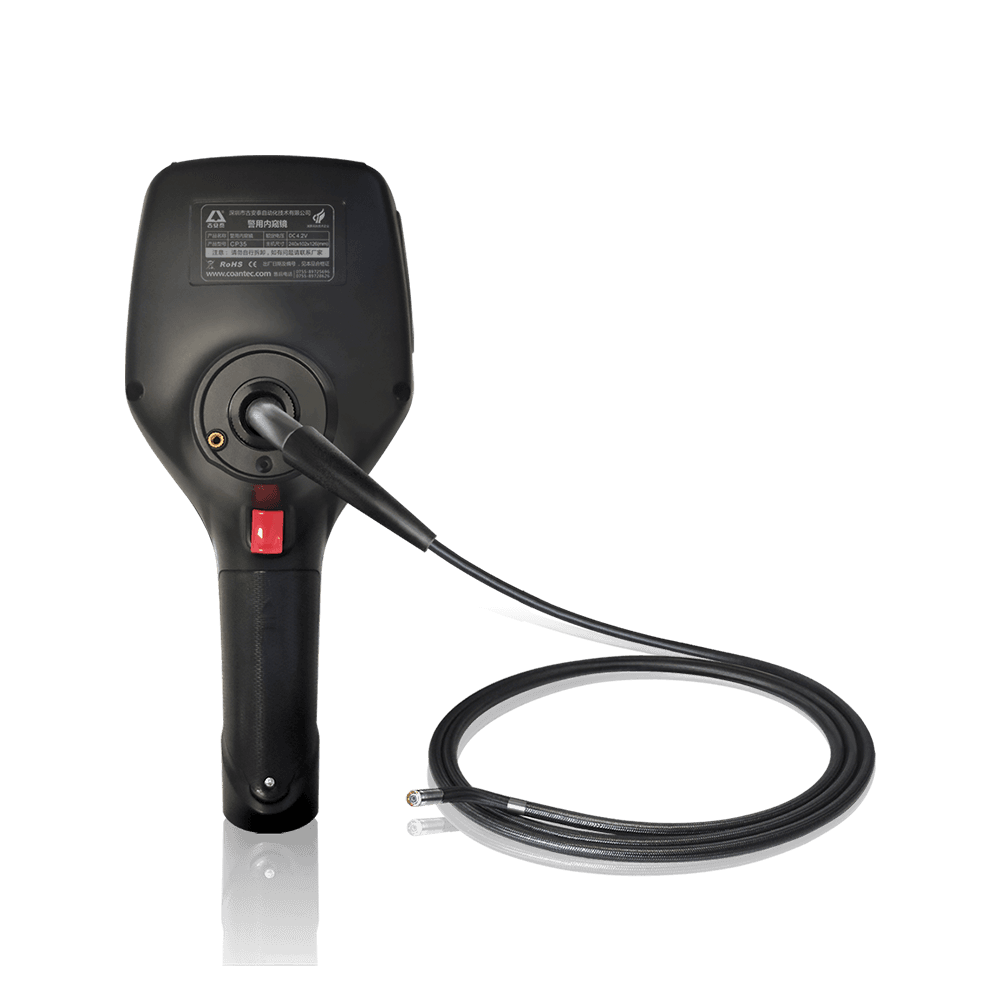

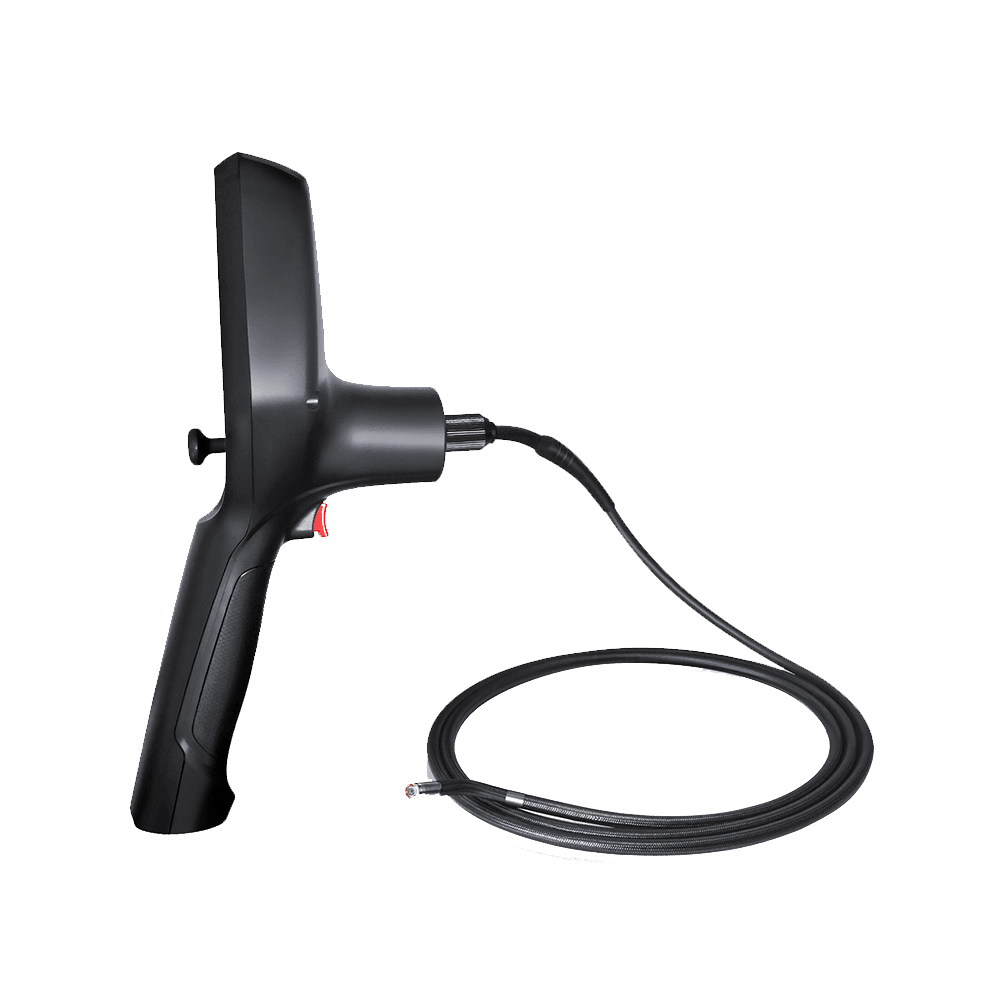

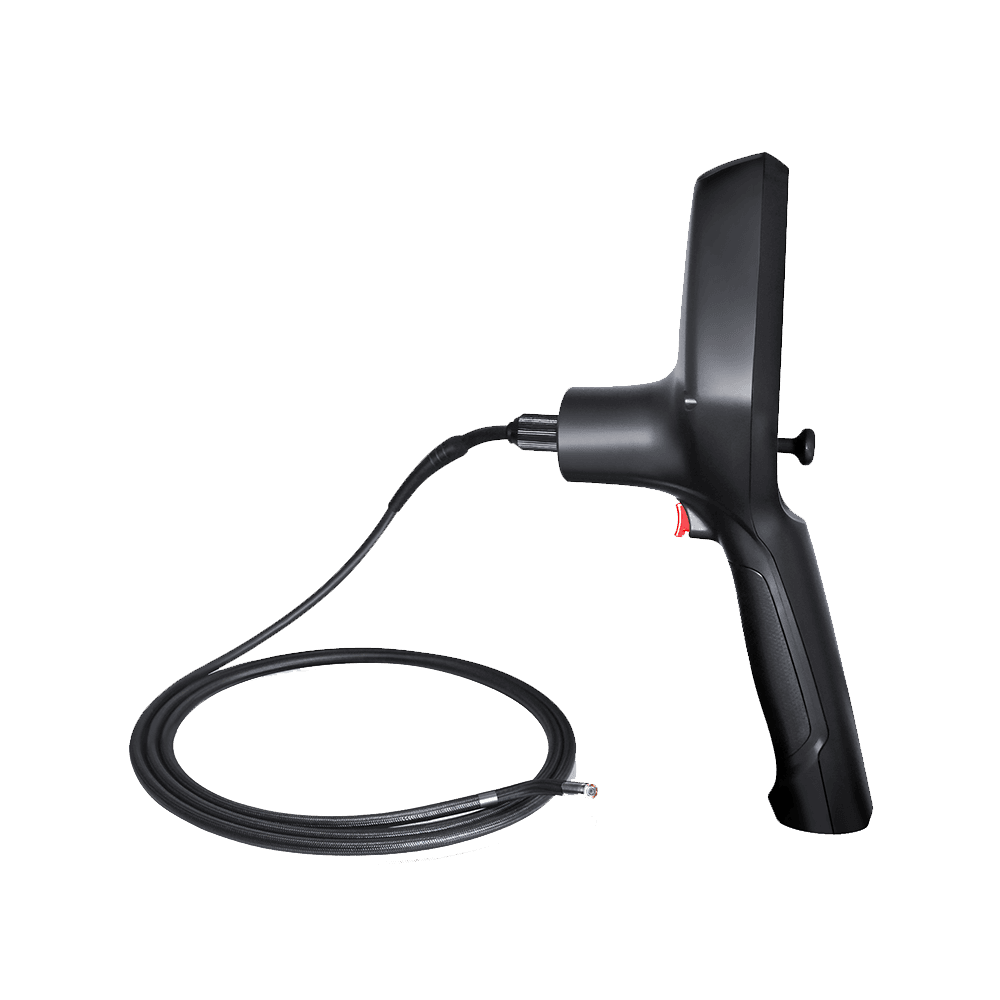

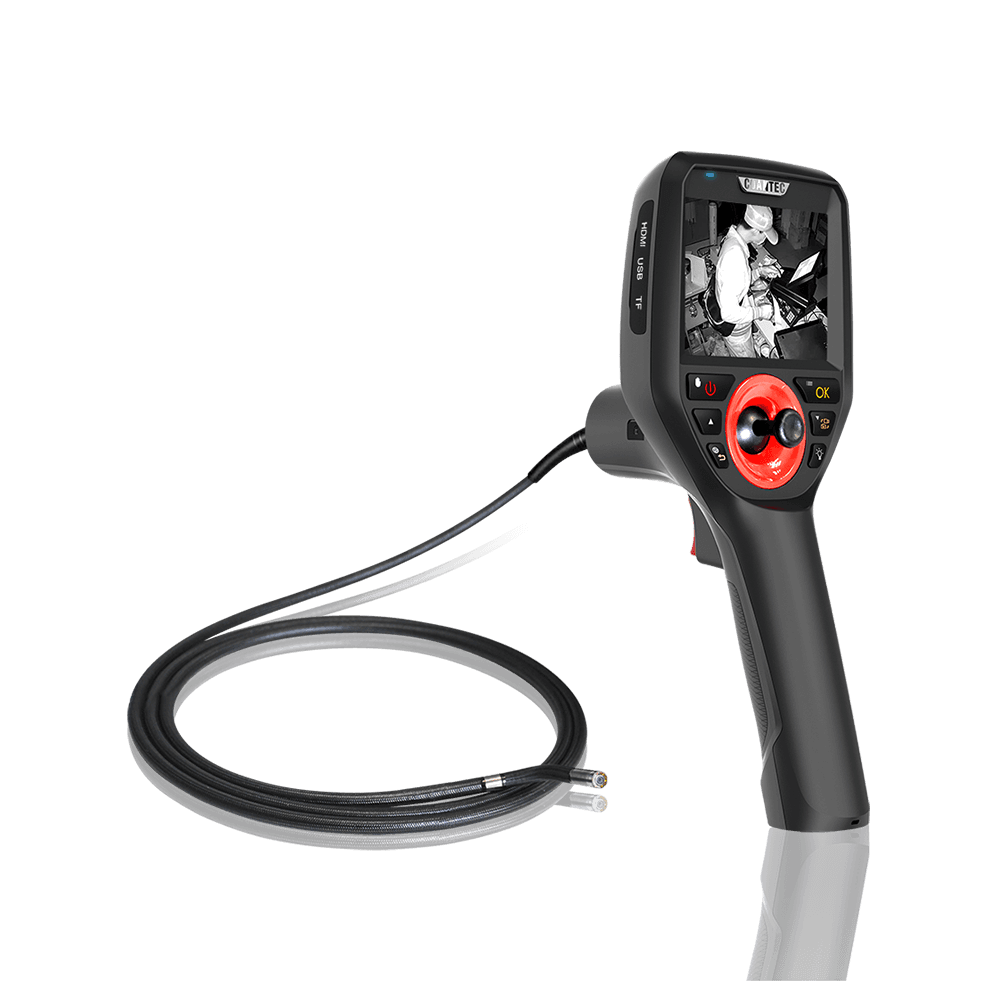

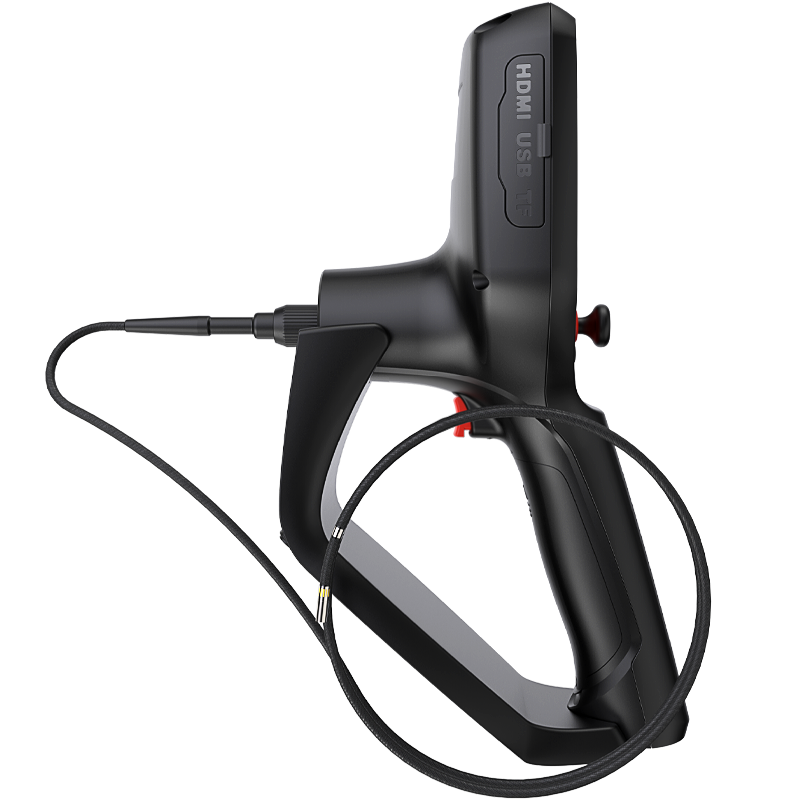

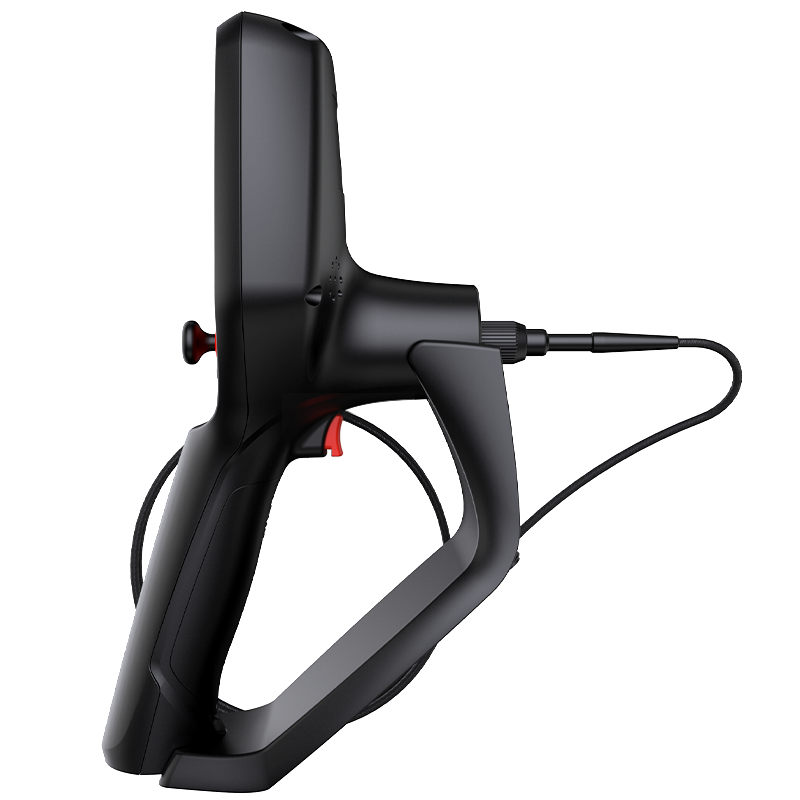

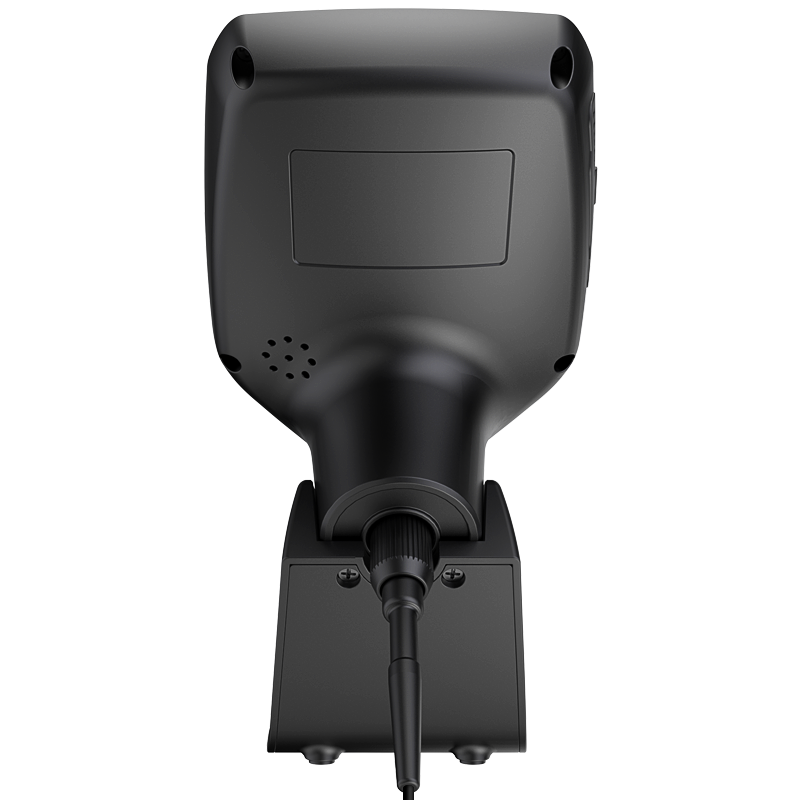

This product is a flexible police borescope with infrared night vision function. The whole machine adopts integrated hand-held design, which is light and portable. The probe can be 360° all-way articulating to observe without dead angle. Users can monitor in real time through the LCD screen, as well as taking photos and recording videos.The optional WIFI module can transmit the collected
image data to the mobile terminal for remote monitoring.The products are suitable for public security, armed police, fire, procuratorate, customs and other relevant personnel to carry out criminal investigation, detonation, security inspection, anti-smuggling, search and rescue, etc.

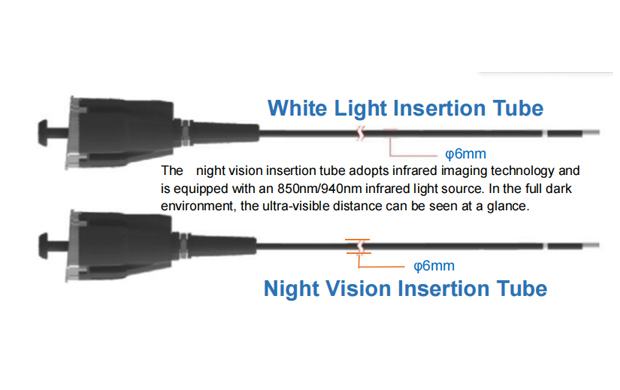

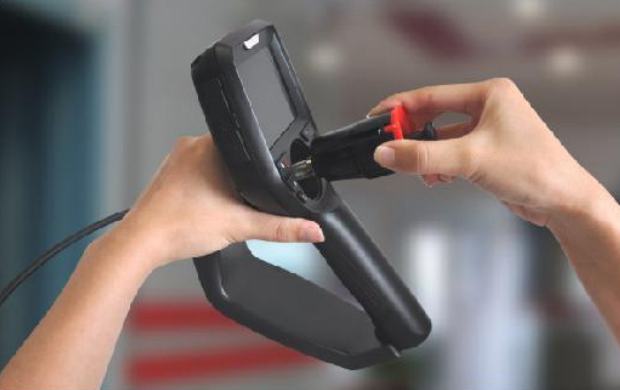

With the insertion tube consumable design, the user canindependently replace the white light or night vision insertion tubeof different specifications according to the requirements, andcomplete the tube replacement process within 30 seconds torealize multi-purpose use of one machine and save cost.

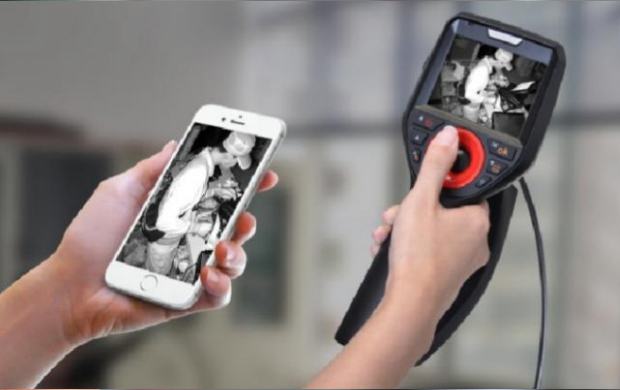

Users can select RF and WlFl modules according to their requirementsand transmit real-time detection images wirelessly to receiving terminals.such as mobile teminals(application sofware must be installed inadvance, support Android and lOS systems) to achieve remote monitoring
The observation probe integrates an audio module, the user can performimage, video, and sound collection in real-time screen monitoring andvoice monitoring to obtain more complete investigation and forensic data.

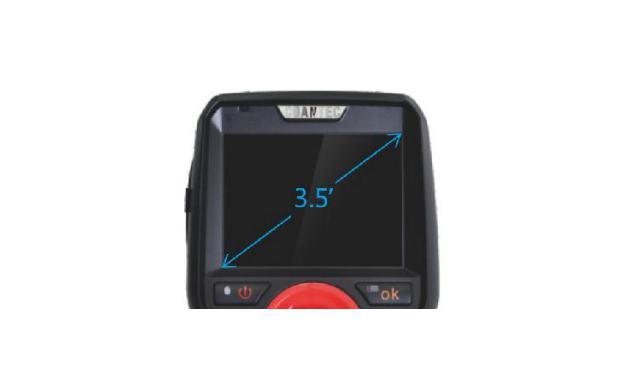

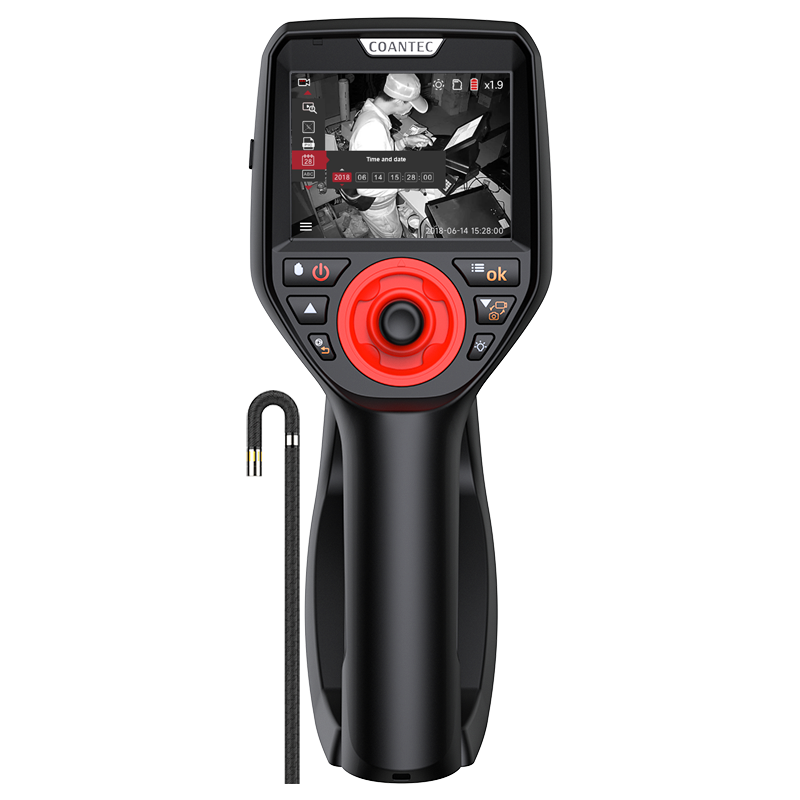

The 3.5-inch, 640*480 resolution high-definition LCD screen is adoptedand the image processing technology can effectively highlight the details ofshadows and highlights, making the image clearer and more delicate. Thereal-time image can be magnifed by 4 times and the static image can bemagnified by 8 times, which is convenient for more detailed observation ofimage details.
Using 3.5",640*480 resolution high-definition LCD screen, imageprocessing technology can effectively highlight the details of shadows andhighlights, the image is more clear and delicate.Thmage can be enlargedby 4 times, and the still image can be enlarged by 8 times, which makes iteasier to observe the details of the image.
Host | |
Display Dimension | 3.5-inch HD display |
Display Resolution | 640*480 |
Digital Zoom | Support real-time 4x zoom ,8x partial zoom when playback |
LED Brightness Level | 0-7 level adjustment |
Photo/Video | Can take images and videos, and snapshot when recording |
Night vision ability | It can recognize A4 paper size objects 10m away in full black environment |
Pickup function | It can pick up weak audio signals outside 3M |
Document Format | Image:JPEG/BMP; Video:MP4 |
Image Rotation | 0°/90°/180°/270° |
Time Watermark | Yes |
ScreenBacklight Brightness | 3 -level adjustment |

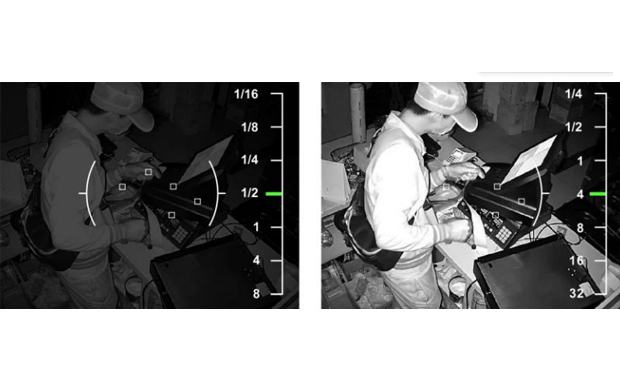

Time of exposure | Adjustable |
Frame rate | Adjustable |
Output Port | Mirco HDMI |
Menu Language | Simplified Chinese,Traditional Chinese,English,Japanese,Korean, |
French,German,Portuguese,Spanish,Russian etc. | |

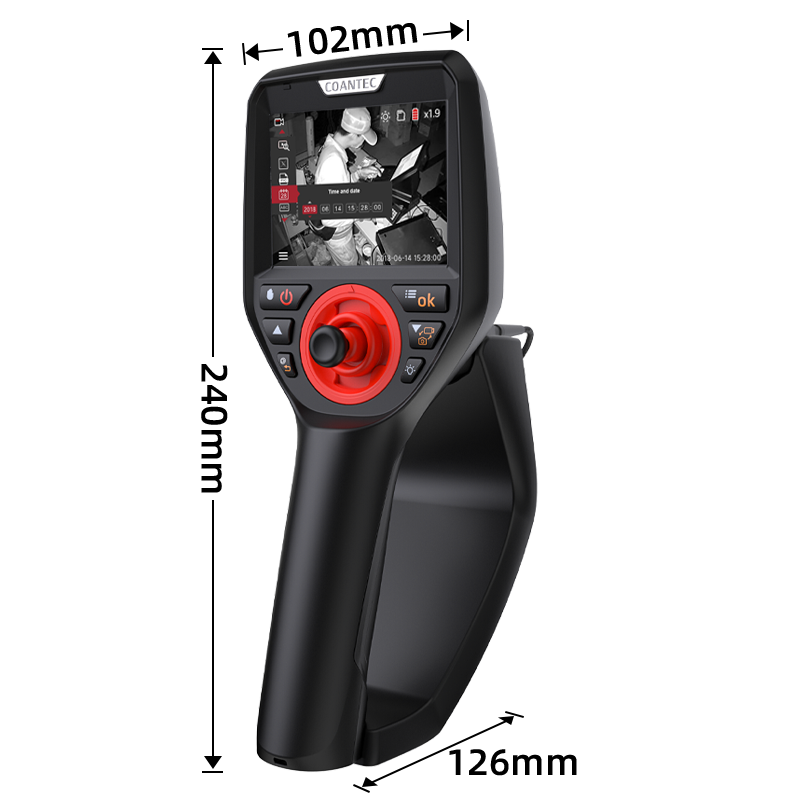

Host Dimension | 240mm*102mm*126mm |
Package Dimension | 411mm*321mm*165mm |
Host Weight | ≤0.45kg(include battery) |
Tube | ||
Replaceable Insertion Tube | Infrared night vision insertion tube | White light insertion tube |
Probe Diameter (±0.1mm) | Φ6 | Φ6 |
Pixels | 1000,000 | 1000,000 |
Wavelength | 850nm/940nm | / |
Tube Length | 1-3m | 1-7m |
Depth of Field | 100mm-∞ | 8-80mm |
View Direction | Forward view | Forward view |
Lighting Mode | Rear optical fiber guide/Front LED lighting | |
Joystick Control | 360° all-way articulation | |
Guided Control Method | Mechanical control | |
Tube Material | Tungsten alloy wire wear-resistant braided tube | |
Compatibility | Pipelines of different specifications can be replaced independently | |
Bending Angle | ≥150° | ≥150° |
Field of View | 70° | 85° |
Power | |
Power Supply Method | Rechargeable lithium battery |
System Operating Time | ≥4H |
Operation Environment | |
Machine Operating Temperature | -10℃-50°C |
Probe Operating Temperature | -20℃-60°C |
Storage Temperature | -20℃-60°C |
Relative Humidity | 15%-90% |
Configurations | |
Standard Configurations | CP35 videoscope x1,instrument case x1,lithium battery x1, charger x1,8G TF card x1,user manualx1,precautions for use x1,Microphone x1 |
