| Display size | 5.5-inch HD display |
| Monitor resolution | 1920*1080 |
| Image storage format | JPG/BMP |
| LED brightness level | Adjustable from 0 to 7 levels |
| Auxiliary measurement function | Crosshair reference line |
| File format | Images are stored in JPEG/BMP format, videos in MP4 format |
| Image rotation | Images can be rotated 0°/90°/180°/270° |
| Screen backlight brightness | Adjustable in three levels |
| Output port | Micro HDMI |
| Tipdiameter (+0.1mm) | 0.95/1.2/1.6/1.8/2/2.8/3.9/4.8/6/8mm |
| Host dustproof and waterproof rating | IP65 |

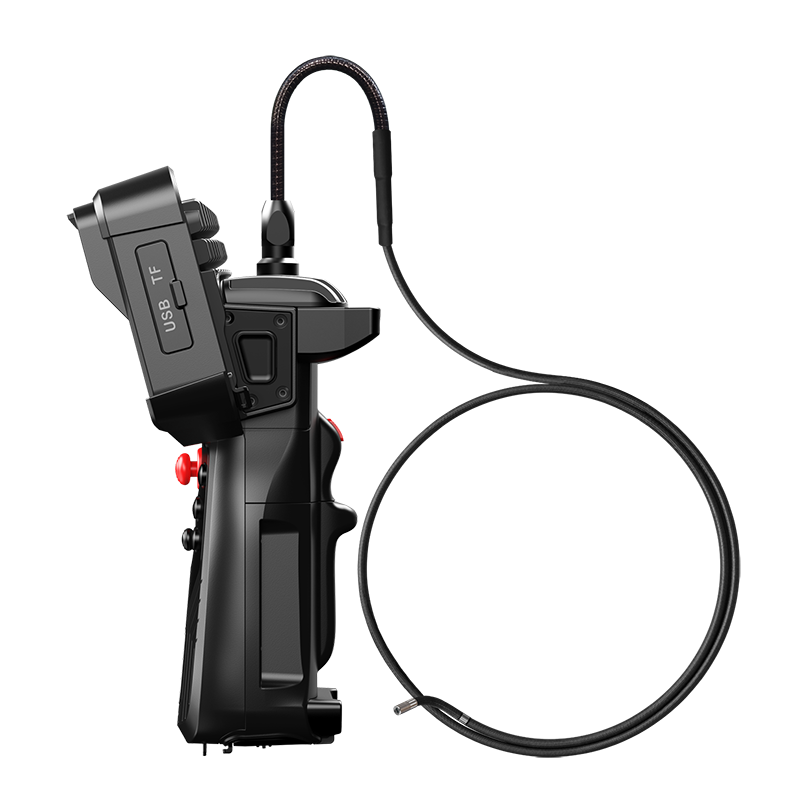

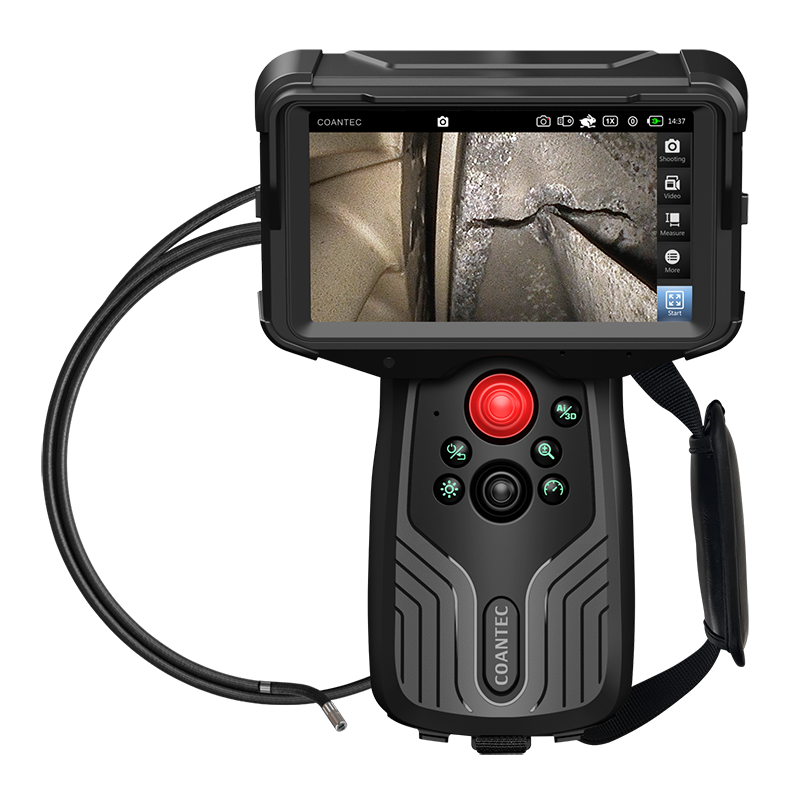

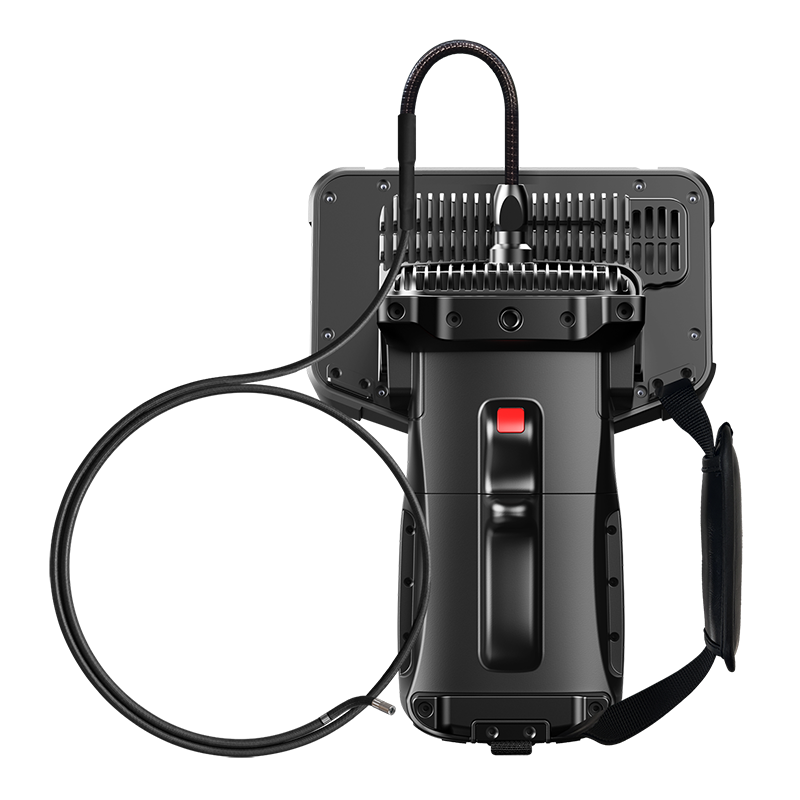

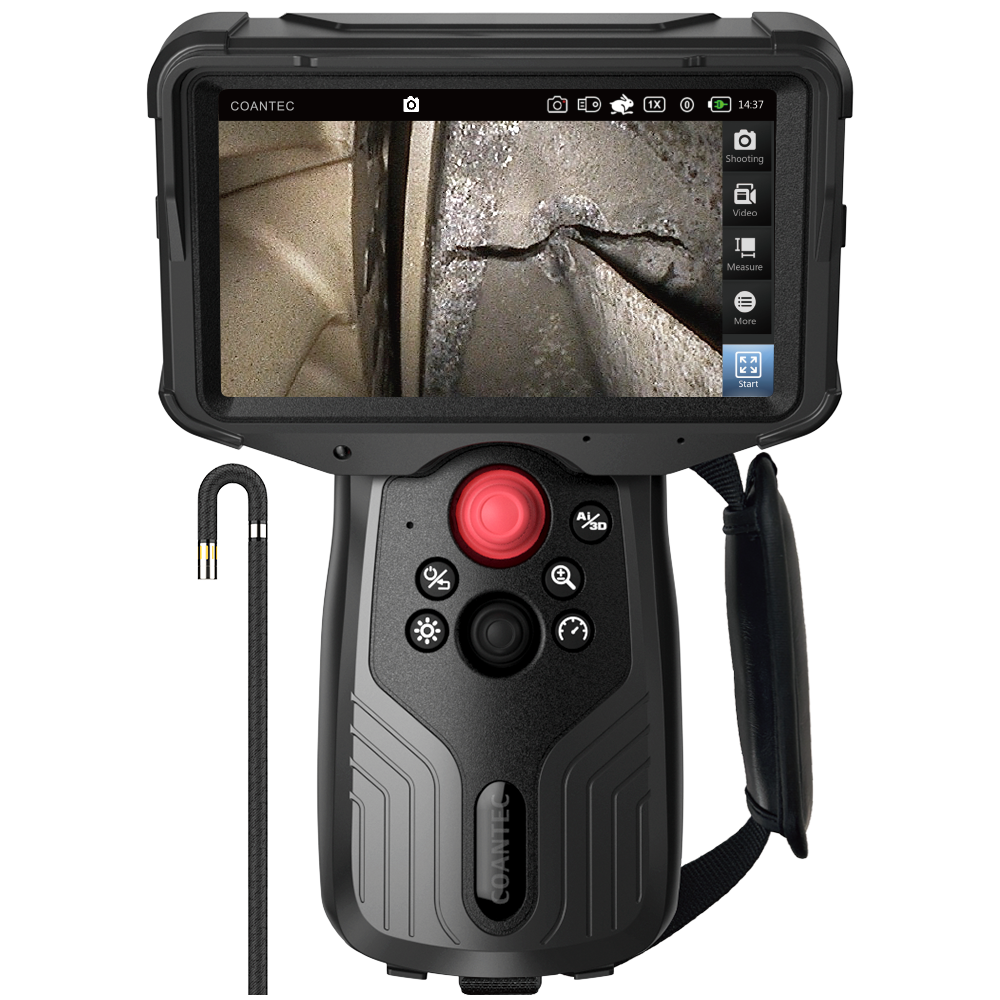

The BLX series Al Intelligent Industrial Videoscope is a cutting-edgeinspection solution developed by Coantec over two years and refinedthrough 27 iterations. Featuring an ergonomic electric controlhandheld design, a high-strength aerospace aluminum alloy body, anda 5.5-inch custom anti-scratch touch display, this videoscope ispowered by an NPU neural network processor. With 12 times thecomputing power of its predecessor, it delivers "zero-delay" Al imageprocessing and voice interaction. The device supportsinterchangeable lenses and insertion tubes of various specifications,offering exceptional endurance, low-temperature resistance, andenhanced ease of operation. Its intelligent design ensures moreprecise and efficient inspections across industries such as aerospace,military equipment, energy and power, and automotive manufacturing.

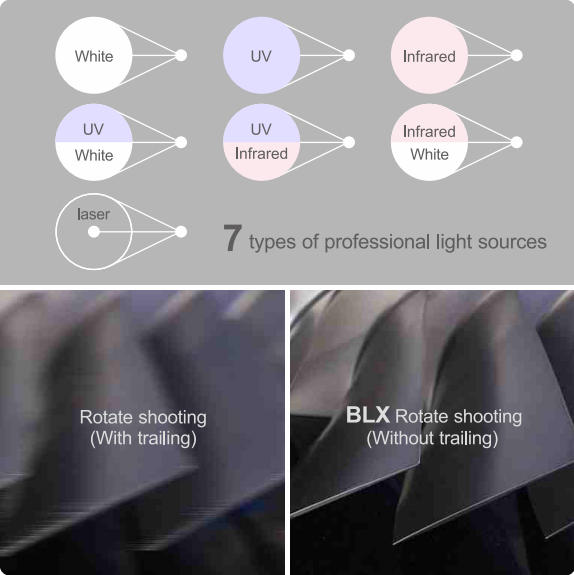

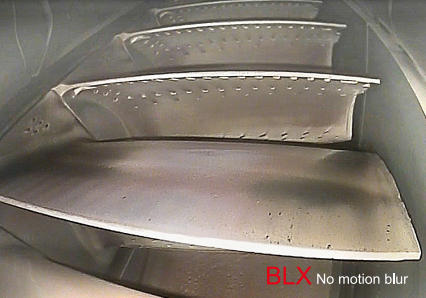

High-pixel ultra-clear imaging, equipped with 7 types of professional lightsources (single white/single UV/single infrared/UV-white/UV-infrared/infrared-white/laser, etc. available), greatly improving colorreproduction; high frame rate full pixel video recording (120Hz) + intelligentnoise reduction algorithm, ensuring that dynamic images are smoothwithout ghosting, making minor defects stand out.

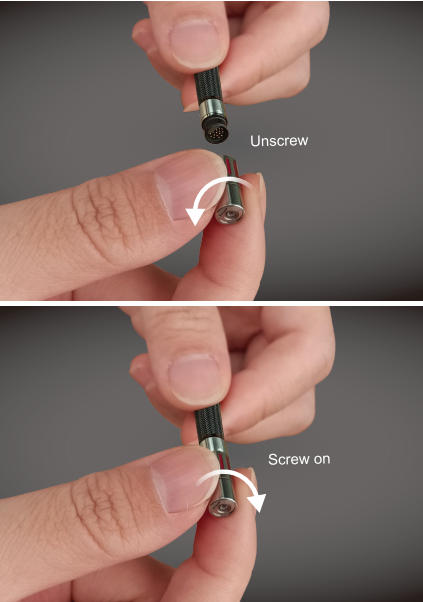

Supporting insertion tubes and lenses of different specifications,compatible with Coantec's 5th generation optoelectronic lenses andXiangyun lens kits (including direct view, side view, far focusing, nearfocusing, macro, and various other lenses), enabling free switching,covering all scenarios with one device.

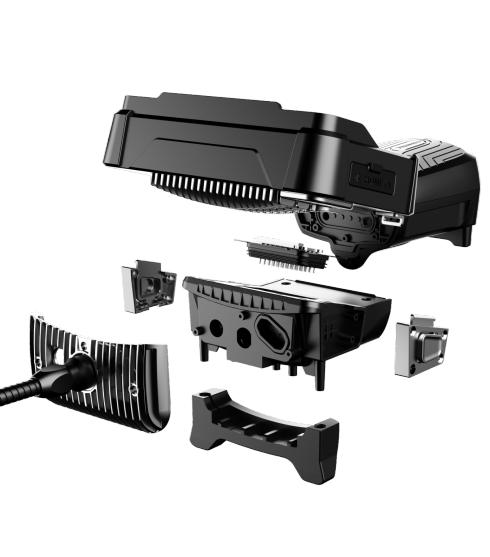

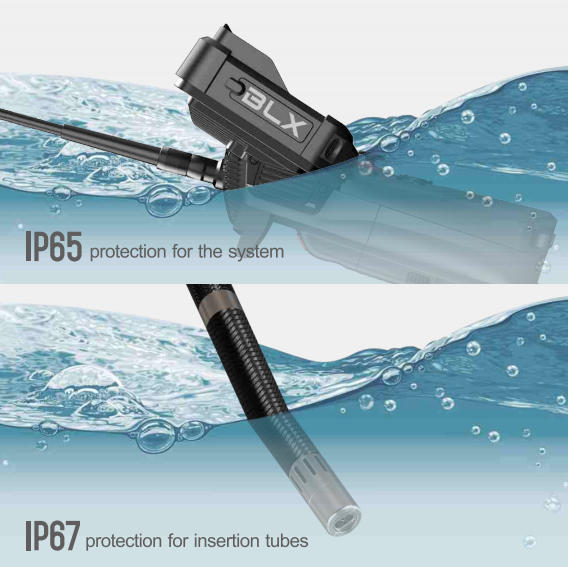

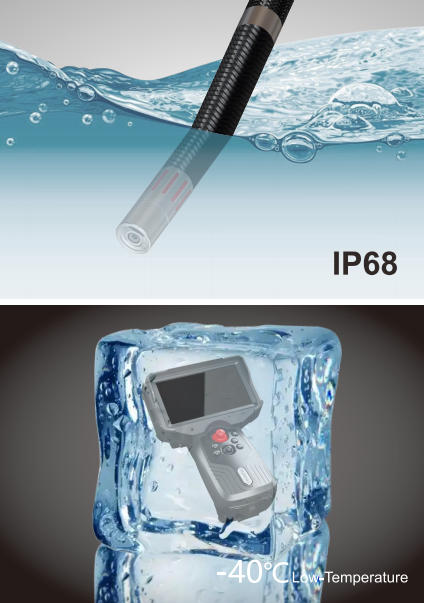

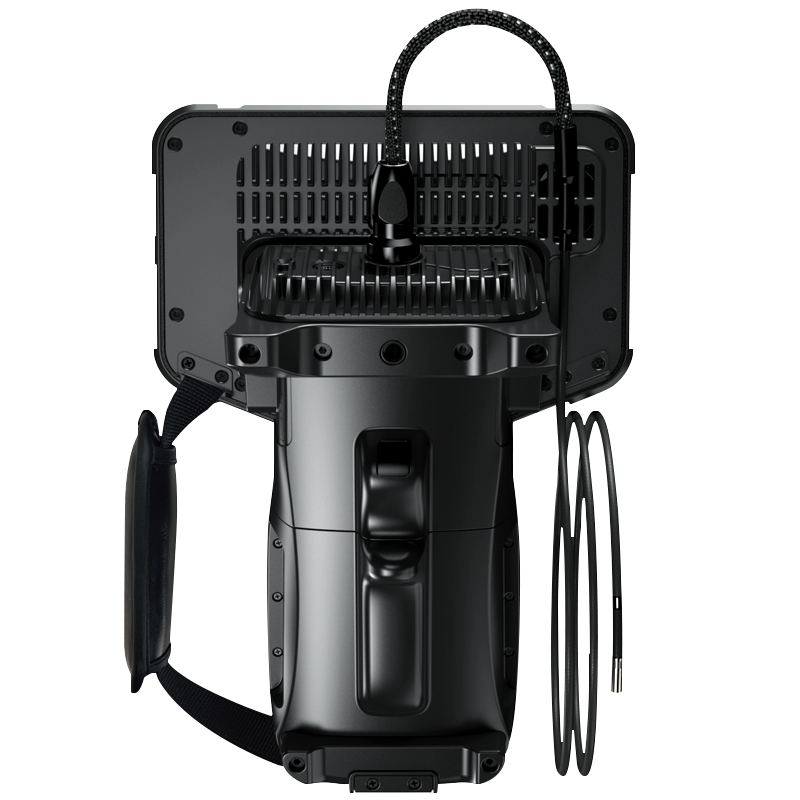

The system boasts IP65 protection, while the insertion tubes feature IP67 rating,making it dustproof, waterproof, and drop-resistant. It operates in -40°C cold-resistantmode, ready to withstand extreme conditions. Constructed with an aerospacealuminum alloy skeleton and equipped with three cooling systems, the designincreases structural strength by 400% and achieves 97% cooling efficiency. Thisbalance of lightweight construction and exceptional durability enables continuousoperation without the need for downtime
Equipped with flashlight auxiliary lighting, using independent dimmingtechnology for each circuit, the system enables synchronous fill lightobservation, brightness improved by 3 times compared to traditionallighting methods, and more thorough inspections in corners, accuratelylocking hidden defects, effectively enhancing inspection efficiency.

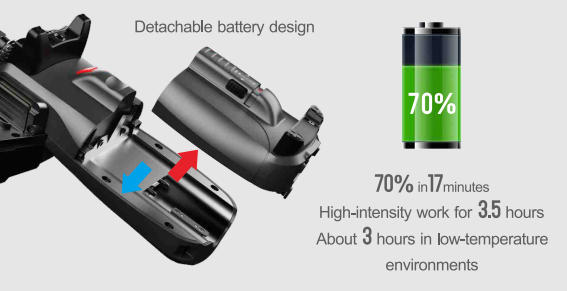

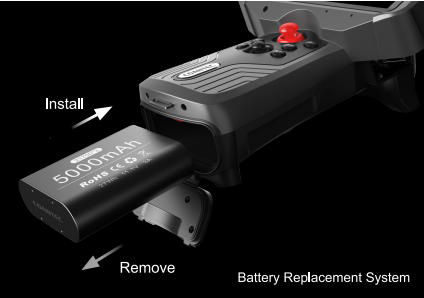

Equipped with fast-charging technology (70% charge in just 17 minutes) and adetachable battery design, the system supports continuous high-intensity operation forup to 3.5 hours (around 3 hours in low-temperature environments). Multiple batterymodules can be used to tackle all-weather inspection tasks, ensuring reliableperformance in the field.Battery status can be monitored at any time, even when powered off or operating witha single battery, making usage more convenient and efficient.

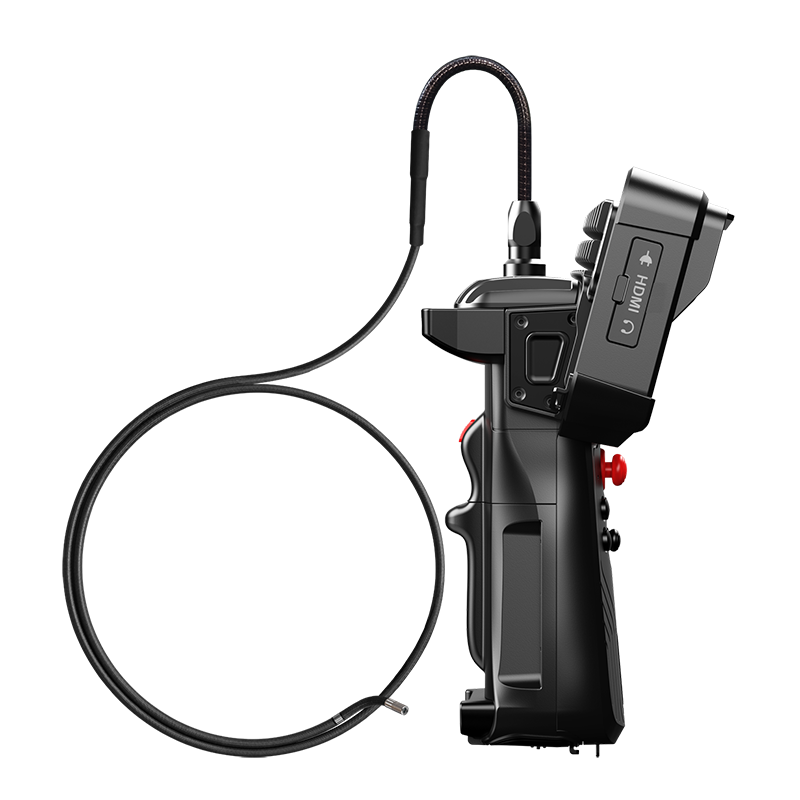

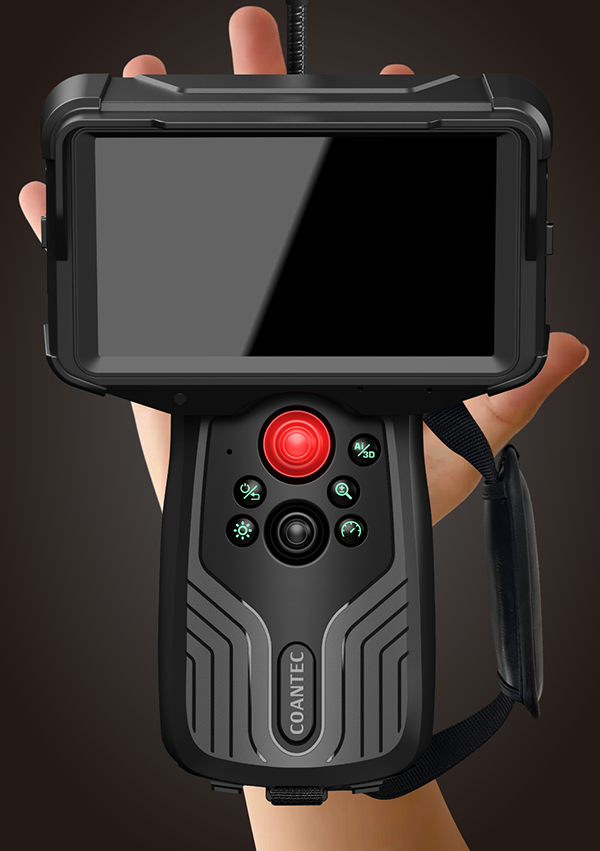

Featuring an integrated handheld structure, the device is lighter than comparableproducts and can be comfortably operated with one hand-ideal for flexiblemaneuvering in tight or complex inspection environments. Equipped with an electricjoystick and a 5-way navigation button, it offers 360° all-directional control with a 50%improvement in response speed. The anti-slip base supports both flat placement andupright positioning, ensuring stable multi-mode operation for precise and effortlesscontrol.
| Host System | |
| Display specifications | Full-view industrial HD touchscreen |
| Display size | 5.5-inch |
| Display resolution | 1920*1080 |
| Host material | Aerospace aluminum alloy |
| Host storage capacity | Default 64GB, expandable up to 1TB |
| Host operating memory | Standard 8GB, expandable up to 64GB |
| Photography function | ● |
| Image storage format | JPG / BMP |
| Video recording function | ● |
| Video storage format | MP4 |

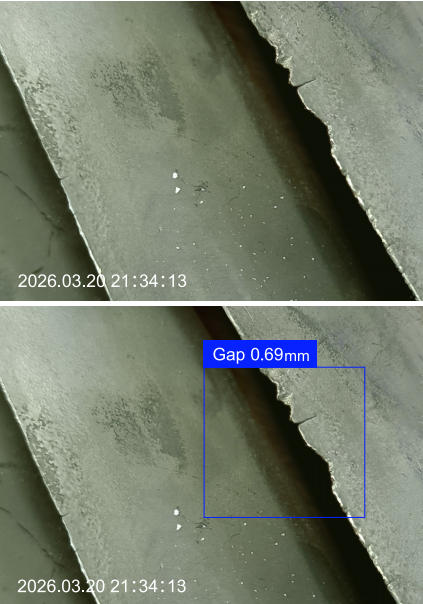

| AI image intelligent recognition | Supports automatic defect recognition |

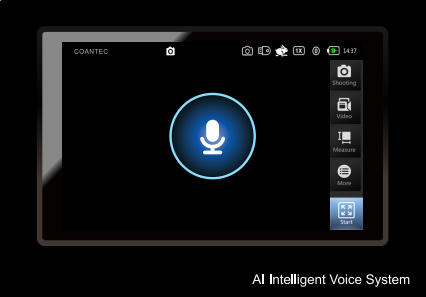

| AI voice interaction function | Supports intelligent voice input and output |
| Real-time image magnification | 1-5 times (multi-touch pinch-to-zoom) |
| Adjustable LED brightness levels | Levels 0-9 |
| Image color adjustment | Brightness, contrast, hue, saturation, sharpness, gamma, restore default |
| Manual adjustment of display brightness | ● |
| ▪ Image modes | Default, monochrome, negative, vivid, high contrast, soft |
| ▪ Time watermark | ● |
| ▪ Location watermark | ● |
| ▪ Virtual joystick | ● |
| ▪ Generate report | ● |
| ▪ Ruler | No ruler, circular ruler, cross ruler, or reference line |
| ▪ Bluetooth data transmission | ● |
| ▪ WiFi data transmission | ● |
| ▪ Battery level monitoring | ● |
| ▪ File operations | ● |
| ▪ Image zoom | ● |
| ▪ File editing | ● |
| ▪ User permission management | ● |
| ▪ Menu/input language | ● |

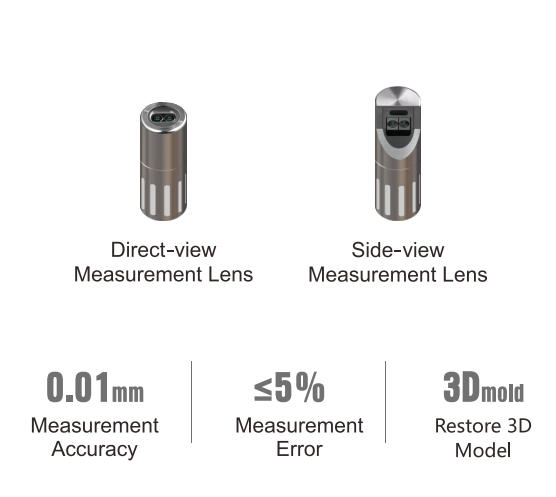

| ▪ 3D measurement system | ● |
| ▪ Secondary measurement | ● |
| ▪ Remote sharing of images and videos | ● |
| ▪ Video live streaming | ● |
| ▪ Online upgrade | ● |
| Host dustproof and waterproof rating | IP65 |
| Output Port | |
| HDMI video output port | 1 |
| 3.5mm audio output | 1 |
| USB 3.0 port | 1 |
| TF card reader | 1 |
| Type C port | 1 |
| Size specifications | |

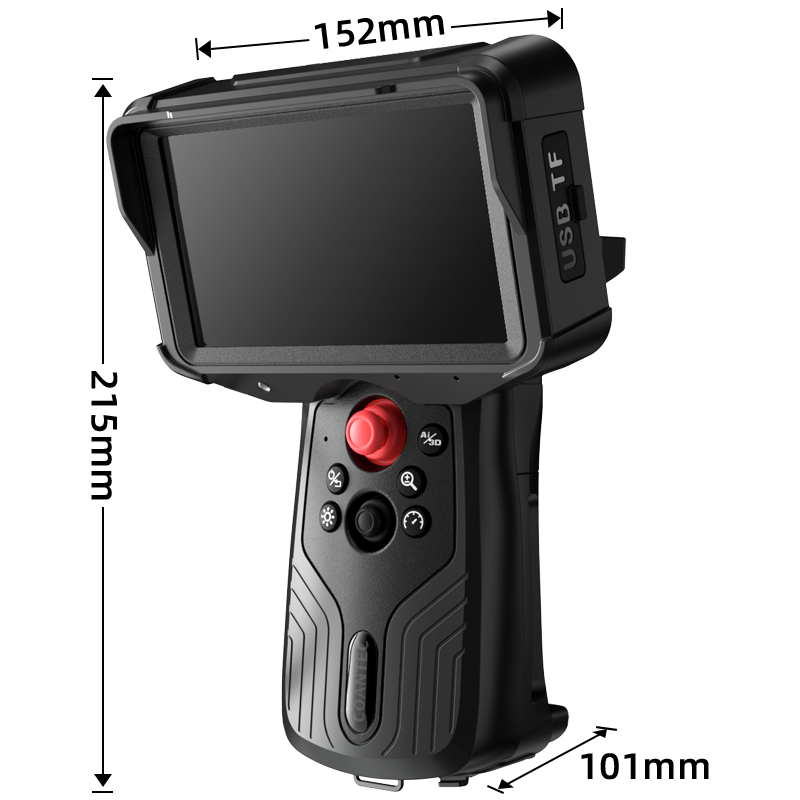

| Host size | 152mm*215mm*101mm |
| Packaging size | 551mm*351mm*240mm |
| Host weight (including battery) | 1.35KG |
| Insertion Tube system | |
| Tip diameter (±0.1mm) | 0.95 / 1.2 / 1.6 / 1.8 / 2 / 2.8 / 3.9 / 4.8 / 6 / 8mm |
| Insertion tube length | 1m~10m optional (measurement only for >4mm Ø) |
| Depth of field | 5-50mm / 5-100mm / 10-100mm / 50mm~∞ |
| Field of view | 70° / 80° / 100° / 120° |
| Camera pixels | 160K / 300K / 1M / 2M / 5M |
| Replaceable insertion tube | ● |
| Replaceable lens | ● |
| View direction | Direct view / side view / dual view |
| Lighting source | Front LED / rear-mounted LED + optical fiber |
| Light source type | Single white / UV / infrared / laser / UV-white / IR-white dual source etc. |
| 360° all-way articulation | ● |
| Electric probe guidance control | ● |
| Tube unidirectional bending angle | ≥160° |
| Probe movement speed | Fast / slow speed adjustable |
| Tip lock/release function | ● |
| Probe lock step adjustment | ● |
| Tip material | Super hard alloy protective shell |
| Insertion tube material | Oil-resistant coated tungsten wire + wear-resistant braided hose |
| Dustproof and waterproof rating of insertion tube | IP67 |
| Power | |
| Power input | INPUT: 220±10%V 50Hz mains |
| Output | OUTPUT: DC20V 2A 40W |
| Fast charging | 80% charge in 30 minutes |
| Battery capacity (removable) | 11.1V, 5000mAh (常温) / 4200mAh (低温 -40°C) |
| Continuous working time of host | ≥3.5h (常温); ≥3h (低温 -40°C) |
| Operating Environment | |
| System working temperature | -40°C to 80°C |
| Tip working temperature | -40°C to 95°C (temperature alarm optional) |
| Storage temperature | -40°C to 60°C |
| Relative humidity | Not greater than 95%, no condensation |
| Personalized Customization | |
| Insertion tube lengths, diameters, andlighting modes can be customized as required | ○ |
| Insertion tube can be addedwith a graduated scale | ○ |
| Software customizable | ○ |
| Lens customizable | ○ |
| Accessories | |
| Standard accessories | Dedicated instrument case, TF card+reader, power adapter, wrist strap, cleaning set |
| Optional accessories | USB flash drive, centering device, battery pack, seat charger, HDMI cable, battery module |
| Notes | |
| *The specific parameters are subject to the actual product and can be confirmed by contacting relevant personnel* *Not suitable for long-term use in high-temperature environments | |
