| Display specifications | Brand new IPS HD touch screen |
| Display size | 7-inch |
| Display resolution | 1920*1200 |
| User interface | Menu navigation via touchscreen, physical buttons, and joystick |
| Host storage capacity | Default 16GB, expandable up to 128GB |
| Host operating memory | Standard 2GB, expandable up to 4GB |
| Image storage format | JPG/BMP |
| Video storage format | MP4 |
| Host size | 350mm*197mm*126mm |
| Packaging size | 551mm*351mm*240mm |
| Host weight(including battery) | 2.1kg |

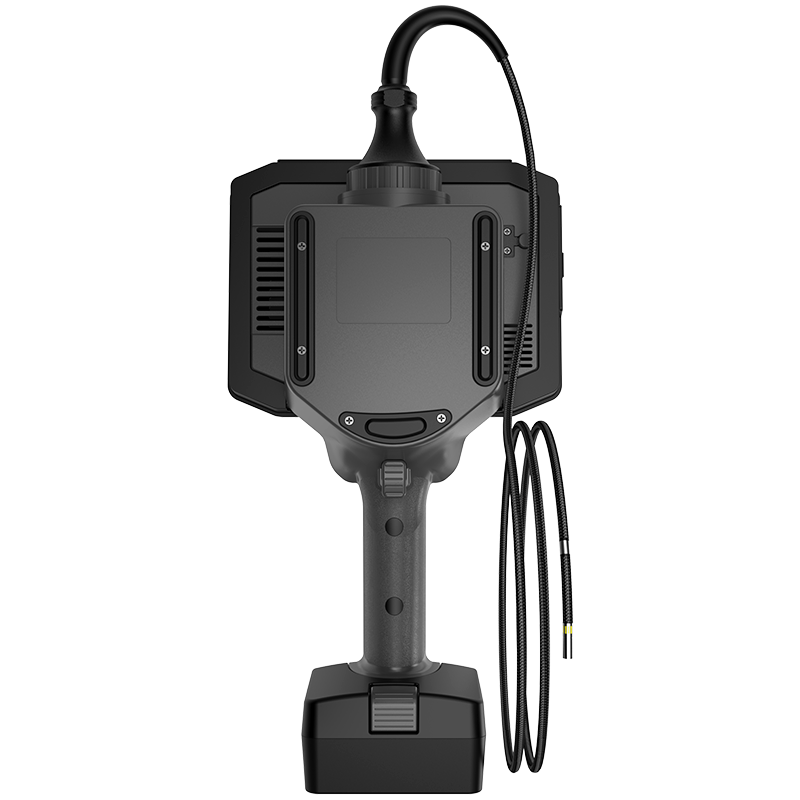

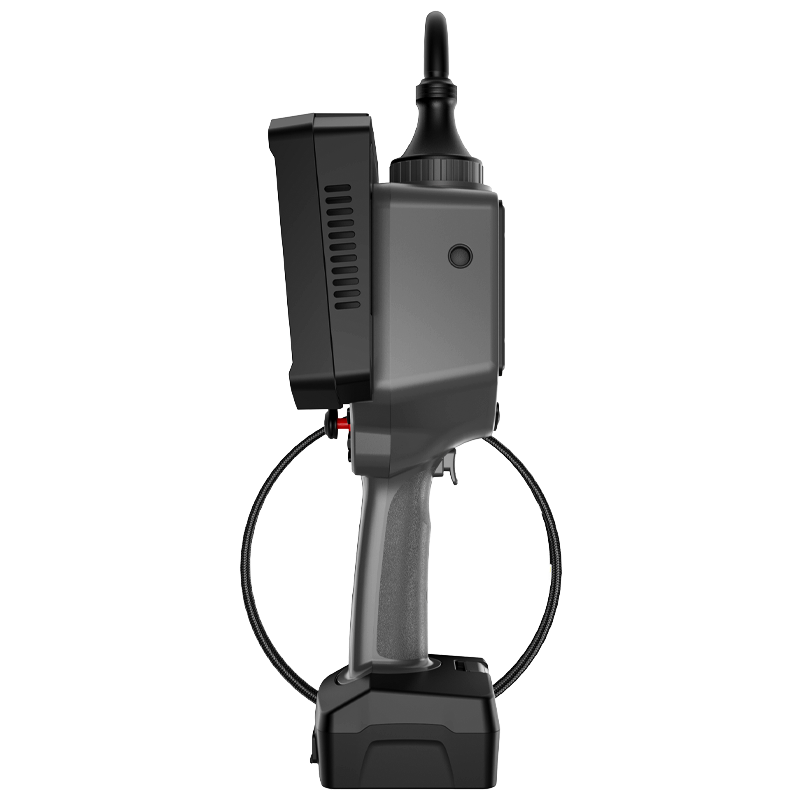

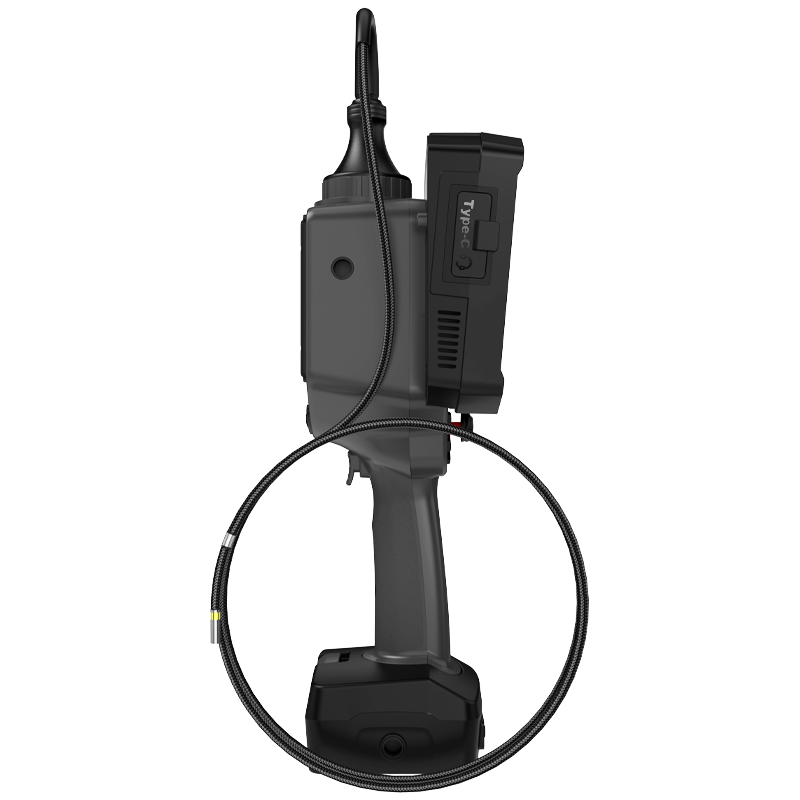

X5 series is a high-performance industrial videoscope which used to inspect the internal surface of equipment or components,it delivers HD visuals,a high-intensity light source,and superior visual processing,for clearer,sharper videos and still images.New modular design allows quick replacement for the touch screen and the insertion tube. Unique dual power supply mode,battery life can be lasted to 6 hours.With powerful software functions,it can adapt to different inspection applications and effectively improve the efficiency of inspection.This instrument can be used in aviation,aerospace,automobile,railway,shipping,energy,
petrochemical,electric power,military,special inspection and other fields.

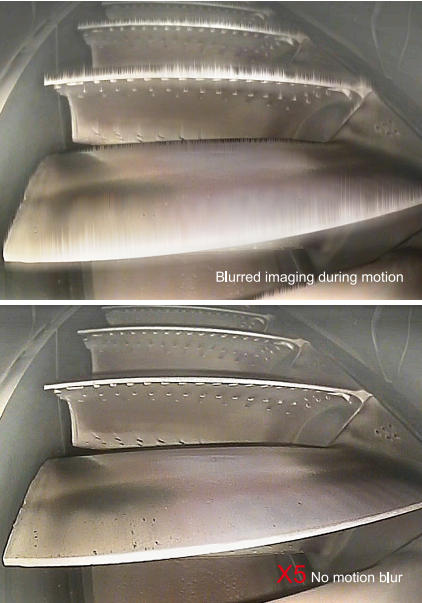

Built-in image sensor with high sensitivity image algorithm,delivers HD visuals,a high-intensity light source,and superior visual processing,or clearer,sharper videos and still images right on your device,whichis convenient to observe various subtle defects inside the equipment or interior of parts.
Rugged,ergonomic design,easy to hold.360°all-way articulating electric control joystick,responsive without delay,makes the inspection much easier.

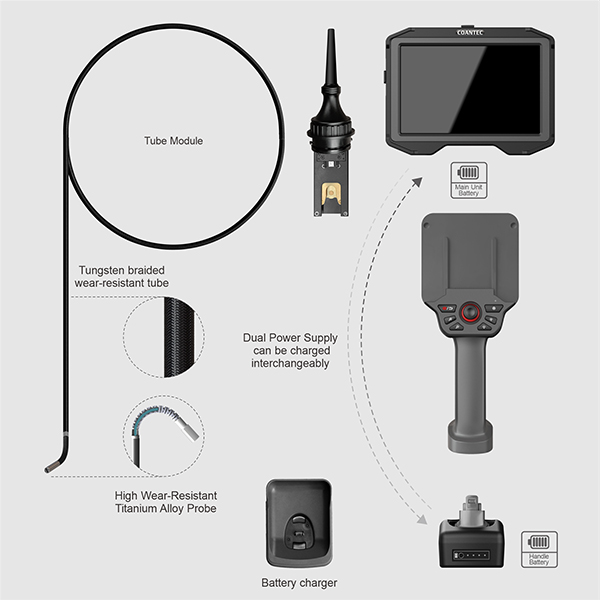

New generation 7-inch IPS full lamination HD touchscreen,connectea tothe host by blade connectors,stable and reliable，It can be removedand operated separately for viewing and processing files.

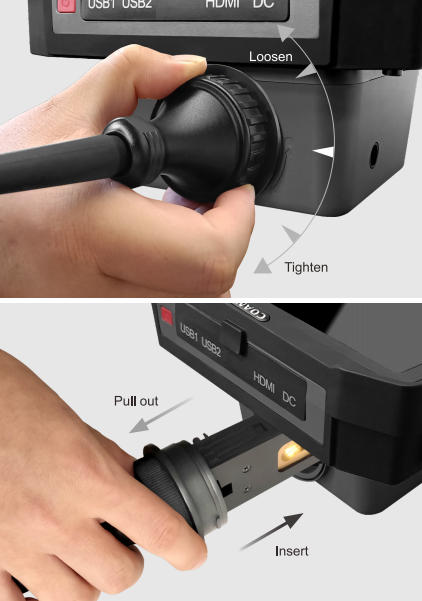

The host can be equipped with tubes in different lengths,diameters,light sources,users can save the use cost at maximum.Theinsertion tube is connected with the host by buckle and interference fit(original patent),which makes disassembly and assembly more convenient and faster.

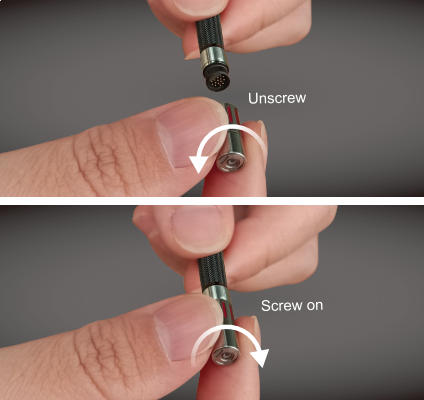

Unique double threaded tip adaptor,the tube can beequipped with lenses in different focus,view angle,and view direction(direct/sideview).lt is suitable for inspecting targets at different distances,presenting clearer image.
The host has built-in 16G large storage space by default(which can beexpanded to 32G/64G/128G).lt is equipped with two USB ports for external USB disk,which can be used to access data and upgradesoftware.

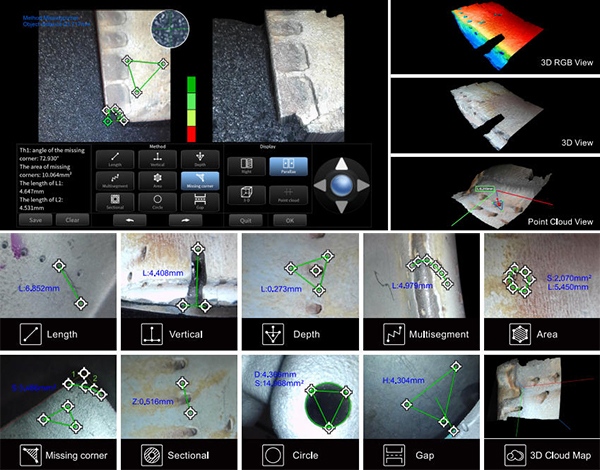

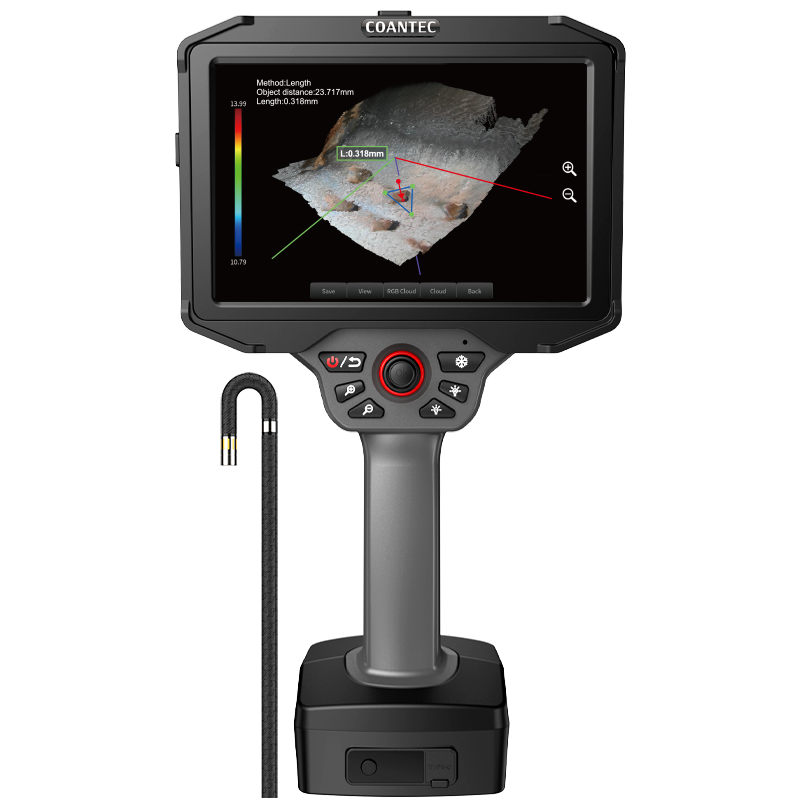

X5 Pro series 7-inch premium version is equipped with 3D measuringsystem,which can accurately measure,Lengtn,verical,Depul,iMiatuogrnouofArea,Missingcorner,Sectional,Circles and Gap.With measuring accuracy of 0.01mm and error ≤5%.
Simple new Ul interface,can realize photography,video,virtual rockeroperation,speed and slow adjustment,brightness adjustment,file management,real-time comparison,report generation,wirelessconnection,live streaming,etc.User-friendly design,simple and easy tooperate.
The original dual power supply mode is adopted,and rechargeablelarge-capacity lithium polymer battery is built into the handle and displayscreen,which can be used for more than 6 hours to achieve ultra-longbattery life.Fast battery charging technology,with higher chargingefficiency.
The shell of the host is of more abrasion resistant and scratchresistant ABS+PC,and the display screen is equipped with anti-fallsilica gel to make it more durable.High performance professionalinstrument case,convenient storage,easy to travel with.
"●"standard configuration | X5(Standard version) | X5 Pro(Premium 3D measurement version) | |
Host system | |||
Display | Brand new IPS HD touch screen | ||
Display size | 7-inch | ||
Display resolution | 1920*1200 | ||
Display detachable | ● | ● | |
User interface | Use the touch screen,physical buttons,and joystick menus to navigate | ||
Host storage capacity | 16G | ||
Storage memory expandable | ○ | ○ | |
Host running memory | The standard running memory is 2GB and can be expanded to 4GB | ||
Photography function | ● | ● | |
Image format | JPG/BMP | ||
Video recording function | ● | ● | |
Video format | MP4 | ||
Real-lime image zoom | 1-5 times through button or touchscreen | ||
LED brightness adjustable | 0-9 level | ||
Image effect | Image brightness,contrast,hue,saturation,sharpness,gamma | ||
Display brightness manual adjustment | ● | ● | |
Image mode | Default,monochrome,negative,bright,highlighted,or soft | ||
Image rotation | ● | ● | |
Image freezing | ● | ● | |
Image mirroring | ● | ● | |
Image real-time comparison | ● | ● | |
Time watermark | ● | ● | |
Virtual joystick | ● | ● | |
Report generation | ● | ● | |
Ruler | None,circular ruler,cross ruler,or reference line | ||
Bluetooth data transmission | ● | ● | |
WiFi data transmission | ● | ● | |
Battery power monitoring（shutdown state） | ● | ● | |
File operations | Full screen view/image/zoom/delete/rename/rotate/graffiti etc | ||
Image Zoom | 1-5 times(by button and touch screen) | ||
Photo edit | Text annotation and graffiti functions(handwritten lines,arrows,boxes,round signs,text annotation,and can set the brush color and thickness) | ||
User permission management | Administrator,Visitors,Standard user (created by administrator) | ||
Menu/input method language | Simplified Chinese,English,Japanese,Korean, | ||
3D measurement system | ○ | 9 measurement methods: Length,Vertical,Depth,Multisegment,Area,Missing corner,Sectional,Circle and Gap. | |
Transport files through LAN | ● | ● | |
Online upgrade | ● | ● | |
Ingress Protection（host） | IP55 | ||
Output port | ● | ● | |
HDMI video output port | ● | ● | |
3.5mm audio port | ● | ● | |
USB 3.0 port*2 | ● | ● | |
Type C port（data transmission ） | ● | ● | |
Dimensions | |||
Host size | 350mm*197mm*126mm | ||
Packing size | 551mm*351mm*240mm | ||
Host weight（including battery） | 2.1kg | ||
Insertion tube | X5 (Standard version) | X5 Pro (Premium 3D measurement version) | |
Tube diameter（±0.1mm）and length | 0.95mm | Tube length:1m-2m, no articulation | - |
1.2mm | - | ||
1.6mm | Tube length: 1m-3m, no articulation. | - | |
1.8mm | Tube length: 1m-3m. 360º All-Way tip articulation | - | |
2.0mm | Tube length:1m-2m | ||
2.8mm | Tube length:1m-2m | ||
3.0mm | - | ||
3.9mm | - | ||
4.8mm | - | ||
4mm | - | Tube length:1m-3m | |
6mm | Tube length:1m-10m 360º All-Way tip articulation | Tube length:1m-5m | |
8mm | Tube length:1m-10m | ||
Depth of view（mm） | 5-50/5-100/7-150 | ||
View angle | 70°/80°/100°/120° | ||
Camera pixels | 160,000/300,000/1,000,000/2,000,000 | ||
Tube replacement | ● | ● | |
Lens replacement | ○ | ○ | |
View direction | Front view/Side view/Front and Side view integrated | ||
Light source | White light/Infrared/Ultraviolet | ||
Light source type | Front LED/Rear-mounted LED+fiber light guiding | ||
360°all-way articulation | ● | ● | |
Motor-control joystick | ● | ● | |
Probe bending angle | ≥160°（eg:for 6mm 1m tube） | ||
Bending speed | Fast/Slow,3 level in each mode | ||
Probe lock/release | ● | ● | |
Probe housing material | Super hard alloy protection case | ||
Tube material | Tungsten wire wear-resistant braided tube | ||
Ingress Protection(insertion tube) | IP67 | ||
Power supply | |||
Input power | Input:220±10%V 50Hz | ||
Output | Output DC:15V 6A | ||
Battery fast charging | Charging for 5 minutes can be used for half an hour; 50 minutes full charged. | ||
Host battery capacity | Voltage:7.4V,Capacity:5000mAh | ||
Handle battery capacity | Voltage:7.2V,Capacity:5000mAh | ||
Continuous working time | 6h（full charged） | ||
Operating environment | |||
System operating temperature | -20℃~60℃ | ||
Tip operating temperature | -20°C-100°C(With temperature alarm) | ||
Storage temperature | -20℃-60℃ | ||
Relative humidity | 15%-90% | ||
Accessories | |||
Special instrument case | ● | ● | |
USB flash disk | ● | ● | |
Power adaptor | ● | ● | |
Pipe centralized | ○ | ○ | |
Battery pack | ○ | ○ | |
Shoulder strap | ● | ● | |
Battery charge | ● | ● | |
HDMI cable | ● | ● | |
Customization | |||
Tube length,diameter,light source | ○ | ○ | |
Tube can be added with a scale | ○ | ○ | |
Software | ○ | ○ | |
Display size | ○ | ○ | |
Lens | ○ | ○ | |
*The specific parameters are subject to the actual product.Please contact to the sales for confirmation. | |||
