| Product Series | C65 HD Industrial borescope |
| Display Size | 6.5-inch HD Touch Screen |
| Camera pixels | 160,000 \1,000,000\1,000,000 PX |
| User Interface | Menu navigation by using touch screen,physical keys and joystick |
| Image Zoom | Support real-time 5 times zoom,8times zoom when playback |
| LED Brightness Level | 0-9 level adjustment |
| Tube Material | Tungsten alloy wire wear-resistant braided tube |
| Insertion tube length | 1-10m |
| Tip guidance capability | 360° all-way guidance |
| Compatibility | Replaceable insertion tube |
| Output Port | Micro HDMI |

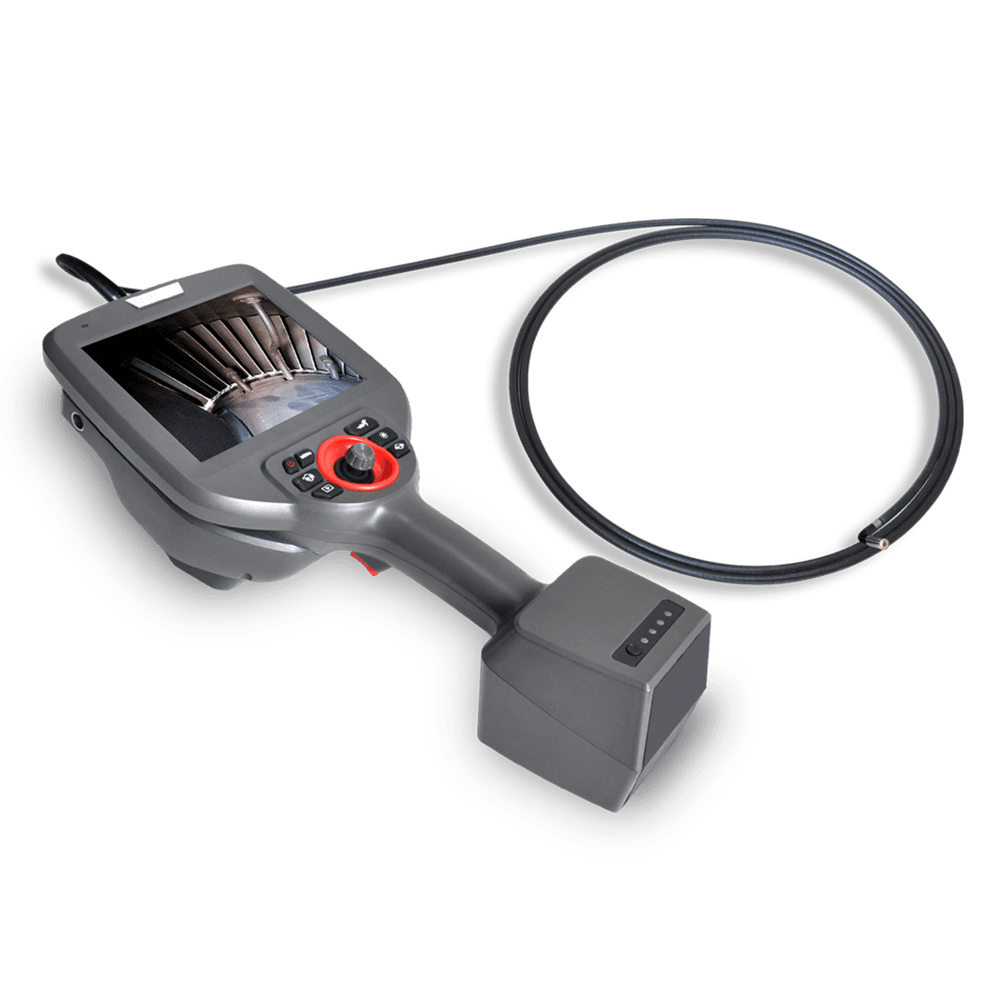

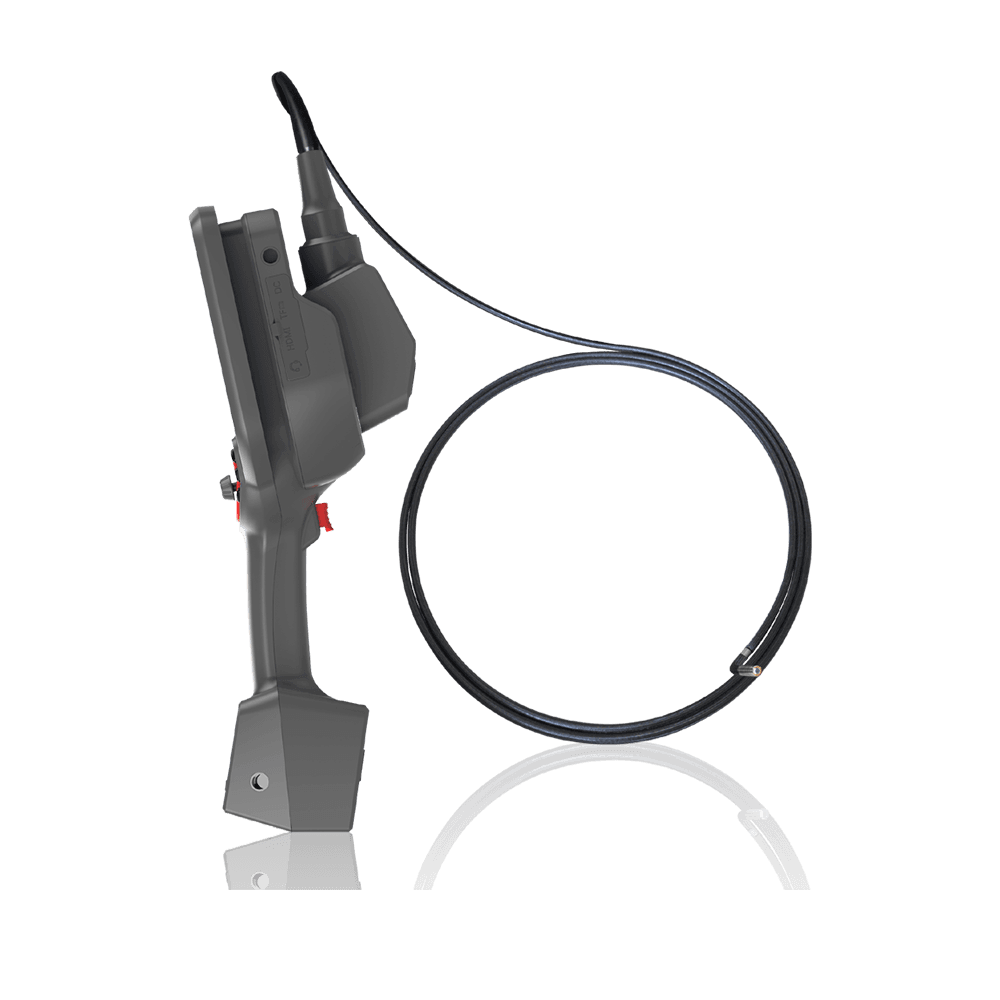

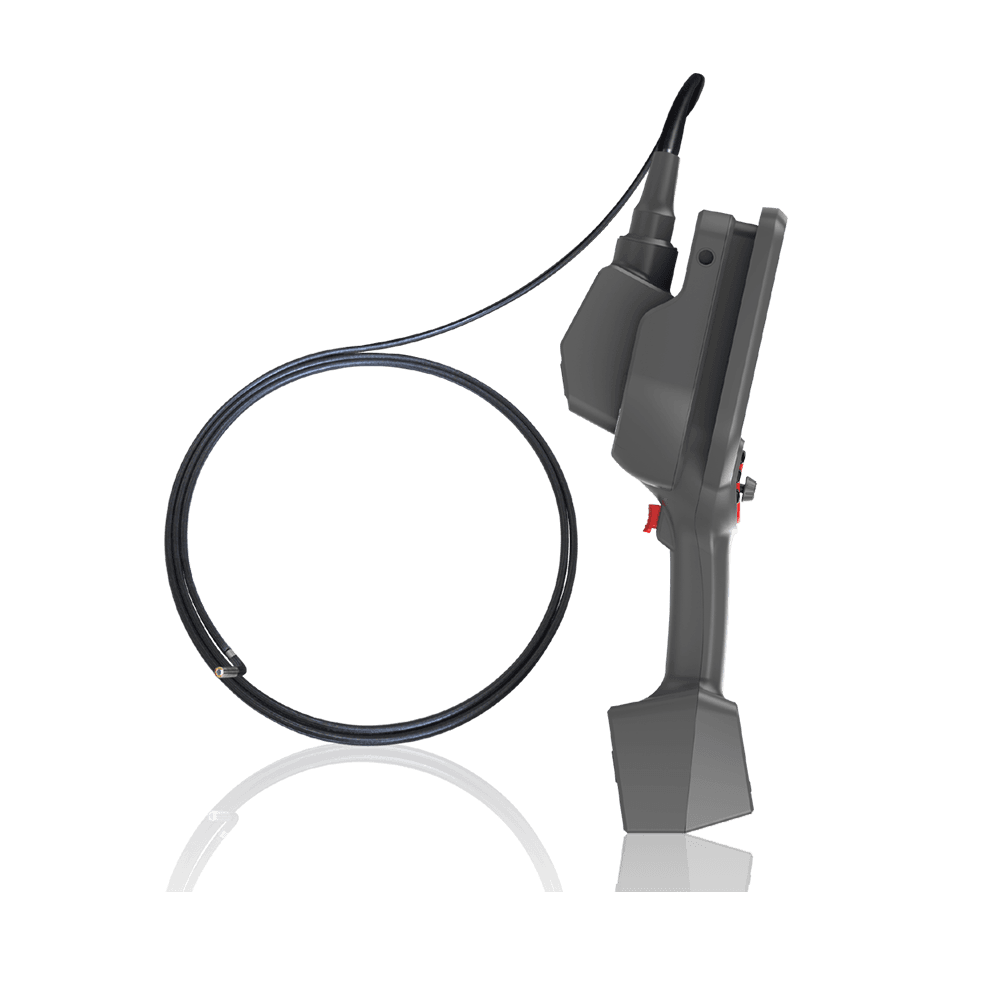

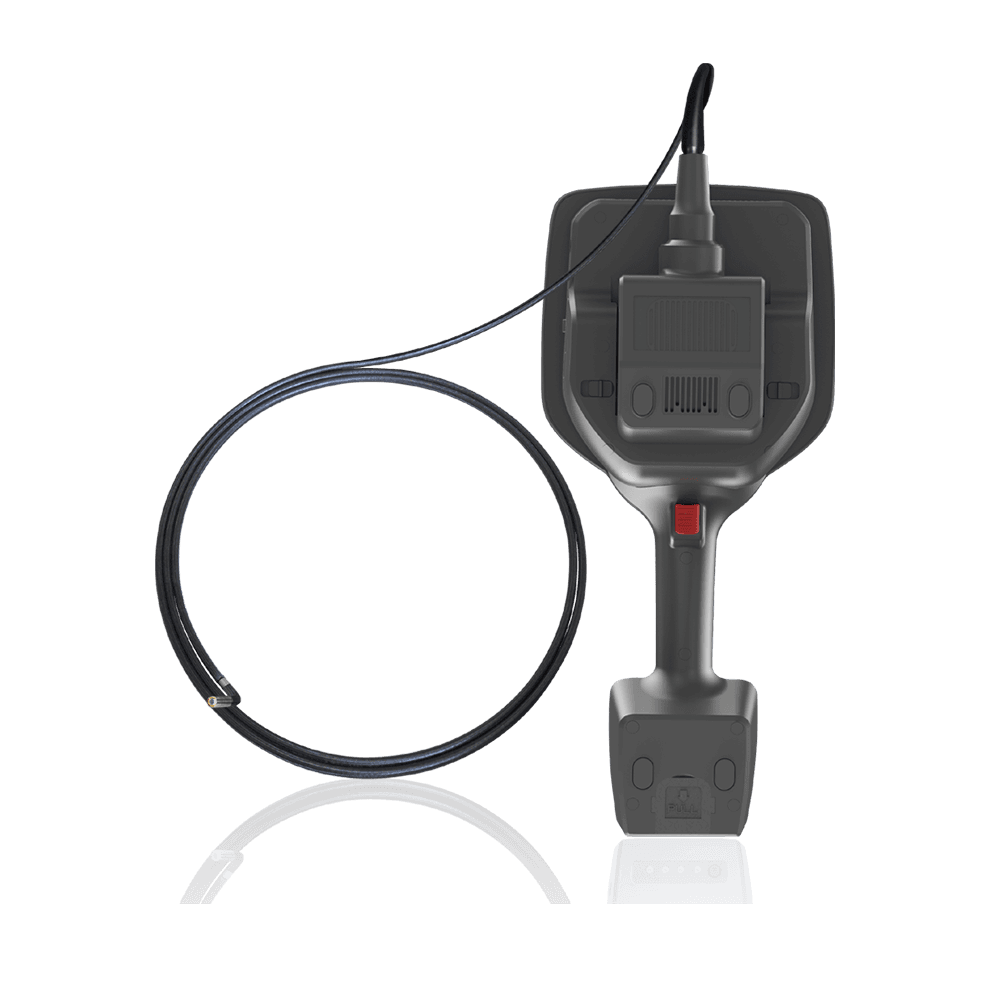

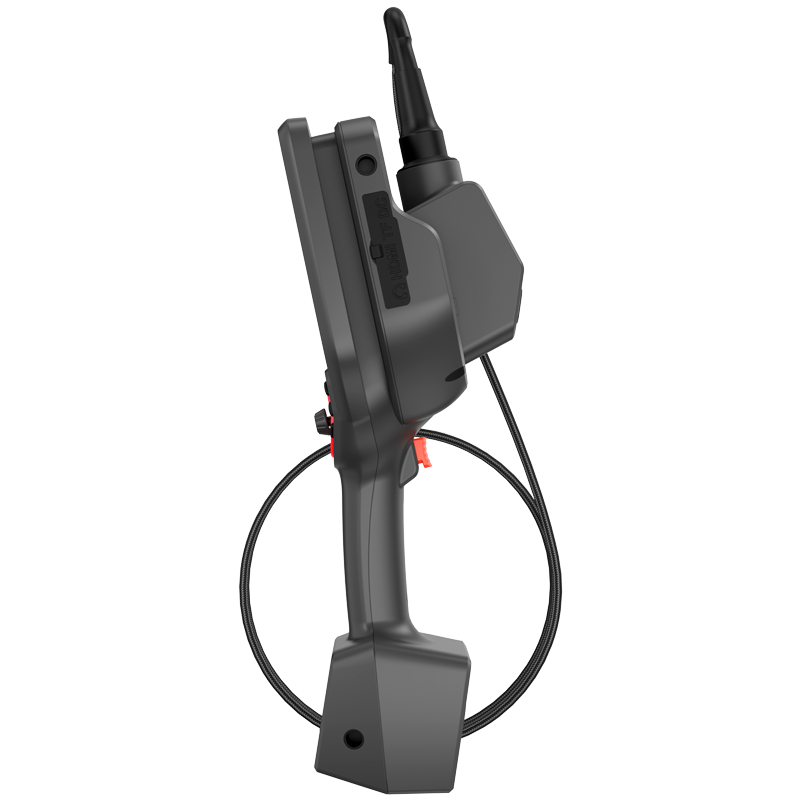

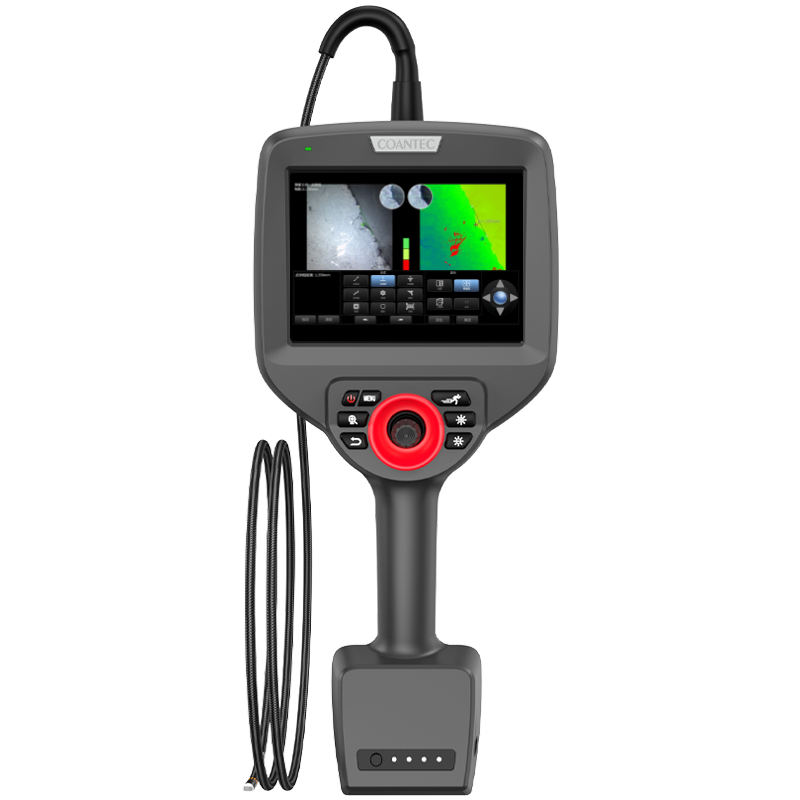

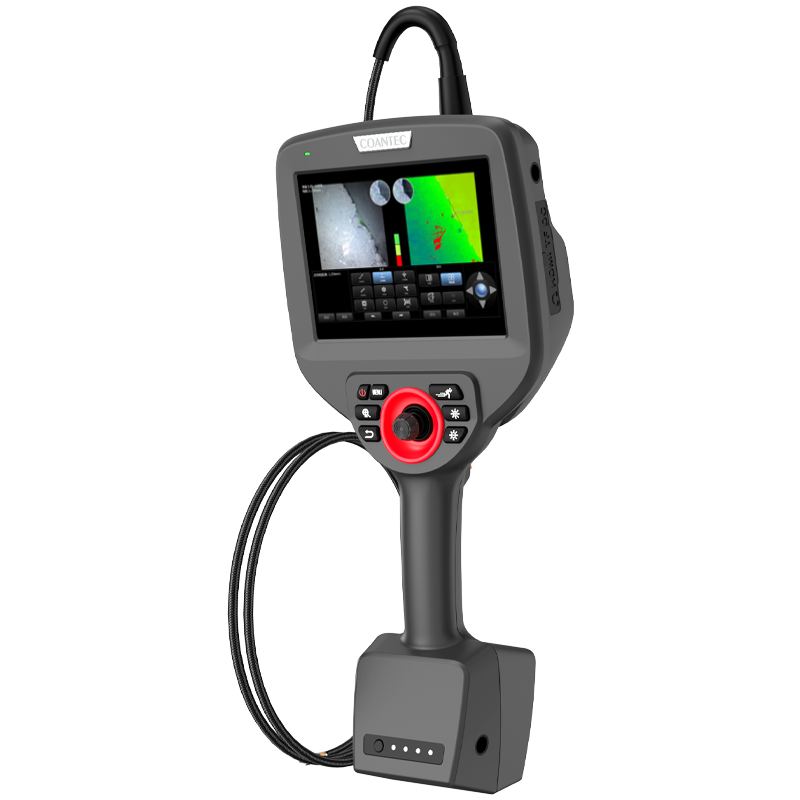

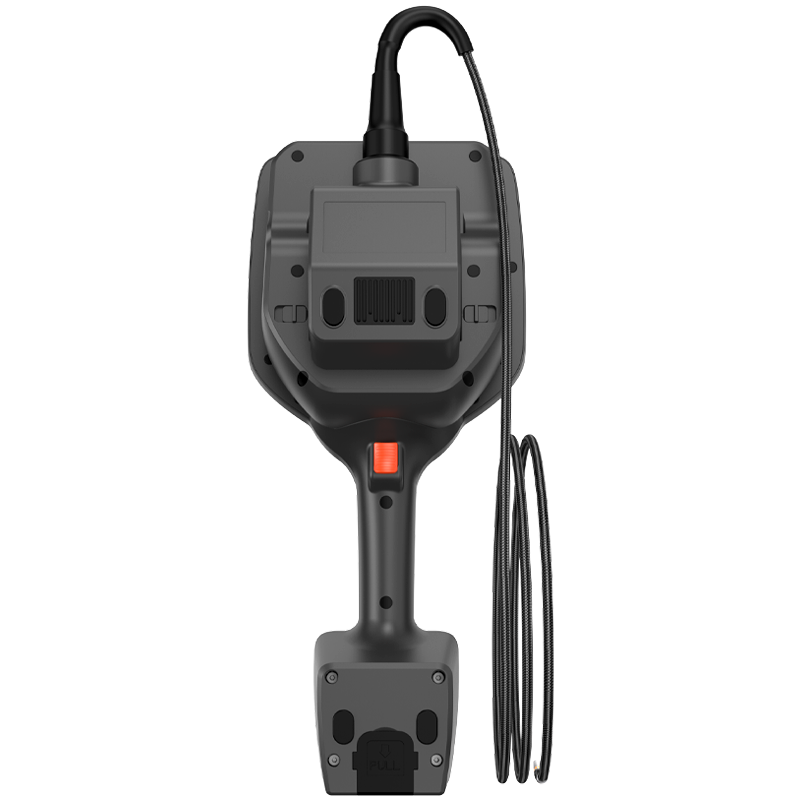

The C65 series is a high-definition industrial video endoscope that can be used for 3D measurement after years of careful research and development by Coantec.The product uses a 6.5-inch high-definition touch screen, 720P high-definition industrial camera, and excellent image sensing technology, which comprehensively improves the clarity of the image, restores the color of the measured object to a greater extent. It can realize the precise measurement functions of point-to-point, point-to-line, point-to-surface, depth, and area, and took the lead in breaking the long-term foreign monopoly on this technology.The joystick uses a single-touch electric control method, which greatly improves the positioning ability of the probe. It can be used in many fields such as aerospace, automobile manufacturing, precision casting, railway, shipbuilding, energy, electricity and so on.

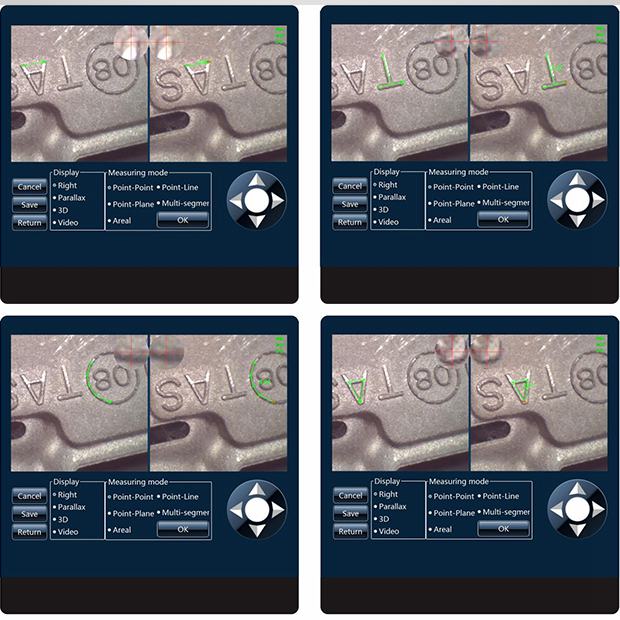

The user can measure the appearance size of the object in many ways, such as point-to-point, point-to-line, point-to-surface, multi-line segment, and area. The measurement resolution is 0.01mm and the measurement error is less than 5%.
It adopts 6.5-inch high-definition touch screen,megapixel high-definition industrial camera and high color reproduction,which makes the image quality clear and delicate, effectively observing the subtle defects inside the object.

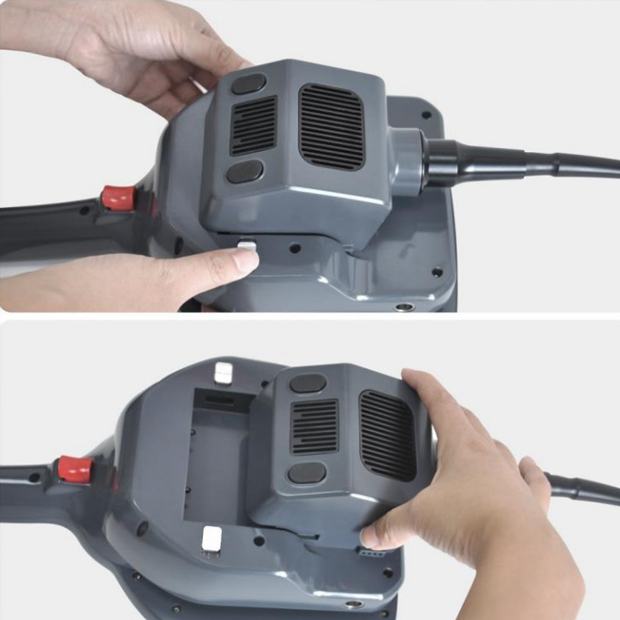

Users can quickly replace insertion tubes of different diameters, lengths and depths of field according to the situation, realizing multiple functions in one machine and meeting more field needs.

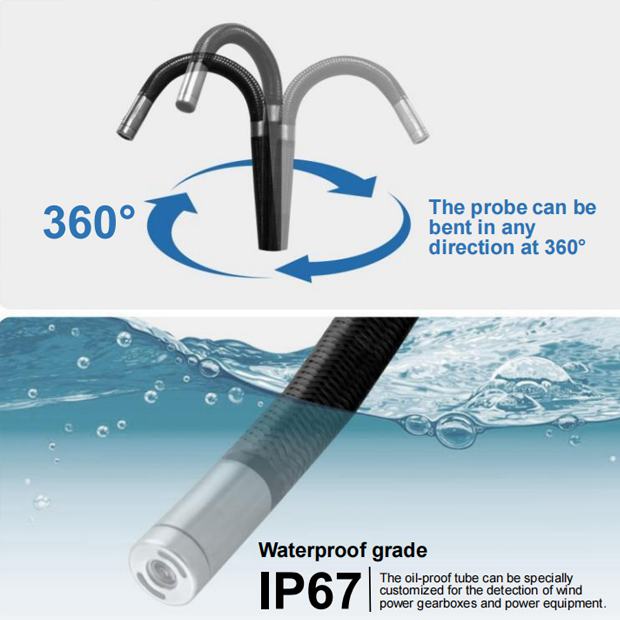

The probe is made of alloy material,360° all-way articulation,dustproof and waterproof grade up to IP67, strong corrosion resistance, more wear-resistant, custom-made oil-proof series, suitable for more severe testing environments.

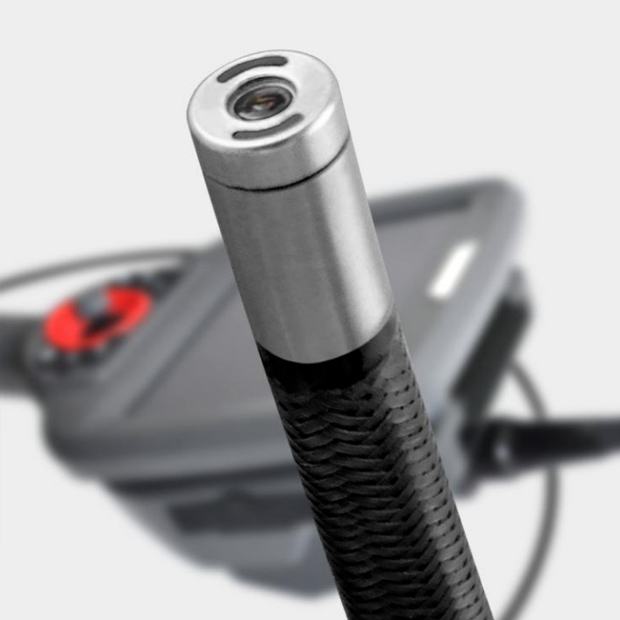

The use of rear-mounted LED optical fiber light guide lighting has higher brightness and better sealing performance, which effectively extends the service life of the probe.

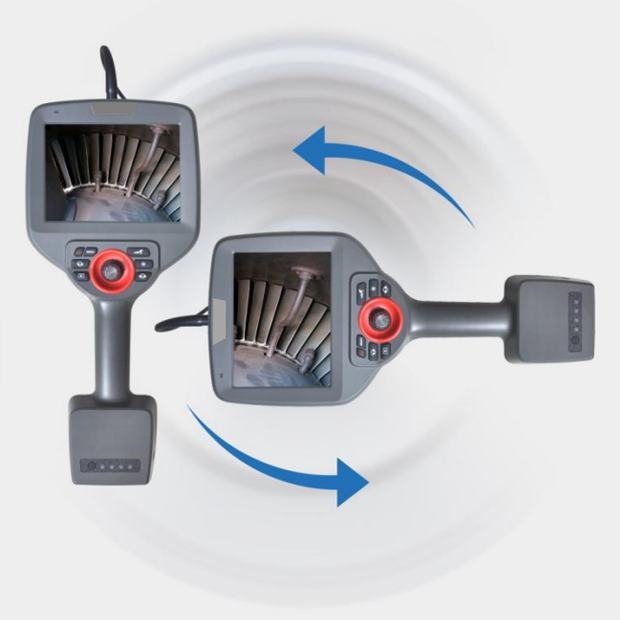

Equipped with G-sensor, the picture can be automatically flipped through the C gesture, so that the image is always at the best viewing angle of the inspector.

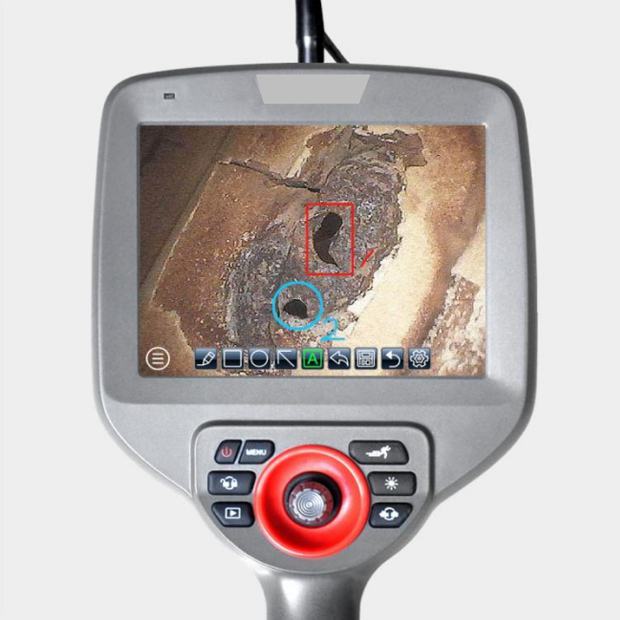

Users can zoom in, zoom out, restore, delete, rename files, add watermarks, do graffiti and other operations on the picture.In the graffiti interface, you can set the brush and character format, add text and graphic notes.

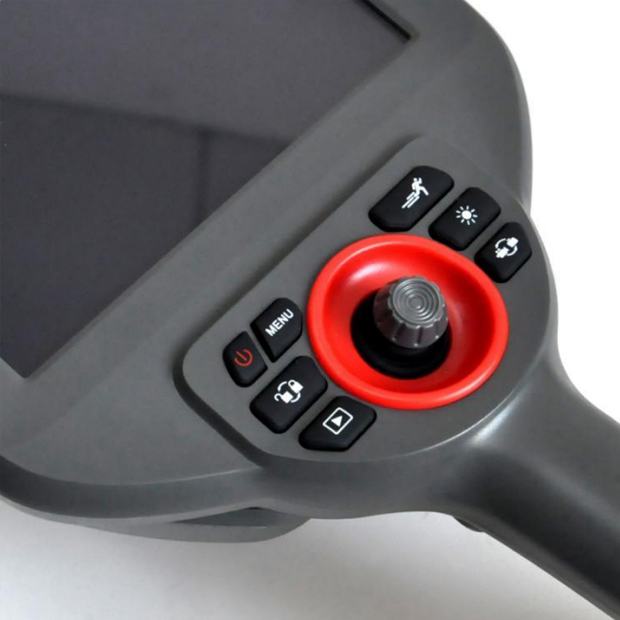

Adopting a new humanized user interface design, more tactile physical buttons and sensitive touch buttons, with a zero-delay electric control joystick, which makes it smooth movement, precise positioning, labor-saving operation, and effectively improve detection efficiency.
The host adopts a lighter design and is equipped with a quick-release special shoulder strap, which is more convenient to carry and operate, and fully reduces the burden on the inspectors.The ergonomically designed handle is easy to hold and manipulate. Equipped with a dedicated instrument case, shockproof and impact resistant, more robust and durable.
| Host | |
| Display | 6.5-inch HD Touch Screen |
| Display Resolution | 1024*768 |
| User Interface | Menu navigation by using touch screen,physical keys and joystick |
| Image Zoom | Support real-time 5 times zoom,8times zoom when playback |
| LED Brightness Level | 0-9 level adjustment |
| Screen Backlight Brightness | Adjustable |
| PhotoVideo Function | With photo and video functions,can be captured during recording |
| File Format | Image:JPEG/BMP;Video:MP4 |
| Image Flip | 0°/90/180°1270° |
| Image Preview | List preview,full-screen viewing/deleting files/adding time watermark |
| C Gesture Function | With C gesture image automatic flip function |
| Real-time Noise Reduction | Real-time noise reduction function to improve image quality |
| Text Annotation | Full screen text,graffiti overlay |
| Graphic Annotation | Arrow,box,circle mark |
| Memory | Standard 32G TF Card |
| Tube | |
| Handle Style | Electric handle/mechanical handle |
| Tube Material | Tungsten alloy wire wear-resistant braided tube |
| Probe Diameter(±0.1mm) | Φ2.0 φ2.8 中3.9 Φ4.8/6/Φ8 |
| Camera Pixels | 160,000 1,000,000 1,000,000 |
| Depth of Field | 5-50mm 5-100mm 8-80mm |
| Field of View | 120° 120° 85° |
| Tube Length | 1-1.5m 1-3m 1-3m 1-10m |
| Lighting Mode | Rear-mounted LED,optical fiber light guiding |
| Power | |
| Power Supply | DC:15V,Special lithium battery pack,support online charging |
| Battery | 11.1V,3200mAh |
| System Operating Time | ≥4H |
| Operation Environment | |
| Machine Operating Temperature | -10℃-50℃ |
| Probe Operating Temperature | -20℃-60℃ |
| Storage Temperature | -20℃-60℃ |
| Relative Humidity | 15%-90% |
| Configurations Standard Configurations | C60 videoscope x1,instrument case(Electric type with high -grade instrument case, with insert tube storage tray)×1,lithium battery ×2,power adapterx1,battery charger x1,8G SD card x1,card reader x1,user manualx1,precautions for usex1 |
| Optional Configurations | HDMI cable,Hand-held casing,High-grade instrument case(with insert tube storage tray), |
