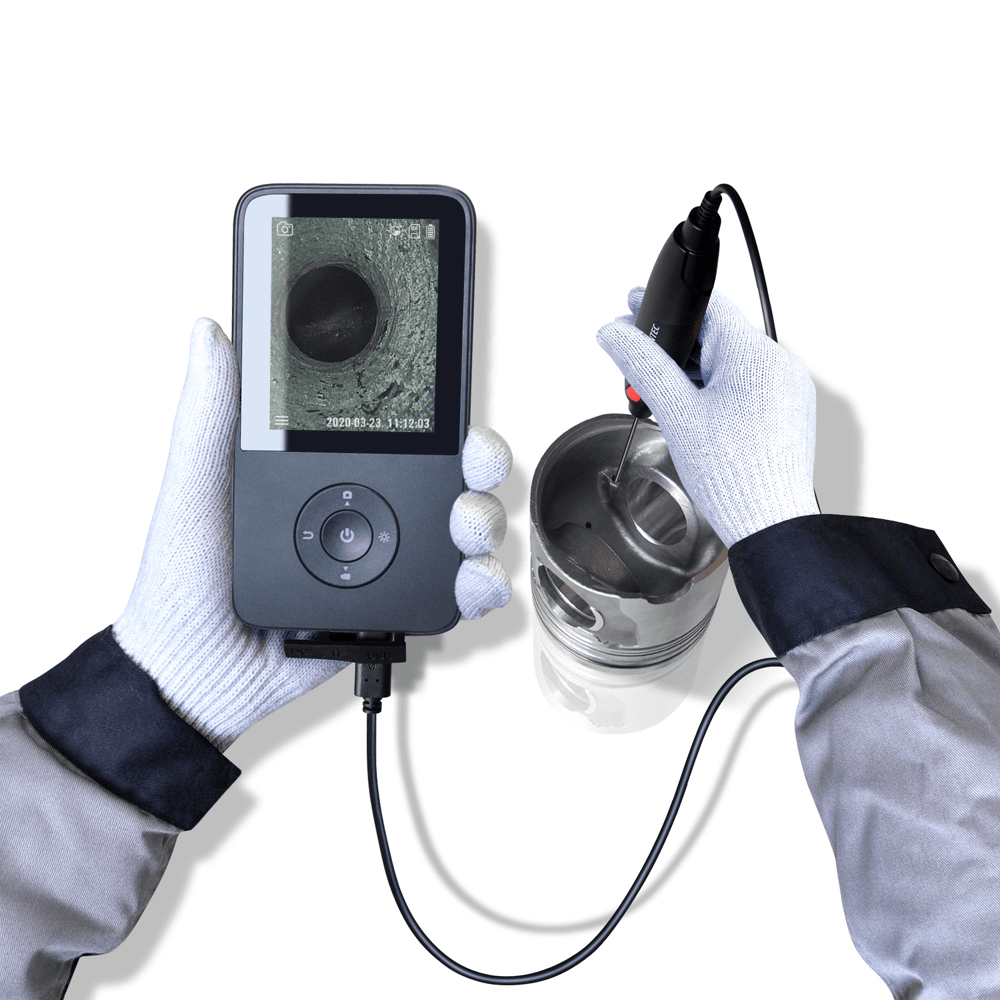

The C-ONE series is a newly developed tool type endoscope mainly used for rapid detection and diagnosis of small cavities. The host adopts a 3.5-inch high-definition display screen, with clear and smooth images, lightweight and portable, and can present real details inside objects anytime and anywhere. It is a practical daily endoscopic detection tool.
| Category | Item | Specification/Parameter |
| Host System | Display Size | 3.5-inch display |
| Aspect Ratio | 4:03 | |
| Charging Interface | DC (2.0×0.6); Type-C interface | |
| Time Watermark | Yes | |
| File Format | Images stored in JPEG/BMP format， videos in MP4 format | |
| Language | Simplified Chinese， Traditional Chinese， English， Japanese， and more than ten languages Korean， French | |
| Image Preview | List preview， full-screen viewing/deleting files | |
| Storage Medium | Standard 8GB TF card | |
| Photo/Video Function | Equipped with photo and video recording functions | |
| Host Weight | 0.2kg | |
| Host Dimensions | 151mm × 81mm × 20mm | |
| Pipeline System | Probe Material | Stainless steel straight rod (customizable soft tube) |
| Probe Diameter | 1.2mm / 1.6mm / 1.8mm / 2.0mm / 2.8mm / 3.9mm | |
| Pipeline Working Length | 15cm hard rod | |
| Pixel | 160'000， 1 million | |
| Depth of Field | Near focus | |
| Observation Direction | Straight view | |
| Field of View | 140° | |
| Illumination Method | Front LED | |
| LED Brightness Level | 0-3 levels adjustable | |
| Power System | Supply Voltage | DC5V， 2A |
| Battery | 3.8V， >2500mAh | |
| Charging Voltage/Current | 4.35V / 750mA | |
| Battery Working Time | ≥6 hours | |
| Operating Environment | Operating Temperature (Whole Machine) | -10℃ to 50℃ |
| Operating Temperature (Probe) | -20℃ to 60℃ | |
| Storage Temperature | -20℃ to 60℃ | |
| Relative Humidity | 15% to 90% | |
| Standard Accessories | Included Items | 1 host， 1 packaging box， 1 portable bag， 1 8GB TF memory card， 1 charger set， 1 user manual， 1 warranty card， 1 certificate of conformity |
