Lightweight and flexible
Constructed from ABS material, the unit features shock‑resistant and drop‑resistant performance for robust durability. Its compact structure ensures lightweight and convenient portability.
| Product Series | X1 Handheld Endoscope with Semi-Rigid Snake Camera |
| Display | Connect mobile phone |
| Mobile Phone System | Android and IOS |
| Image Zoom | The image can be pinched in/out for easy observation of local details |
| Brightness Adjustment | Brightness adjustment key,1~4 level adjustable |
| Product Dimension | 156mm*56mm*48mm |
| Product Weight | 0.34kg(includes battery);1.29kg(includes instrument case) |
| Resolution | 1280*720,960*720 |
| Time Display | Support |
| Image Rotation | Mobile phone touch keys control image rotation |
| Battery Capacity | 2200mAh,3.7V |

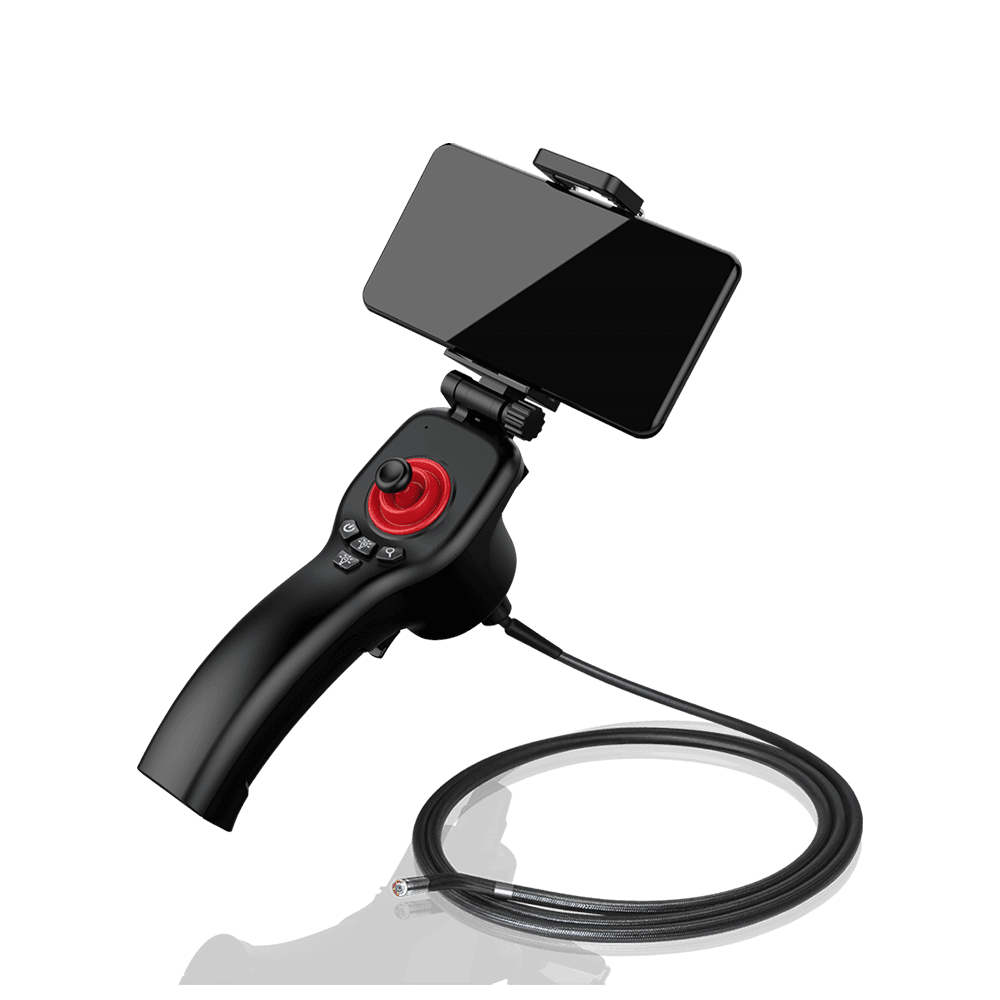

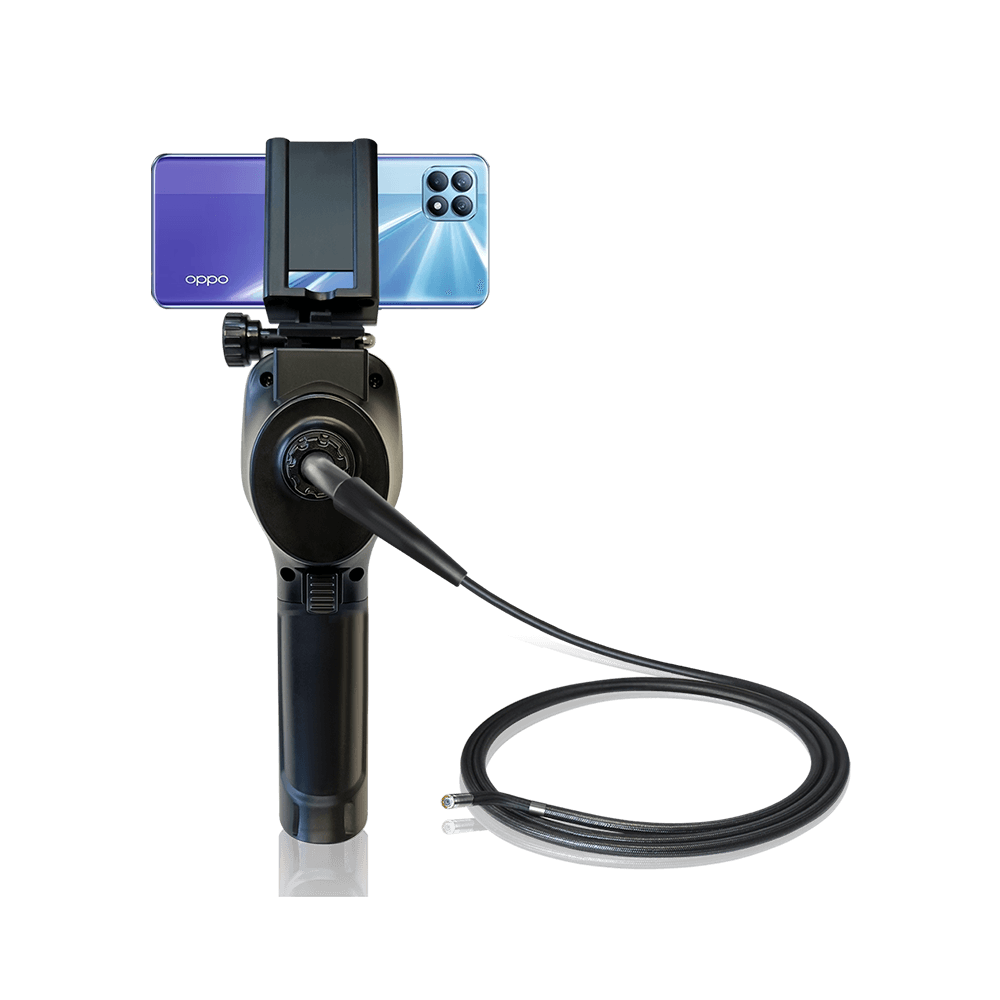

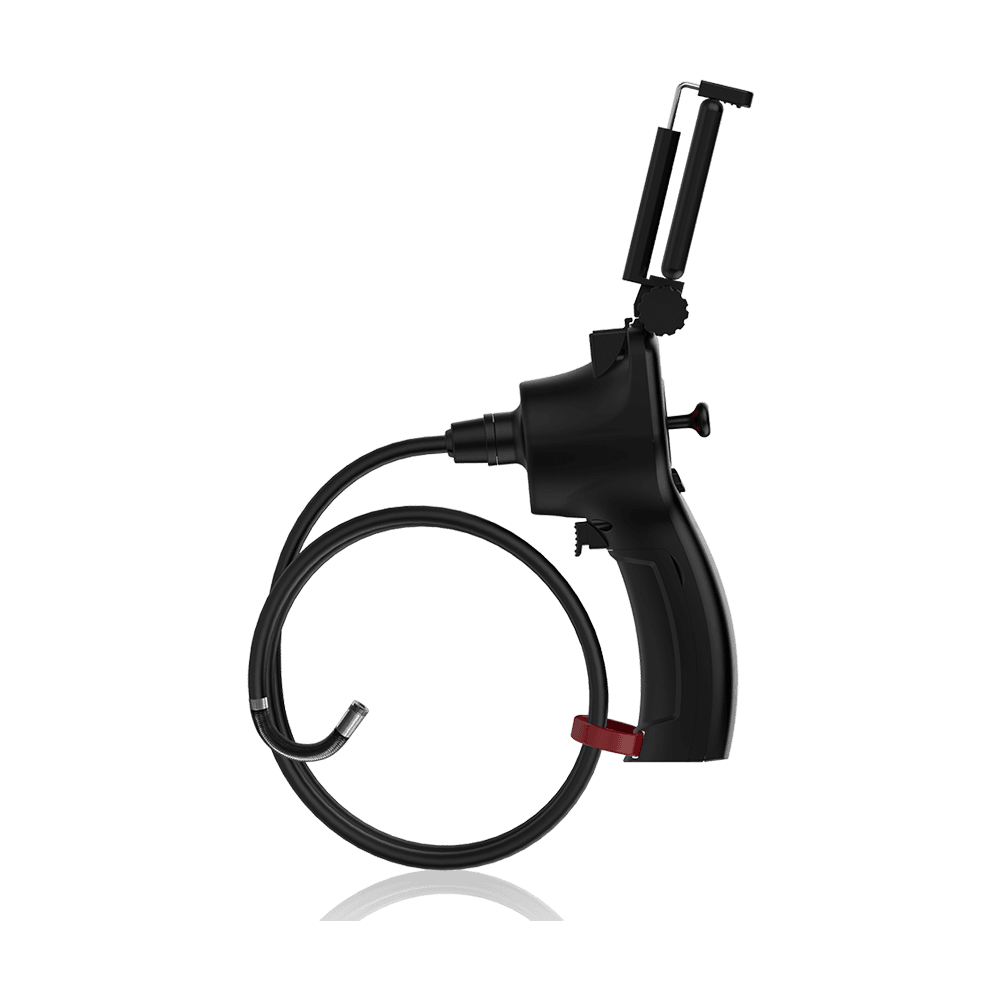

The X1 series is an innovative product combining an industrial borescope with a smartphone for visual‑inspection purposes. It uses a mechanical joystick to control 360° probe articulation. Operators can view internal conditions of inspected objects in real time via smartphone, capture photos and record videos with one‑click operation, as well as preview and share image and video files. Compact and easy to operate, it is suitable for various scenarios including vehicle maintenance, sewer inspection, home‑appliance repair and industrial inspection.
Constructed from ABS material, the unit features shock‑resistant and drop‑resistant performance for robust durability. Its compact structure ensures lightweight and convenient portability.

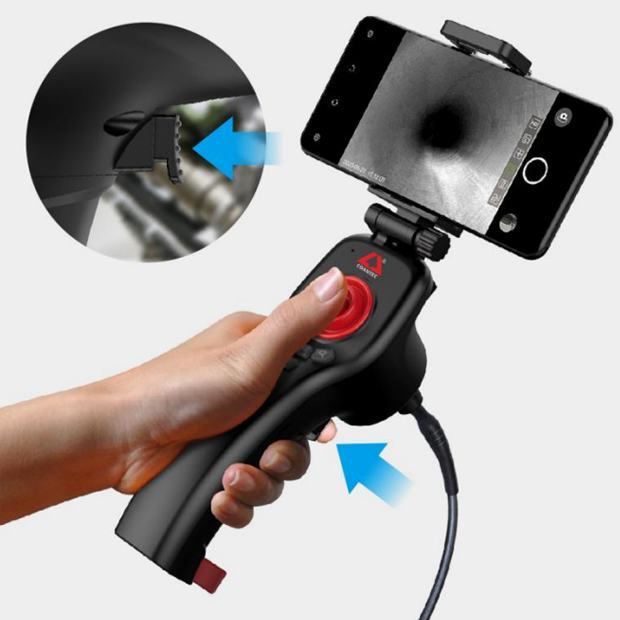

The ergonomically‑designed pistol‑grip fits the natural curve of the palm and delivers a comfortable holding feel. One‑key photo capture and video recording enable quick, convenient operation.

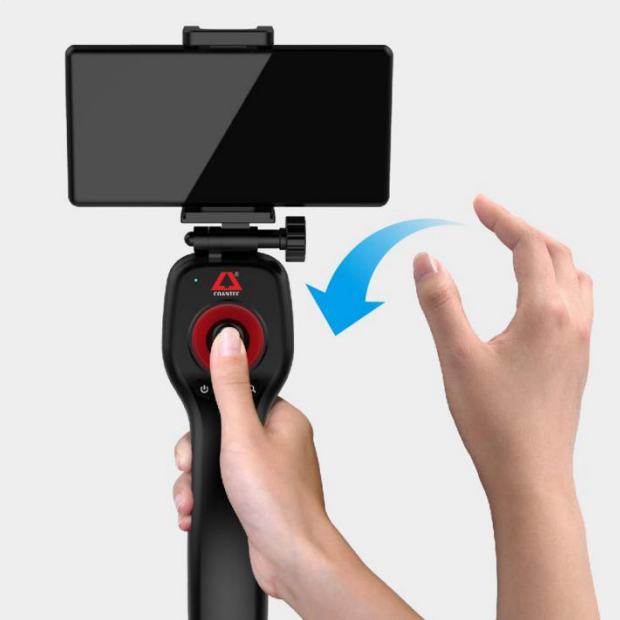

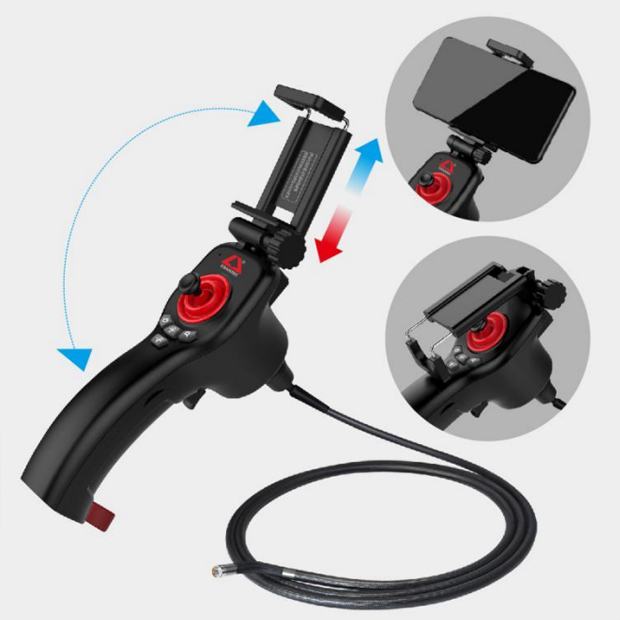

The smartphone mounts on a rotatable, telescopic support bracket. It can be pivoted back and forth for easy viewing‑angle adjustment, and is compatible with mobile phones of various specifications.

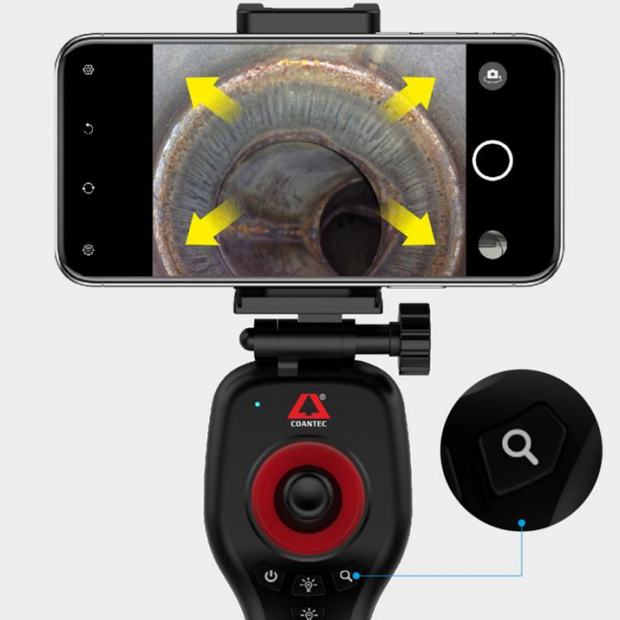

A physical image‑zoom button located on top of the grip allows magnifying and shrinking real‑time inspection images for convenient local‑detail observation.

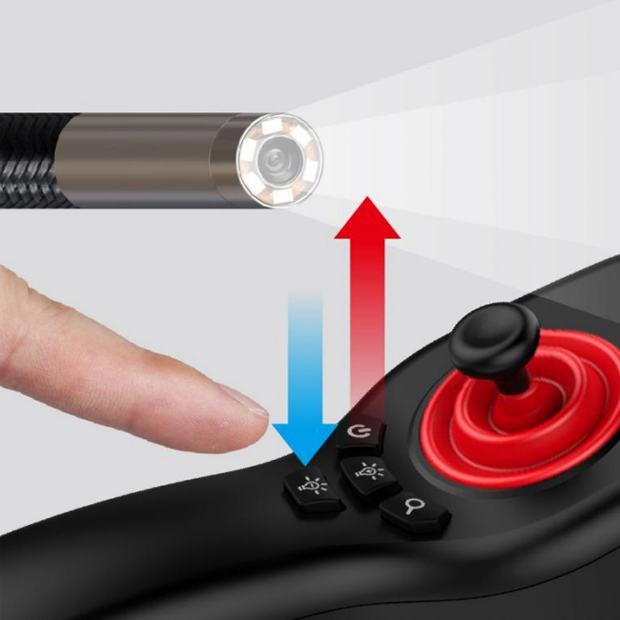

Adjust the current light brightness via the plus / minus buttons. Direct brightness adjustment without cyclic toggling saves time and effort.

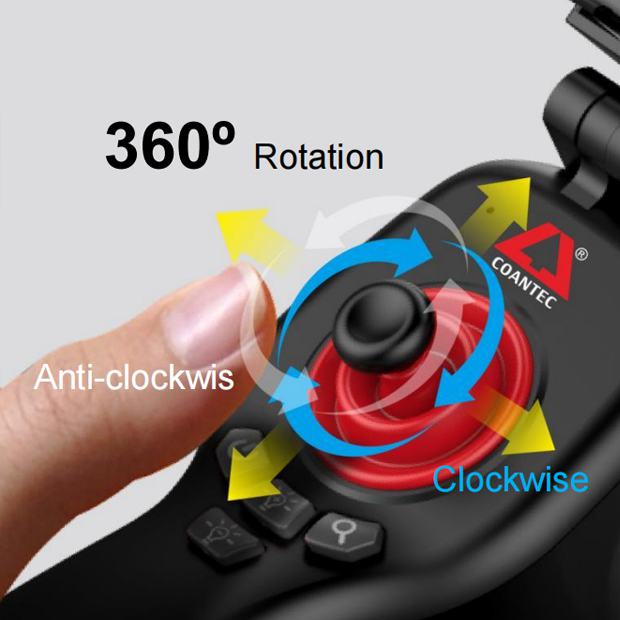

Manually controlled probe delivers flexible articulation with precise control angles and fast lag‑free response, providing an excellent operating experience.

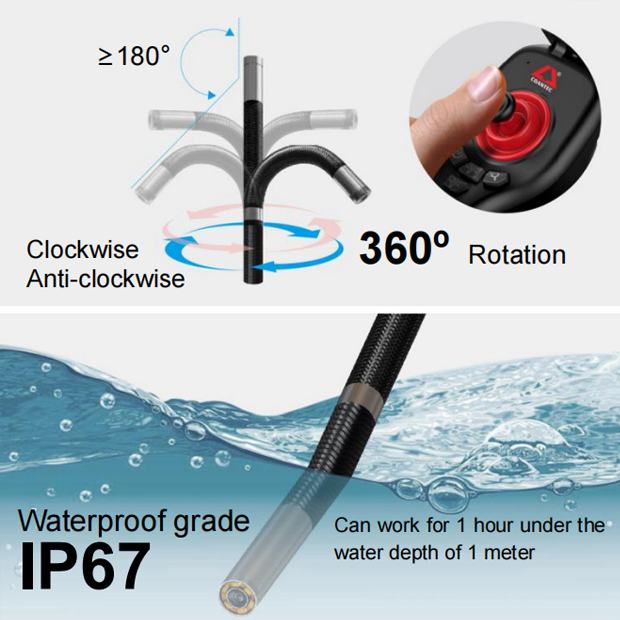

360°‑articulating probe enables omnidirectional, dead‑angle‑free observation of inspection targets. The non‑metallic operating tube achieves an IP67 protection rating: dust‑proof, and capable of 1‑hour operation under 1 m water depth.

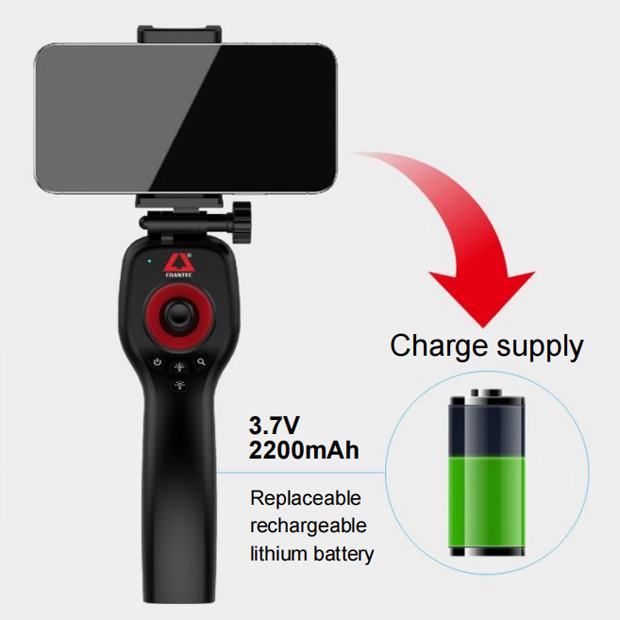

It adopts a replaceable rechargeable lithium‑ion battery. It supports charging for the smartphone when battery power is low, delivering ultra‑long standby time and extended runtime.

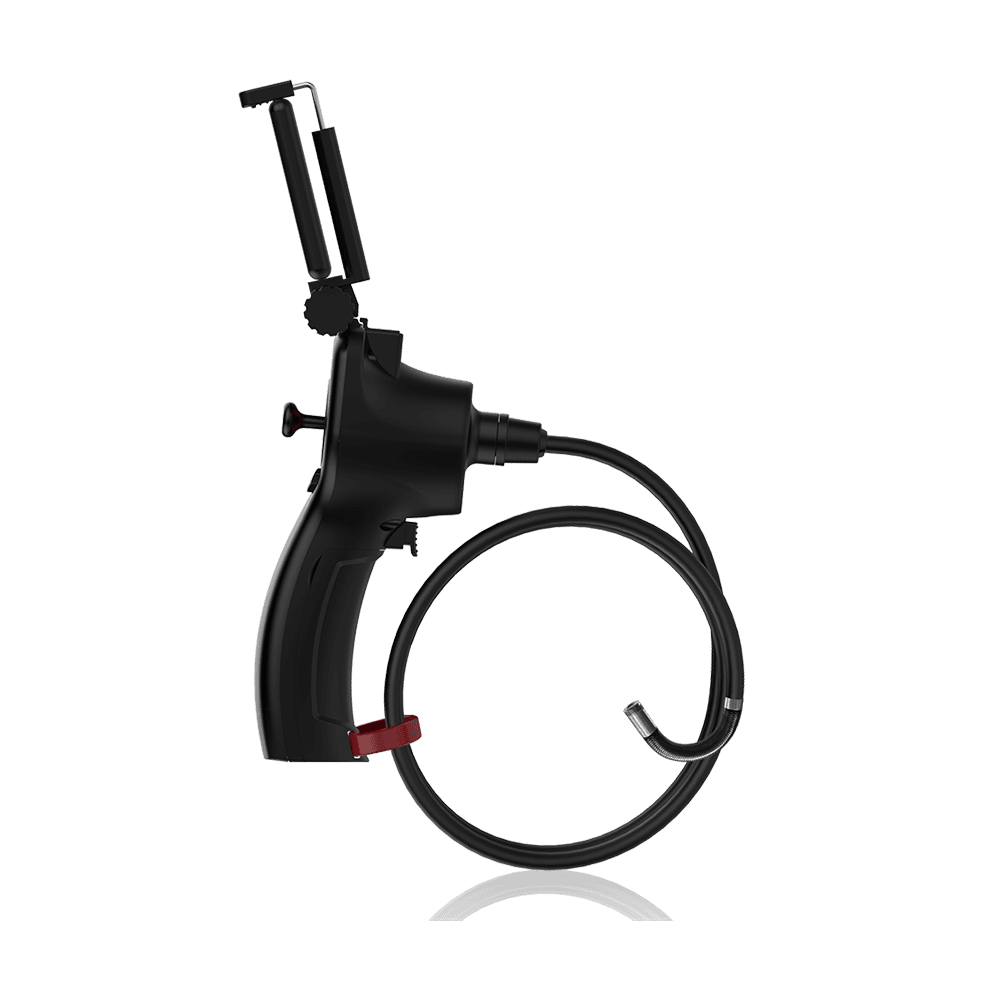

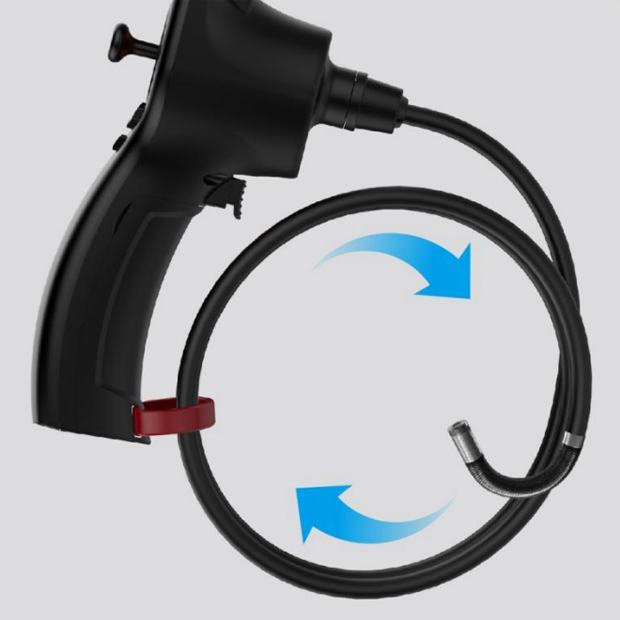

The rear end of the handle features a dedicated storage design for quick routing and securing of the insertion‑tube, keeping inspection work neat and organized.
Download and install the smartphone APP (supports both Android and Apple iOS systems). It enables real‑time image viewing, photo capture, video recording, file sharing and other functions.
| Host | |
| Display | Connect mobile phone |
| Mobile Phone System | Android and IOS |
| Image Zoom | The image can be pinched in/out for easy observation of local details. |
| Brightness Adjustment | Brightness adjustment key,1~4 level adjustable |
| Product Dimension | 156mm*56mm*48mm |
| Product Weight | 0.34kg(includes battery);1.29kg(includes instrument case) |

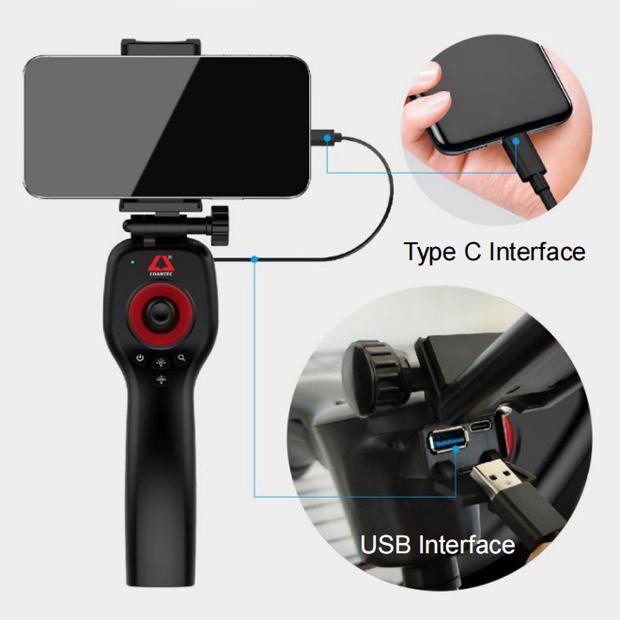

| Output interface | USB2.0 data interface (Note:Type C interface is only used for charging) |
| Software | |
| Resolution | 1280*720,960*720 |
| Time Display | Support |
| Image Rotation | Mobile phone touch keys control image rotation |
| Image Recording | Taking image and video |
| File Deletion | Support |
| File Sharing | Support |
| Video Playback | Previous video,play/pause,next video,switch horizontalvertical screen,fast forward/fast backward |
| Language | Simplified Chinese,Traditional Chinese,English,German,French,Japanese,Korean,Spanish, Italian,Russian |
| Power Supply | |
| Power Supply | Lithium battery |
| Battery Capacity | 2200mAh,3.7V |
| Battery Working Time | Around 3 hours |
| Insertion Tube | |
| Probe Diameter | 6.6mm |
| Probe Material | Hard alloy |
| Tube Material | Wear-resistant tube |
| Tube Length | 1m |
| Camera Pixels | 1,000,000 Pixels |
| View Direction | Forward-view |
| Depth of Field | 10-100mm |
| View Angle | 120° |
| Lighting Mode | Front LED light guiding |
| Probe Articulation | 360°all way |
| Probe Bending Angle in One Direction | ≥180° |
| Joystick Control Model | Mechanical control |
| Temperature Display | Support |
| Compatibility | Tube can't be replaced |
| Protection Grade | Probe IP67,Host IP55 |
| Protective Device | Buffer protection device for connecting host and wear resistant tube |
| Operating Environment | |
| Host Operating Temperature | -20℃~50℃ |
| Tip Operating Temperature | -25℃~70℃ |
| High Temperature Alarm | When the probe temperature is higher than 90℃,the temperature display font changes to red,stop using |
| Stock Temperature | -40℃~60℃ |
| Standard Accessories | Hostx1,Instrument casex1,Type C data cablex1,Charge cablex1,Apple data cablex1,Adapterx1, Rechargeable lithium batteryx1,User manualx1. |
