| Product Series | ME+ |
| Display Size | 3.5-inch HD display |
| Camera pixels | 1M |
| Menu Language | Simplified Chinese,Traditional Chinese,English,Japanese,Korean, French,German,Portuguese,Spanish,Russian etc. |
| Document Format | Image :JPEG/BMP;Video:MP4 |
| Photo/Video | Can take images and videos,and snapshot when recording |
| ScreenBacklight Brightness | 3-level adjustment |
| Storage Medium | Standard 8G capacity TF card,maximum support 32G |

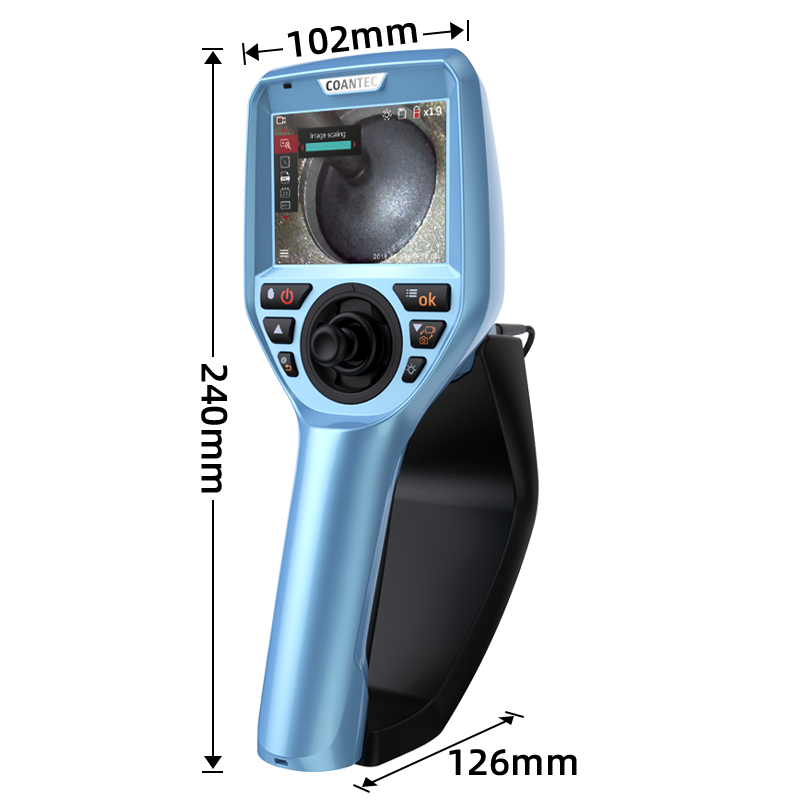

| Host Dimension | 240mm*102mm*126mm |
| LEDBrightness Level | 0-7 level adjustment |
| Output Port | Micro HDMI |

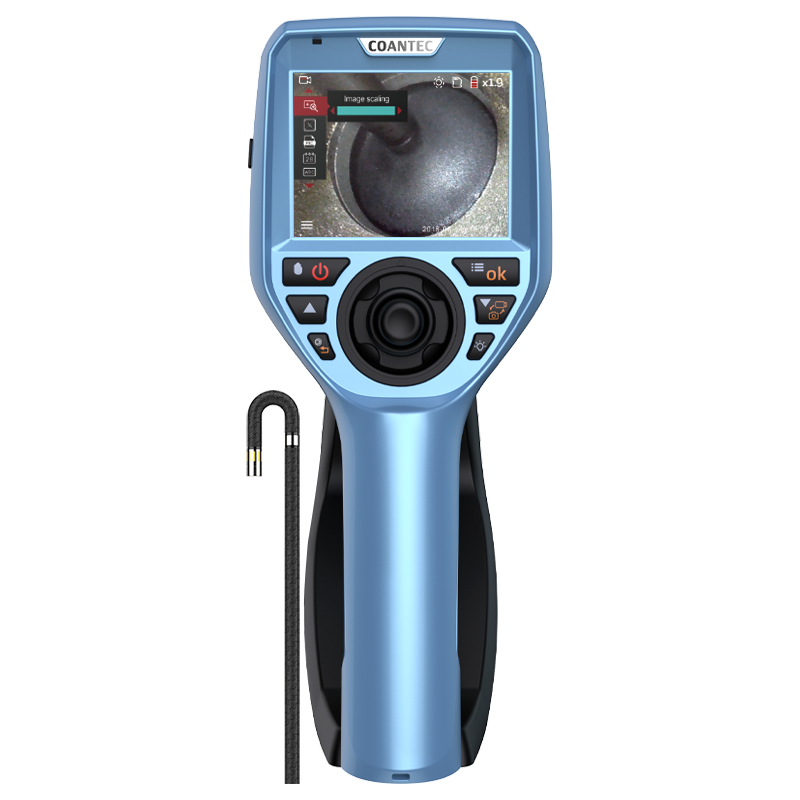

The ME+ series automotive endoscope is equipped with a 3.5‑inch high‑definition display and a megapixel‑grade high‑definition industrial camera. It delivers sharp, fine‑textured inspection images with vivid colors for effective observation of internal surface conditions of test objects. Images are saved in BMP lossless format without quality degradation. Operators can capture high‑quality static snapshots and dynamic video footage via photo and video recording functions.

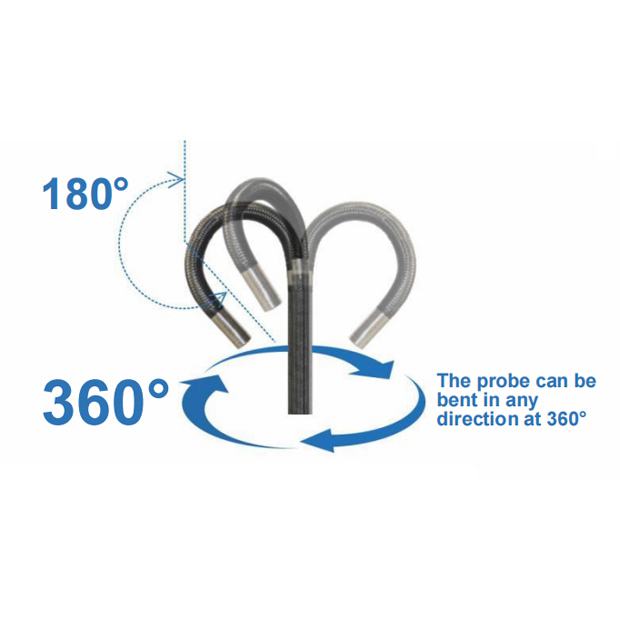

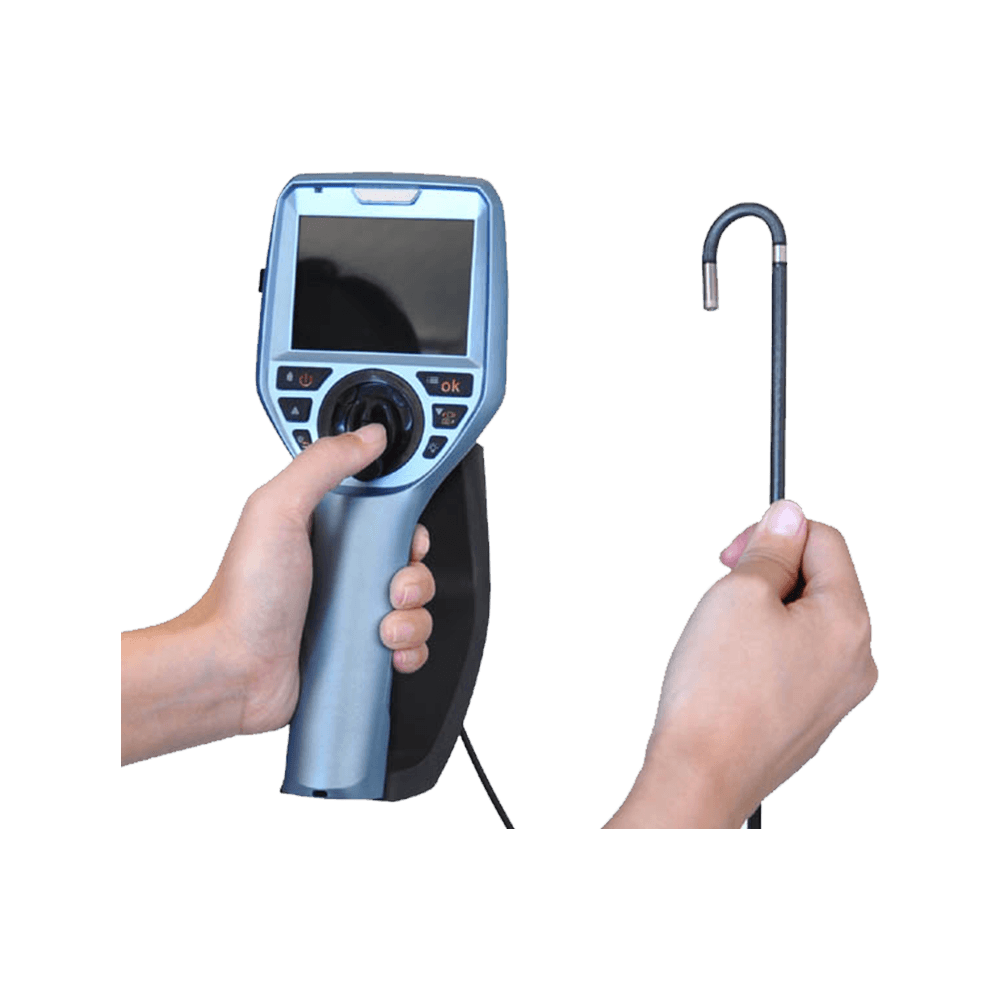

The probe features newly‑designed precision‑machined articulation components. It achieves a min. 180° flat‑state bending angle for an expanded observation range. When inspecting automotive engines, valves can be directly viewed without multi‑angle adjustments.

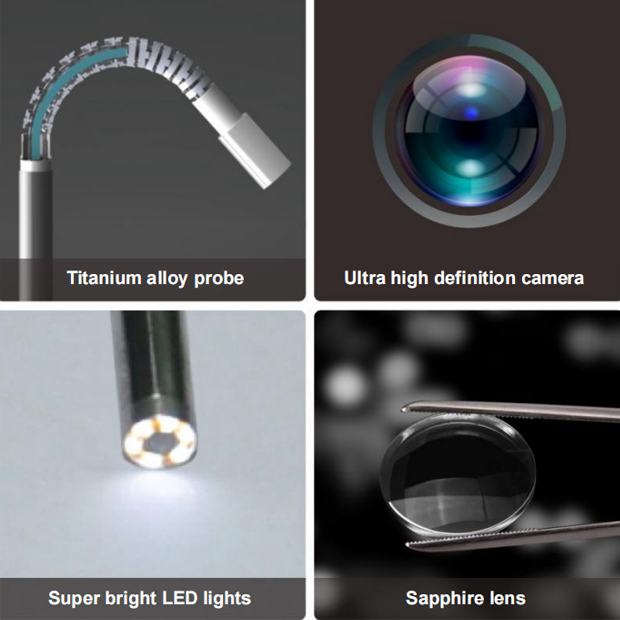

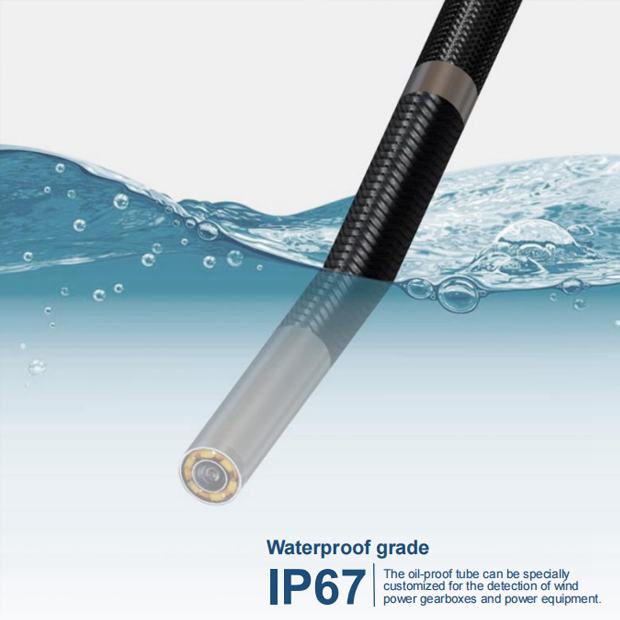

● The insertion‑tube is constructed with tungsten‑alloy wire, featuring a new double‑isolation structural design and refined laser‑welding technology. It reaches IP67 dust‑proof and water‑proof rating, and oil‑proof customization is available for oily‑environment applications. ● Optional cooling‑system enhances the probe’s high‑temperature resistance. It can operate at up to 200 °C, eliminating long waiting time for engine cool‑down.

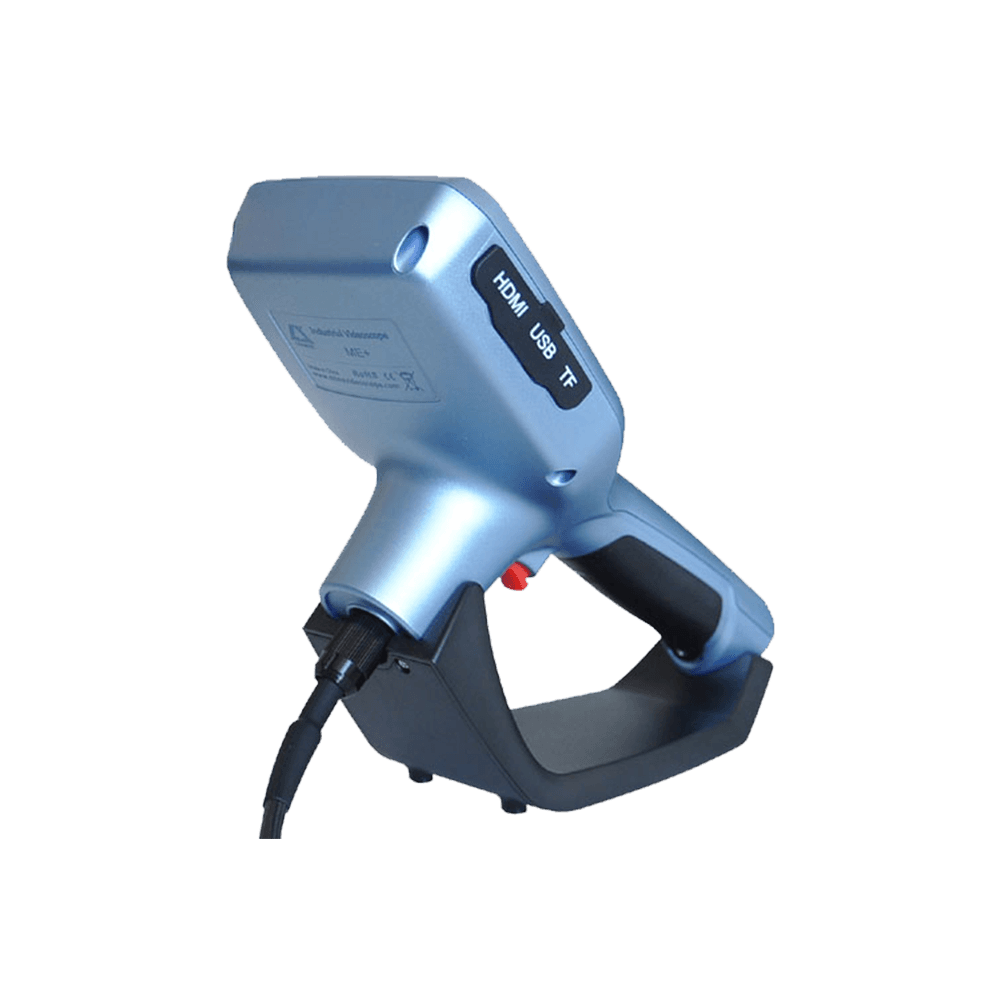

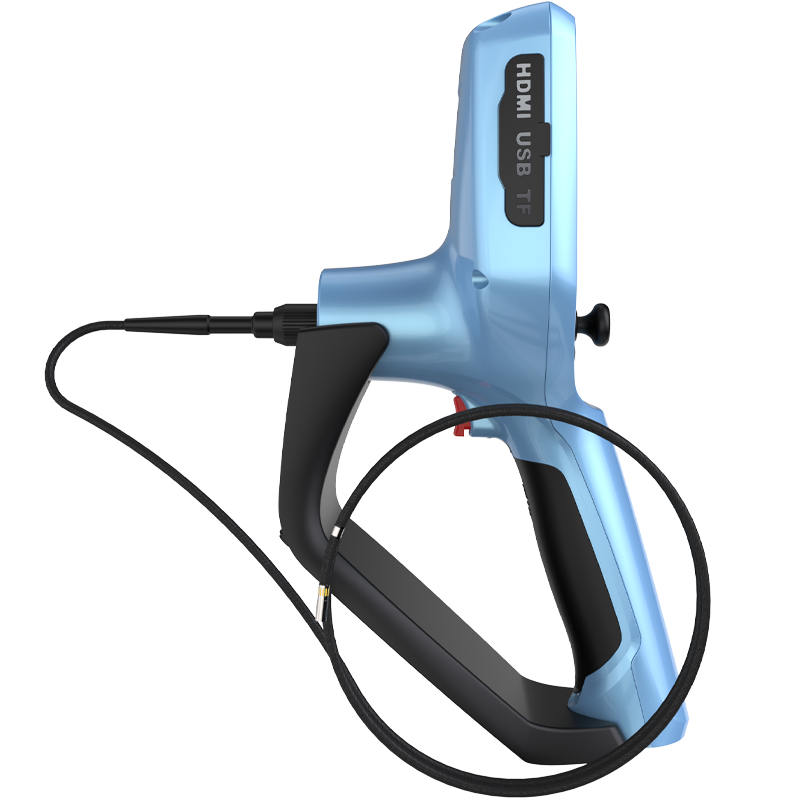

Real‑time inspection images can be transmitted to an external large‑size display via the HDMI video‑output interface. This facilitates convenient viewing, ideal for expert review or multi‑person consultation, delivering more accurate and reliable diagnostic and analysis results.

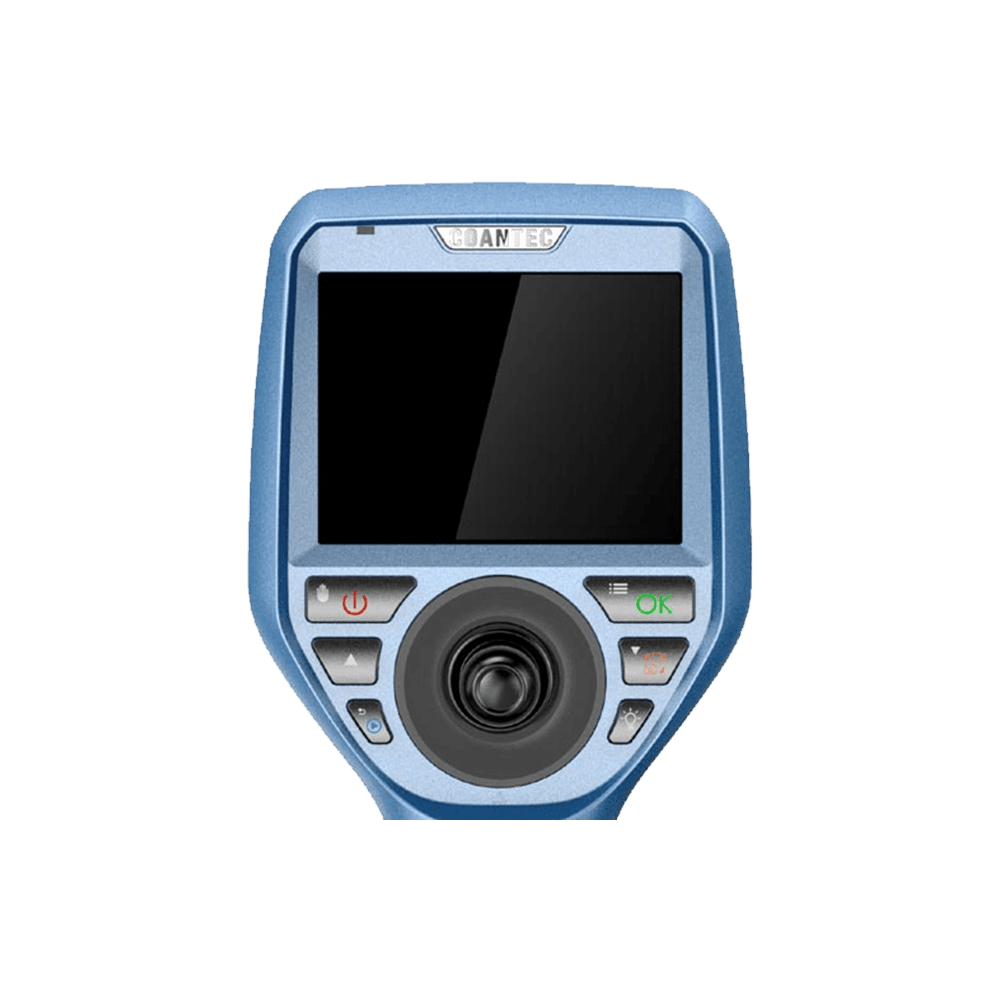

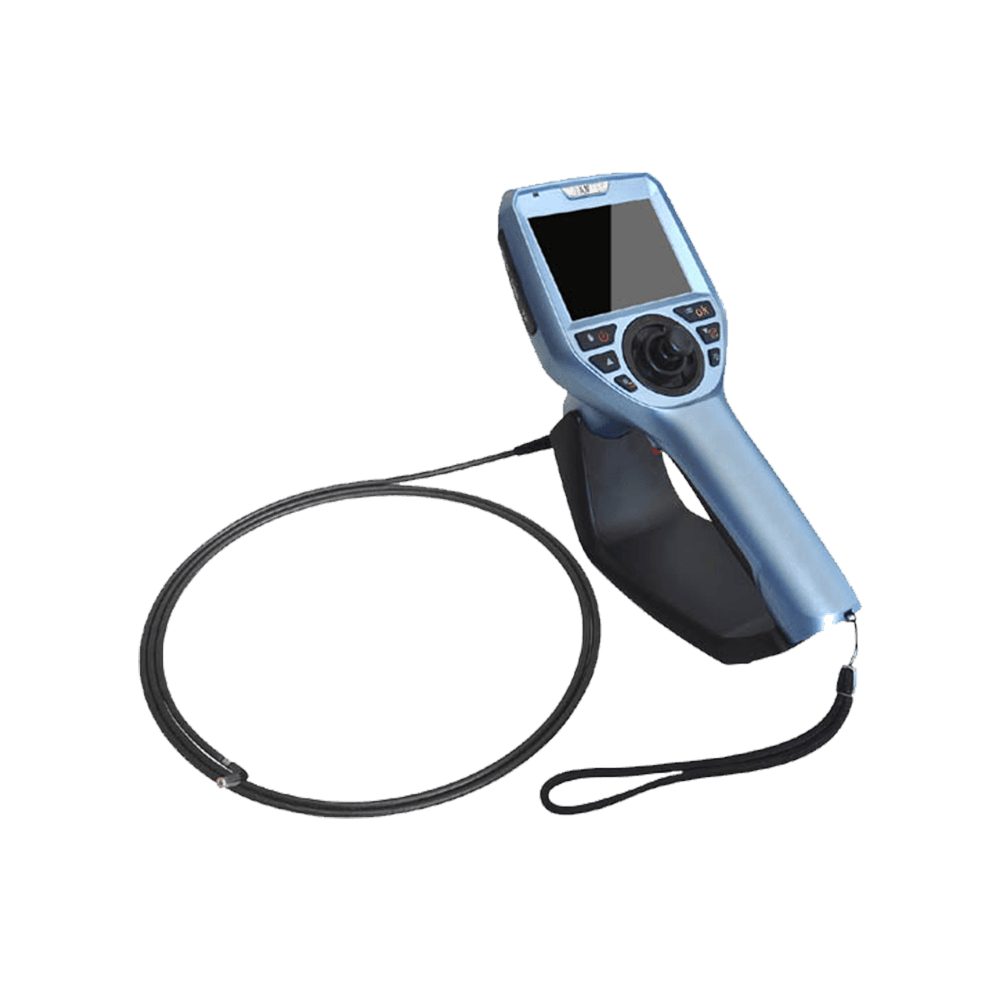

The host features an ergonomic design, being lightweight, portable and easy for one-handed operation. It adopts a user-friendly and intuitive interface, allowing new users to get started quickly even on first use. Passing professional drop tests, the product delivers durable and stable performance with outstanding cost performance.
Host | |
Display Dimension | 3.5-inch HD display |
Display Resolution | 640*480 |
Digital Zoom | Support real-time 4x zoom ,8x partial zoom when playback |
LED Brightness Level | 0-7 level adjustment |
Assistant Measurement | Cross cursor |
Photo/Video | Can take images and videos, and snapshot when recording |
Document Format | Image:JPEG/BMP; Video:MP4 |
Image Rotation | 0°/90°/180°/270° |
Image Preview | List mode/full screen mode |
Screen Backlight brightness | 3 -level adjustment |
Output Port | Micro HDMI |
Host | |
Menu Language | Simplified Chinese、 Traditional Chinese、English、Japanese, Korean, French, German, Portuguese, |
Spanish, Russian, Italian, Dutch etc. | |
Host Dimension | 240mm*102mm*126mm |
Package Dimension | 411mm*321mm*165mm |
Host Weight | 0.45kg(include battery) |
Insertion Tube | |||||||||
Diameter (±0.1mm) | Φ0.95 | Φ1.2 / Φ1.6 | Φ1.8 | Φ2 | Φ2.8 | Φ3 | Φ3.9 | Φ4.8 | Φ6 |
Camera pixels | 160K | 160K | 160K | 160K | 160K | 1M | 1M | 1M | 1M |
View direction | Direct view | Direct view | Direct view | Direct view | Direct/side view | Direct view | Direct/side view | Direct/side view | Direct/side view |
Depth of field | 5-50mm | 5-50mm | 5-50mm | 5-50mm | 5-50mm | 3-50mm | 5-100mm | 8-80mm | 8-80mm |
Field of view | 120° | 120° | 120° | 120° | 120°/70° | 130° | 120°/70° | 120°/70° | 120°/70° |
Working length of insertion tube | 1-2m | 1-2m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-7m |
Lighting mode: Optical fiber or Front LEDs | Fiber | LEDs | LEDs | LEDs | LEDs/ Fiber | LEDs | LEDs/ Fiber | LEDs/ Fiber | LEDs/ Fiber |
Tip guidance capability | No articulation | No articulation | 4-way | 360° all-way guidance | |||||
Tip unidirectional bending angle | / | / | / | 150° for insertion tube length ≤3m; 120° for length ranging from 3-5m; 90° for length ≥7m | |||||
Insertion tube material | Tungsten alloy wear-resistant braided tube | ||||||||
Tip material | Hard alloy protective shell | ||||||||
Guidance control method | / | / | Mechanical control | ||||||
Compatibility | Replaceable insertion tube | ||||||||
Protection device | Buffer protection device for connection between host and wear-resistant tube | ||||||||
Tip waterproof rating | / | / | / | IP67 | |||||
Power | |
Power Supply | Rechargeable lithium battery (with reverse battery protection.) |
Battery | 3.7V,3200mAh |
System Operating Time | ≥4H |
OperationEnvironment | |
Systerm Operating Temperature | -10°C-50°C |
Probe Operating Temperature | -20°C-60°C |
Storage Temperature | -20°C-60°C |
Relative Humidity | 15%-90% |
Configurations | |

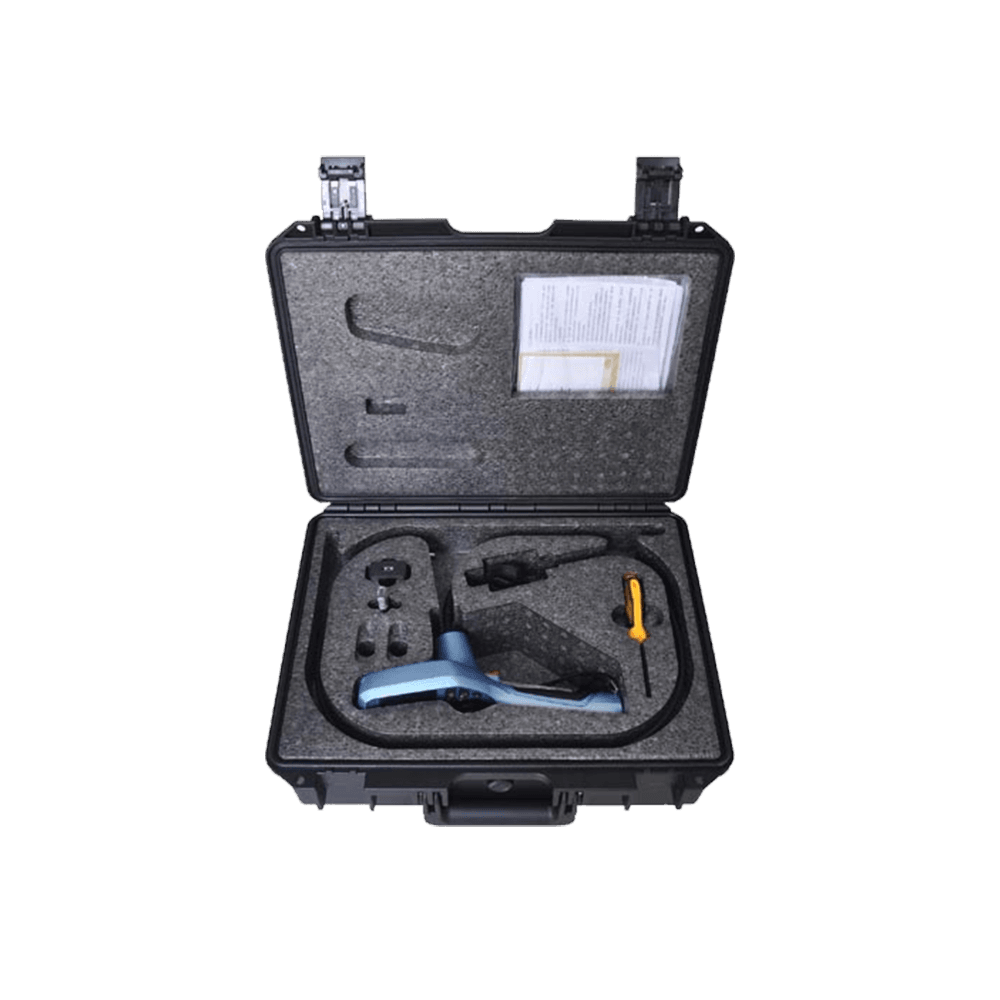

Standard Configurations | ME+ videoscope x1,instrument case x1,magnetic base x1, lithium battery x1, charger x1, card reader x1, 8G TF card x1, anti-fall hand strap x1,user manualx1,precautions for use x1 |
