| Diameter + Tolerance(mm) | 6mm±(0.1mm) |
| Model | GD120DM |
| Field of view of camera(°) | 120° |
| Standard depth of field(mm) | 2-10/3-20 (optional) |
| Marking/Color | 120DM(no color) |

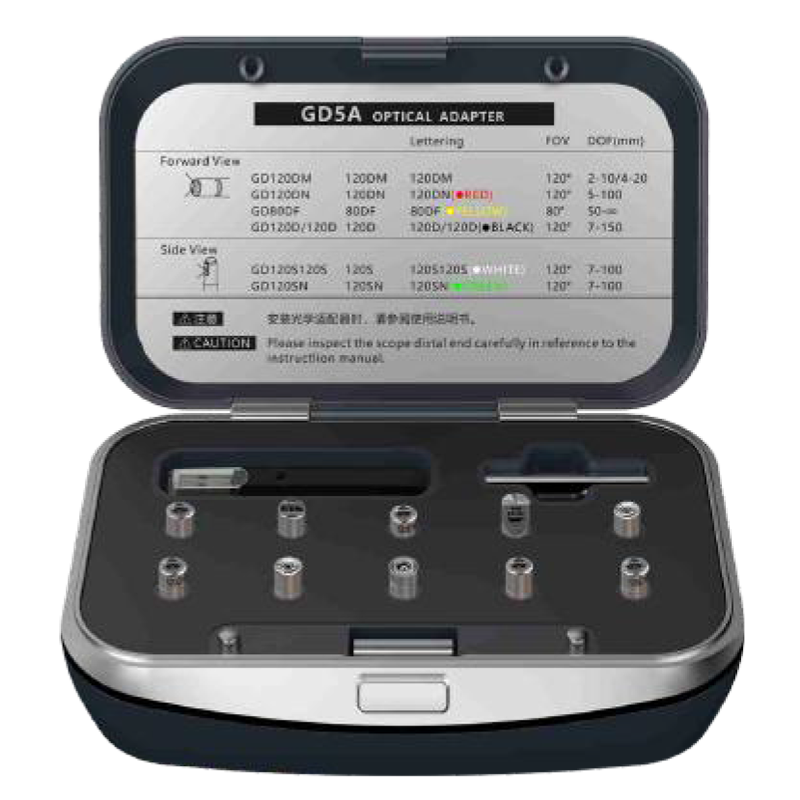

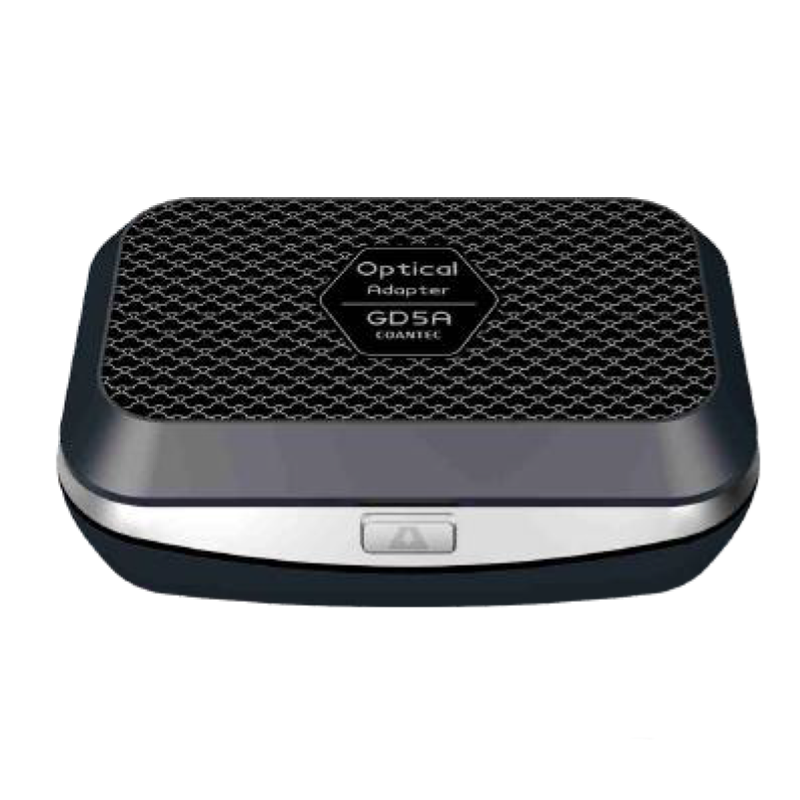

Users can select different view directions, fields of view (field angle), depths offield, or dual-ens photoelectric lenses with 3D measurement functionality asneeded. This next-generation custom lens is designed to resist contamination,making it easier to dean. It is also convenient to disassemble and instal, alowingfor quick replacement, and is more cost-effective and safer than replacing insertiontubes. Replaceable lens (GD5A) parameters are as follows:Note* It refers to the camera module + optical lens integrated lens that is reliablyconnected with the insertion tube by means of contact + dual-thread. Users canalso choose prism front-/side-view replaceable lenses (4mm/6mm/8mm available).Please contact our personnel for details.
How do you choose an industrial borescope camera?
Users can select different view directions, fields of view (field angle), depths of field, or dual-lens photoelectric lenses with 3D measurement functionality as needed.This next-generation custom lens is designed to resist contamination, making it easier to clean.It is also convenient to disassemble and install, allowing for quick replacement, and is more cost-effective and safer than replacing insertion tubes.
D: Direct view S: Side view F: Far focusing N: Near focusing M: Micro focusing

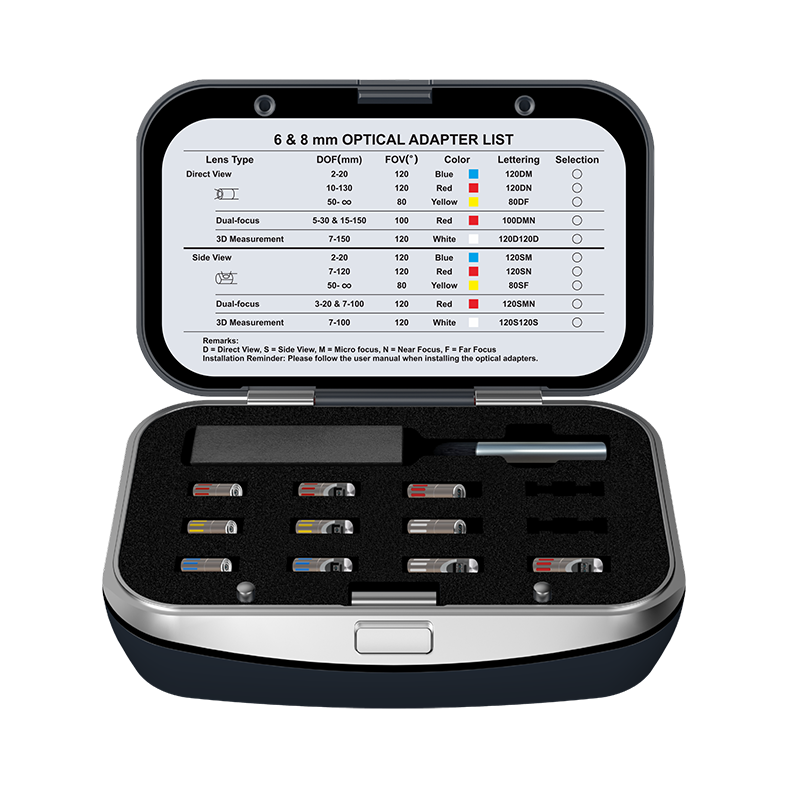

6.0mm insertion tube | Diameter + Tolerance(mm) | Model | Field of view of camera(°) | Standard depth of field(mm) | Marking/Color |
|---|---|---|---|---|---|
| Direct-view near-focusing lens | 6mm±(0.1mm) | GD120DN | 120° | 5-100 | 120DN(red) |
| Direct-view far-focusing lens | 6mm±(0.1mm) | GD80DF | 80° | 50-∞ | 80DF(yellow) |
| Direct-view measurement lens | 6mm±(0.1mm) | GD120D120D | 120° | 7-150 | 120D 120D(blue) |
| Side-view measurement lens | 6mm±(0.1mm) | GD120S120S | 120° | 7-100 | 120S 120S(white) |
| Side-view near-focusing lens | 6mm±(0.1mm) | GD120SN | 120° | 7-100 | 120SN(green) |
| Basic parameters | |||||
|---|---|---|---|---|---|
| 8.3mm insertion tube | Diameter + Tolerance(mm) | Model | Field of view of camera(°) | Standard depth of field(mm) | Marking/Color |
| Direct-view macro lens | 8mm±(0.1mm) | GD120DM | 120° | 2-10/3-20 (optional) | 120DM(no color) |
| Direct-view near-focusing lens | 8mm±(0.1mm) | GD120DN | 120° | 5-100 | 120DN(red) |
| Direct-view far-focusing lens | 8mm±(0.1mm) | GD80DF | 80° | 50-∞ | 80DF(yellow) |
| Direct-view measurement lens | 8mm±(0.1mm) | GD120D120D | 120° | 7-150 | 120D 120D(blue) |
| Side-view measurement lens | 8mm±(0.1mm) | GD120S120S | 120° | 7-100 | 120S 120S(white) |
| Side-view near-focusing lens | 8mm±(0.1mm) | GD120SN | 120° | 7-100 | 120SN(green) |
