| Product Series | C-Z5 |
| WeightApproximately | 10g |
| Dimensions | 35*26*8.5(mm) |
| Ports | Type-C |
| Resolution | 256*192 |
| Pixel size | 12um |
| NETD | ≤50mK@25℃,F#1.0 |
| Operating wavelength | 8~14um |
| Frame rate | 25Hz |
| Operating temperature | -10℃~55℃ |
| Output tools | Mainstream smartphones with Android 6.0 and above |
The system displays infrared thermal images in real-time via a smartphoneenabling non-contact temperature measurement unaffected by ambient light. Bmonitoring temperature anomalies, hidden problems can be assessed quickly. ltcan generate temperature images and reports for offline temperature analysis.

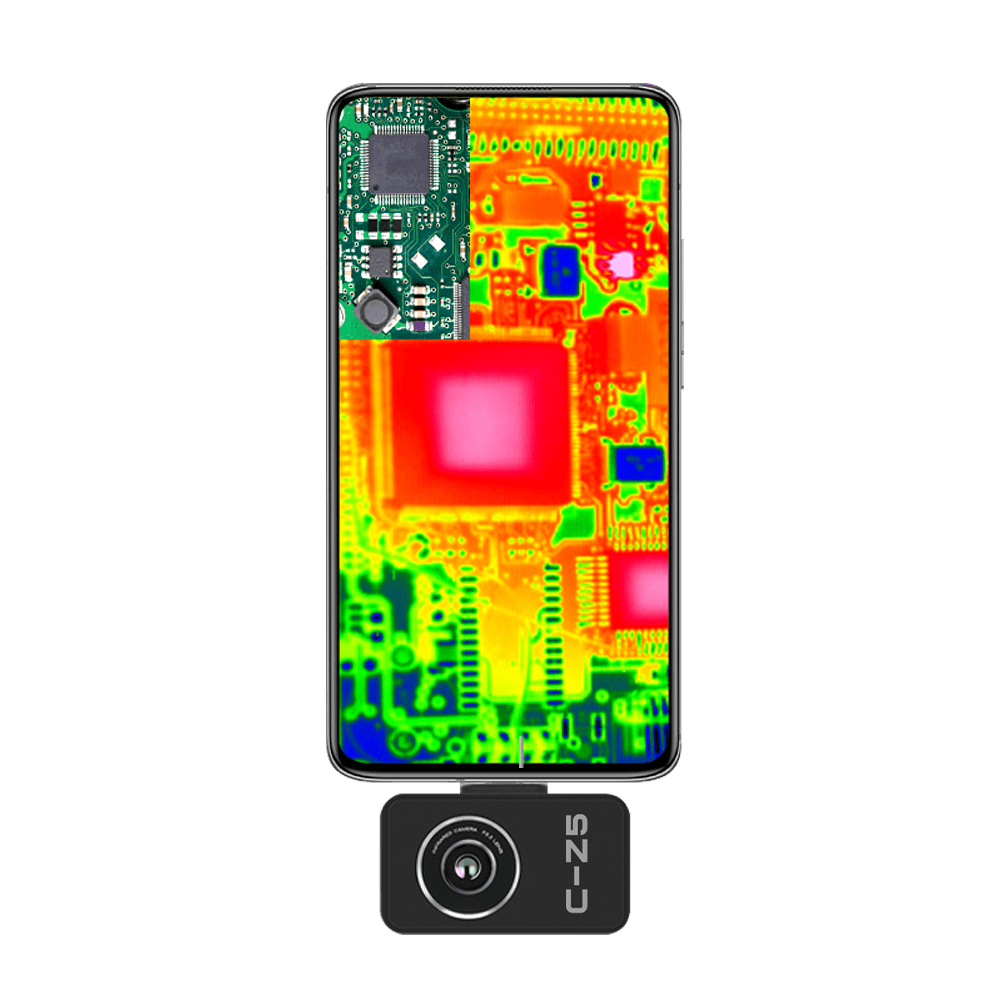

The high-precision infrared thermal image sensor with a resolution of 256x192delivers clear and smooth images that present richer detail in thermal infraredimages.
High- and low-temperature alarm values can be defined. lf the set temperature isexceeded, corresponding alarm notifications will be issued, facilitating timelyhandling of abnormal conditions.
The system features a high thermal sensitivity, enabling real-time accuratedisplay of the observed object's temperature, with point, line, and planemeasurement functions.Products with different temperature measurementranges can be selected based on actual needs.

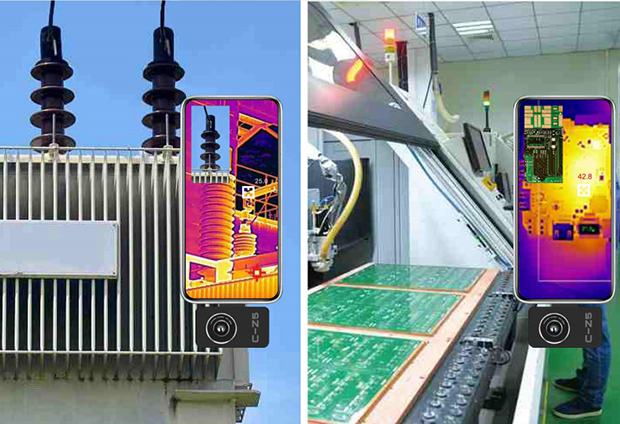

The system can be applied in various scenarios such as industrial equipmentspot inspection,routing inspection and maintenance, circuit researchprofessional home plumbing, appliance self-checks, privacy protection, floor heating inspection, outdoor exploration, animal tracking, and monitoring of farmsoffering wide applications and convenient, effortless portability.
