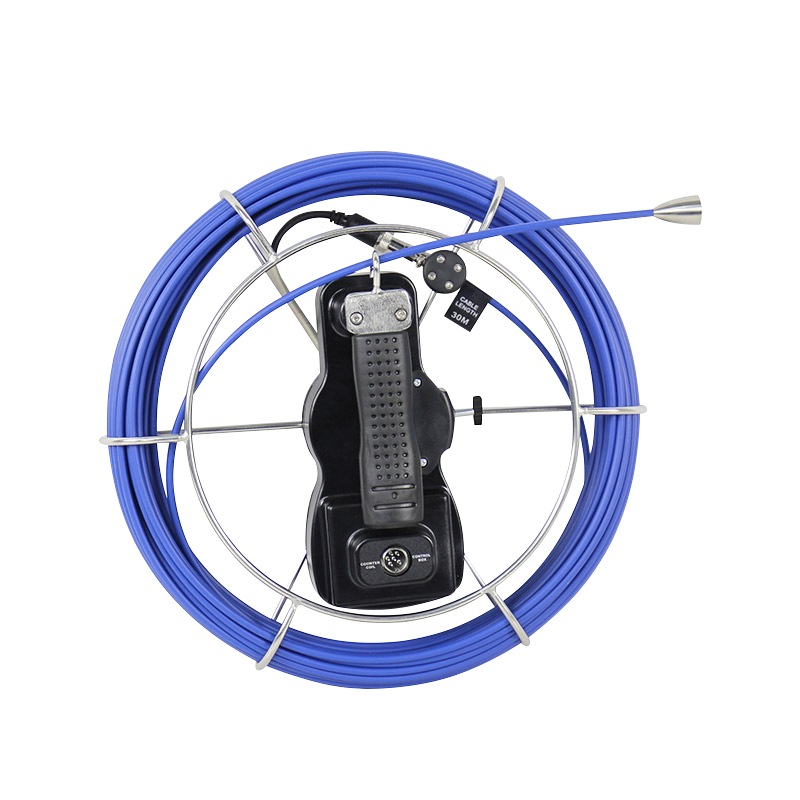

Waterproof Borescope Pipe Camera with light

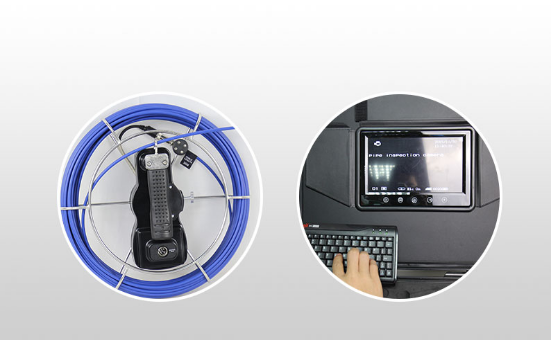

Core Function: This system is essentially a pipe inspection endoscope. It transmits real-time, high-definition video from inside the pipeline to a 9-inch TFT color display, allowing the operator to visually inspect the internal conditions.

Primary Purpose: It is used for diagnosing and assessing pipeline conditions. The system helps identify various defects including blockages, cracks, misalignments, corrosion, and root intrusion. It serves as a critical tool for preventive pipeline maintenance, fault diagnosis, and post-repair verification.

Application Fields: Widely applicable for inspection work in municipal sewer and drainage systems, property maintenance, industrial pipelines, and deep wells.

In summary, the Coantec P70 Pipeline Inspection System is a professional tool that combines a compact size, precise positioning, robust durability, and long battery life. Its fundamental role is to enable operators to "see" inside pipelines, providing direct visual evidence for the maintenance, repair, and management of pipeline systems

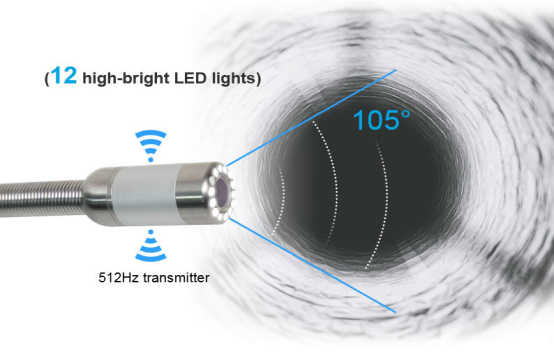

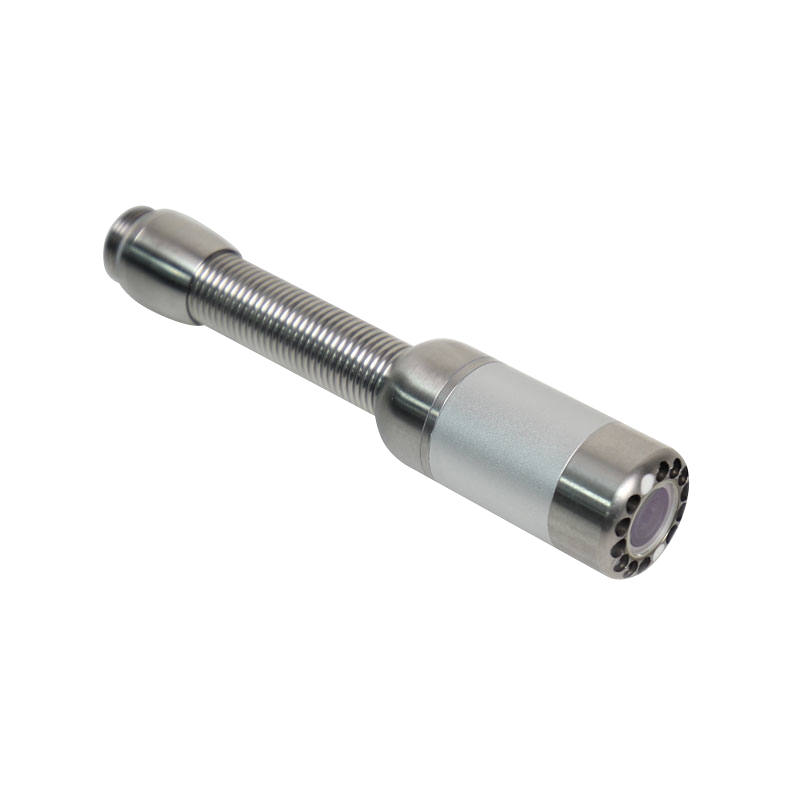

Compact and Adaptive Camera: The core camera measures only 23mm in diameter, making it highly compact for inspecting pipelines with diameters ranging from 30mm to 150mm. It is equipped with a 105-degree wide-angle lens and 12 built-in LED lights, ensuring bright, broad, and clear imaging in confined, dark spaces.

Precise Positioning Capability: The system integrates a 512Hz transmitter. This feature is essential for accurately locating pipeline defects (such as blockages or cracks) both horizontally and vertically from ground level, significantly improving repair efficiency.

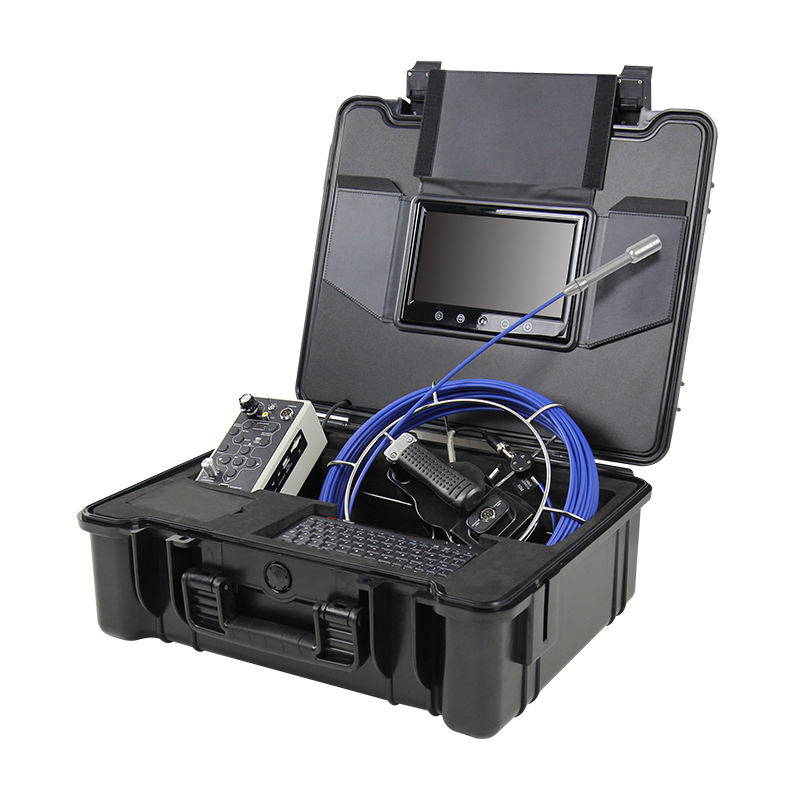

Robust, Durable, and Portable Design: The camera head boasts an IP68 waterproof rating (the highest grade), ensuring reliable operation even when fully submerged. The entire system is designed for portability, housed in a dedicated engineering plastic case for easy transportation and on-site use.

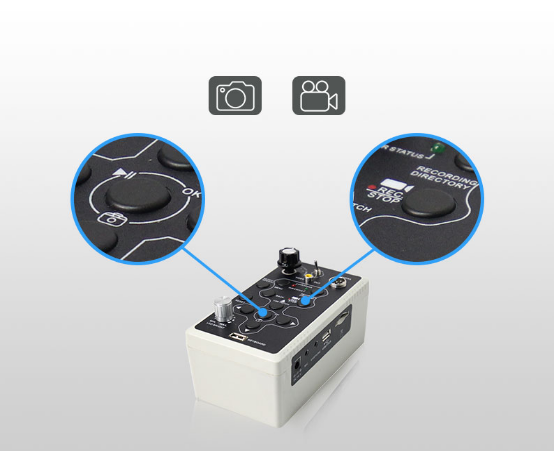

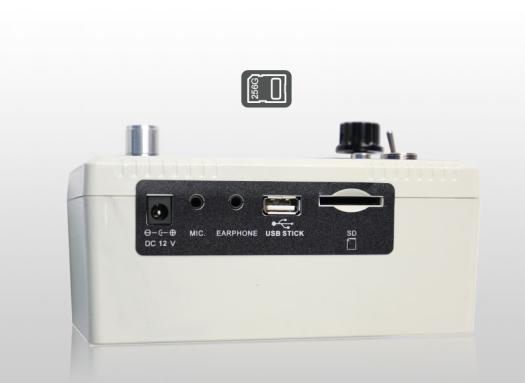

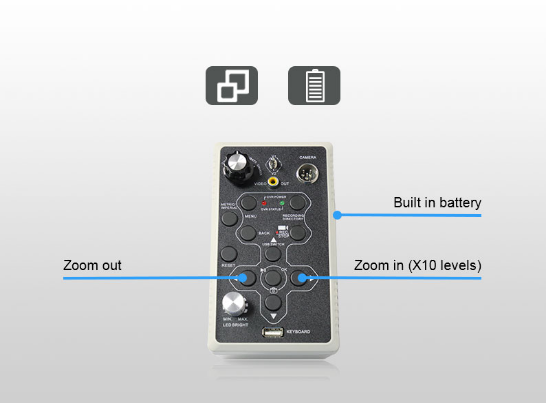

Long-lasting Battery and Recording Function: The control unit contains a built-in battery that provides over 7 hours of continuous operation after a 5-hour charge, supporting extended inspection tasks. It allows direct recording of MP4 format video onto an SD card (supports up to 256GB), facilitating easy storage and review of inspection footage.

Modular Design with Optional Configurations: In addition to the standard 23mm camera head, various optional heads are available (e.g., a smaller 17mm head, a 28mm head with self-leveling). This modularity allows the system to adapt to different pipe diameters from 10mm to 200mm, offering great flexibility for diverse applications.
