| Product Series | C-Z5 |
| WeightApproximately | 10g |
| Dimensions | 35*26*8.5(mm) |
| Ports | Type-C |
| Resolution | 256*192 |
| Pixel size | 12um |
| NETD | ≤50mK@25℃,F#1.0 |
| Operating wavelength | 8~14um |
| Frame rate | 25Hz |
| Operating temperature | -10℃~55℃ |
| Output tools | Mainstream smartphones with Android 6.0 and above |

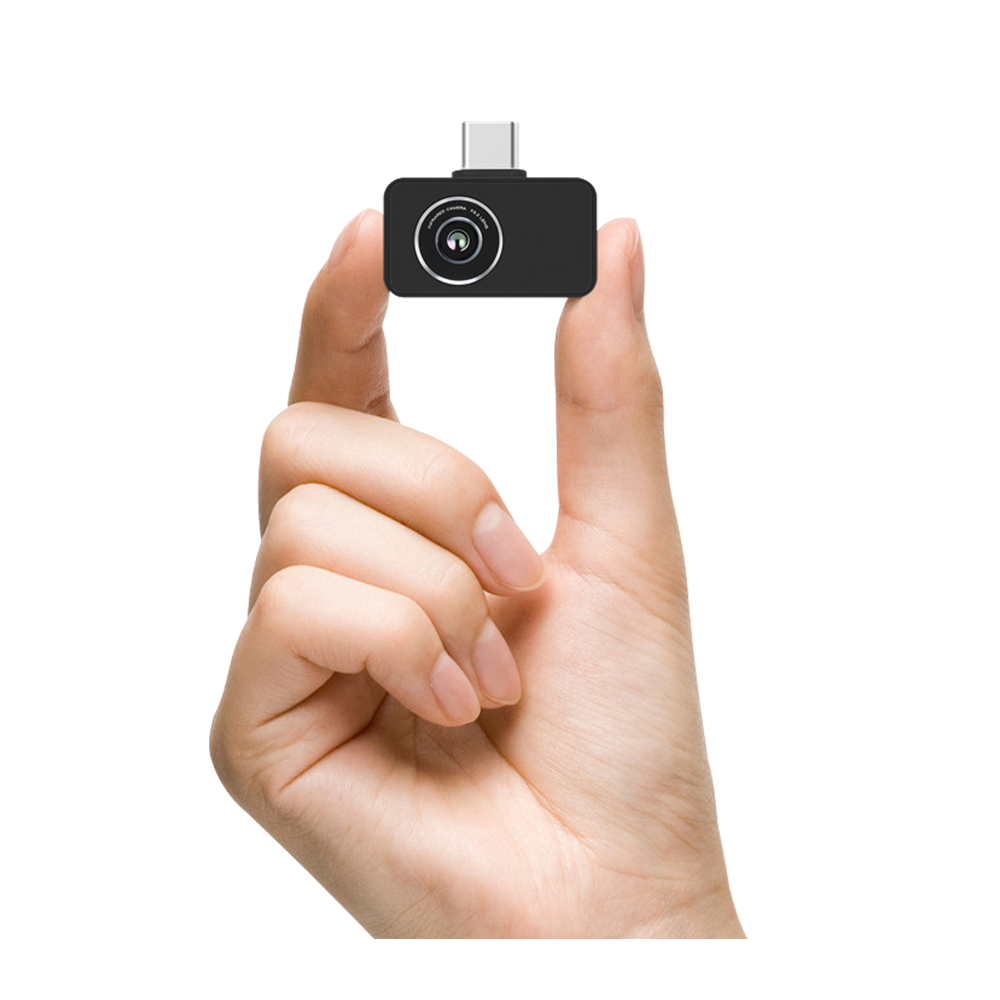

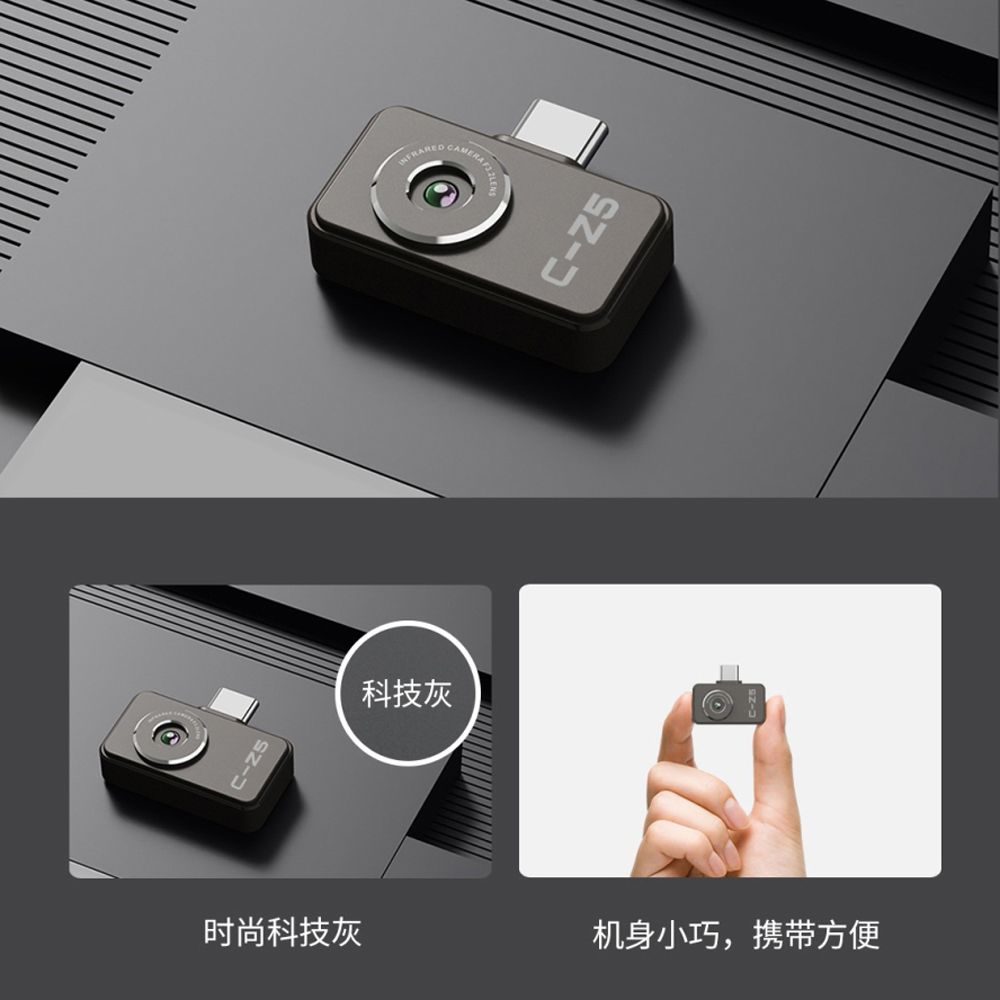

The C-Z5 Series Mini Infrared Thermal lmaging Camera can be directlyconnected to a smartphone via Type-C port, displaying infrared thermal radiationimages in real-time and measuring temperature in real-time. Users cancustomize the heating alarm temperature as needed, with no external powerrequired. With a long-lasting battery life, it is suitable for home floor heatinginspection, circuit maintenance/inspection, equipment patrol, and observing andsearching for heated objects.

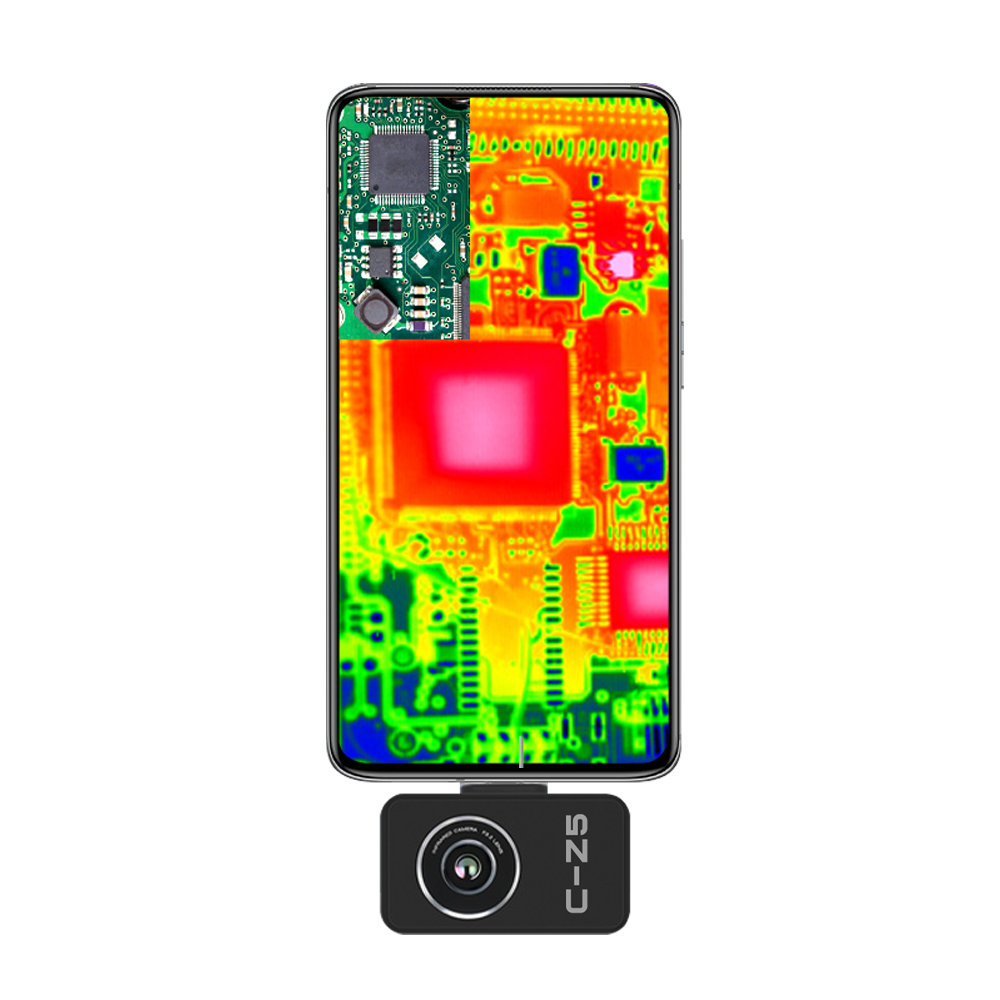

The system displays infrared thermal images in real-time via a smartphoneenabling non-contact temperature measurement unaffected by ambient light. Bmonitoring temperature anomalies, hidden problems can be assessed quickly. ltcan generate temperature images and reports for offline temperature analysis.
The high-precision infrared thermal image sensor with a resolution of 256x192delivers clear and smooth images that present richer detail in thermal infraredimages.
High- and low-temperature alarm values can be defined. lf the set temperature isexceeded, corresponding alarm notifications will be issued, facilitating timelyhandling of abnormal conditions.
The system features a high thermal sensitivity, enabling real-time accuratedisplay of the observed object's temperature, with point, line, and planemeasurement functions.Products with different temperature measurementranges can be selected based on actual needs.

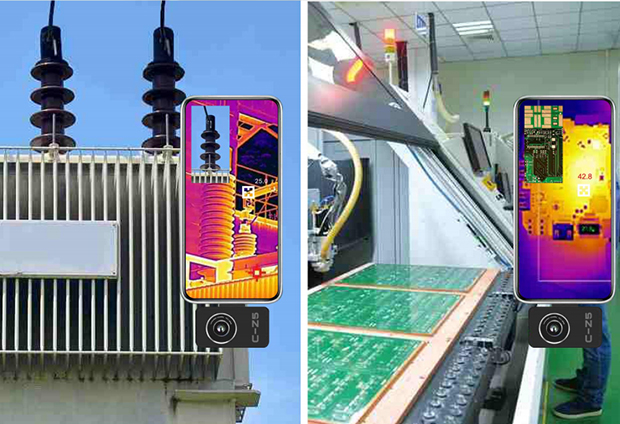

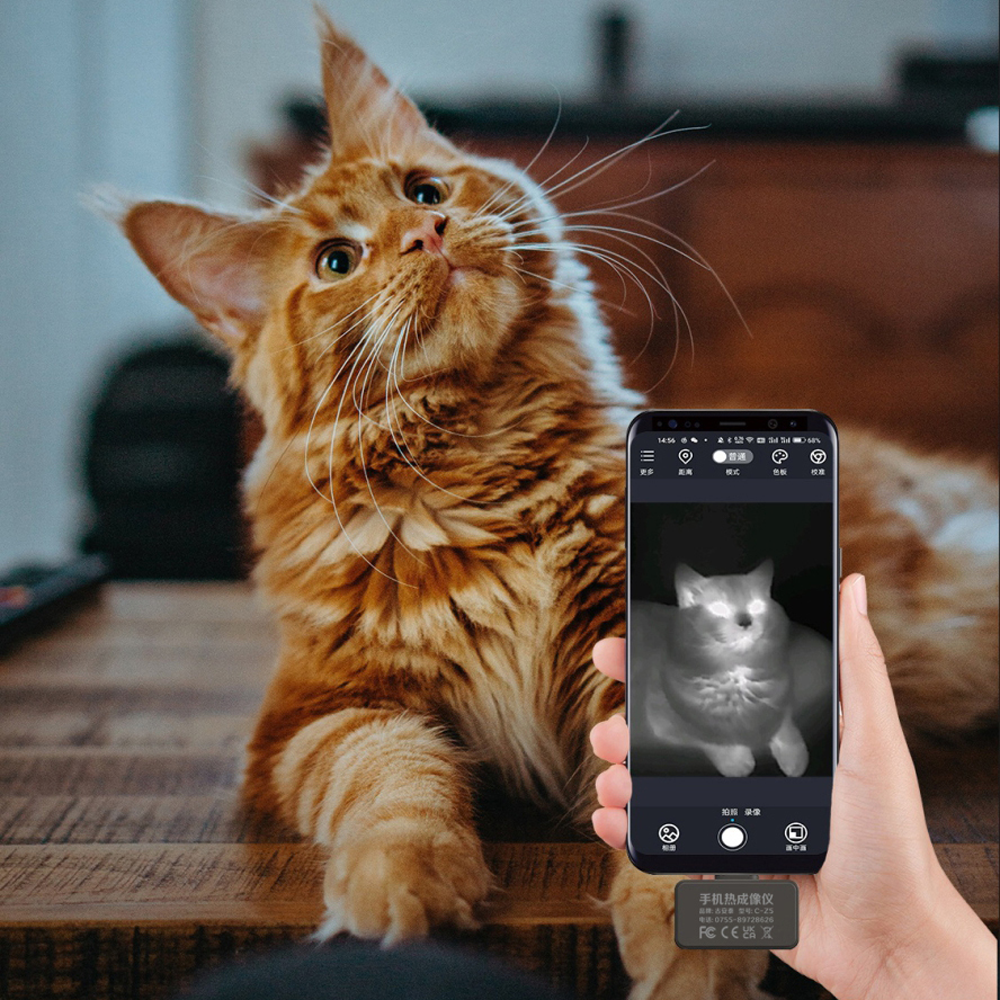

The system can be applied in various scenarios such as industrial equipmentspot inspection,routing inspection and maintenance, circuit researchprofessional home plumbing, appliance self-checks, privacy protection, floor heating inspection, outdoor exploration, animal tracking, and monitoring of farmsoffering wide applications and convenient, effortless portability.
| Host System | ||
| WeightApproximately | 10g | |
| Dimensions | 35*26*8.5(mm) | |
| Ports | Type-C | |
| Resolution | 256*192 | |
| Pixel size | 12um | |
| NETD | ≤50mK@25℃,F#1.0 | |
| Operating wavelength | 8~14um | |
| Frame rate | 25Hz | |
| Operating temperature | -10℃~55℃ | |
| Storage temperature | -40℃~85℃ | |
| Typical power consumption | 350mw | |
| Processor | Falcon ASIC chip | |
| Lens | ||
| Focal length | 3.2mm | |
| Aperture | F1.1 | |
| Field of view | 56.0°(H)×42.2°(V),71.3°(D) | |
| Focusing | Non-thermal fixed-focus lens | |
| Temperature measurement performance | ||
| Temperature measurement range | -15℃~550℃ | |
| Measurement error | ±3°℃ or±3%of reading(whichever is greater) | |
| Temperature correction | Distance,ambient temperature,emissivity | |
| Shell | ||
| Dimensions | 35*26*8.5(mm) | |
| Color | Black | |
| WeightApproximately | 10g | |
| Product port | USB type-C | |
| Software features | ||
| Faux color | White/black heat+3 types of faux color | |
| Temperature measurement method | Point,line,plane temperature measurement | |
| Output tools | Mainstream smartphones with Android 6.0 and above | |
| Software update | Online update | |
| Packaging accessories | ||
| Packaging color | Black | |
| Package dimensions | 135*105*48(mm) | |
| Accessories | ianing cenThermalmeging Came,Quick tat Guide,Strge Be Dediated | |
