How Industrial Pipe Borescopes Solve Pipeline Inspection Challenges

No knocking, digging, or dismantling required. A slim probe enters the pipeline and clearly reveals corrosion, blockages, and cracks in real time.

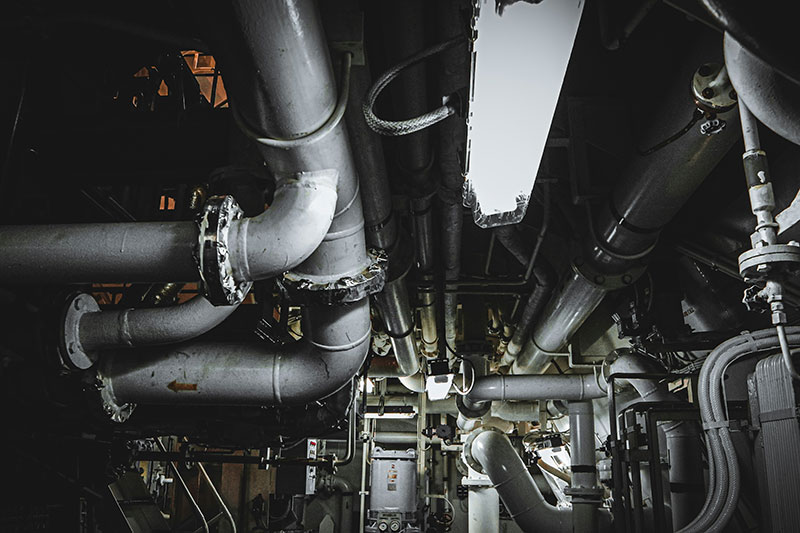

Municipal drainage systems, chemical plant pipelines, and gas lines are often buried underground or hidden inside walls. When internal problems occur, inspection becomes extremely challenging. Knocking and listening is unreliable, while dismantling is costly and time-consuming. Hazards may exist right in front of us but remain invisible—this is the typical pipeline inspection dilemma.

Industrial pipe borescopes make true non-destructive inspection possible. Like an electronic snake, the probe travels deep into pipelines and transmits real-time images to the display. To handle long distances, multiple bends, and low-light environments, a high-performance borescope must be designed to solve real-world inspection challenges.

As a leading industrial borescope manufacturer, Coantec provides complete pipeline inspection solutions with its C40, M40, X3, and X5 series.

Challenge 1: Long Pipelines, Poor Visibility at Distance

Pain Point

Many pipelines are buried deeper than 5 meters. Conventional borescopes struggle with signal lag, image distortion, or connection loss over long distances.

Solution

• Customizable insertion tubes from 1–10 meters for deep wells and long pipelines.

• Tungsten-braided reinforcement ensures smooth, stable imaging even at 10 meters without lag or signal drop.

• Recommended models: C40 and M40.

Challenge 2: Multiple Bends and Tight Corners

Pain Point

Complex pipelines often contain multiple or continuous S-bends, causing probes to become unresponsive or stuck.

Solution

• Standard 360° mechanical articulation across the product range for precise control even at long distances.

• Probe diameters from 0.95 mm to 6.0 mm for easier navigation through tight bends.

• M40 joystick brake knob locks the probe angle for hands-free image capture and recording.

• Hard-alloy probe housing resists wear from repeated friction against pipe walls.

• Recommended models: C40 and M40.

Challenge 3: Tiny Defects Invisible in Low-Light Environments

Pain Point

Early corrosion and micro-cracks are often only millimeters in size and difficult to detect in dark or deep environments.

Solution

• HD camera combined with a high-brightness display (M40 up to 1000 nits for outdoor visibility).

• Multiple lighting options:

• Front LED lighting with adjustable brightness for standard inspections.

• Optional rear high-power fiber-optic illumination (M40) with 50–80% higher output and 3× deeper illumination. The rear light design keeps the probe cool and eliminates hotspots.

• Interchangeable lenses: direct view, side view, and macro lenses for close-range focus as near as 2–3 mm.

• 8× digital zoom and gamma correction enhance fine defect visibility.

• Recommended models: C40, M40, and X5 (for 3D measurement).

Challenge 4: Overheating During Continuous Operation

Pain Point

Many borescopes overheat during extended inspections, causing lag or automatic shutdown.

Solution

• M40 features an aerospace-grade aluminum housing with heat-dissipation fins, delivering 3× better cooling and stable operation for up to 4 hours.

• C40 and X3 metal housings are also optimized for continuous inspections.

• Recommended models: M40 for heavy-duty use, C40 for routine inspections.

Quick Product Selection Guide

Pipeline inspection is like performing precision surgery on a network of capillaries. With its comprehensive product portfolio, Coantec transforms invisible hazards into visible data—making corrosion, cracks, and blockages clearly identifiable.

With over a decade of technical expertise, Coantec provides every pipeline with clear visibility, accurate measurement, and long-term reliability.
