| Product Series | X3 |
| Display Size | 5.5-inch |
| Camera pixels | 160K/300K/1M/2M* |
| View direction | Direct view/side view/dual view |
| Light source type | Front LED/rear-mounted LED+optical fiber |
| Guidance control method | Electric control |
| Tube diameter | 0.95/1.2/1.6/1.8/2/2.8/3.0/3.9/4.8/6/8mm |
| Insertion tube length | 1m~10m optional(measurement function only supports insertion tubes with a diameter of over 4mm) |
| Tip guidance capability | 360° all-way guidance |
| Compatibility | Replaceable insertion tube |
| Output Port | Micro HDMI |

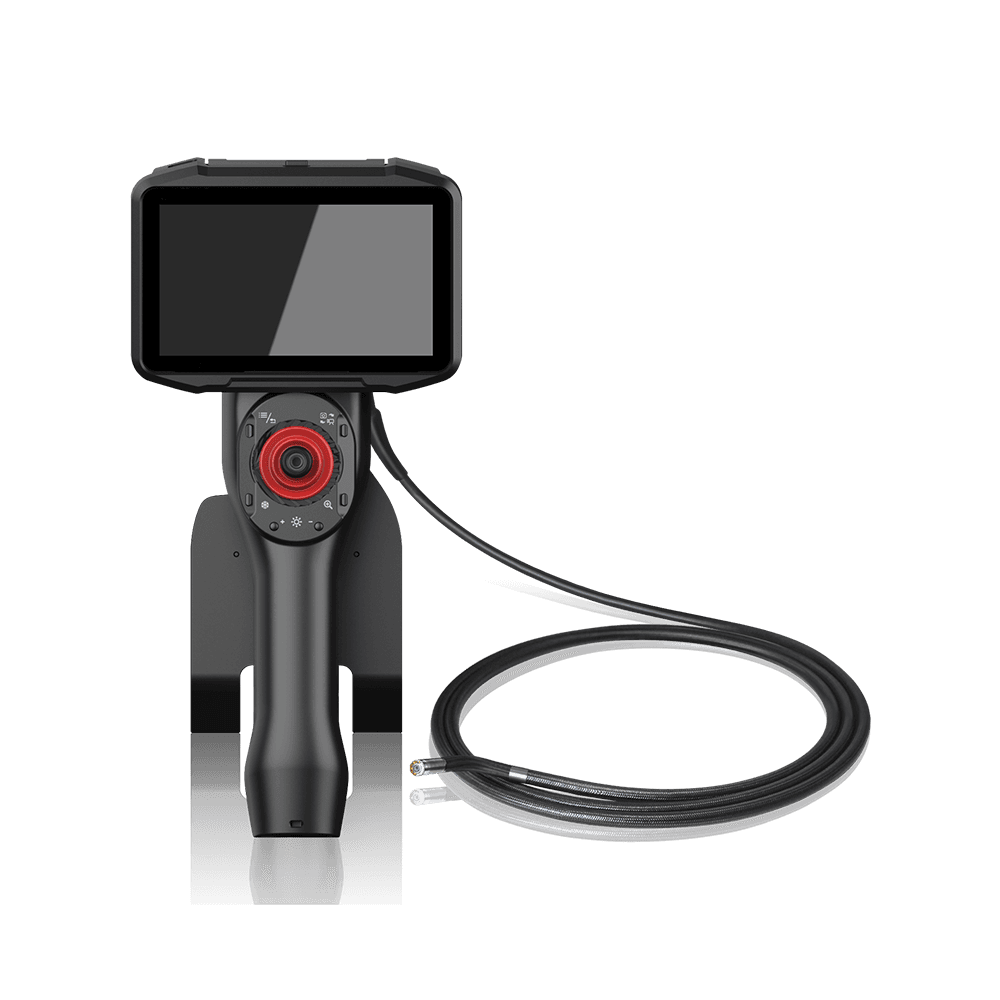

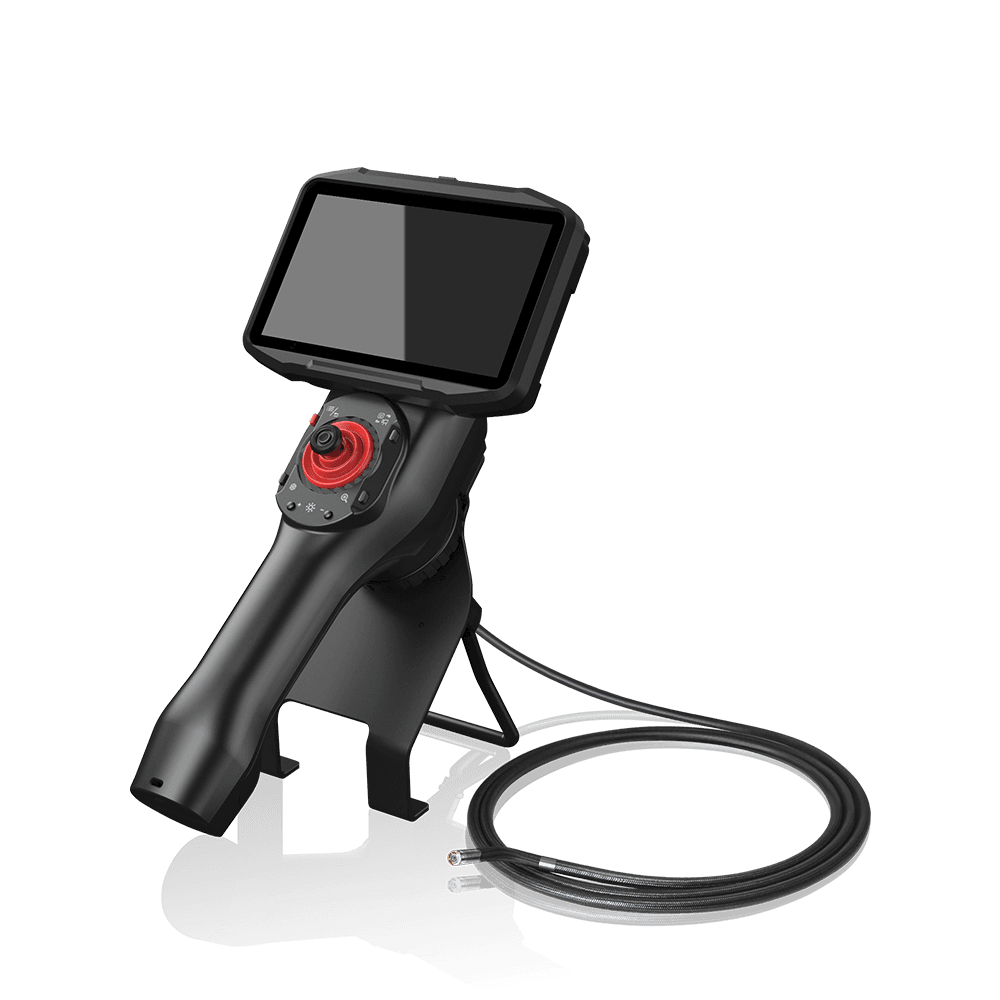

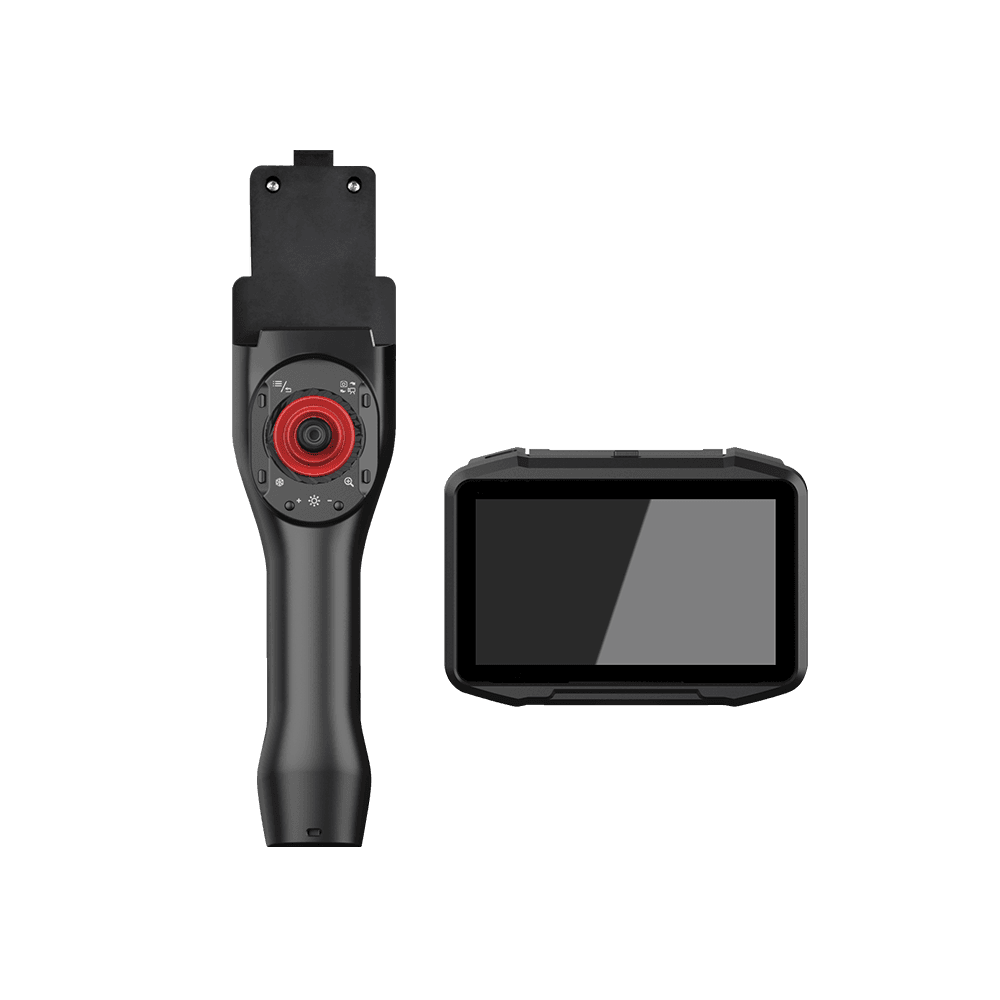

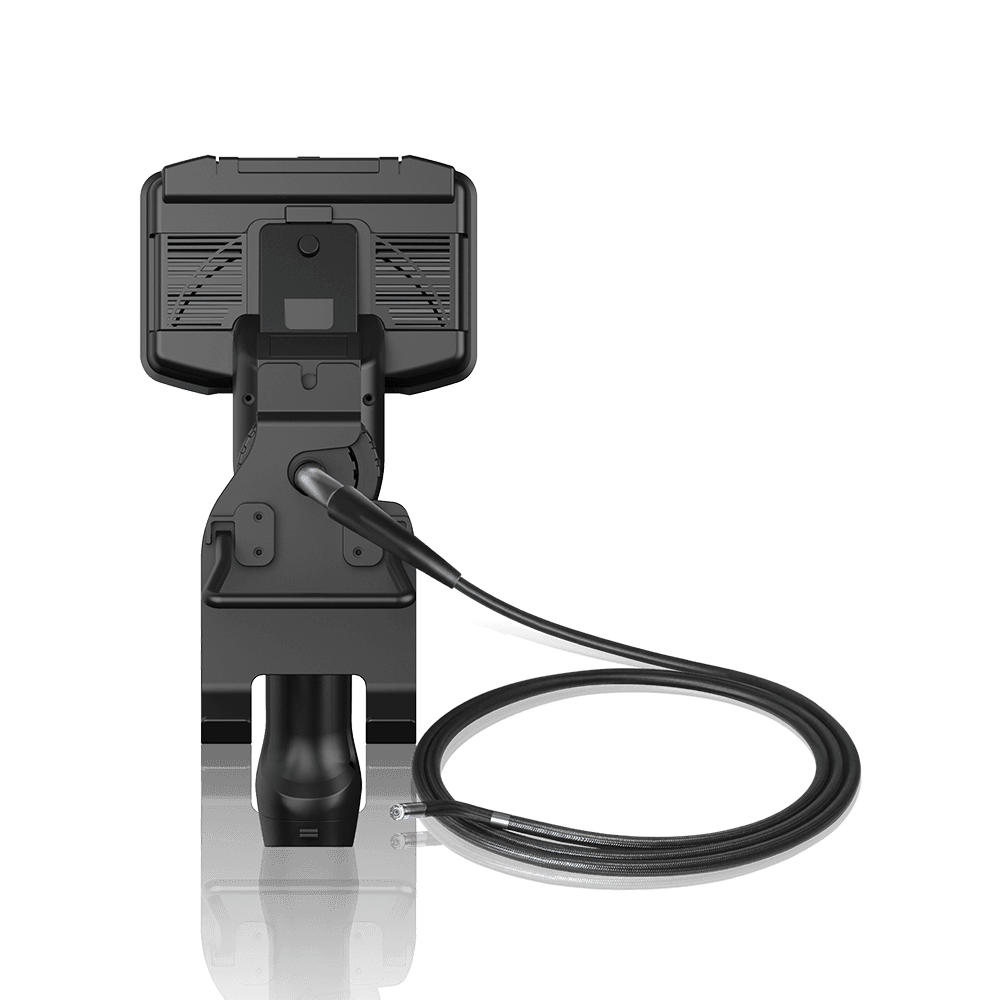

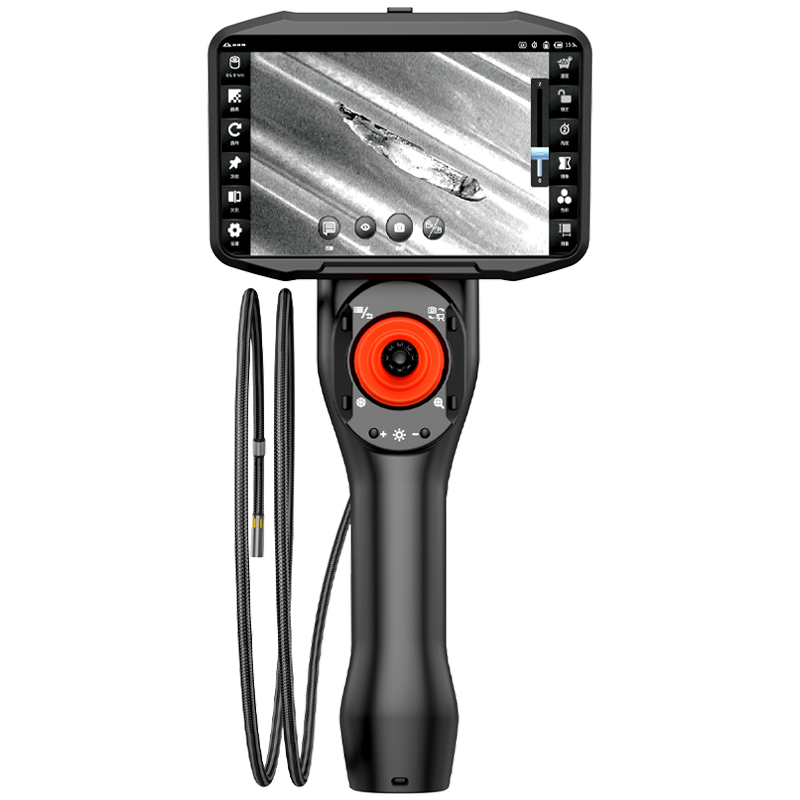

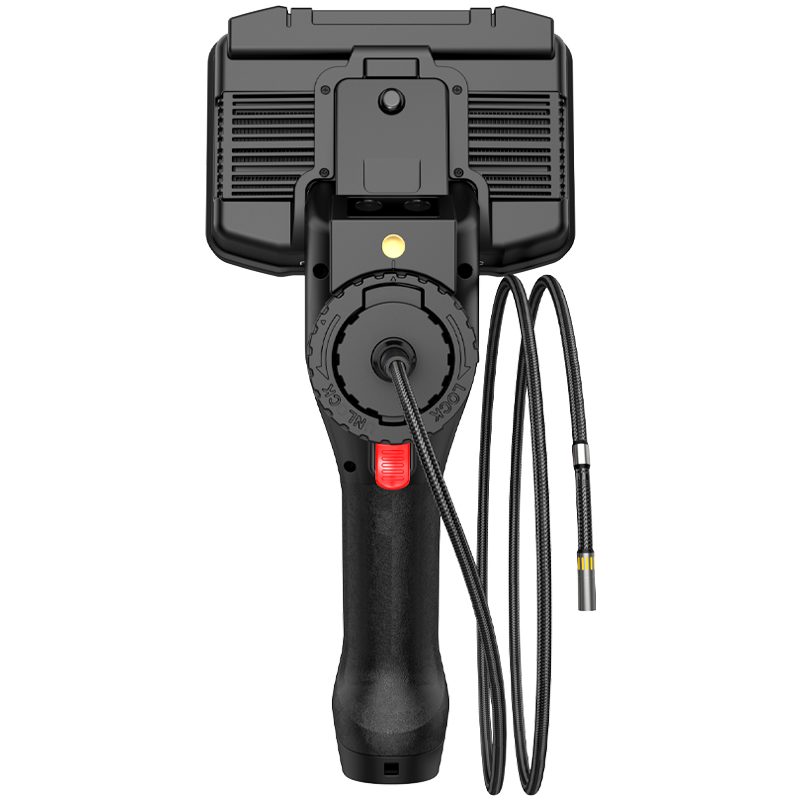

The X3 series is a high-performance, multi-purpose industrialvideoscope independently developed by Coantec. lt features ahigh-definition industrial camera and a 5.5-inch LCD touchscreen,delivering true-to-life colors and clearer inspection images.
With an optional high-frame-rate image sensor, the video playbackis smoother, eliminating afterimages and frame stuttering. Thehandheld integrated design and mechanical control probe allow360°fexible articulation in all directions.
The quick-release tube replacement mechanism enhancesconvenience, while interchangeable cameras and configurablelighting optionsincluding white light, infrared light, and UVlight-provide versatility for different inspection needs. The storagecapacity can be expanded, and the battery life is significantlyextended compared to previous models.
The X3 series is ideal for industries such as aviation, aerospace.automotive, railways, marine, energy, petrochemicals, powergeneration, and specialized inspections.

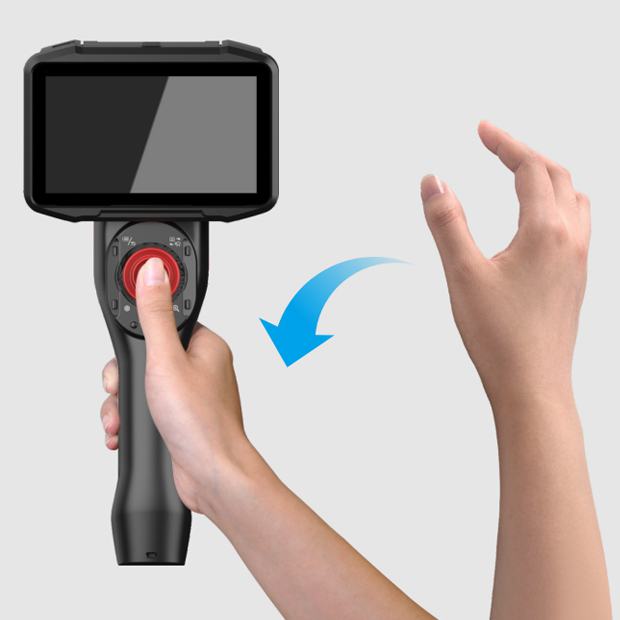

The ergonomic handheld design ensures a comfortable grip forextended use. Featuring a mechanically controlled joystick, it offersprecise probe articulation,responsive control with no delay, and anenhanced user experience.Lightweight and portable,it allows forquick and efficient inspections anytime, anywhere.

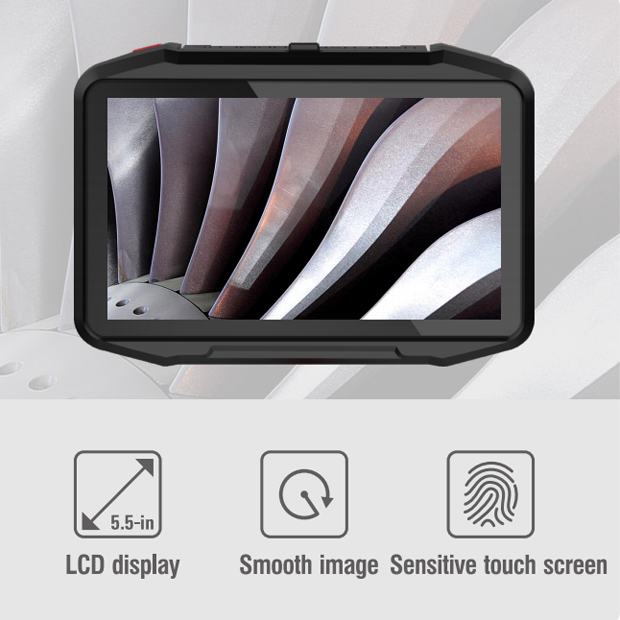

Equipped with a megapixel high-definition camera, a built-in highsensitivity image sensor, and a 5.5-inch HD LCD touchscreen, thissystem delivers sharp, detailed images with smooth and true-to-lifevisuals. lt enables precise detection of subtle surface defects insideequipment and components.

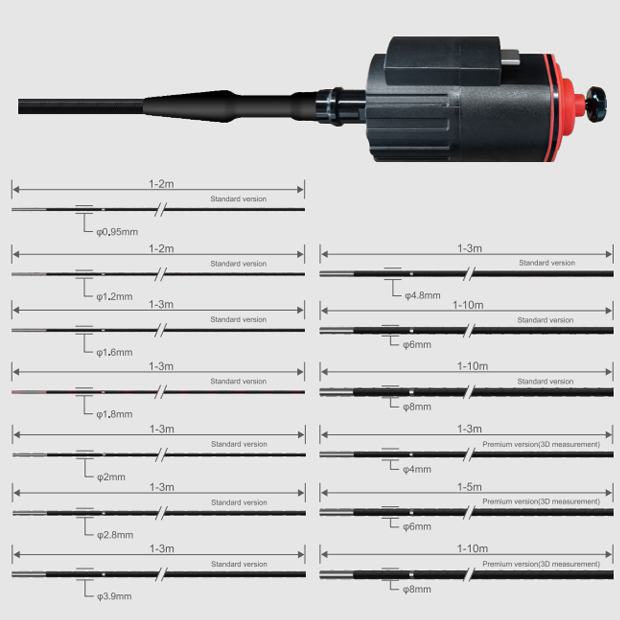

A single host can be paired with insertion tubes of differentspecifications, with customizable length, diameter, and lighting optionsto meet specific requirements. This flexibility helps optimize costswhile ensuring adaptability for various inspection needs.

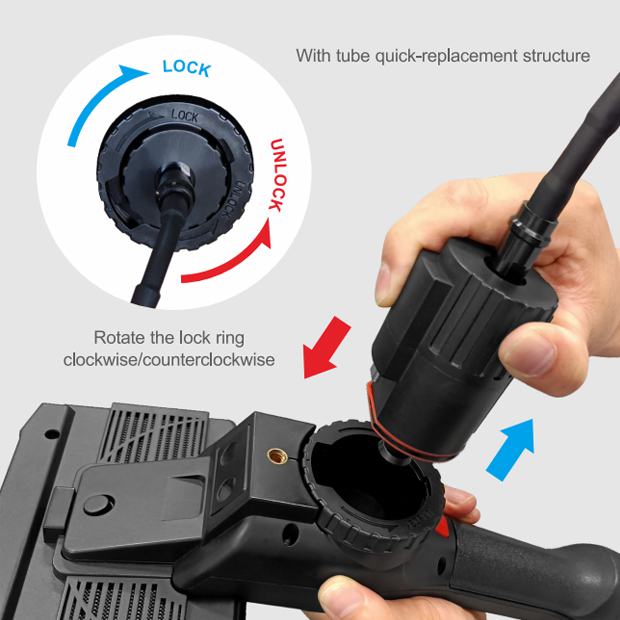

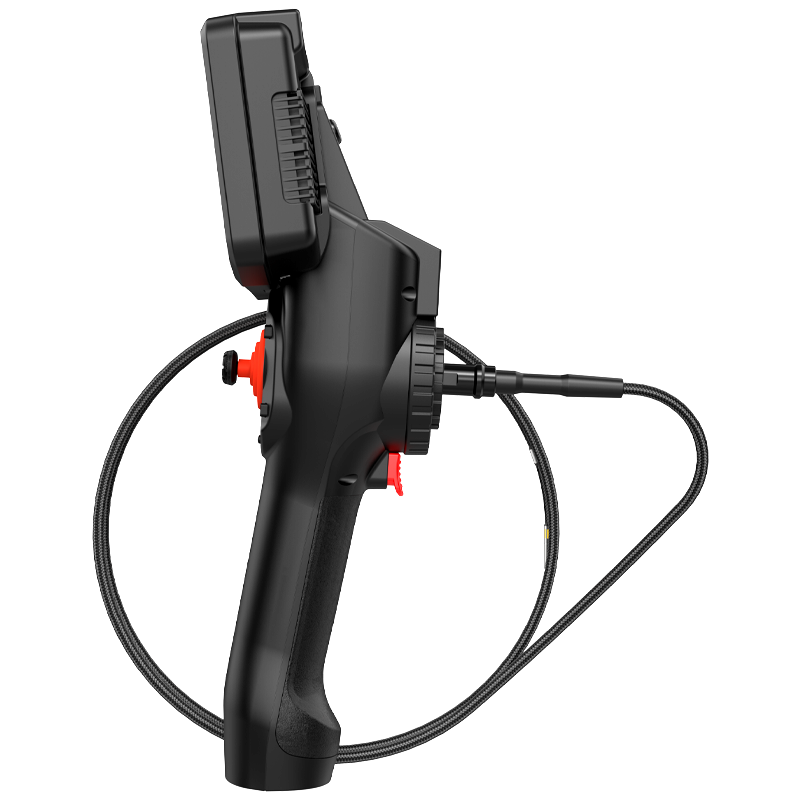

Featuring a quick-release design, the tube can be replaced effortlesslywithout disassembling the nut. Simply turn the lock ring clockwise orcounterclockwise to lock or release the tube in just 3 seconds,ensuring fast and efficient replacement.

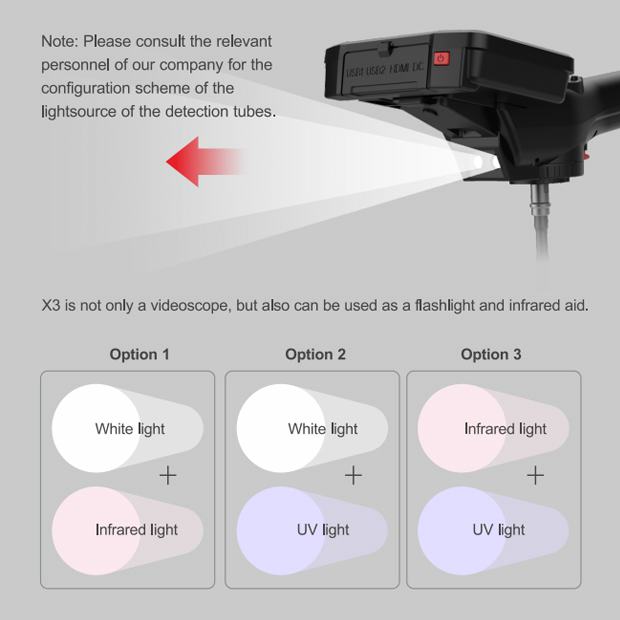

Supports three auxiliary lighting options: infrared, white, and UV lightTwo sources can be selected simultaneously(default: white andinfrared light)to enhance illumination. The supplementary lightingimproves visibility, ensuring higher-quality inspection images.

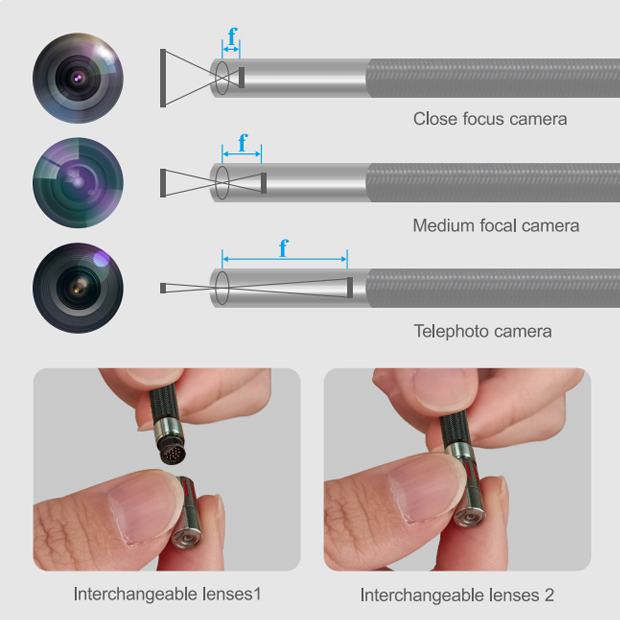

The system supports replaceable camera tips with differentspecifications, including forward-view, side-view, far-focus, close-focusmedium-focus, wide-angle,telephoto, and measurement camerasThis adaptability allows for inspection at varying distances, ensuringclearer and more precise imaging.

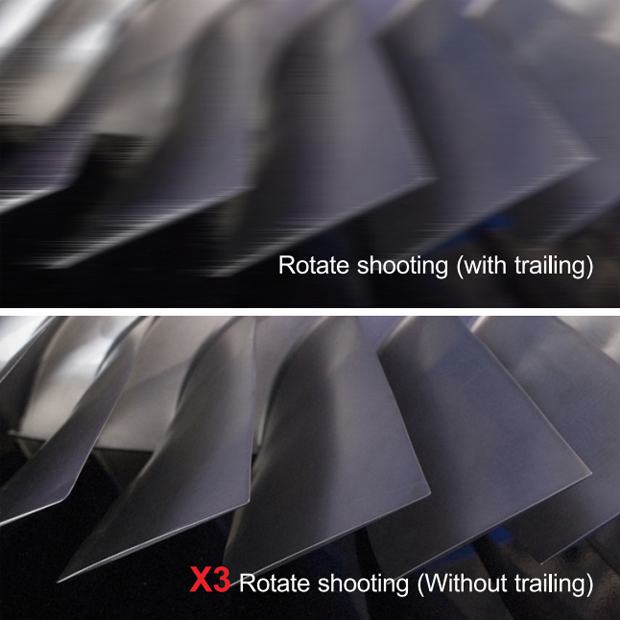

With a faster response speed than standard image sensors,thisoption delivers smoother visuals while significantly reducing lagafterimages, and jitter. lt enhances the clarity of rotating or fast-movingobjects,making inspections more precise and efficient.

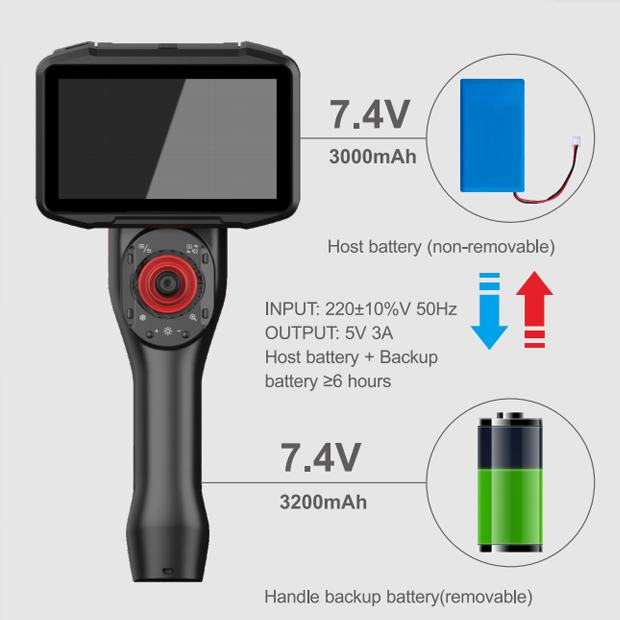

The system features a dual power supply, combining a built-in highcapacity lithium polymer battery in the display and a replaceablebackup battery in the handle. These batteries can charge each other,ensuring extended operation with a continuous working time of over 6hours.

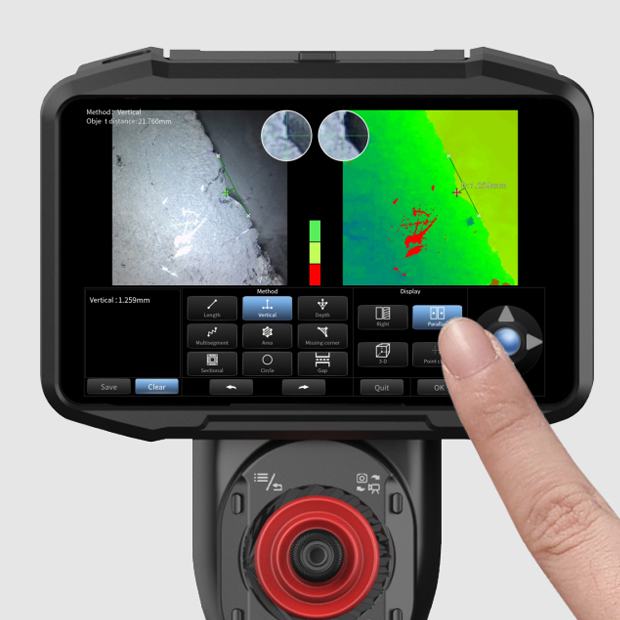

The system can be upgraded to a 3D measurement system, compatible with4mm, 6mm, and 8mm insertion tubes. lt supports varous measurementmodes,including Length,Vertical, Depth,Multisegments, Area, Missingcorner, Sectional,Circes,Gap, with measuring accuracy of 0.01mm anderrors5%.

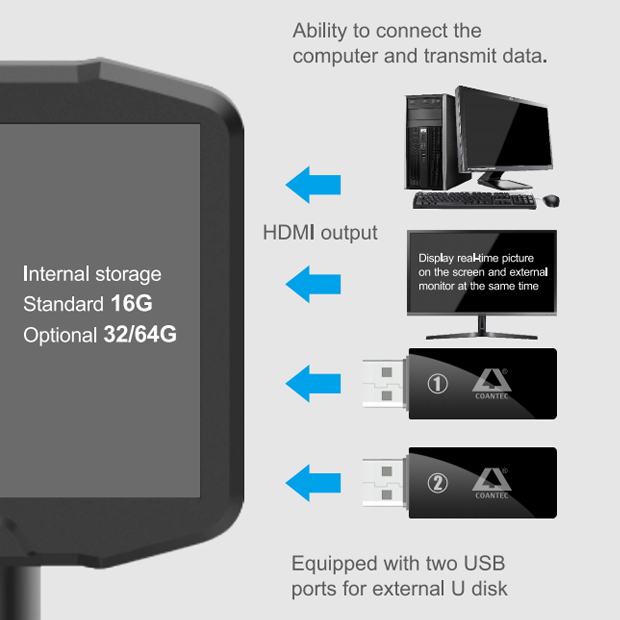

The system features built-in high-capacity storage(standard 16GBwith optional 32GB or 64GB).Equipped with two USB ports, it allowsfor easy connection to external USB drives,ensuring quick andconvenient data access.
| Host System | ||||||
| Display type | LCD touch display | |||||
| Display size | 5.5-inch | |||||
| Resolution | 1280*720 | |||||
| Detachable design | ● | |||||
| User interface | Navigation via touchscreen and physical buttons | |||||
| Standard storage capacity of the host | 16G | |||||
| Expandable memory capacity | ● | |||||
| Photography function | ● | |||||
| Image storage format | JPG/BMP | |||||
| Video recording function | ● | |||||
| Video storage format | MP4 | |||||
| Real-time image magnification | 1-5 times (supports multi-touch pinch-to-zoom gestures) | |||||
| Adjustable LED brightness levels | Levels0-9 | |||||
| Image quality adjustment | Adjust image brightness,contrast,hue,saturation, shárpness,gamma,and restore tó default | |||||
| Image color adjustment | Optional modes include default,monochrome,negative,vivid,high contrast,soft | |||||
| Manual adjustment of display brightness | ||||||
| Image rotation | ● | |||||
| Image freeze | ● | |||||
| Mirroring | ● | |||||
| Real-time image comparison | ● | |||||
| Time watermark | ● | |||||
| Location watermark | ● | |||||
| Custom report | ● | |||||
| Ruler | No scale,circular scale,cross scale,or reference lines | |||||
| Bluetooth | ● | |||||
| WiFi | ● | |||||
| File sharing | ● | |||||
| LAN Video streaming | ● | |||||
| Output Port Size specifications | |||||||
| HDMI video output port | ● | Host size | 295mm*145mm*163mm | ||||
| 3.5mm audio output | O | Packaging size | 480mm*428mm*200mm | ||||
| USB 2.0 port | 2 | Host weight(including battery) | ≤1.5kg | ||||
| Insertion Tube System | |||||||
| Tip diameter(±0.1mm) | 0.95/1.2/1.6/1.8/2/2.8/3.9/4.8/6/8mm | ||||||
| Insertion tube length | 1m~10m optional(measurement function only supports insertion tubes with a diameter of over 4mm) | ||||||
| Depth of field(mm) | 5-50/5-100/10-100/50- ∞ | ||||||
| Field of view | 70°/80°/100°/120°* | ||||||
| Camera pixels | 160K/300K/1M/2M* | ||||||
| Replaceable insertion tube | ● | ||||||
| Replaceable lens | O | ||||||
| View direction | Direct view/side view/dual view | ||||||
| Lighting mode | Front LED/rear-mounted LED+optical fiber | ||||||
| Lighting source | White light/infrared/ultraviolet | ||||||
| Tip guidance control | Mechanical 360°all-way articulation | ||||||
| Tube unidirectional bending angle | ≥160°* | ||||||
| Tip material | Super hard alloy protective shell | ||||||
| Insertion tube material | Tungsten wire wear-resistant braided tube | ||||||
| Dustproof and waterproof rating | IP67 | ||||||
| Power Parameters | |||||||
| Power input | INPUT:220±10%V 50Hz mains electricity | ||||||
| Output | OUTPUT:12V 3A | ||||||
| Host battery capacity | 3000mAh 7.4V | ||||||
| Handle battery capacity | 3200mAh 7.4V | ||||||
| Continuous working time | ≥6h | ||||||
