| Handle Length | 105 mm (±5 mm) |
| Handle Diameter | 25 mm |
| Extension Rod Length | 425 mm (±5 mm) |
| Extension Rod Outer Diameter | 7.5 mm |
| Actual Measured Weight | 135 g |
| Extension Rod Material | 304 Stainless Steel |

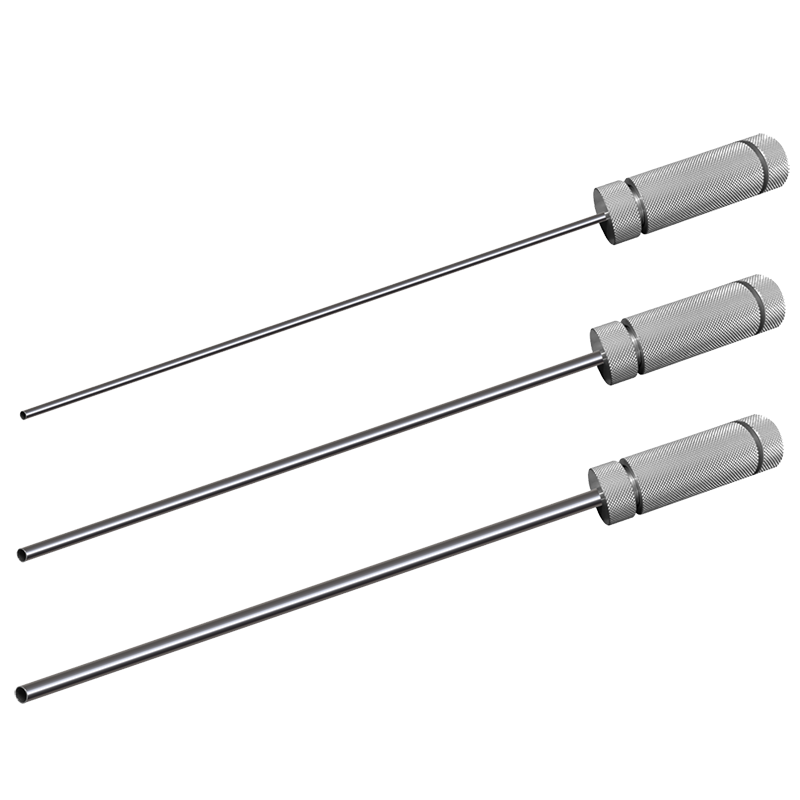

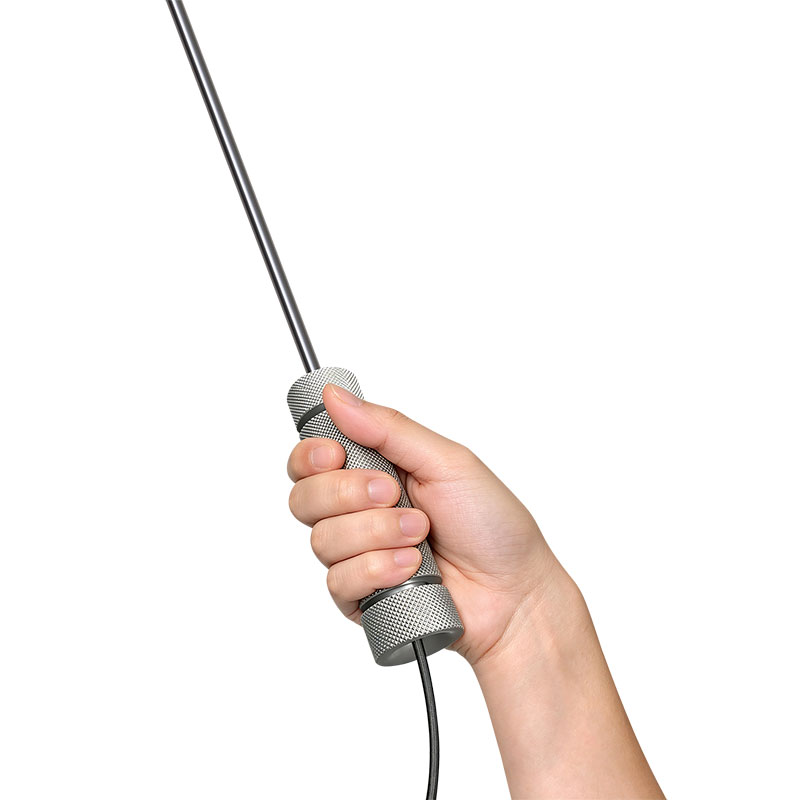

Handheld Borescope Probe Kit is a rigid assistive tool designed to solve the common problems of flexible borescope cables—such as difficulty advancing, poor straight-line travel, and susceptibility to wear—when navigating complex passages like deep holes and long pipes. Made of high-strength metal, it features a rigid internal channel that houses the flexible cable, providing continuous rigid guidance and physical protection for the borescope probe throughout the inspection. The operator grips an ergonomically designed handle to steadily and precisely deliver the probe to the target location, significantly improving inspection success rates, efficiency, and probe service life. This professional productivity enhancer is widely used in industrial NDT .
Core Functions

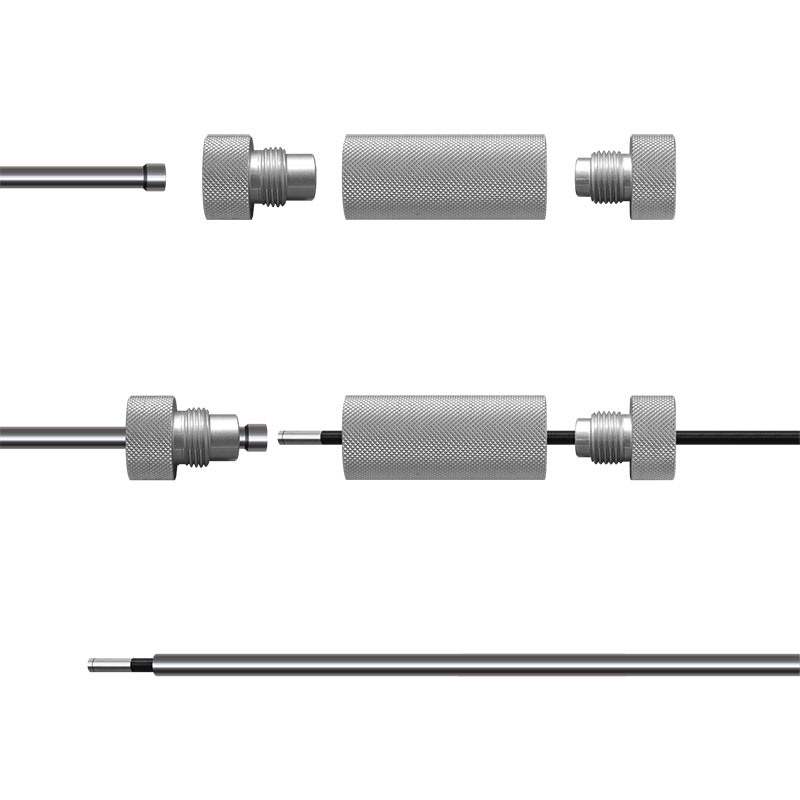

The Handheld Borescope Probe Kit features a high-strength metal structure, specifically designed to guide flexible borescope cables through complex deep holes and curved passages.
Ensures precise and stable delivery of the probe to the target location, achieving reliable repeatable positioning and significantly improving inspection success rates.
Offers high wear resistance while effectively isolating the cable from rough and sharp hole walls during inspection, preventing scratches and kinking, thereby significantly extending the service life of expensive borescope probes.
Flexible Customization Options
Customizable probe kits with different lengths and inner diameters are available to perfectly fit various borescope cable diameters and meet diverse application requirements.

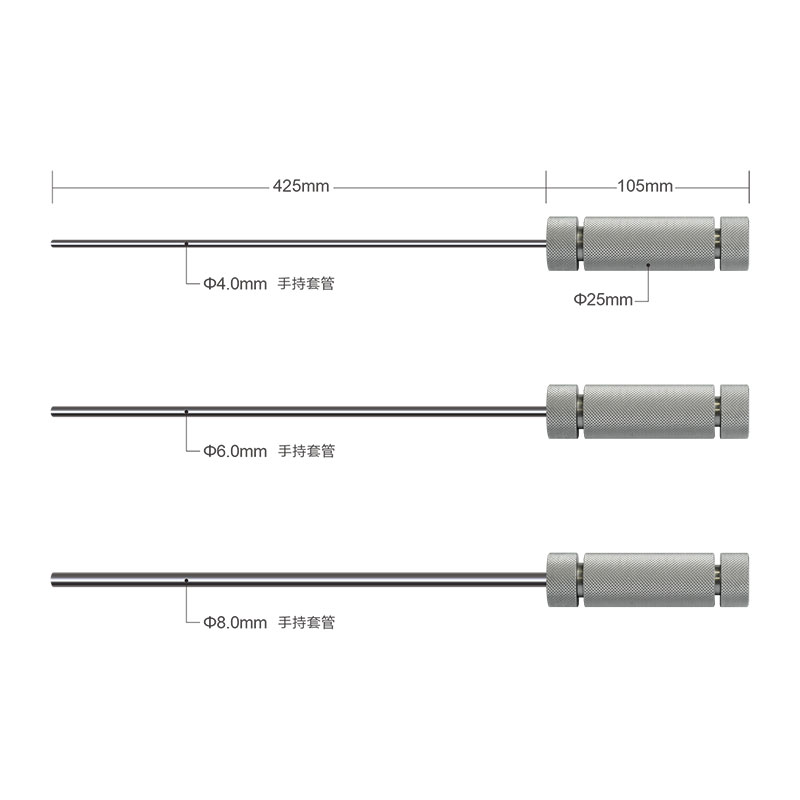

| Basic Structural Parameters | φ 4.0 mm | φ 6.0 mm | φ 8.0 mm |
|---|---|---|---|
| Total Length | 530 mm | 530 mm | 530 mm |
| Handle Length | 105 mm (±5 mm) | 105 mm (±5 mm) | 105 mm (±5 mm) |
| Handle Diameter | 25 mm | 25 mm | 25 mm |
| Extension Rod Length | 425 mm (±5 mm) | 425 mm (±5 mm) | 425 mm (±5 mm) |
| Extension Rod Inner Diameter | 6.5 mm | 6.5 mm | 6.5 mm |
| Extension Rod Outer Diameter | 7.5 mm | 7.5 mm | 7.5 mm |
| Actual Measured Weight | 135 g | 135 g | 135 g |
| Materials & Process | Specification |
|---|---|
| Handle Material (Aluminum Alloy) | 6061 |
| Material Hardness | 95–105 HB |
| Surface Treatment | Anodizing |

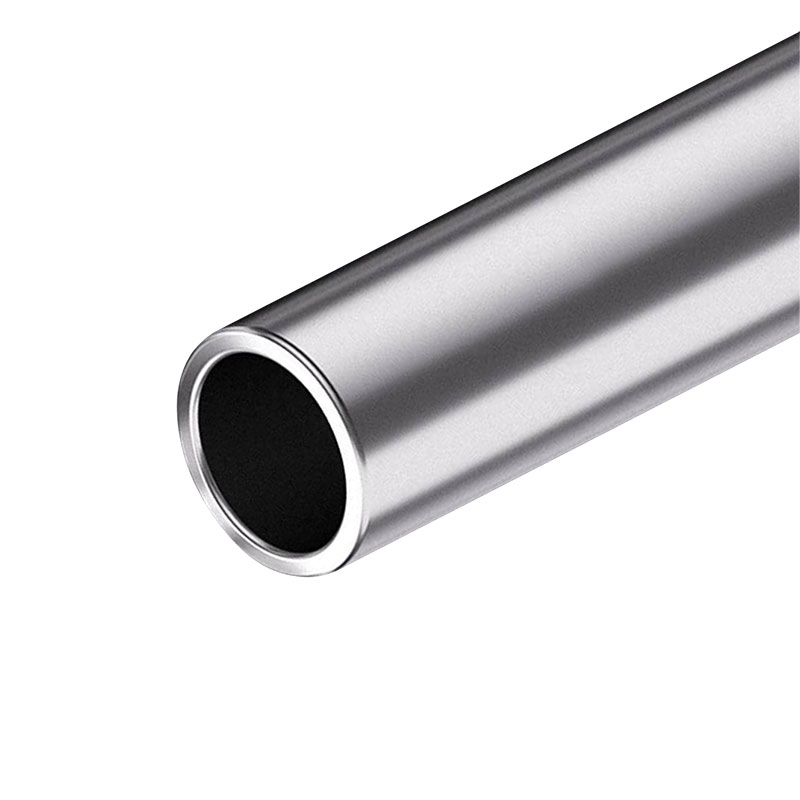

| Extension Rod Material | 304 Stainless Steel |
| Environmental Adaptability | Specification |
|---|---|
| Operating Temperature Range | -40°C to 200°C |
| Customization Services | Specification |
|---|---|
| Extension Rod Length | Within 1 meter |
