Lightweight and compact

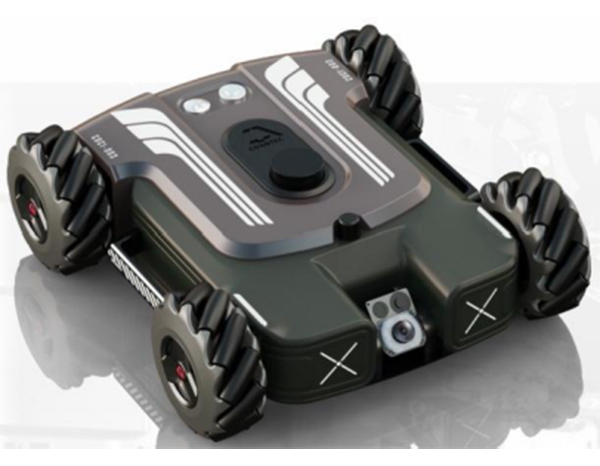

The detection robot intelligent car is made of carbon fiber material and can detect the bottom of various vehicles including cars, racing cars, special vehicles, buses, trains, etc.
Loading
| Product Series | CDC-100 robot |
| Weight of the robot body | 3.9 KG |
| Working hours | 4-6 hours |
| Detection robot intelligent car size | 300mm*289mm*100.6mm |
| Maximum climb angle | 24 degrees |
| Lighting | 6pcs high brightness LEDs |
| Camera rotation | 0-72 degrees tilt rotation |
| Display screen size | 8.8-inch touch screen |
| Maximum speed | 750mm/s |
| Maximum obstacle crossing height | 14 mm |
| Driving camera | 4 million pixel high-definition camera + thermal imaging camera |

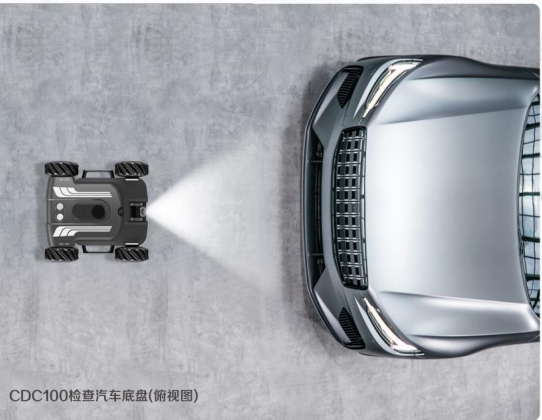

The CDC-100 series vehicle chassis inspection robot is a detection device that combines multiple technologies such as machine vision, image recognition, and intelligent car control. By wirelessly controlling the robot's movement through a tablet, it can easily inspect the real-time condition of the vehicle bottom, greatly reducing inspection time, effectively reducing work intensity, and improving inspection efficiency. Used for inspecting the chassis of various vehicles, it can perform safety checks on stations, docks, airports, venues, etc., or inspect the interior seats of trains and airplanes.It can be widely used in various scenarios such as car maintenance, modification inspections, large-scale event security checks, vehicle bottom explosive discharge, customs anti-smuggling, public security investigations, etc
The detection robot intelligent car is made of carbon fiber material and can detect the bottom of various vehicles including cars, racing cars, special vehicles, buses, trains, etc.

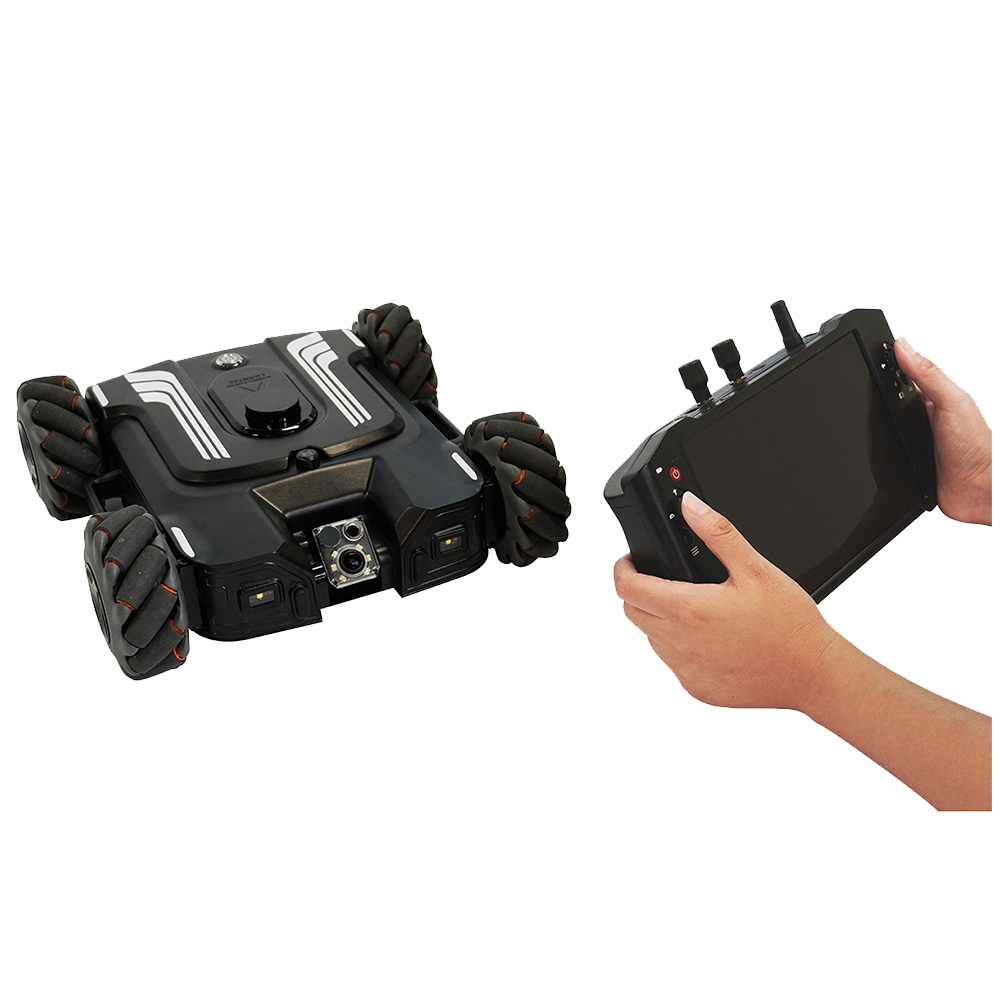

Adopting the Mecanum four-wheel drive remote control solution, the controller comes with an 8.8-inch high-definition display screen. The car can rotate forward, backward, left, and right, achieving real-time detection without blind spots. Itcan take photos, record videos, and perform one click puzzles with simple operation.
The detection robot comes with an inertial navigation module, which can define all-round operation. The operation mode can be set, and the straight and rotation speeds can be adjusted. Configure a laser radar ranging device that can measure distance in real-time and intelligently avoid obstacles. Equipped with a license plate recognition system, it can quickly and accurately identify license plate information.
The camera and lens can be replaced, suitable for different car models, with four-wheel independent suspension, able to adapt to different road conditions, and the image display is stable and smooth.
| Weight of the robot body | 3.9 KG | Working hours | 4-6 hours |
| Detection robot intelligent car size | 300mm*289mm*100.6mm | Maximum climb angle | 24 degrees |
| Controller weight | 1.1 KG | Maximum controlling distance | Open environment>100m; Complex environment around 50m |
| Controller size | 285mm*164mm*51.5mm | Lighting | 6pcs high brightness LEDs |
| Camera rotation | 0-72 degrees tilt rotation | Display screen size | 8.8-inch touch screen |
| Maximum speed | 750mm/s | Display screen resolution | 2560*1600 |
| Maximum obstacle crossing height | 14 mm | Driving camera | 4 million pixel high-definition camera + thermal imaging camera |
| Load weight | 2.5 KG | Protection level | IP53(IP65 customizable) |
| Working voltage | Car body:22.2V; Controller:11.1V | Movement mode | Forward /backward/left right translation; Rotate counterclockwise and clockwise in place |
