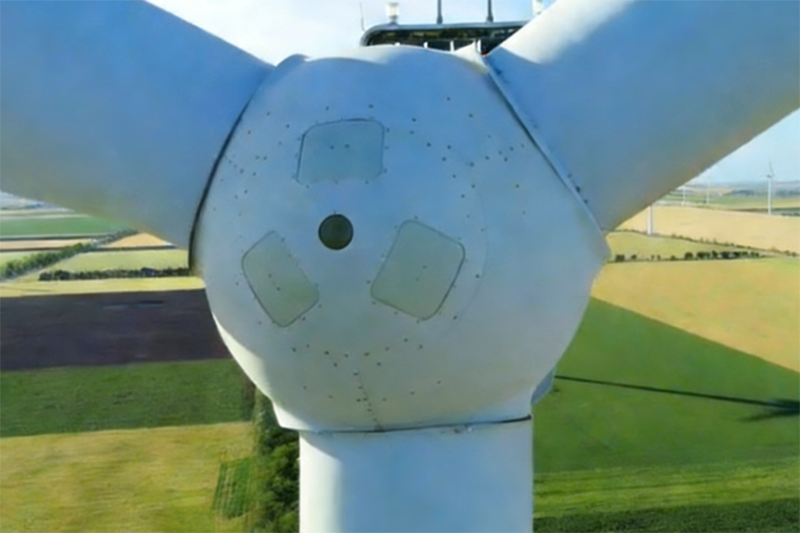

I. Current Challenges and Objectives in Wind Turbine Gearbox Maintenance

Wind turbine gearboxes operate under harsh conditions for extended periods, making them susceptible to internal defects. However, traditional operation and maintenance (O&M) methods face several critical bottlenecks:

Delayed Detection: Reliance on indirect methods like vibration analysis, abnormal noise monitoring, and oil level checks means internal wear, pitting, and other defects cannot be visually confirmed, leading to delayed fault identification.

High Costs: Inspecting the gearbox internally requires a full shutdown and hoisting of components, a complex and time-consuming process that results in significant economic losses due to downtime.

Lack of Data-Driven Decision Making: The absence of continuous, direct internal condition data makes it difficult to shift from costly "periodic maintenance" to efficient "predictive maintenance."

Environmental Challenges: On-site inspection equipment must meet strict requirements for explosion-proof safety, portability, and the ability to perform long-range inspections in confined spaces.

Core Objective: To implement an in-situ, visual, and efficient inspection method that provides direct insight into the true internal condition of the gearbox. This enables early fault warning, reduces O&M costs, and supports the transition to intelligent O&M for wind farms.

II. Introduction to the Industrial Endoscope Solution

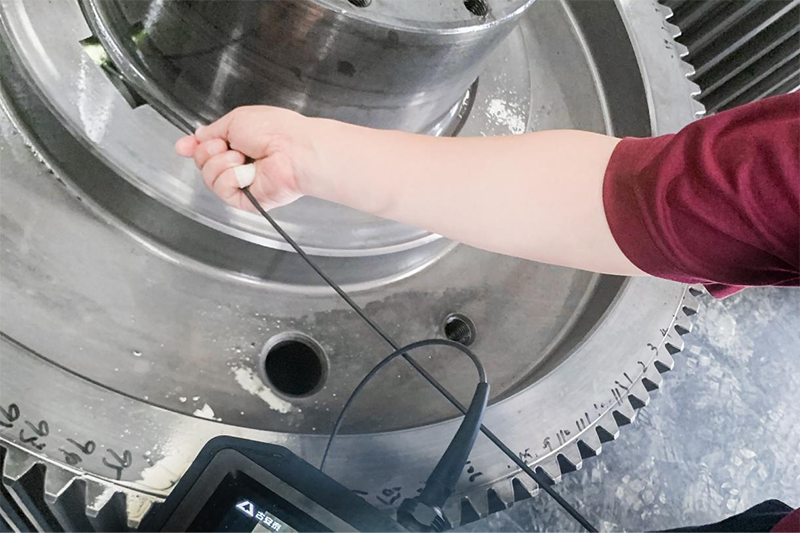

This solution utilizes the Coantec X3 series industrial endoscope, specifically engineered for complex industrial environments like wind power. Its configuration offers distinct advantages:

Flexible and Precise Inspection: Configured with 3-6mm diameter tubing (with wire diameters from 0.95mm to 8mm available), the probe can navigate through observation ports or narrow gaps within the gearbox. It reaches deep into confined internal spaces to provide high-definition, comprehensive inspection of critical components such as gears and bearings, leaving no blind spots.

Portable Design for Elevated Work: The equipment features a handheld, integrated design that is compact and lightweight. This makes it ideal for high-altitude and confined space operations within wind turbine nacelles, allowing for easy single-person portability and operation, significantly enhancing on-site inspection efficiency.

Guaranteed Intrinsic Safety: A key feature is the high-level explosion-proof certification: Ex ib IIC T4 Gb. This is crucial for safety, ensuring that even in the occasional presence of Group IIC explosive gases inside the gearbox, combined with a potential electrical fault, any resulting sparks or surface temperatures (T4 rating, ≤135°C) will not ignite the atmosphere, protecting both personnel and equipment.

III. Key Advantages of the Industrial Endoscope Solution

The core strength of the Coantec X3 solution lies in its precise alignment with industry needs, translating into measurable value in practical applications.

1.High-Definition Visualization of Faults. The system delivers high-resolution imaging, enabling direct identification of microscopic defects like gear wear and pitting. This allows maintenance teams to accurately assess defect type and severity. For instance, it has successfully provided early warnings for gear corrosion in coastal wind farms, delivering indispensable visual evidence for planning targeted maintenance and transforming hidden internal conditions into actionable data.

2.Non-Disassembly Inspection, Reducing Costs. The non-intrusive nature of this solution drastically cuts downtime. Actual data indicates that the cost per inspection can be reduced to just 10%-15% of traditional disassembly methods. In a large-scale retrofit project at a North China wind farm, this approach prevented unnecessary dismantling, saving substantial maintenance costs and minimizing lost power generation, thereby improving overall asset utilization.

3.Safety and Reliability for Complex Environments. The equipment's explosion-proof certification fundamentally mitigates risks in potentially flammable environments like gearboxes. Its modular design and long-range probe are particularly suited for the high-altitude, confined spaces of turbine nacelles. Its portability and durability have been proven in harsh environments such as the Gobi Desert, ensuring inspection tasks are carried out safely and efficiently.

4.Driving an O&M Paradigm Shift. This solution is more than an inspection tool; it serves as a critical data entry point. By enabling the accumulation and analysis of case history data, it facilitates a transition from "experience-driven" to "data-driven" maintenance strategies. In summary, by addressing the core pain points of visibility, speed, safety, and predictability, the Coantec X3 solution not only demonstrates technological superiority but also delivers sustained long-term value—reducing costs, enhancing safety, and improving efficiency. It represents a proven practice for advancing high-quality, intelligent O&M in the wind power industry.

IV. Practical Application and Market Impact

This solution directly addresses the wind power industry's urgent needs for cost reduction, efficiency gains, and intelligent transformation. Its value is especially pronounced in technological upgrade projects like "repowering" (replacing older, smaller turbines). It not only helps customers manage the operational complexities introduced by changing turbine fleets but also provides vital technical support for the industry's shift from "large-scale expansion" to "high-quality development."

Currently deployed in regions including Guangdong, Guangxi, Yunnan, Guizhou, and Gansu, customer feedback indicates tangible results:

Reduction in unplanned downtime by 30%-50%.

Potential extension of equipment service life by 15%-20%.

Standardized inspection processes reduce dependency on individual technician experience, allowing for systematic knowledge accumulation.

Ultimately, this solution empowers wind farms to upgrade their operational model from "passive res
