Aircraft Borescope Inspection: A Complete Guide to Choosing the Right Tool

Modern aircraft are engineering marvels, but their complexity comes with a price: maintenance is no small task. Unlike the simple engines of early aviation, today’s turbines, gearboxes, and airframes contain countless tight spaces and hidden components. To inspect these areas without tearing the aircraft apart, maintenance teams rely on one essential tool—the aircraft borescope.

What Is an Aircraft Borescope?

An aircraft borescope is a precision inspection tool designed to enter confined or hard-to-reach areas of an aircraft. It typically features a long, slender probe with a camera or optical lens at the tip, connected to a display or eyepiece. By inserting the probe through small openings—such as fuel nozzles, cooling holes, or access ports—technicians can visually examine internal conditions: cracks, corrosion, foreign object damage, or wear. This happens without disassembling costly components.

In aviation, borescope inspections are a must, not an option. They are a regulatory and safety necessity. Regular checks help identify issues early, preventing in-flight failures and reducing unscheduled engine removals.

Types of Aircraft Borescopes

Aviation maintenance professionals choose from three main types of borescopes, each suited to different tasks.

Rigid Borescopes

A rigid borescope consists of a straight, non‑bending tube with internal lenses. It delivers outstanding optical clarity and works best for inspecting components with direct, straight‑line access—such as cylinder walls or turbine blade leading edges. However, it cannot navigate curves or bends.

Fiberscopes

Fiberscopes use flexible fiber‑optic bundles to transmit images. They can snake around corners and through convoluted passages, making them ideal for inspecting gearbox interiors or combustion chamber liners. The trade‑off is slightly lower image resolution compared to rigid scopes.

Videoscopes

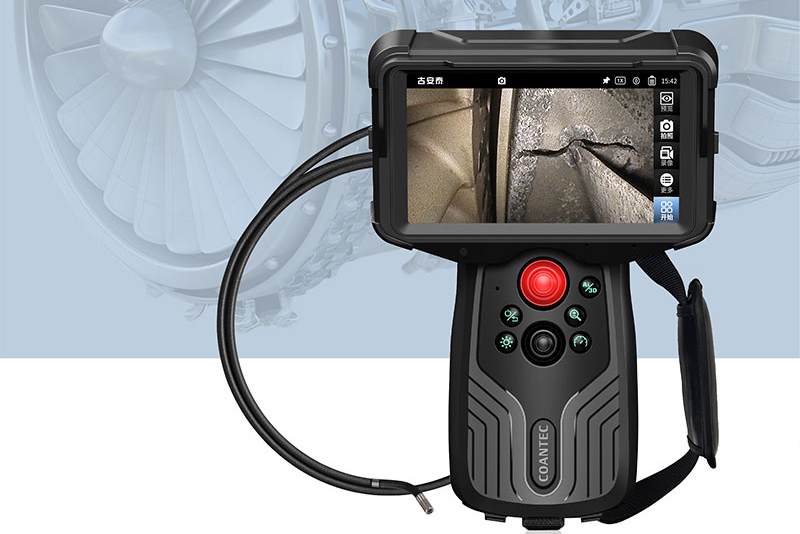

Videoscopes combine the flexibility of fiberscopes with high‑resolution digital cameras. They offer real‑time video, adjustable illumination, and the ability to record stills or clips for later analysis. Many modern videoscopes include articulating tips that can be steered remotely, allowing precise navigation inside engine cores or airframe structures.

How to Choose the Right Aircraft Borescope

Selecting the best borescope for your operation involves balancing several key factors. Here are four critical considerations.

1. Access Flexibility

Evaluate the inspection paths you frequently encounter. For straight, unobstructed channels, a rigid borescope provides the sharpest images at a lower cost. If you need to inspect curved ducts, compressor stages, or wing spars, a flexible fiberscope or videoscope is essential. Articulating videoscopes offer the greatest versatility.

2. Image Quality

Resolution matters—especially when you are looking for hairline cracks or minute material loss. Higher pixel counts, adjustable LED lighting, and digital zoom help you spot defects that might otherwise go unnoticed. For engine hot‑section inspections, where even tiny anomalies can lead to major failures, invest in the best image quality your budget allows.

3. Probe Length and Diameter

Measure the distance from the access port to the target area, then add a margin for maneuvering. Too short a probe is useless; too long can be cumbersome but manageable. Equally important is the probe’s outer diameter. Make sure it fits through the narrowest opening—typical aviation borescope diameters range from 2 mm to 8 mm. Thinner probes access tighter spaces but may sacrifice some durability or image quality.

4. Budget and Total Cost of Ownership

While initial price matters, consider long‑term value. A low‑cost borescope with poor resolution may lead to missed defects, resulting in costly engine removals or airframe repairs. On the other hand, a feature‑rich videoscope with recording and reporting software can streamline documentation and reduce repeat inspections. Balance upfront spending against the reliability and accuracy you need.

Final Thoughts

Regular borescope inspections are the frontline defense against unexpected failures in aviation. Whether you maintain a single piston‑engine aircraft or a fleet of commercial jets, having the right inspection tool directly impacts safety and operational efficiency.

For reliable, high‑performance visual inspection solutions, Coantec offers industrial endoscopes tailored to aviation needs. Their borescopes combine crisp optics, flexible probes, and user‑friendly software—helping maintenance teams work smarter and safer.
