| Product Series | C68 series High Performance Multifunctional Industrial Videoscope |
| Display Size | 8-inch |
| Camera pixels | 160K/300K/1M/2M |
| View direction | Direct view/side view/dual view |
| Light source type | Front LED/Rear-mounted LED+fiber light guiding |
| Guidance control method | Machanical joystick/Motor-control joystick |
| Tube diameter | 0.95/1.2/1.6/1.8/2/2.8/3.0/3.9/4.8/6/8mm |
| Insertion tube length | 1-10m |
| Tip guidance capability | 360° all-way guidance |
| Compatibility | Replaceable insertion tube |
| Output Port | Micro HDMI |

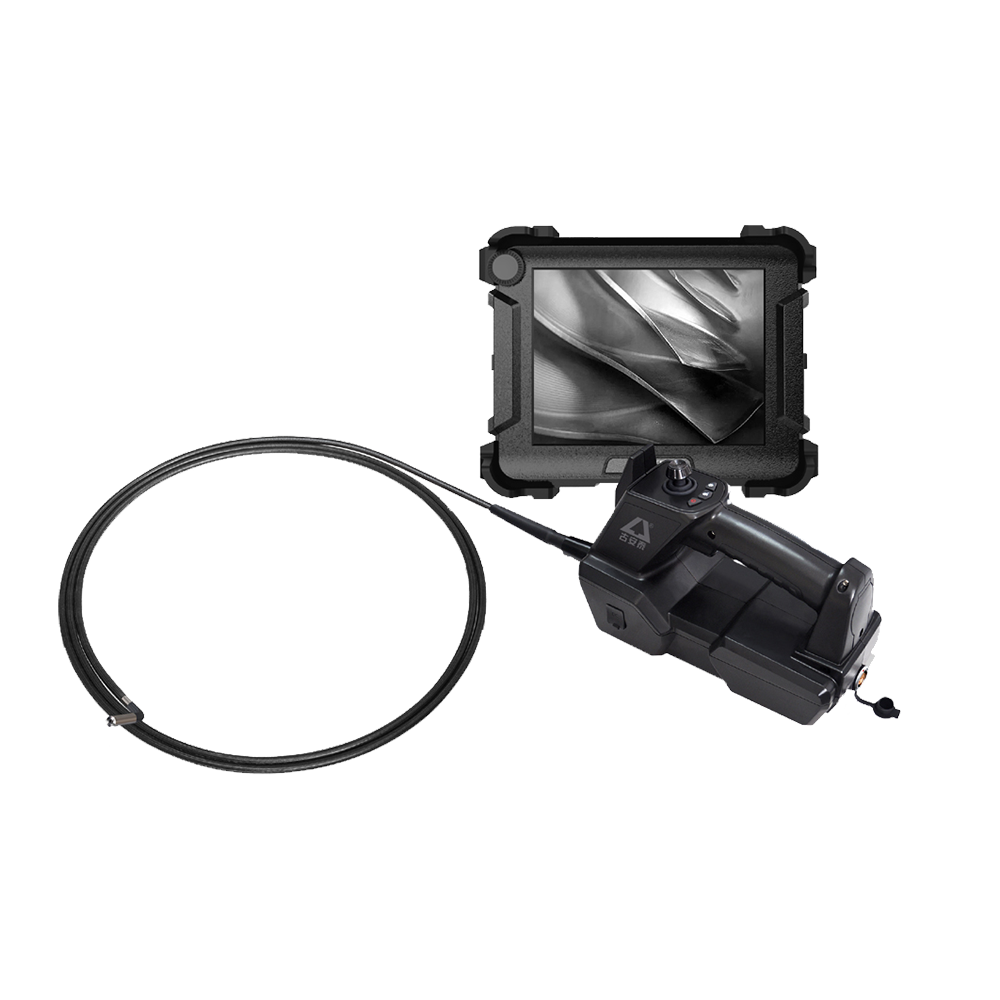

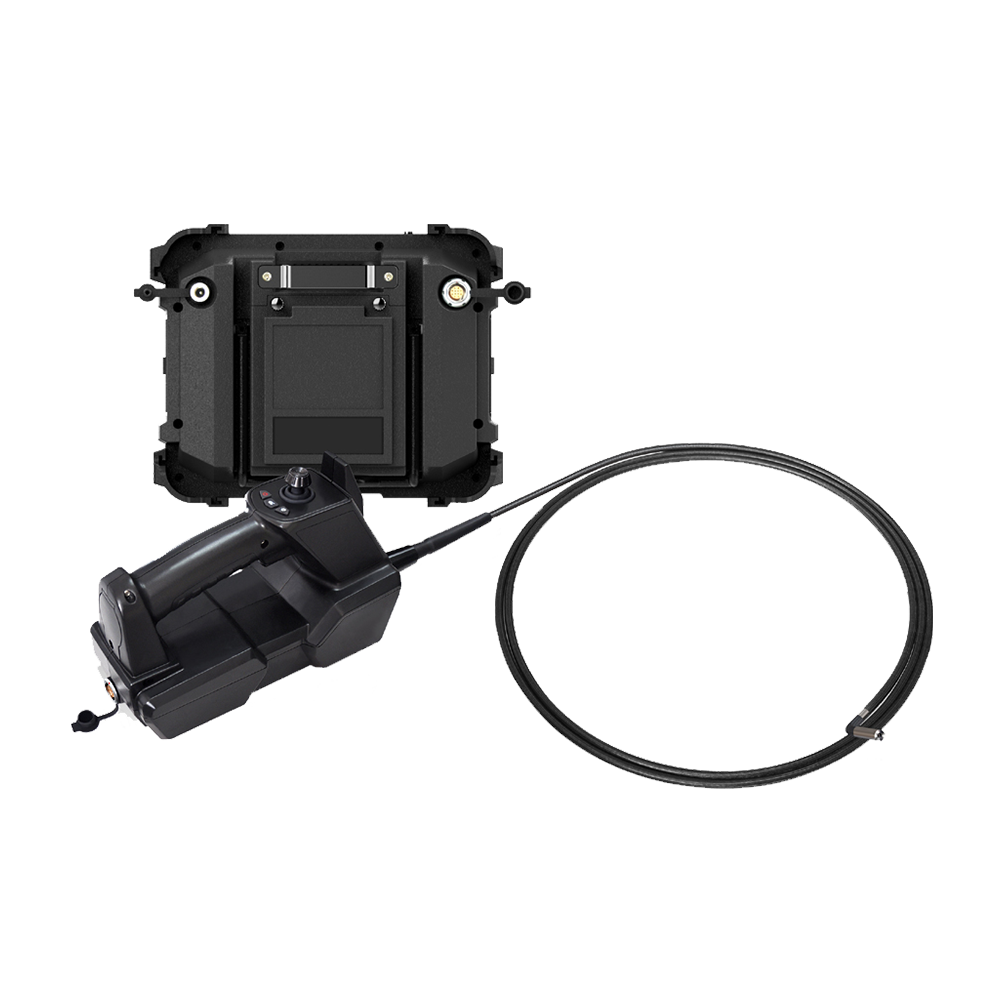

The C68 series is a brand new high-performance industrial videoscope,which independently researched and developed by Coantec.Through the combination of electronic joystick and virtual joystick on the touch screen,this instrument provides better controllability,flexibility and comfort.This instrument allows observation of areas that are difficult to be observed directly through the human eyes,and provides better guarantee for product quality and instrument operation security.This product is applicable to fields such as aeronautics,astronautics,energy,electric power,chemistry, machinery,car, military industry,special inspection,etc.

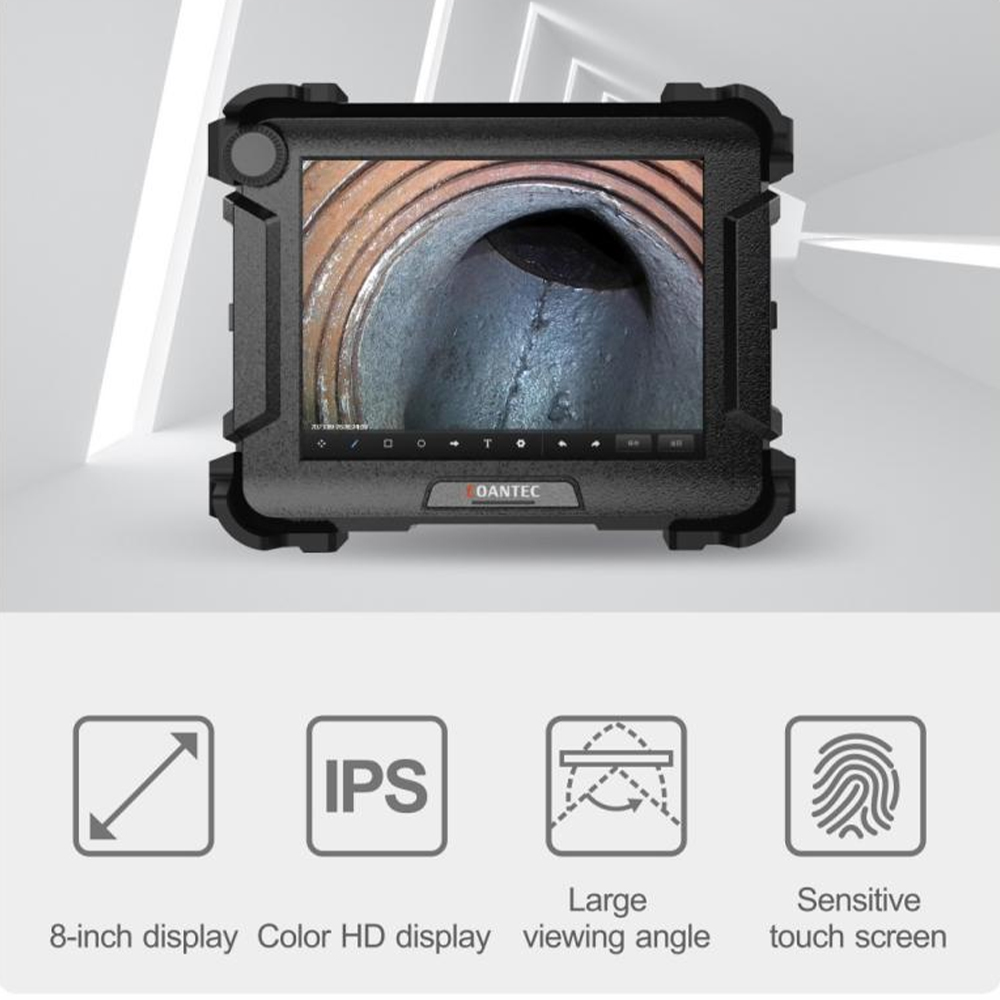

The larger viewing angle effectively reproduces true colors，providingexcellent image quality and significantly reducing visual fatigue,thus enhancing inspection comfort. The touchscreen is highly responsiveand easy to operate, greatly improving work efficiency.

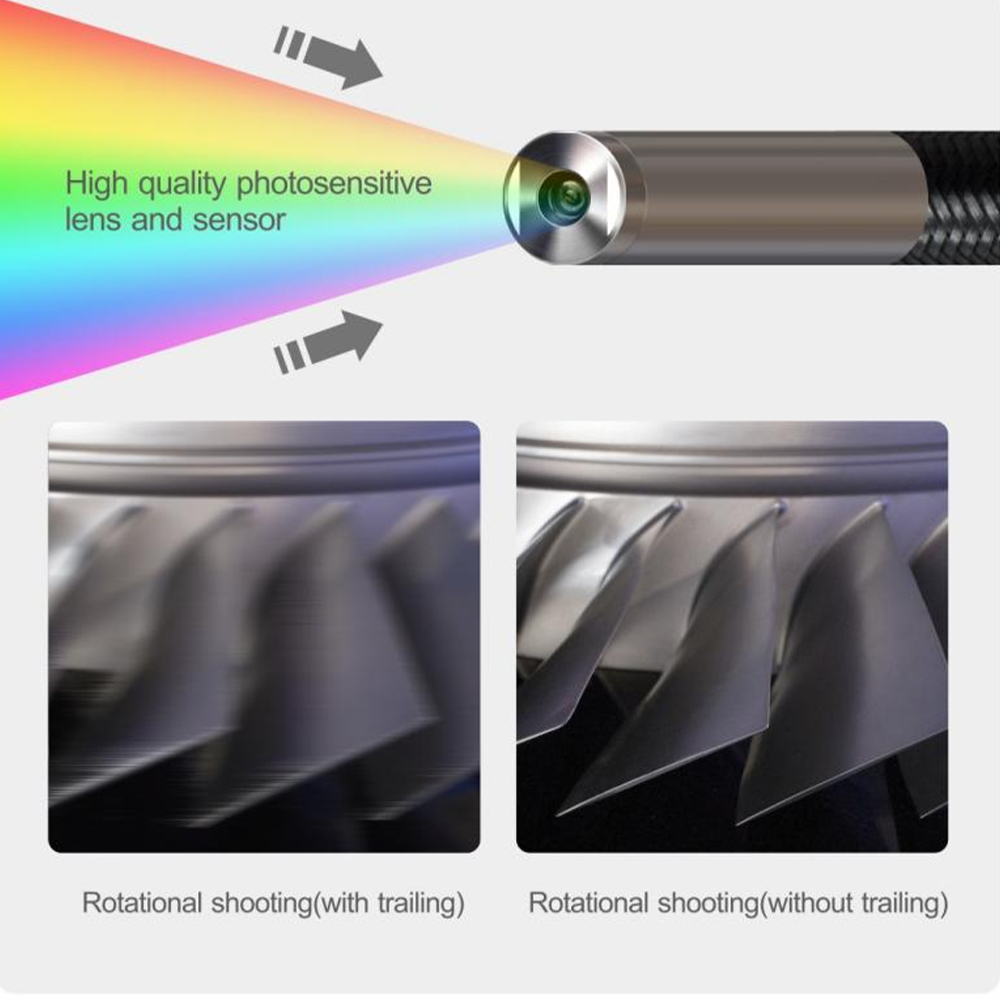

Equipped with a high-quality image sensor, it delivers clearer and moredetailed images,smoother video，with no delay or trailing,facilitatingthe rapid and accurate identification of subtle defects.

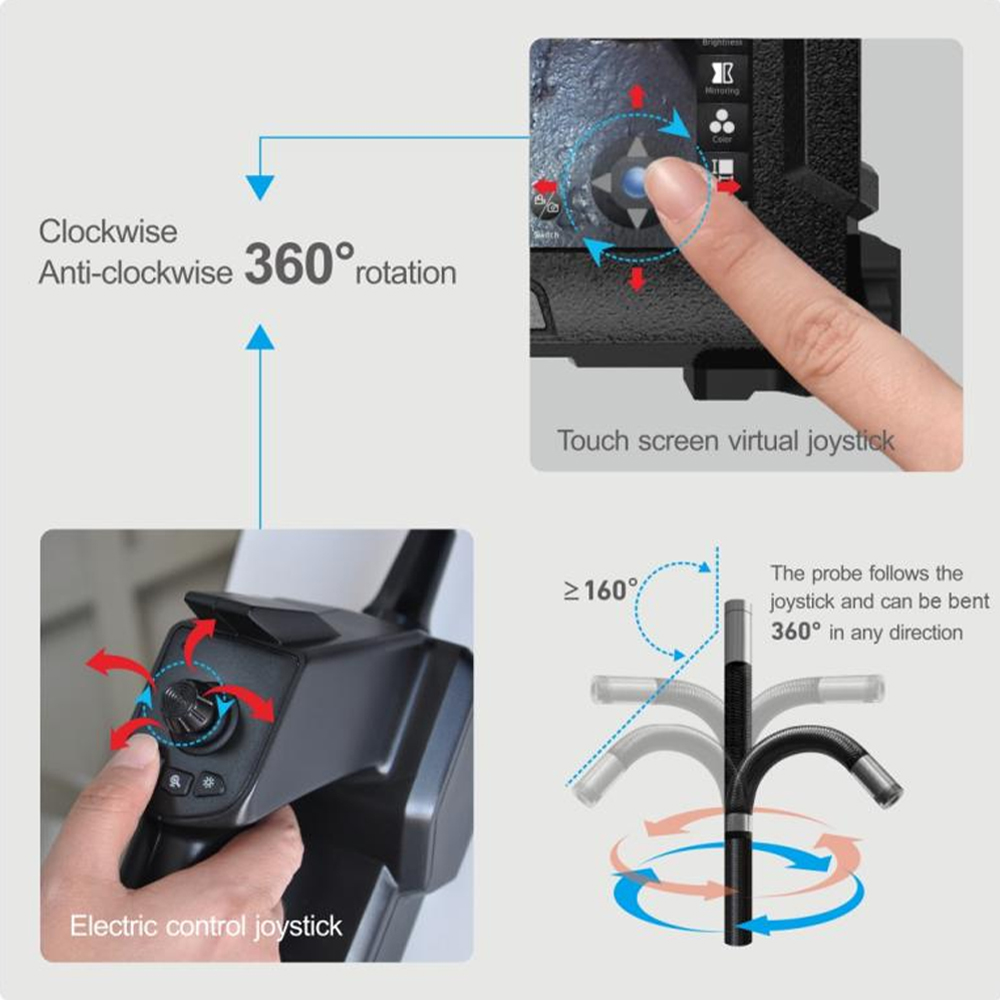

The electric joystick is matched with the touch screen virtual joystick tocontrol the probe move accurately,providing abetter controlexperience.Turn on the probe coordinate display function to observethe current bending angle of the probe in real-time.Users can also configure mechanical joystick as required.

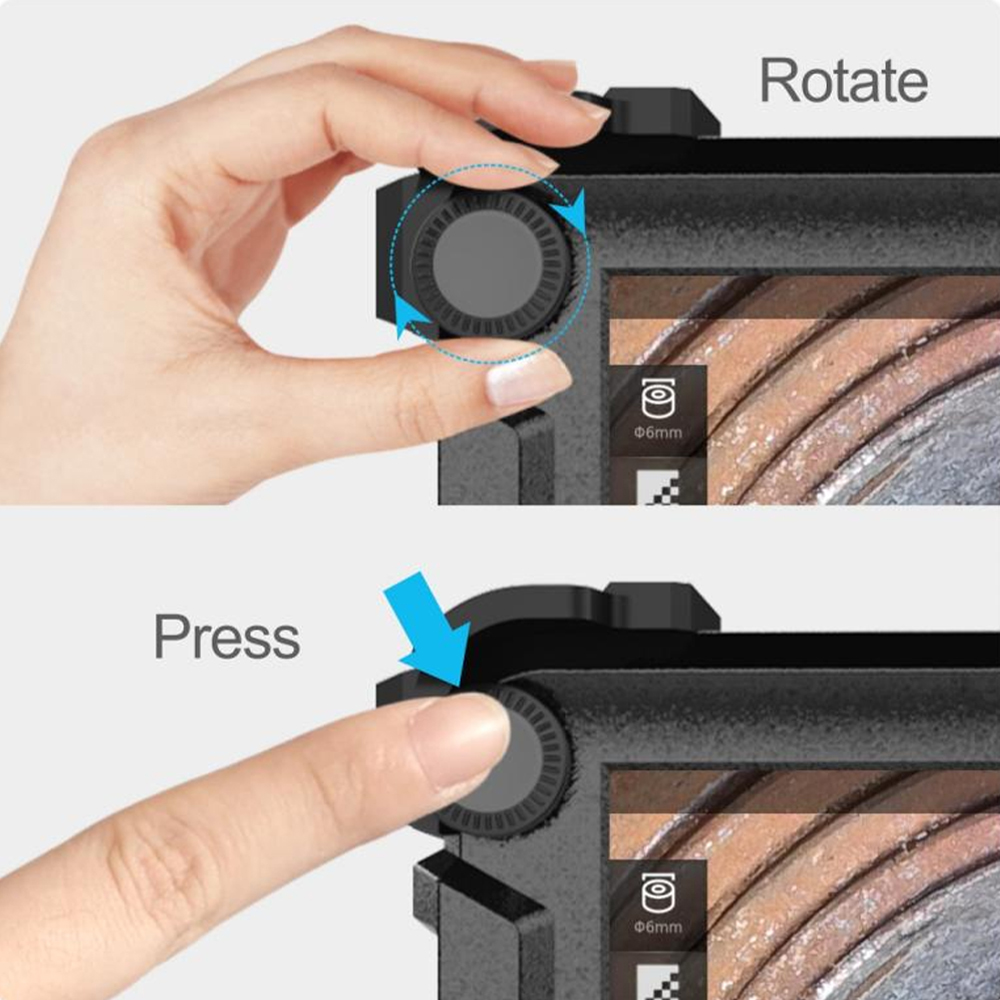

The unique design of knob type multifunctional key (patented) makesit easier to switch and set menu functions.convenient and faster.

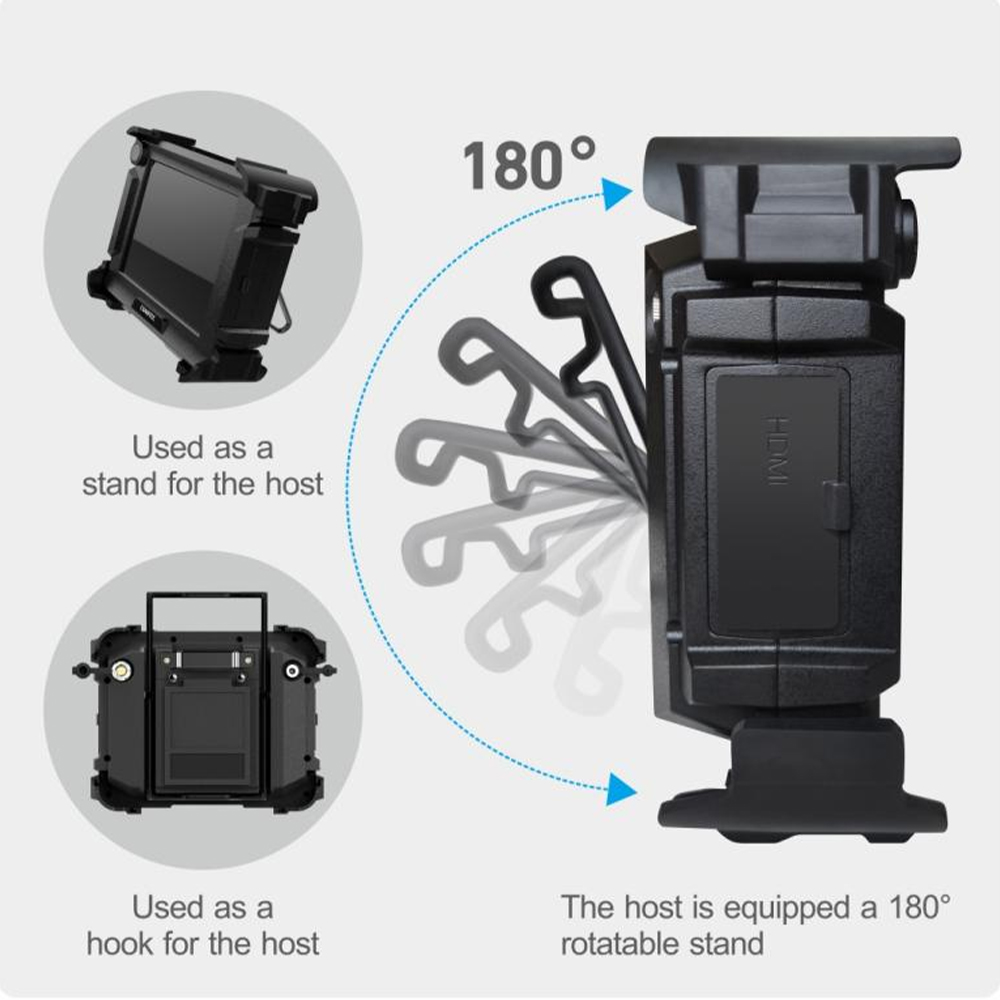

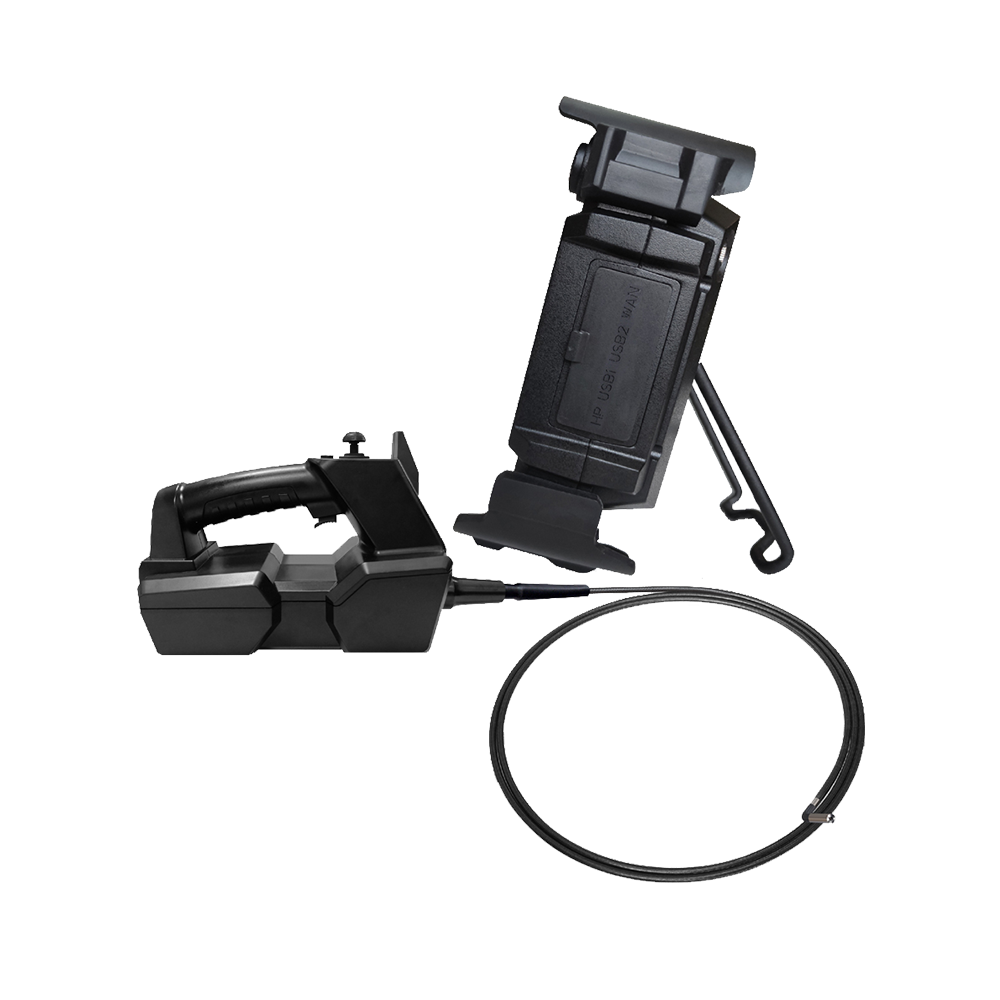

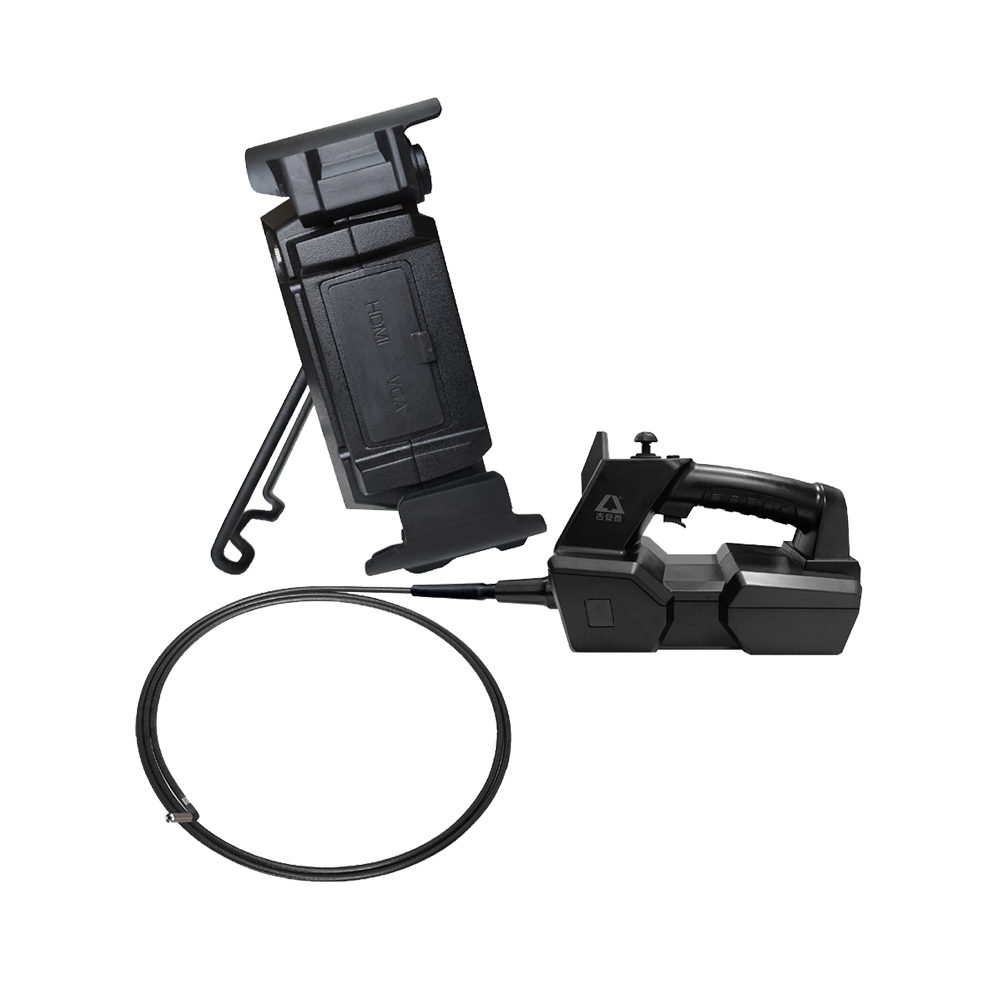

Equipped with 180°rotatable support,it can be suspenea anusupported,which is convenient to adjust the observation angle,and is suitable for various detection scenes.
The external display screen can be connected through HDMl interface(standard), which is convenient for multi person consultation and moreconducive to accurate judgment of on-site conditions.

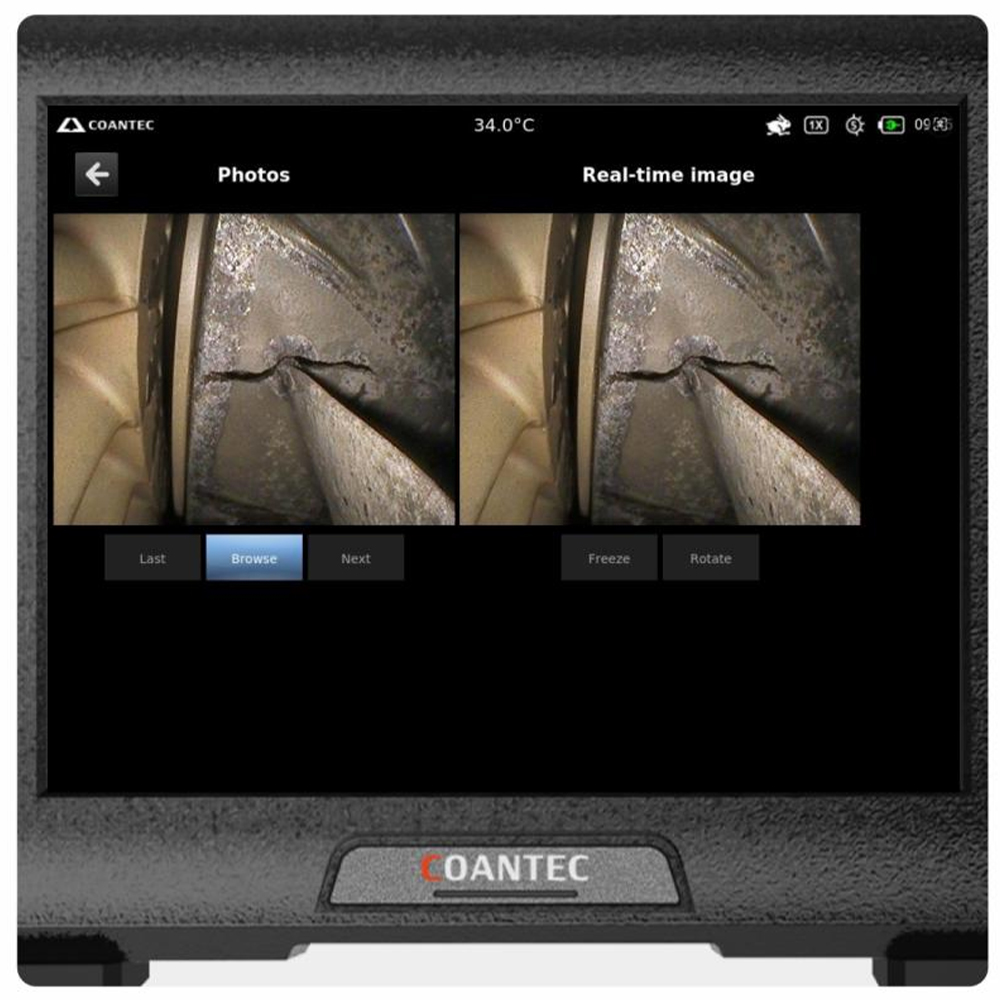

By comparing and observing the difference between the real-timedetection image and the static image,it is more convenient to find anddistinguish the possible surface defects of the detected object in time.

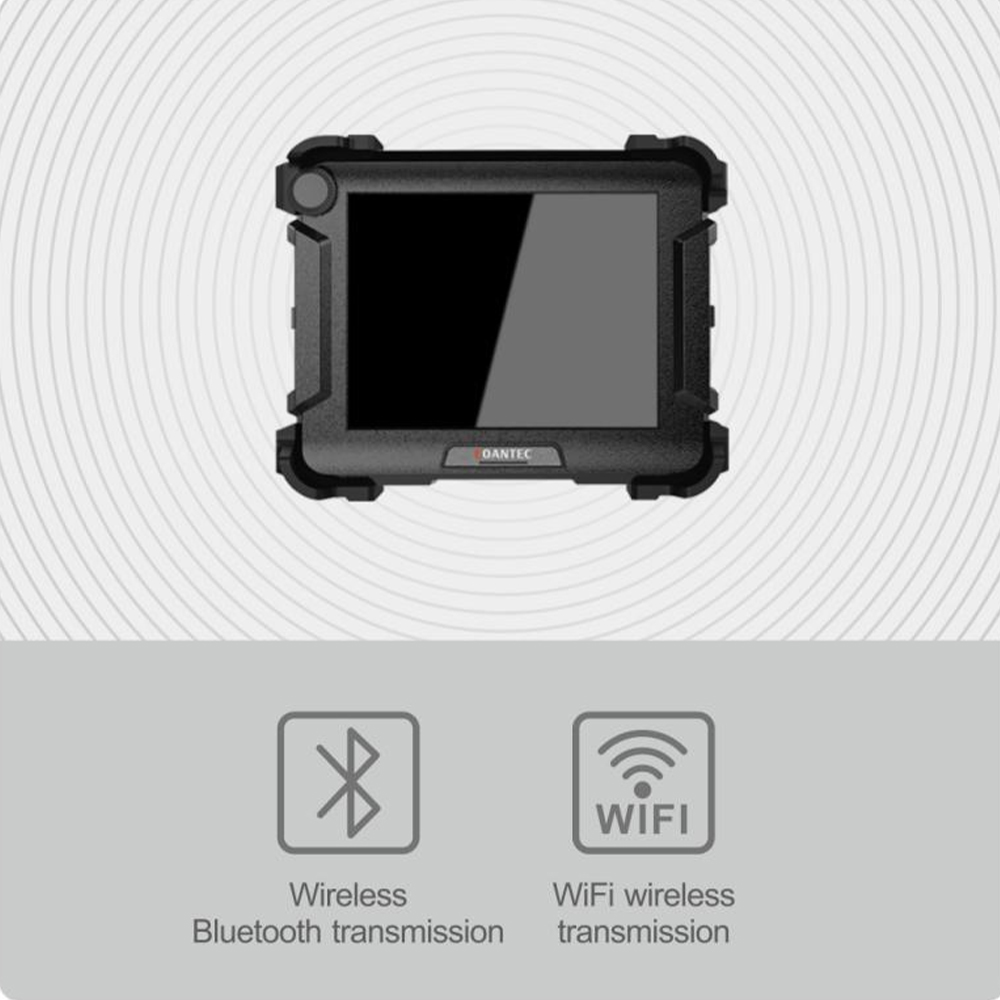

Built in wireless Bluetooth module to transfer pictures or video filesmore conveniently and quickly.Built in WiFi modules can upload anddownload data through wireless networking.

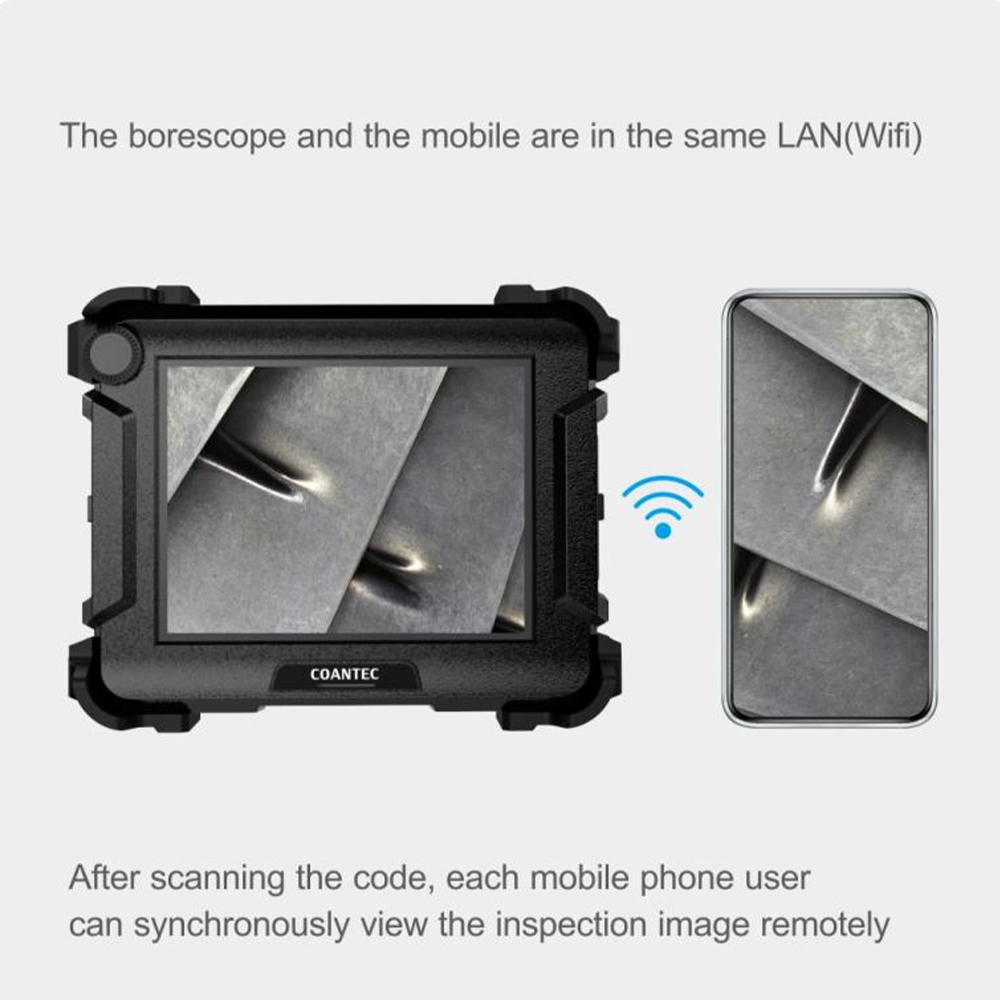

The LAN live streaming function is that, the users scan the u coae in iheborescope with their mobiles, and transmit the real-time detection image totheir mobiles through the LAN. After scanning the code,eacn mop Ie piIonleuser can synchronously view the inspection image remotely, which is sultaplIefor expert or multi-person consultation, to achieve better cooperation.

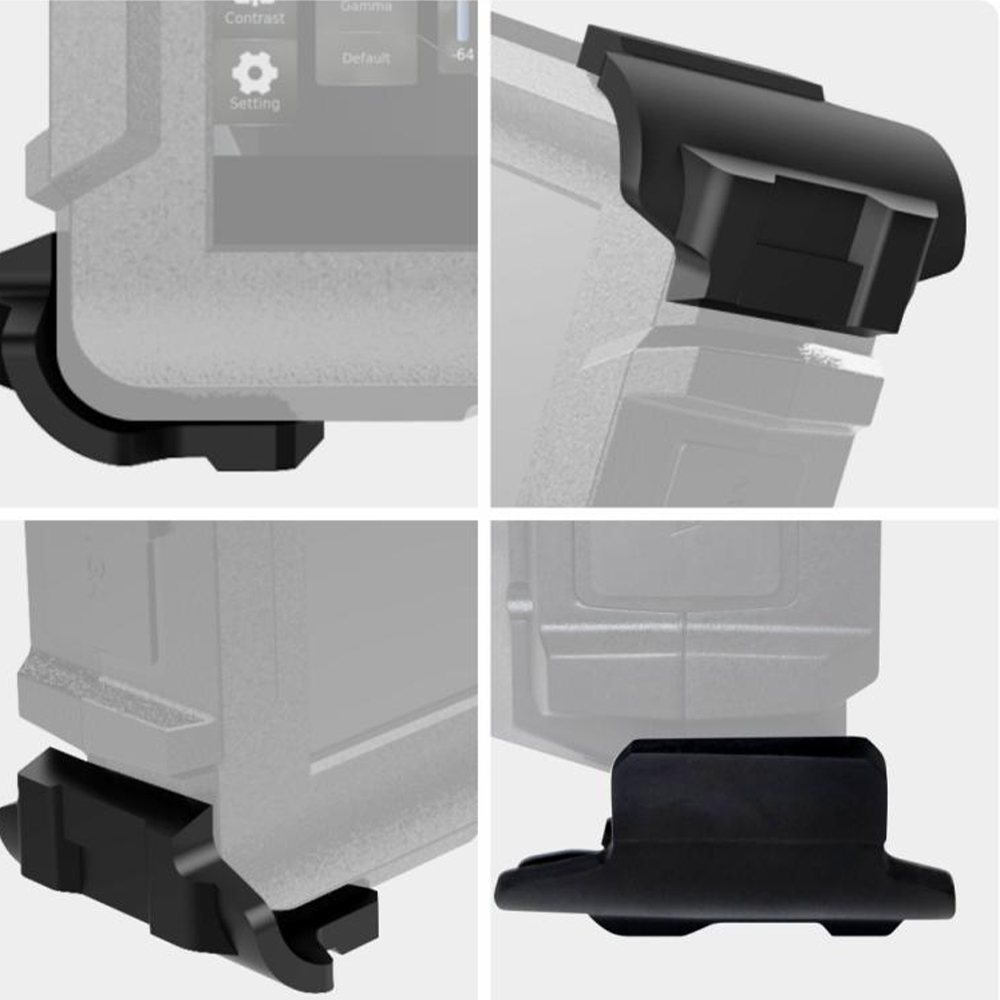

The four corners of the host adopt TPU rubber coated anti-collisiondesign,with round and beautiful appearance,more shock and fallresistance,effectively strengthening the protection of the equipment,and more durable.
"●"standard configuration "○"optional configuration "-"not provided | C68 series | ||
Host system | |||
Display | Brand new IPS HD touch screen | ||
Display size | 8-inch | ||
Display detachable | ● | ||
User interface | Use the touch screen,physical buttons,and joystick menus to navigate | ||
Host storage capacity | The standard memory is 16GB and can be expanded to 128GB | ||
Storage memory expandable | ○ | ||
Host running memory | The standard running memory is 2GB and can be expanded to 4GB | ||
Photography function | ● | ||
Image format | JPG/BMP | ||
Video recording function | ● | ||
Video format | MP4 | ||
Real-lime image zoom | 1-5 times through button or touchscreen | ||
LED brightness adjustable | 0-9 level | ||
Image effect | Image brightness,contrast,hue,saturation,sharpness,gamma | ||
Display brightness manual adjustment | ● | ||
Image mode | Default,monochrome,negative,bright,highlighted,or soft | ||
Image rotation | ● | ||
Image freezing | ● | ||
Image mirroring | ● | ||
Image real-time comparison | ● | ||
Time watermark | ● | ||
Report generation | ● | ||
Ruler | None,circular ruler,cross ruler,or reference line | ||
Bluetooth data transmission | ● | ||
WiFi data transmission | ● | ||
File operations | Full screen view/image/zoom/delete/rename/rotate/graffiti etc | ||
Image Zoom | 1-5 times(by button and touch screen) | ||
Photo edit | Text annotation and graffiti functions(handwritten lines,arrows,boxes,round signs,text annotation,and can set the brush color and thickness) | ||
User permission management | Administrator,Visitors,Standard user (created by administrator) | ||
Menu/input method language | Simplified Chinese,English,Japanese,Korean, French,German,Portuguese,Spanish, Russian,Italian,Dutch and more than 10 other languages | ||
3D measurement system（optional） | Length，Vertical, Depth, Multisegments, Area, Missing corner, Sectional,Circles | ||
3D measurement accuracy | 0.01mm | ||
Measurement error | ≤5% | ||
Video live streaming | ● | ||
Online upgrade | ● | ||
Ingress Protection（host） | IP55 | ||
Output port | ● | ||
HDMI video output port | ● | ||
3.5mm audio port | ● | ||
USB 2.0 port*2 | ● | ||
Dimensions | |||
Host size | 245mm*195mm*95mm | ||
Packing size | 551mm*351mm*240mm | ||
Host weight（including battery） | 2.85Kg | ||
Operating handle | 1.1Kg | ||
Insertion tube | |||
Tube diameter（±0.1mm） | 2.0mm | Tube length:1m-3m available(The measurement function is only available for tubes larger than 4mm) | |
2.8mm | |||
3.9mm | |||
4.8mm | |||
6mm | Tube length:1m-10m available | ||
8mm | |||
Depth of view（mm） | 5-50/5-100/8-250* | ||
View angle | 70°/80°/100°/120°* | ||
Camera pixels | 160,000/300,000/1,000,000/2,000,000* | ||
Tube replacement | ● | ||
Lens replacement | ○ | ||
View direction | Front view/Side view/Front and Side view integrated | ||
Light source | Front LED/Rear-mounted LED+fiber light guiding | ||
360°all-way articulation | ● | ||
Probe bending angle | ≥160°（eg：for 6mm 1m tube） | ||
Joystick | Mechanical joystick | Motor-control joystick | |
Virtual joystick | - | ● | |
Probe lock/release | - | ● | |
Bending speed | - | Fast/Slow，3 level in each mode | |
Probe housing material | Super hard alloy protection case | ||
Tube material | Tungsten wire wear-resistant braided tube | ||
Ingress Protection(insertion tube) | IP67 | ||
Power supply | |||
Input power | Input：220±10%V 50Hz | ||
Output | Output DC:15V 6A | ||
Battery capacity | Voltage:7.4V,Capacity:10000mAh | ||
Continuous working time | Mechanical joystick:≥4h ,Motor-control joystick:≥6h | ||
Operating environment | |||
System operating temperature | -20°C~60°C | ||
Tip operating temperature | |||
Storage temperature | -40°C~60°C | ||
Relative humidity | 15%-90% | ||
Accessories | |||
Special instrument case | ● | ||
USB flash disk | ● | ||
Power adaptor | ● | ||
Pipe centralized | ○ | ||
Battery pack | ○ | ||
Battery charge | ● | ||
HDMI cable | ● | ||
Customization | |||
Tube length,diameter,light source | ○ | ||
Tube can be added with a scale | ○ | ||
Software | ○ | ||
Display size | ○ | ||
Lens | ○ | ||
*The specific parameters are subject to the actual product.Please contact to the sales for confirmation. | |||
