Clearly present the internal structure and surface morphology of the tested object, helping users quickly identify defects and faults. Can capture static images and dynamic videos for more comprehensive and detailed diagnostic analysis.
Loading
| Display size | 3.5-inch HD display |
| Monitor resolution | 640*480 |
| Image magnification | Support real-time 4x magnification and 8x magnification for image playback |
| LED brightness level | Adjustable from 0 to 7 levels |
| Auxiliary measurement function | Crosshair reference line |
| File format | Images are stored in JPEG/BMP format, videos in MP4 format |
| Image rotation | Images can be rotated 0°/90°/180°/270° |
| Screen backlight brightness | Adjustable in three levels |
| Output port | Micro HDMI |
| Host size | 240mm*102mm*126mm |
| Packaging size | 411mm*321mm*165mm |

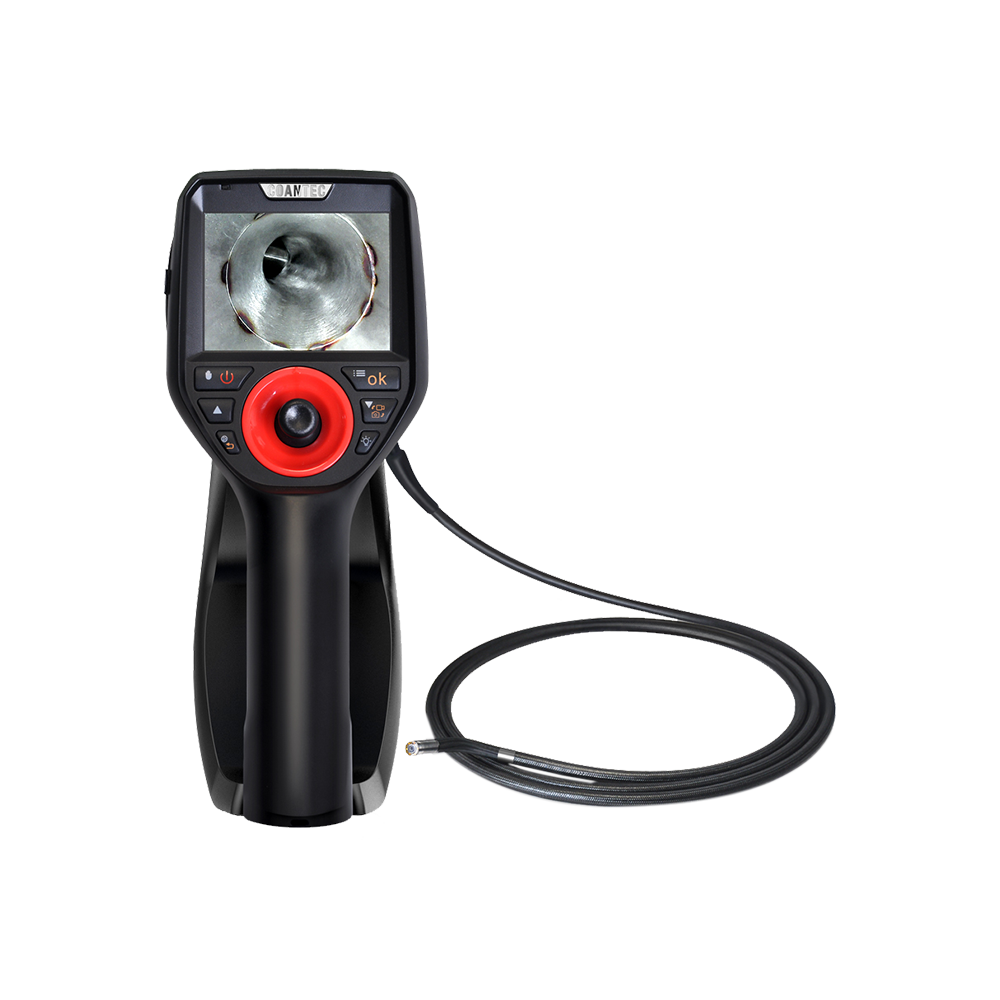

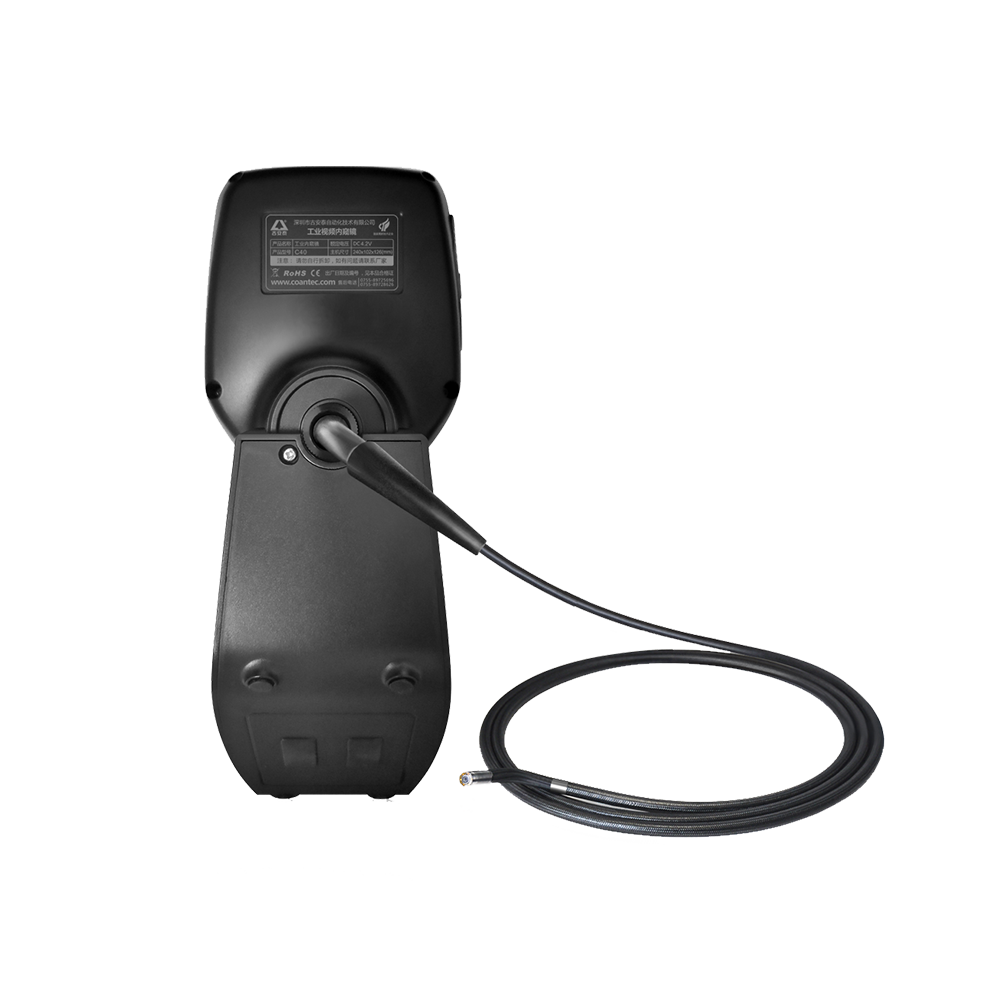

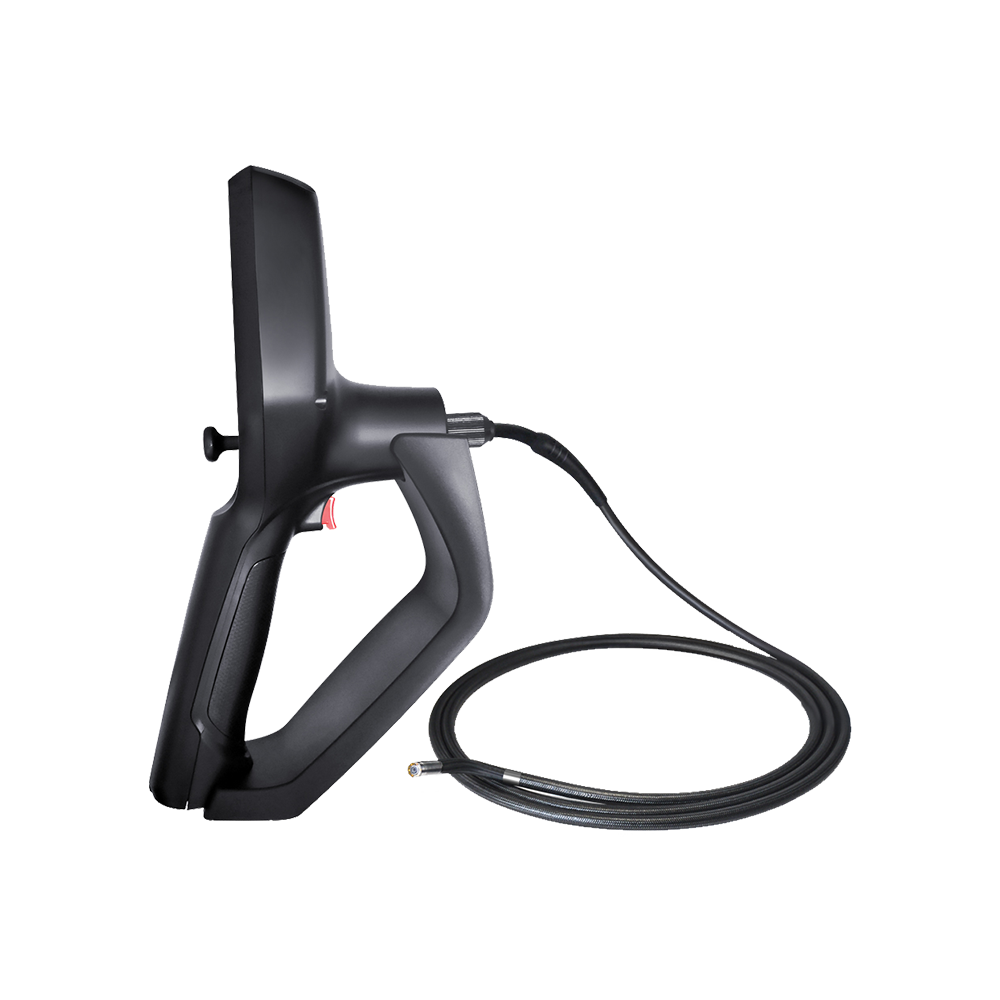

The C40 series is a 360° all-way articulation industrial videoscope independently developed and produced by Coantec. This product uses a 3.5-inch HD display, an ultra-high-definition camera,waterproof and dust-proof level of inserted tube up to IP67,and customized oil proof tube, which is suitable for more severe environment. Users can replace the insertion tubes with different diameters and lengths independently, realizing multi-purpose of one machine and saving cost effectively.The whole machine adopts integrated design, which is lighter and portable, and can be used in aviation, energy and electric power, mechanical casting, automobile manufacturing, special inspection and other fields.
System | |
Display size | 3.5-inch HD display |
Monitor resolution | 640*480 |
Image magnification | Support real-time 4x magnification and 8x magnification for image playback |
LED brightness level | Adjustable from 0 to 7 levels |
Auxiliary measurement function | Crosshair reference line |
Photo and video recording function | Including photo and video recording capabilities, with snapshot feature available during recording |
File format | Images are stored in JPEG/BMP format, videos in MP4 format |
Image rotation | Images can be rotated 0°/90°/180°/270° |

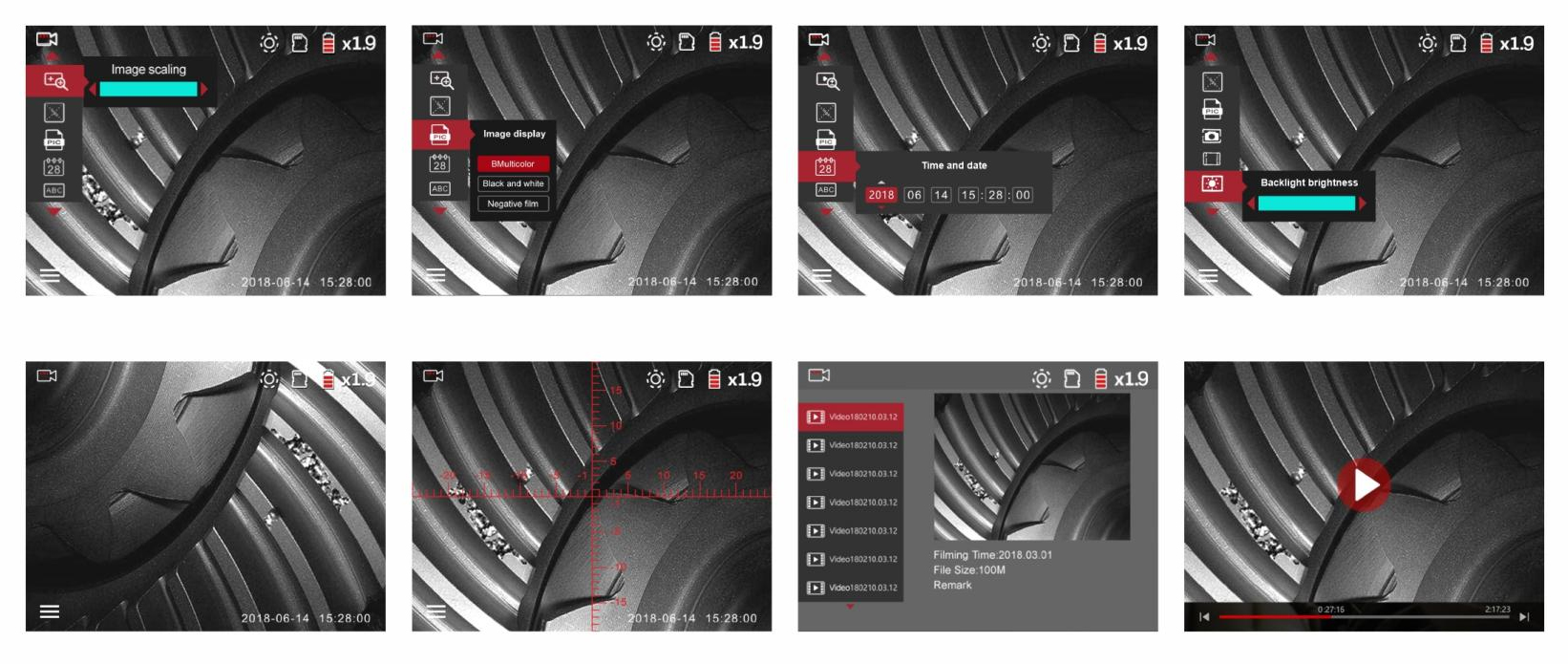

Image preview | Images can be previewed in list mode, allowing for full-screen viewing/deleting files/adding time watermarks, etc. |
Screen backlight brightness | Adjustable in three levels |

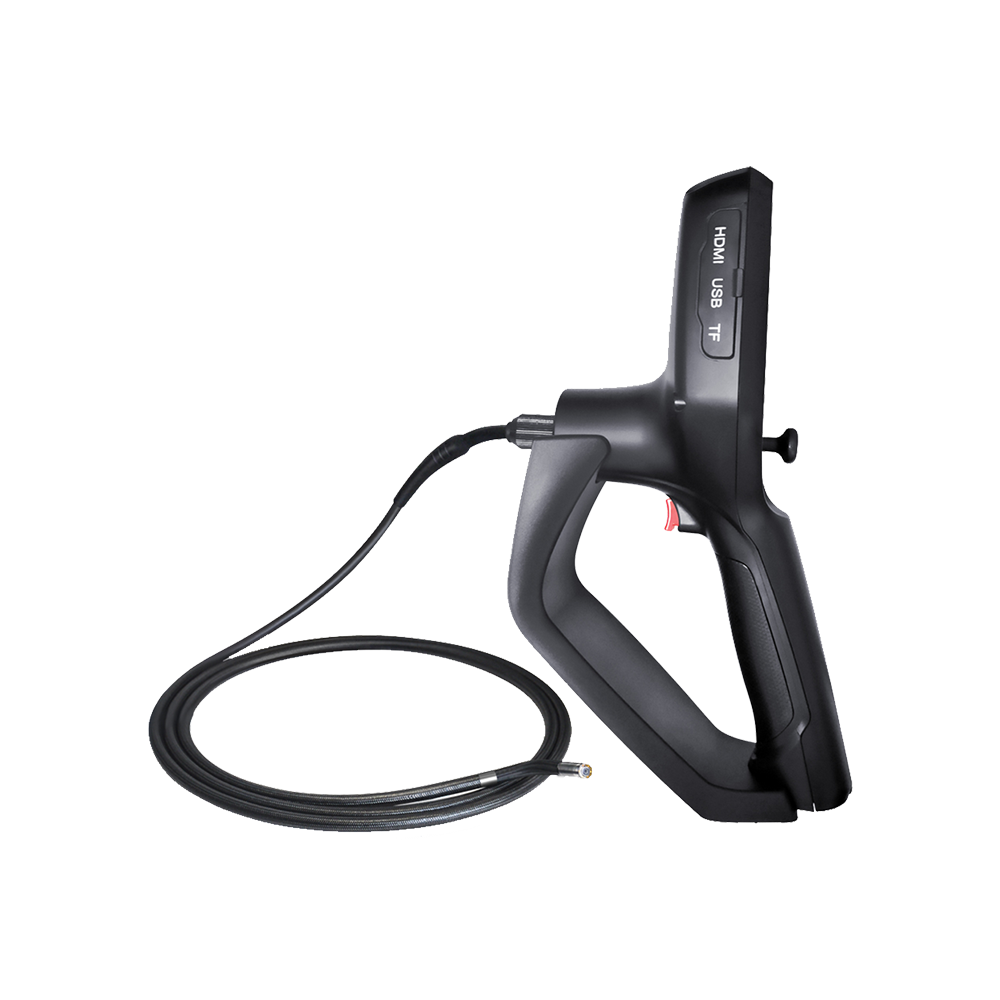

Output port | Micro HDMI |
Language | More than ten languages including Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, and Dutch |
Host size | 240mm*102mm*126mm |
Packaging size | 411mm*321mm*165mm |
Host weight | 0.45kg (including battery) |
Insertion Tube System | ||||||||||||||||||||

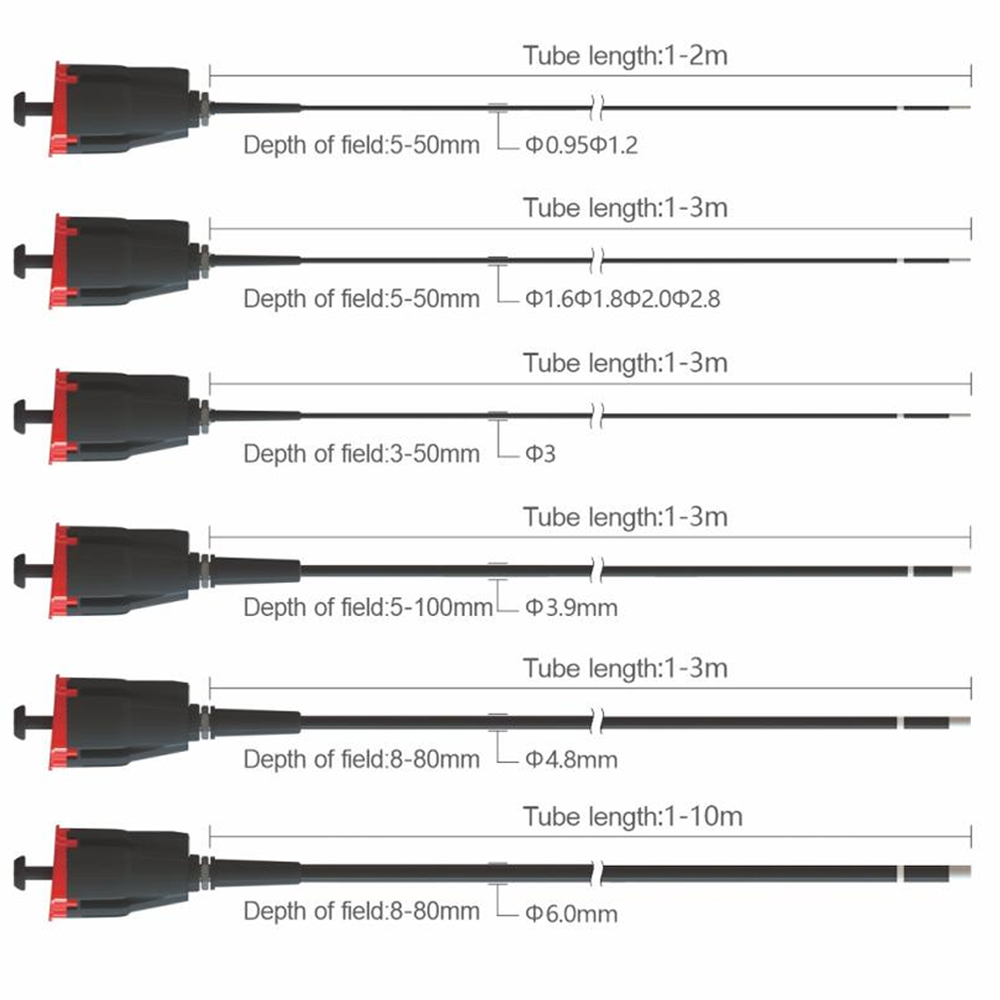

Tip diameter(±0.1mm) | 0.95 | 1.2 | 1.6/1.8 | 2 | 2.8 | 3 | 3.9 | 4.8 | 6 | |||||||||||
Camera pixels | 160K | 160K | 160K | 160K | 160K | 1M | 1M | 1M | 1M | |||||||||||
View direction | Direct | Direct | Direct | Direct | Direct | Direct | Direct | Direct | Direct | |||||||||||
view | view | view | view | Side view | view | Side view | Side view | Side view | ||||||||||||
Depth of field | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 3-50 | 5-100 | 8-80 | 8-80 | |||||||||||
Field of view | 120° | 120° | 120° | 120° | 120°/70° | 130° | 120°/70° | 120°/70° | 120°/70° | |||||||||||
Working length of insertion tube | 1-2m | 1-2m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-10m | |||||||||||
Light mode: front LED / optical fiber | Front LED | |||||||||||||||||||
Tip guidance capability | Fiber | / | / | / | Fiber | / | Fiber | Fiber | Fiber | |||||||||||
Tip guidance capability | None articulation | 4-way | 360° all-way articulation | |||||||||||||||||
Tube unidirectional bending angle | / | / | / | 150° for insertion tube length ≤3m; 120° for length ranging from 3-5m; 90° for length ≥7m | ||||||||||||||||
Insertion tube material | Braided silicone tube | Tungsten alloy wear-resistant braided tube | ||||||||||||||||||
Tip material | Hard alloy protective shell | |||||||||||||||||||
Guidance control method | / | / | Mechanical control | |||||||||||||||||

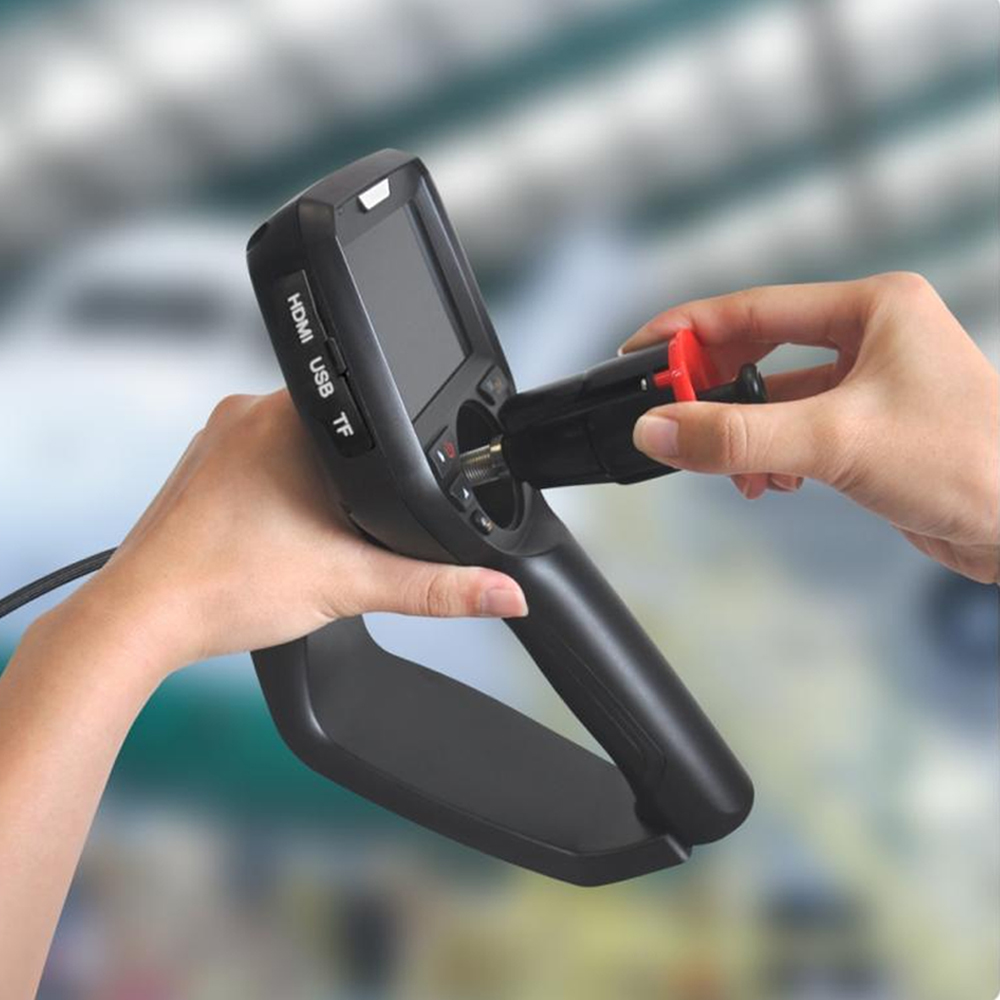

Compatibility | Replaceable insertion tube | |||||||||||||||||||
Protection device | Buffer protection device for connection between host and wear-resistant tube | |||||||||||||||||||

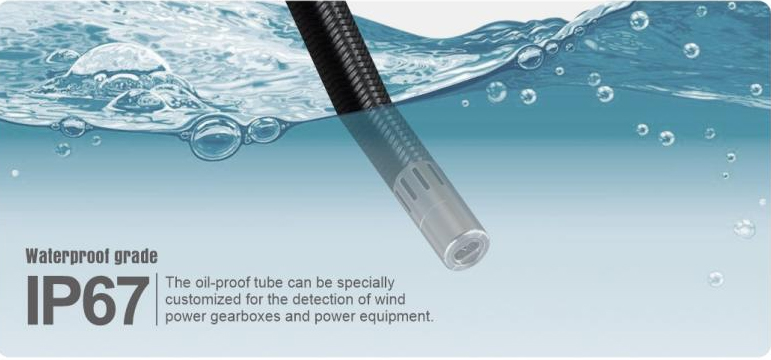

Tip waterproof rating | / | / | / | IP67 | ||||||||||||||||
Power Technical Parameters | |
Power supply mode | Rechargeable lithium battery (with reverse polarity protection) |
Battery | 3.6V, 3400mAh |
Host working time | ≥4H |
Operating Environment | |
System working temperature | -10°C-50°C |
Tip working temperature | -20°C-60°C |
Storage temperature | -20°C-60°C |
Relative humidity | 15%-90% |
Configuration | |
Standard Configuration | Host x 1, Dedicated Instrument Case x 1, Strong Magnetic Base x 1, Rechargeable Lithium Battery x 1, Charger x 1, Card Reader x 1, 8G TF Storage Card x 1, Wrist Strap x 1, User Manual x 1 |
