Brand new design
The system adopts a desktop design, with a shell made of ABS+PC material.stronger and more durable. The brand new operating interface, simple andintuitive, supports Chinese, English, and other languages.
Loading
| Product Series | X35 Industrial borescope |
| Host size | 165mmx97mmx25mm |
| Base size | 187*83*58mm |
| Battery capacity | 6000mAh,7.4V |
| Host weight | 0.67KG |
| Diameter (mm) | 1.6/1.8/2.0/2.8 |
| Length | 1m |
| Articulation | None articulation |
| Marking | Scale marked in centimeters |
| Storage temperature | -40°℃-60℃ |
| Relative humidity | Not greater than 95%,no condensation |

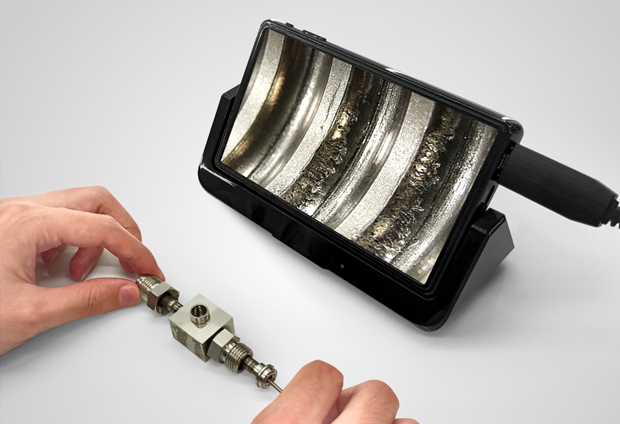

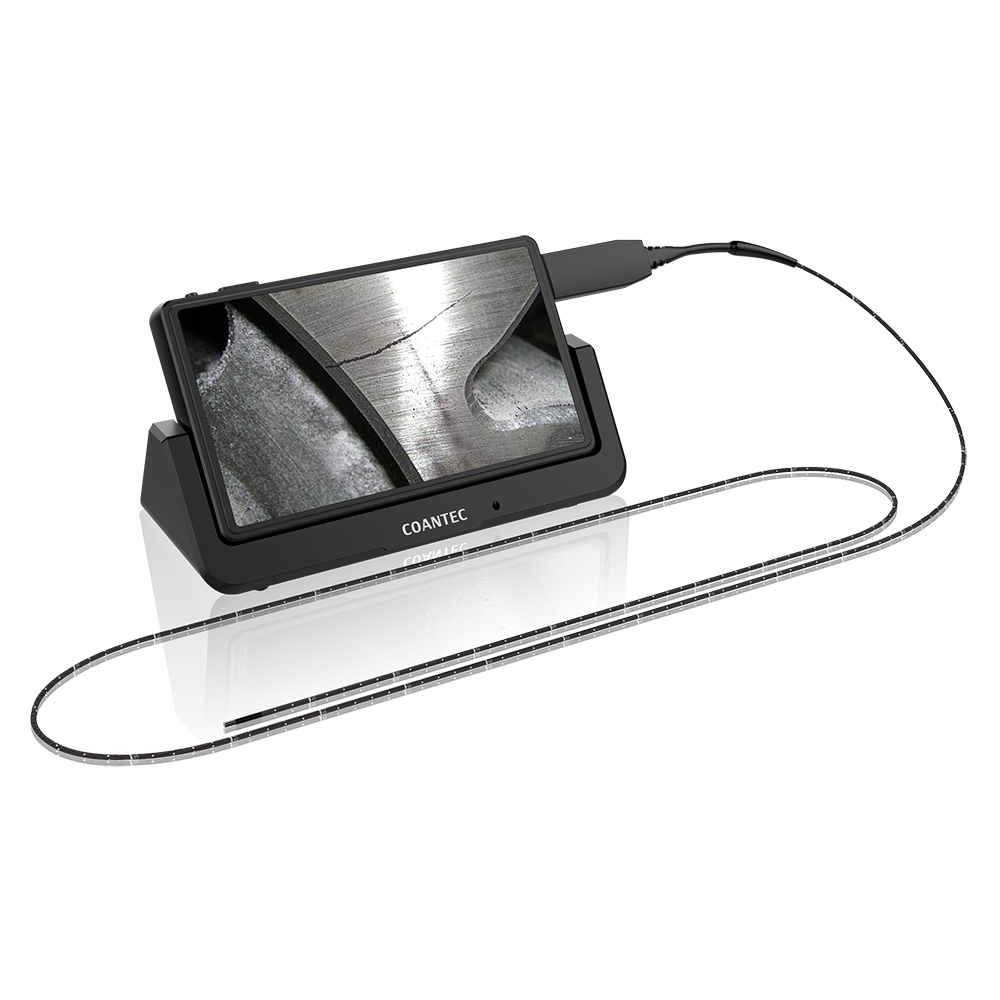

The X35 Series Desktop Industrial Videoscope is a compact and lightweight yetpowerful visual inspection device. lt features a 6-inch TFT HD touchscreen with asimple operating interface that supports Chinese and English, capable of takingphotos, recording videos, and editing images. The host shell is made of ABS+PCmaterial and positioned by pins for detachable connection with the base. lmagescan be transmitted to a PC via data cable for real-time viewing of inspectionimages, capturing pictures and videos, and reading files. Insertion tube scalemarkings help to determine the position of the inspection tip, and the tip'sdustproof and waterproof rating reaches lP67. This product can be widely usedfor detecting intemal surface defects of various small devices, components,pipes, etc.

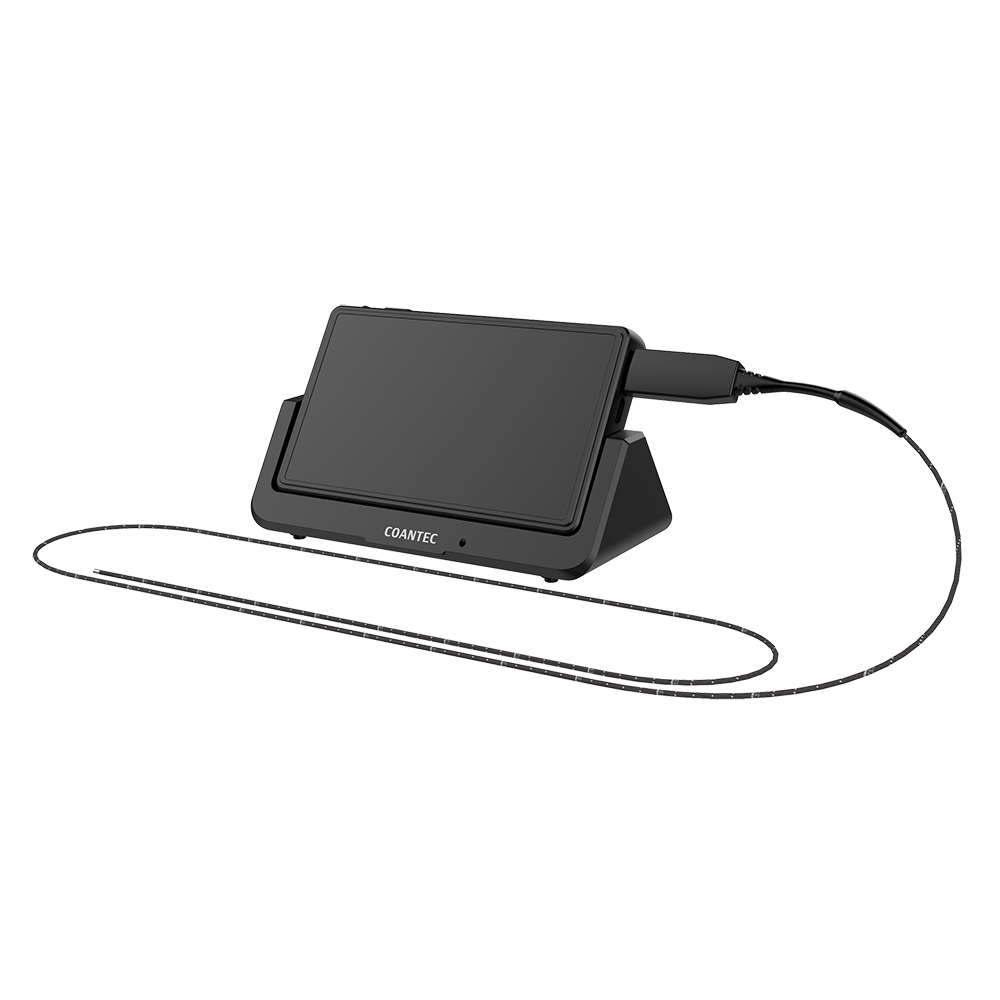

The system adopts a desktop design, with a shell made of ABS+PC material.stronger and more durable. The brand new operating interface, simple andintuitive, supports Chinese, English, and other languages.

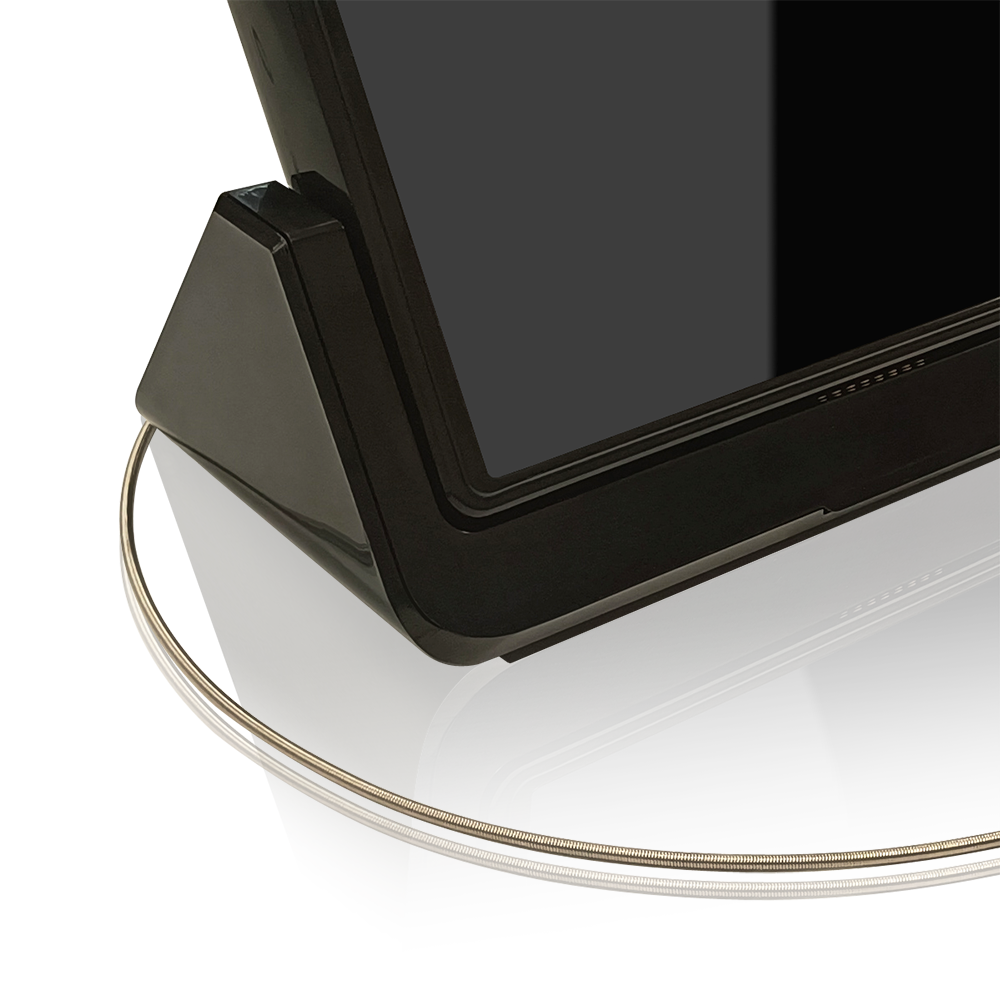

The touchscreen and base are positioned and connected by pins, providingstable support for quick charging,installation or removal for independent use,making observation and operation more convenient.
The host is equipped with a 6-inch TFT HD touchscreen, enabling real-timedisplay of high-quality inspection images.
The insertion tube connects to the host via a Type-C port, with a plug-in designfor easy installation and replacement, Various small-diameter insertion tubes withscale markings facilitate quick determination of the tip's location.

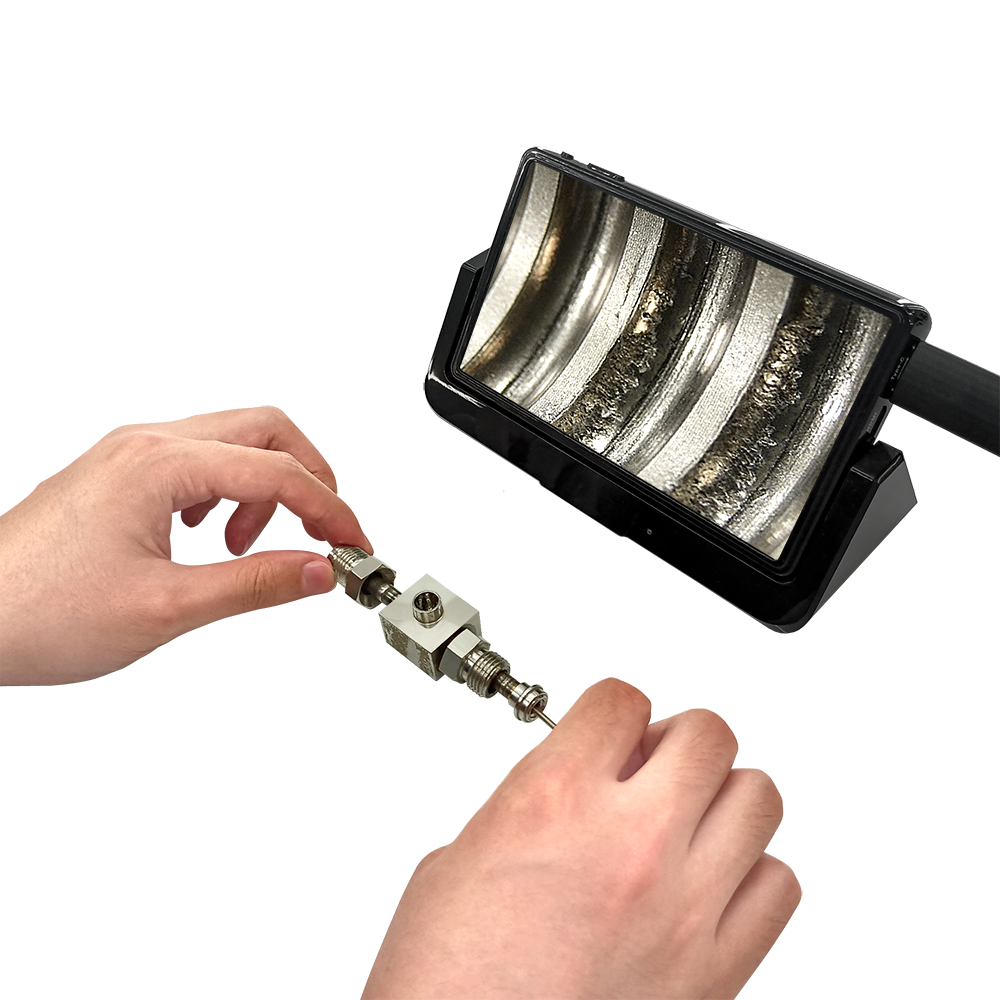

Images can be directly captured on the device or transmited to a PC via datacable for real-time viewing of inspection images, capturing photos and videosand reading, editing, classifying, and processing image and video files.
The tip's dustproof and waterproof rating reaches lP67, applicable in variousinspection scenarios inyolyina liquids.
| Host System | |
| Host size | 165mmx97mmx25mm |
| Base size | 187*83*58mm |
| Battery capacity | 6000mAh,7.4V |
| Host weight | 0.67KG |
| Insertion Tube System | |
| Diameter (mm) | 1.6/1.8/2.0/2.8 |
| Length | 1m |
| Insertion Tube System | ||
| Articulation | None articulation | |
| Marking | Scale marked in centimeters | |
| Operating Environment | ||
| System working temperature | -20°℃-55℃ | |
| Tip working temperature | -40℃-60℃ | |
| Storage temperature | -40°℃-60℃ | |
| Relative humidity | Not greater than 95%,no condensation | |
