| Product Series | C60 HD Industrial Videoscope |
| Display Size | 7-inch，12-inch |
| Camera pixels | 160,000 / 1,000,000 PX |
| View direction | Forward view /Side view |
| Lighting Mode | Rear-mounted LED,optical fiber light guiding |
| Joystick Control | None aticulation/2-way/4-way /360°all-way articulation |
| Tube diameter | 0.95/1.2/1.6/1.8/2/2.8/3/3.9/4.8/6mm |
| Insertion tube length | 1-10m |
| Probe Waterproof Level | IP67 |
| Compatibility | Replaceable insertion tube |
| Output Port | Micro HDM |
Coantec C60 can be widely used in Aerospace,Energy PowerPetrochemical Engineering,Automotive Manufacturing,MachineryManufacturing,Food&Medicine Machine,Special Equipment,Automotive Aftermarket.Users can observe the internal structureand internal surface features of equipment and components in realtime, Better control product quality and ensure safe operation ofequipment.
Casting defect detection/Pipeline weld detection/Machining defectdetection/Equipment operation detection.

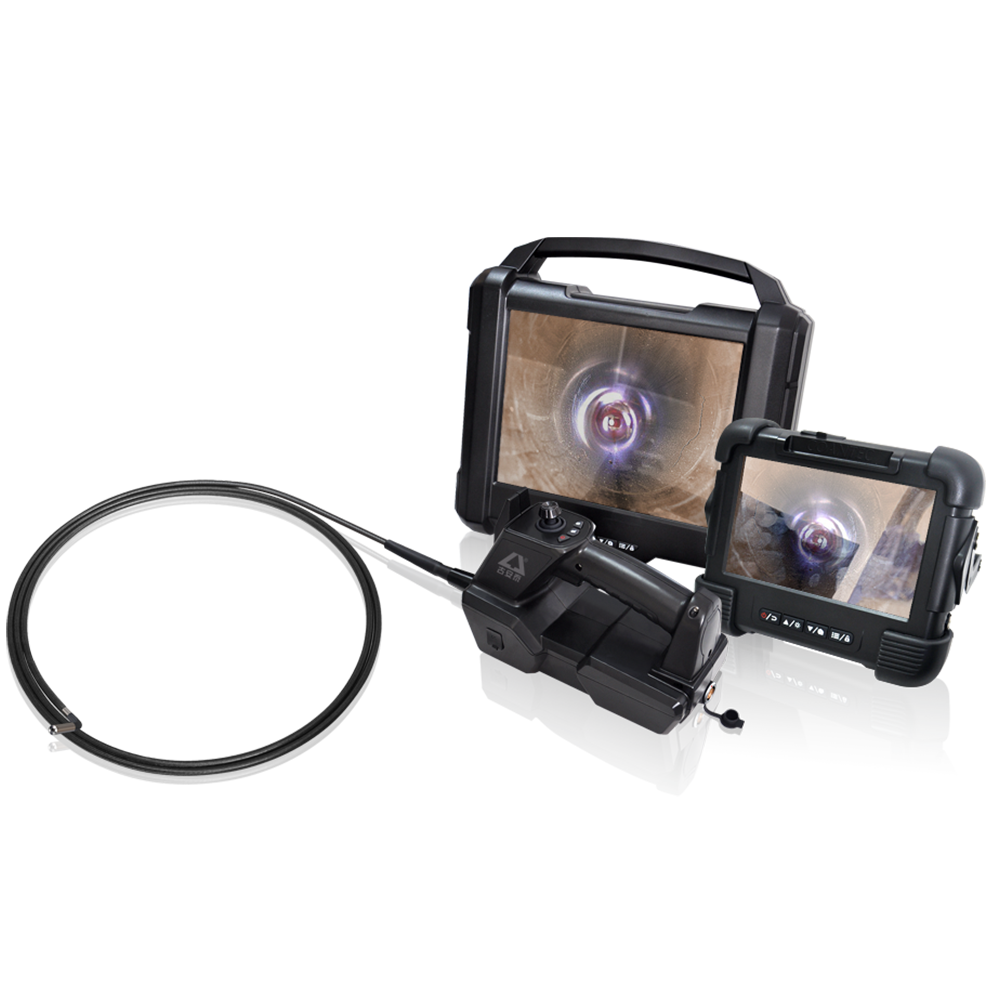

Coantec C60 series industrial video endoscope is a brand-new visual inspection instrument independently developed and produced by Coantec.The product adopts a 7-inch / 12-inch large-size HD display screen, equipped with an HD industrial camera, with clear images, bright colors and rich details, and can truly present the condition of the object's inner surface, enabling

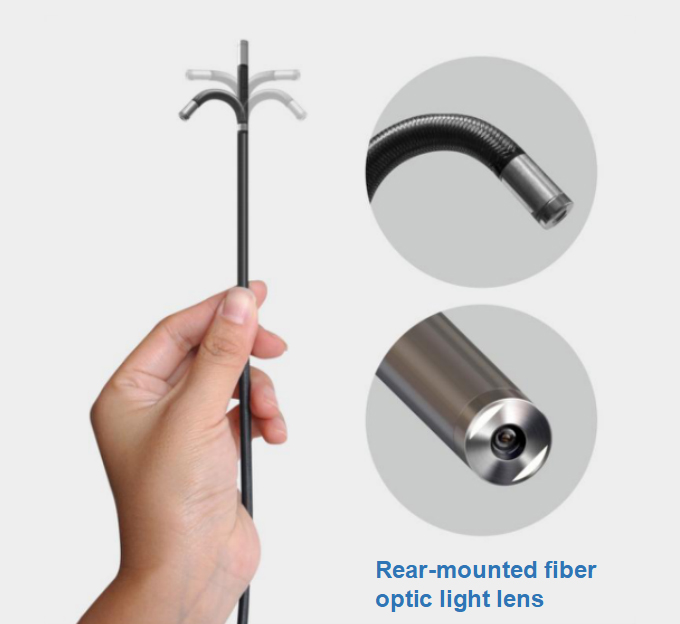

more distant observation and inspection.Alloy spring tube, uniform elasticity, can turn flexibly several times in the curve, good heat resistance and corrosion resistance, suitable for turbine inspection.

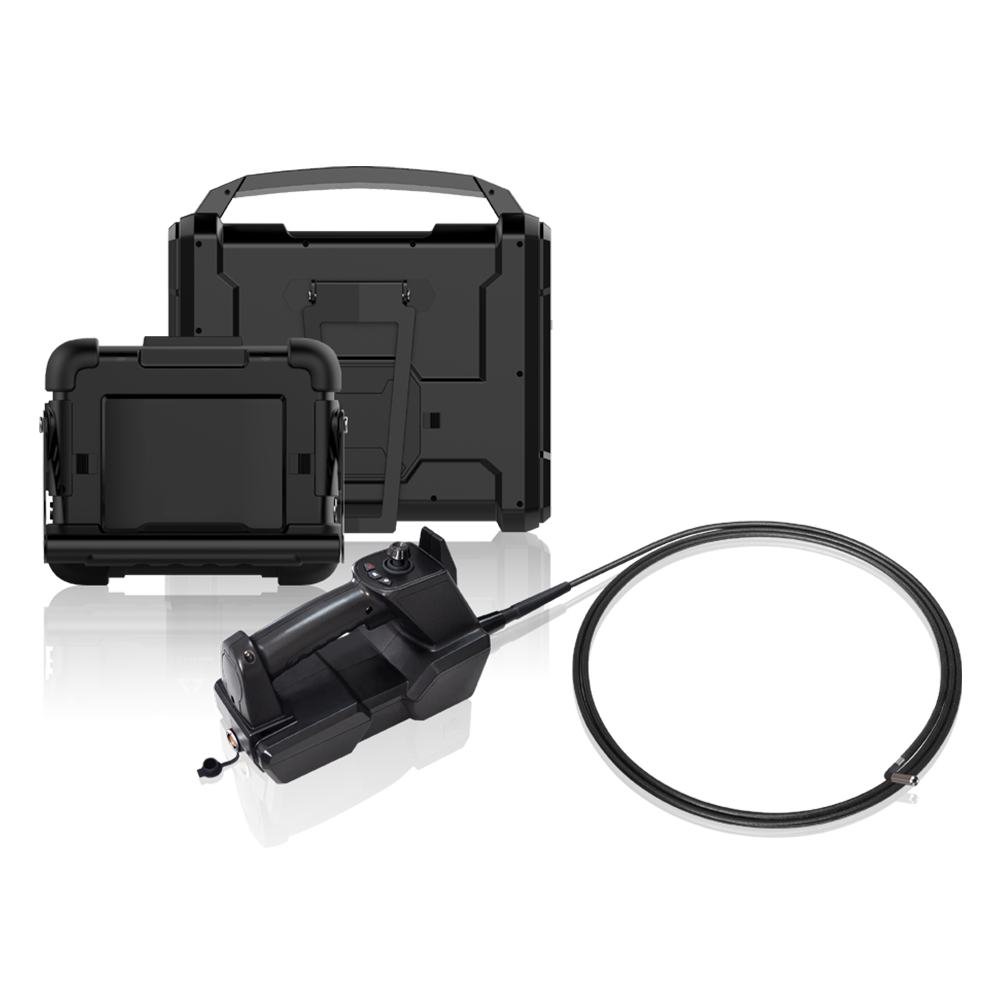

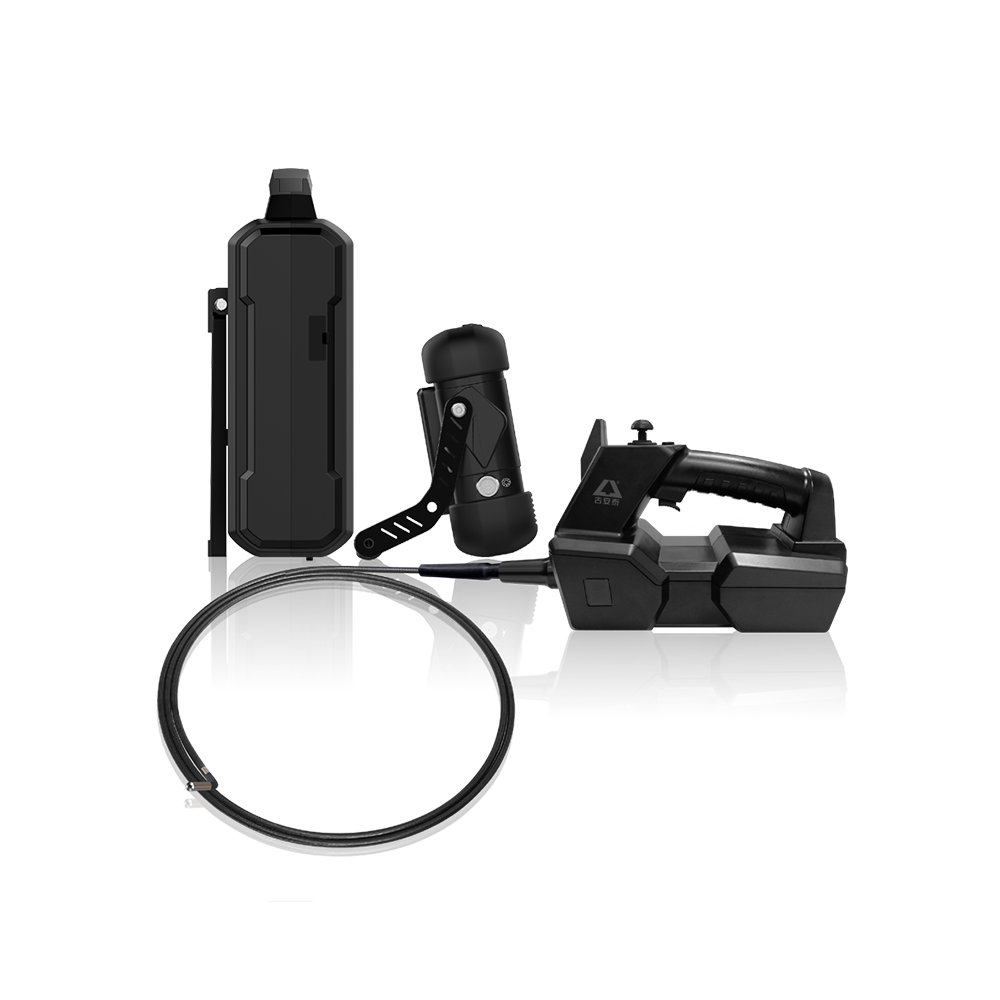

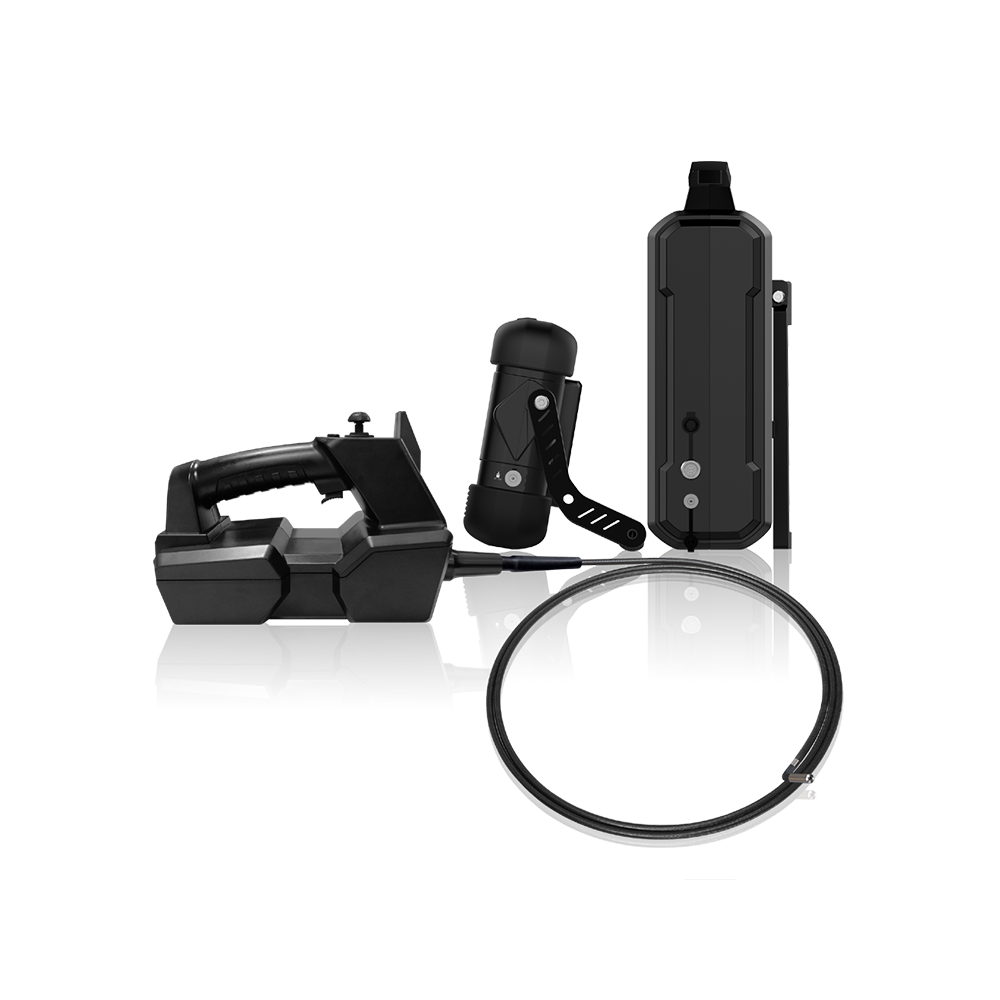

A host can be equipped with electric or mechanical operating handles, and tubes with different diameters, lengths, and materials can be selected for different detection scenarios.Users can customize and replace according to their needs, which is simple and fast. In the process of equipment inspection and maintenance, it can better save costs.

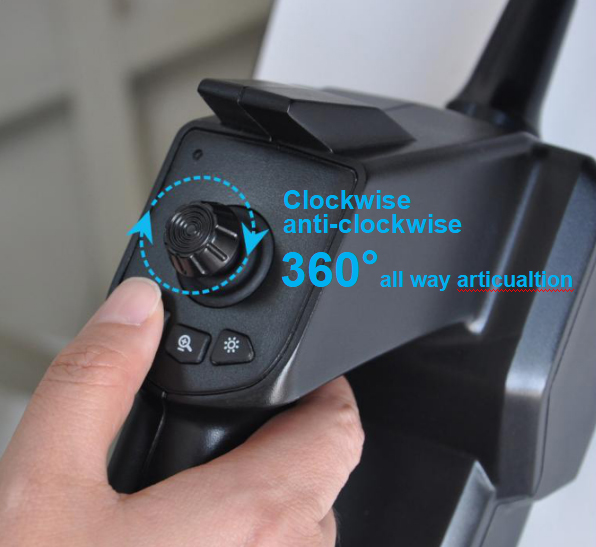

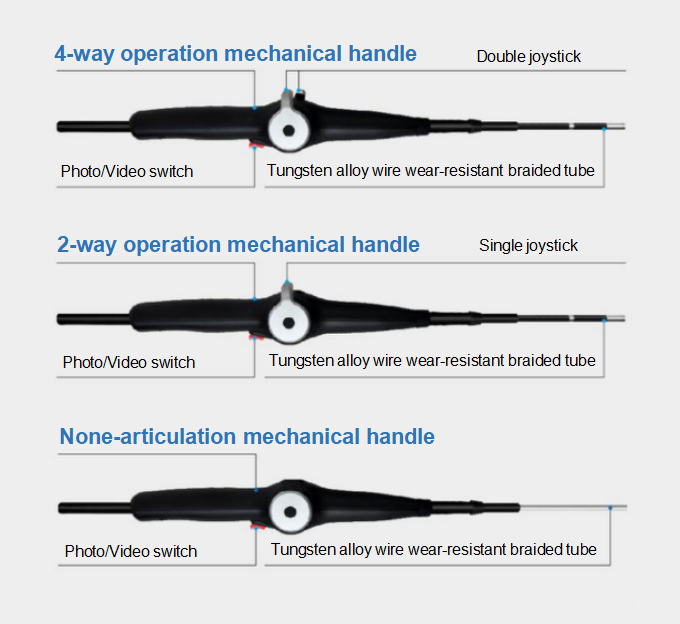

Ergonomically designed mechanical / electric operating handle, comfortable to hold.The mechanical damping joystick can be operated with one hand or two hands, and the electric control handle controls the articulation of the probe through the steering gear. The operation is more smooth and natural, and the steering angle is accurate.

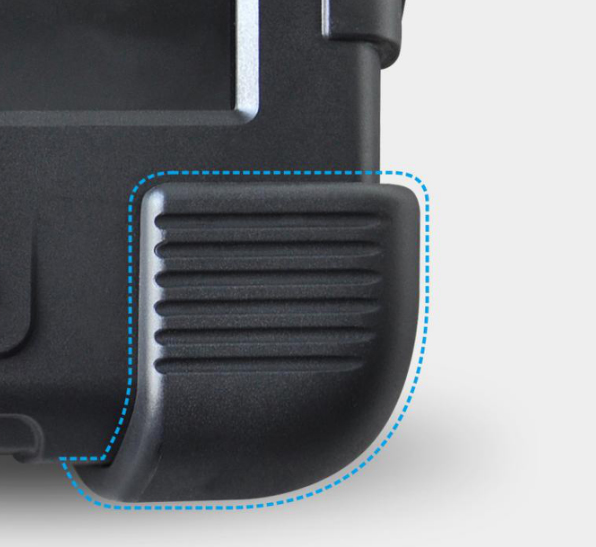

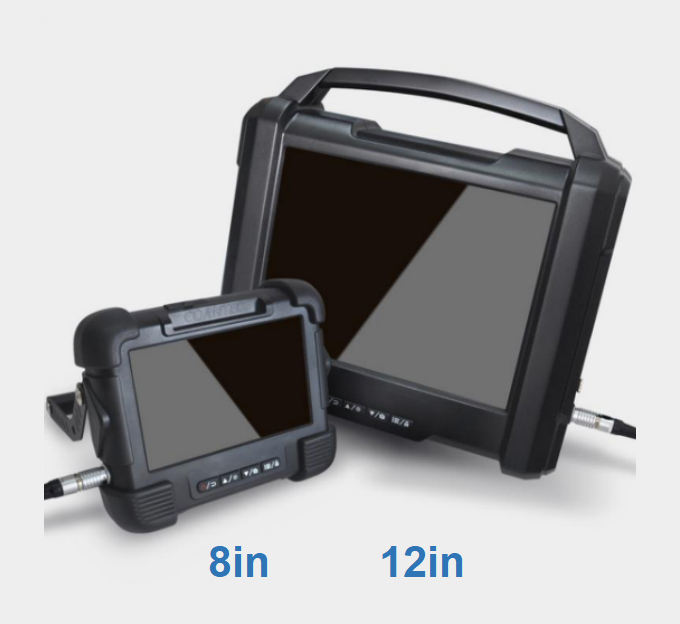

The 7-inch host adopts a four-corner anti-collision design, with a rounded and beautiful appearance. The anti-collision angle is made of high-density cushioning silicone material to prevent damage caused by collision impact during transportation and use, and effectively strengthen the protection of the equipment.

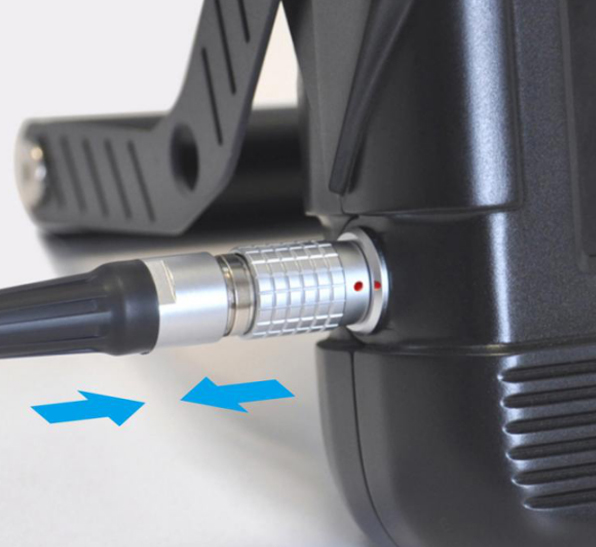

The operating handle is connected to the host by aerial plug interface. The signal transmission is reliable, the stability is good, the anti-interference ability is strong, and the disassembly and installation of the insertion tube is faster and more convenient.

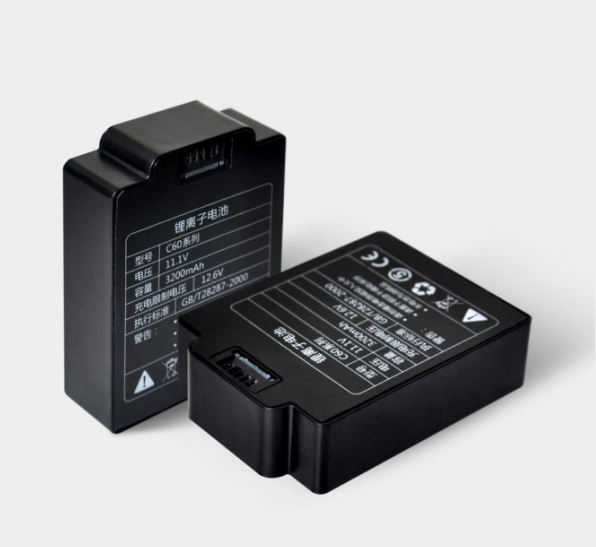

Equipped with a large-capacity battery module, the battery life can reach more than 4 hours. You can also charge the device online through the power adapter, which can work continuously for a long time.

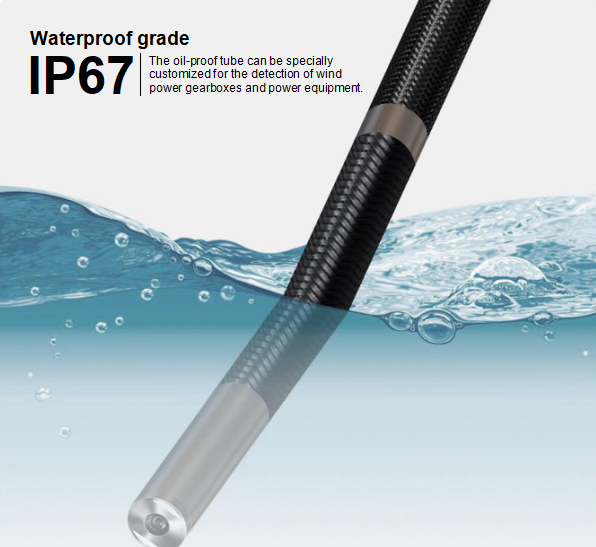

The dustproof and waterproof grade of the tube can reach IP67, with strong corrosion resistance and more slack resistance. The oil-proof series can be customized, which is suitable for more severe testing environments.

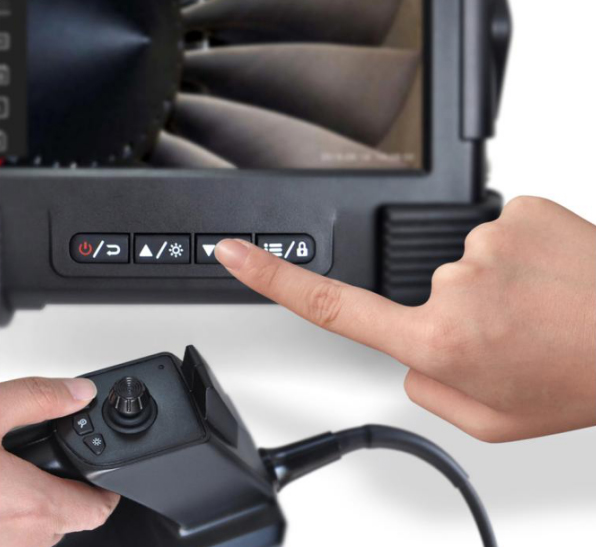

The image detection is intuitive and reliable, presenting the internal real situation, simple and clear menu guidance. The key operation is easy to understand and easy to use, the novice can quickly master it.
| Host | ||||||||
| Display Dimension | 7-inch | 12-inch | ||||||
| Display Resolution | 1024*600 | 1024*768 | ||||||
| Digital Zoom | Support real-time 4x zoom,8x partial zoom when playback | |||||||
| LED Brightness Level | 0-7 level adjustment | |||||||
| Auxiliary Measurement Function | Cross cursor guide | |||||||
| Photo/Video | With photo and video functions,can be captured during recording | |||||||
| Document Format | Image:JPEG/BMP;Video:MP4 | |||||||
| Image Rotation | Real-time detection image can be rotated 0°90°/180°/270° | |||||||
| Time Watermark | Yes | |||||||
| Screen Backlight Brightness | 3-level adjustment | |||||||
| Storage Medium | Standard 8G capacity SD card,maximum support 32G | |||||||
| Menu Language | Simplified Chinese、Traditional Chinese、English,Japanese,Korean, | |||||||
| French,German,Portuguese,Spanish,Russian,ltalian,Dutch etc. | ||||||||
| Host Weight | 1.45kg | 2.9kg | ||||||
| Electric Operating Handle | 1.1kg | |||||||
| Tube | ||||||||
| Handle Style | Electric handle/mechanical handle | |||||||
| Tube Material | Tungsten alloy wire wear-resistant braided tube | |||||||
| Probe Diameter(±0.1mm) | φ2.0 | φ2.8 | φ3.9 | φ4.8/φ6/8 | ||||
| Camera Pixels | 160,000 | 1,000,000 | 1,000,000 | |||||
| Depth of Field | 5-50mm | 5-100mm | 8-80mm | |||||
| Field of View | 120° | 120° | 85° | |||||
| Tube Length | 1-1.5m | 1-3m | 1-3m | 1-10m | ||||
| Lighting Mode | Rear-mounted LED,optical fiber light guiding | |||||||
| Joystick Control | None aticulation/2-way/4-way /360°all-way articulation | |||||||
| Bending Angle | ≥120° | |||||||
| View Direction | Forward view /Side view | |||||||
| Guided Control Method | Mechanical control/Electric control | |||||||
| Tube Type | Tungsten alloy wire wear-resistant braided tube/alloy hard tube/alloy spring tube | |||||||
| Compatibility | Replaceable Tube | |||||||
| Probe Waterproof Level | IP67 | |||||||
| Power | |||
| Power Supply | DC:15V,Special lthium battery pack,support online charging | ||
| Lithium Battery Pack | 11.1V,3200mAh | ||
| System Operating Time | ≥4H | ||
| Operation Environment | |||
| Machine Operating Temperature | -10℃-50℃ | ||
| Probe Operating Temperature | -20℃-60℃ | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | 15%-90% | ||
| Configurations | |||
| Standard Configurations | C60 videoscope x1,instrument case(Electric type with high-grade instrument case, | ||
| with insert tube storage tray)x1,lithium battery ×2,power adapter x1,battery charger | |||
| x1,8G SD card x1,card reader x1,user manuax1,precautions for usex1 | |||
| Optional Configurations | HDMI cable,Hand-held casing.High-grade instrument case(wth insert tube stbrage tray),Pipe Certraizer | ||
