| Product Series | CP industrial borescope |
| Device Size | 202*66*545mm |
| Screen Size | 8inch |
| Screen Resolution | 1280x80060FPS |
| Storage Space | 4G+64G DDR4X |
| Interface | USB、HDMI,3.5mm headphone jack、 |
| Battery Specification | 7.4V 5000mAH |
| Working time | 5H |
| Screen Angle adjustable | 0~170°adjustable |
| Handle adjustable length | 550~810mm adjustable |
| Charging Port | Type-C fast charge |
The CP series is a high-definition professionaltelescopic pole camera, featuring an 8-inchmonitoring display and a modular design withthree segments (handle + telescopic pole +probe)for flexible use. lt supportsinterchangeable probes, including white light,thermal imaging, infrared, flexible joint, andrigid tube options, catering to variousinspection needs.The device can beequipped with an audio module, allowing forsearch calls and intercom communication inthe target area. This product has a widerange of applications, including search andrescue, bomb disposal,security checks,reconnaissance,and construction.
Featuring a lightweight design, the CP series combines 4telescopic pole sections, 2 handle sections, and 1 probesection into three modules, available in multiple lengths:2700mm 3500mm,and4200mm.Thecarbonfibermaterial offers high strength and easy handling.
Integrated with an 8-inch high-definition touch displayhigh-performance autofocus camera, and highbrightness LED lighting, the CP series delivers clear andsmooth images, facilitating long-distance observation innarrow spaces.

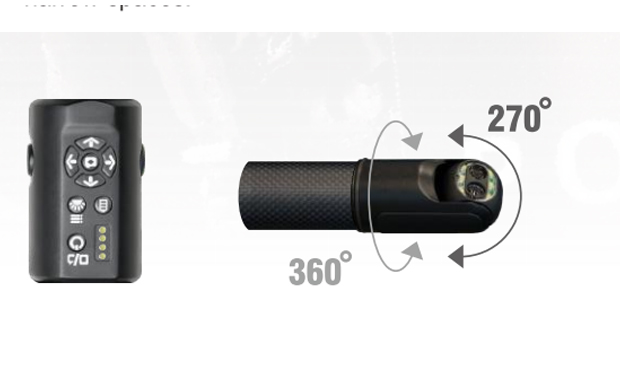

Physical buttons allow for 360-degree clockwise/counterclo-ckwise rotation and forward/backward movement of the probe.providing comprehensive observation and recording of thetarget area with ease.

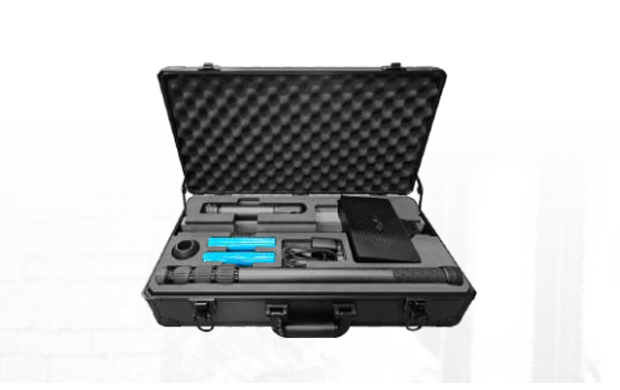

The modular design allows for easy disassembly,compact size, and convenient storage. The device canbe easily placed in car trunks, train, or airplane luggageracks, facilitating transportation and portability.

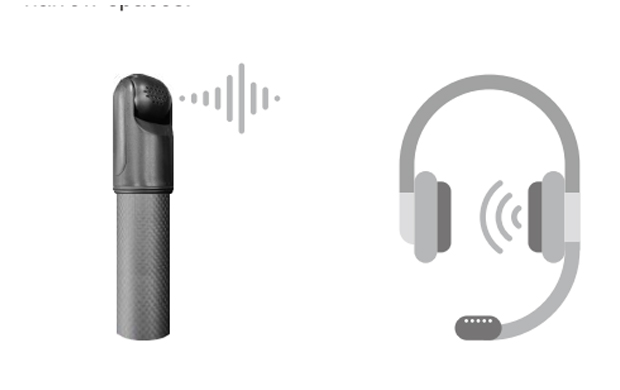

An optional high-sensitivity professional audio module isavailable, with a wide listening range and real-time voiceintercom functionality,effectively enhancing search andrescue efficiency.
The CP series is compatible with various probesincluding white light, thermal imaging,infrared, flexiblejoint, and rigid probe options, making it suitable fordifferent inspection scenarios.
| CP | Model No. | - | Probe options | - | Audio | |||
| Series | 2700 | A | White light probe | S | Optional | |||
| 3500 | B | IR nigh vision probe | ||||||
| 4200 | C | White light+IR probe | ||||||
| D | White light+thermal image probe | |||||||
| E | 4-way flexible probe | |||||||
| F | Shaped tube probe | |||||||
| G | Rotating shaped tube probe |
| Device Size | 202*66*545mm |
| Screen Size | 8inch |
| Screen Resolution | 1280x80060FPS |
| Storage Space | 4G+64G DDR4X |
| Interface | USB、HDMI,3.5mm headphone jack、 |
| TF card slot、Type-C charging port | |
| Battery Specification | 7.4V 5000mAH |
| Working time | 5H |
| Screen Angle adjustable | 0~170°adjustable |
| Handle adjustable length | 550~810mm adjustable |
| Charging base Power | 30W Max |
| Charging Port | Type-C fast charge |
| Charging Current | 4A Max |
| Charging Indicator | 4 LED indicators |
| Adapter Specification | GaN 40W,C-to-C,1m |
| Charging Duration | 90 Min 90%charged |
| Working Temp | -20~50℃ |
| Storage Temp | -30~70℃ |
| Probe specifications/ basic parameters | AVAs White light probe | B/Bs IR nigh vision probe | C/Cs White light+IR probe | D/Ds White light+thermal image probe | ||||||||
| Max outer diameter | 39mm | |||||||||||
| Length | 235mm | |||||||||||
| Axially Rotating Joint | 360°clockwise/counterclockwise rotation | |||||||||||
| Rotation Speed | 3 seconds per rotation | |||||||||||
| Horizontal swing joint | ±135° | |||||||||||
| Swing Speed | 1.5 seconds/270° | |||||||||||
| Full weight | 165g | |||||||||||
| Protection Level | IP55 | |||||||||||
| Intercom Module | Optional | |||||||||||
| White light Camera | Resolution | 2592x1944 | / | 2592x1944 | 2592x1944 | |||||||
| FOV | 110° | / | 110° | 110° | ||||||||
| Focus | 70mm-5m Auto-focusing | / | 70mm-5m Auto-focusing | 70mm-5m Auto-focusing | ||||||||
| Infrared Camera | Resolution | / | 2592x1944(IR) | 1024x720(IR) | / | |||||||
| FOV | / | 110°78° | / | |||||||||
| Focus | / | 70mm-5m Auto-focusing | 50mm-infinity | / | ||||||||
| Thermal image Camera | Resolution | / | / | / | 256x192,25FPS | |||||||
| FOV | / | / | / | 71.4° | ||||||||
| Preview resolution | 1920x1080,30FPS | |||||||||||
| Light source | 6pcs white light LED | 4pcs IR LED | 6pcs white light LED+ 2pcs IR LED | 6pcs white light LED | ||||||||
| Model No. | CP2700 |  CP3500 | CP4200 |
| Max outer diameter | 38mm | ||
| Material | Carbon fiber | ||
| Locking mode | Thread locking | ||
| Telescopic pole min length | 525mm | 725mm | 890mm |
| Telescopic pole max length | 2720mm | 3520mm | 4220mm |
