| Product Series | CP40 |
| Insertion tube material | Tungsten alloy wire braided tube |
| Insertion tube working length | 1-5m |
| Bending control | Mechanical damping joystick |
| Articulation | 360°all-way |
| Probe unidirectional bending angle | 150°±10° |
| Lighting Mode | Front LED light/Rear-mounted LED,optial fiber |
| Infrared LED wavelength | 940nm |
| Image zoom | 4 times zoom |
| Brightness level | Manual 7-level adjustment |
| OLED display resolution | 800×600 |

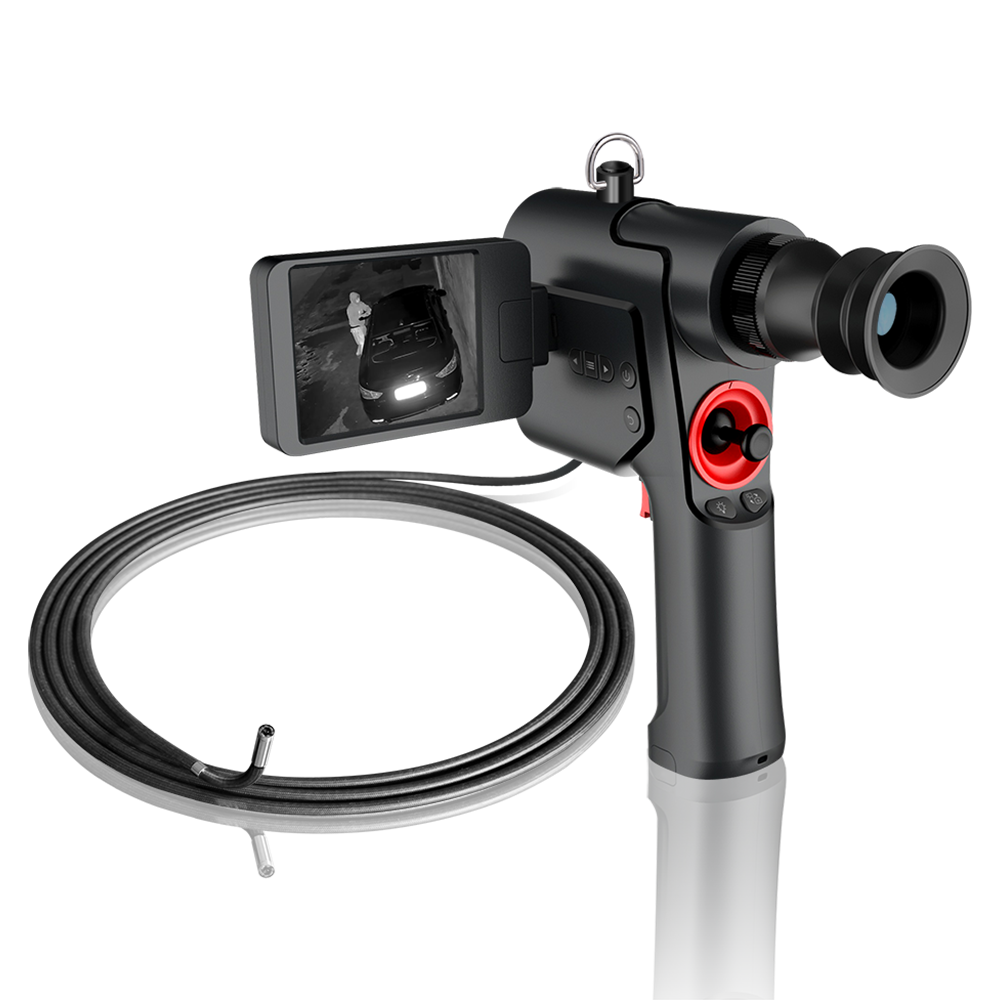

The main unit is connected with a 3.5-inch quick-fit foldabledisplay. The inspector can open the display synchronizationmonitoring detection screen and adjust the optimal viewing angleby clockwise rotation (maximum angle of 90°). The display canalso be removed for observation by many people. Suitable for teamcollaboration.

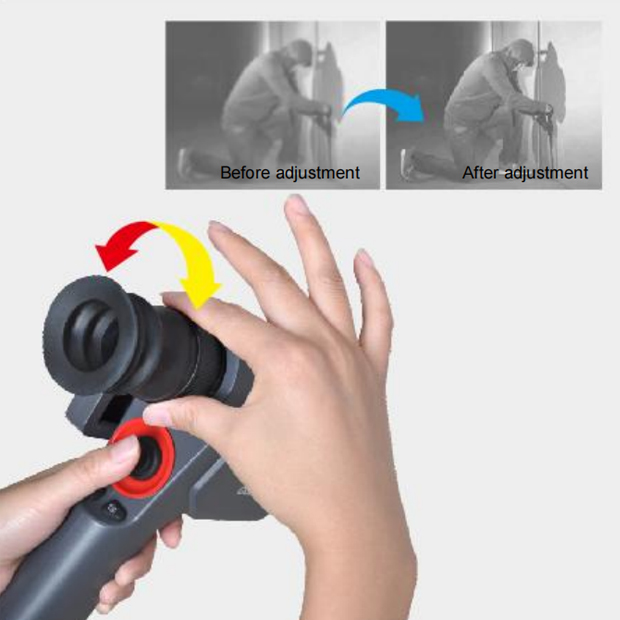

The inspectors can adjust the diopter by rotating the diopter adjustmentknob on the eyepiece according to their own vision, and adjust theimage of the built-in OLED display to the clearest state for betterviewing field.

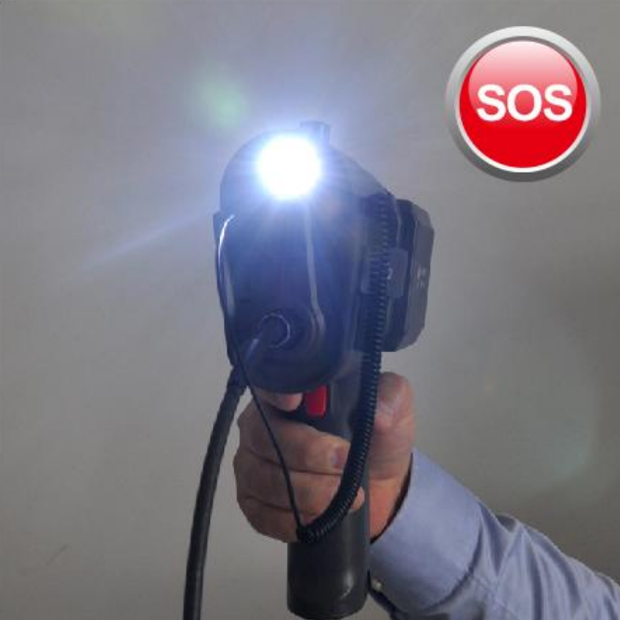

Equipped with a tactical flashlight, the flash/lighting/rescue SOS functioncan be quickly switched by pressing the button.High light intensity fornighttime auxiliary lighting.in case of emergency, the relevant personnecan be alerted or the SOS rescue signal can be sent by the flashingfunction.

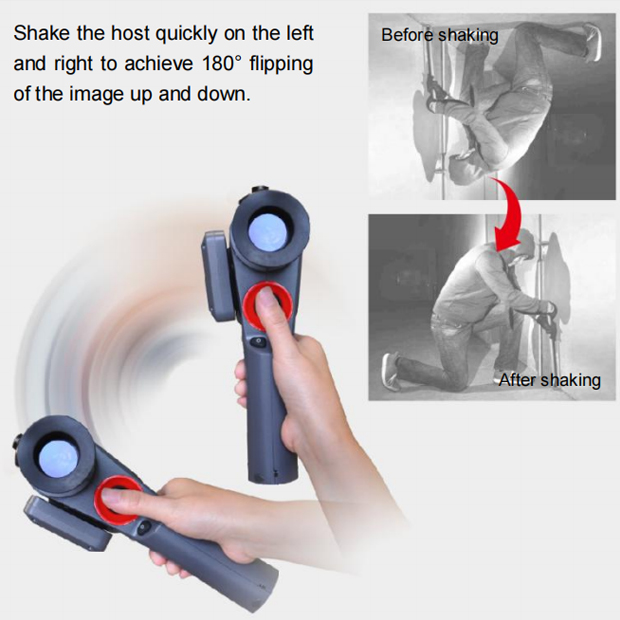

Open the gesture function in the menu in advance, youcan achieveimage flipping, so that the built-in display image is always in theforward display, more convenient to observe.

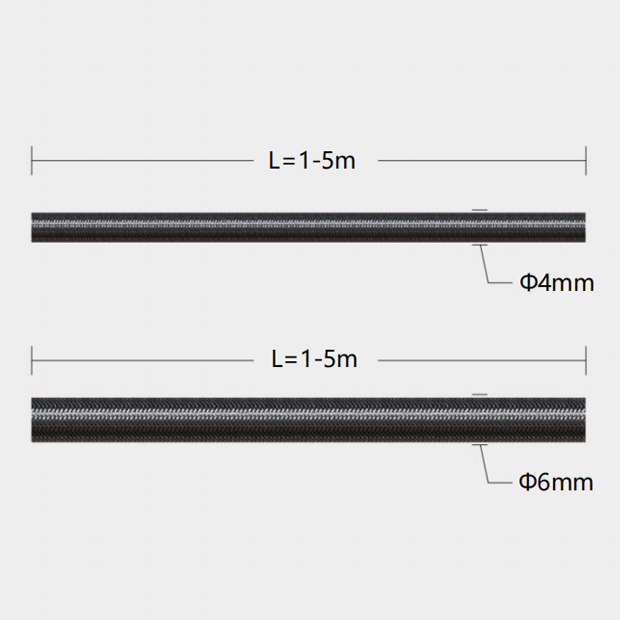

The CP40 series can be customized with different specifications ofinsertion tubes to better suit different working environment.Speciallyequipped with a 1 megapixel tube for explosion exclusion, users canquickly replace it.
| System | |
Fully concealed design | The probe and display without light source,the whole machine isnon-reflective. |
| Insertion tube replaceable system | One host can be replaced insertion tube of different lengths and depth of field |
Insertion tube material | Tungsten alloy wire braided tube |
Insertion tube working length | 1-5m |
| Bending control | Mechanical damping joystick |
Articulation | 360°all-way |
| Probe unidirectional bending angle | 150°±10° |
Lighting Mode | Front LED light/Rear-mounted LED,optial fiber |
| Infrared LED wavelength | 940nm |
| Image zoom | 4 times zoom |
Brightness level | Manual 7-level adjustment |
| Display | Visual 0.6”OLED display |
| OLED display resolution | 800×600 |
Viewing mode | Monocular viewing |
| Diopter | ±5° |
| External display | 3.5”/5”foldable LCD display |
External display resolution | 320×240 |
| Time delay exposure 1-30s adiustable | |
| C gesture function Built-in G-sensor for C gesture to control image flip | ||
| Tactical flashlight | With glare flash,emergency lighting and SOS help function | |
| Image resolution | 640*480 | |
| Video resolution | 640*480 | |
| Photo/Video function | With photolvideo/sound collection function,can capture image Iwhen recording. | |
| Recording function | Built-in microphone on the front of the probe for recording | |
| File format | The image is stored in BMP format and the video is in MP4 format. | |
| Image preview | Two modes of the list and the nine-square grid viewing,in the preview mode,you can view the image in full screen/delete the image/add the time watermark. | |
| Memory | Standard 8G TF card,support 32G at maximum | |
| Protective device | Buffer protection device to connect the host and wear-resistant tube | |
| Protective performance | The insertion tube is waterproof,oil resistant and corrosion resistant | |
| Disassembly design | Military detachable buckle | |
| Host weight | About 1.1kgs(with external display) | |
| Waterproof | Host IP55,Probe IP67 | |
Audio | Headphone interface | |
| Camera | ||
Probe diameter | 中6mm±0.1mm | |
Pixels | 450,000 | |
| Probe material | Titanium alloy | |
| Depth of field | 500mm- ∞ | |
| Night vision observation distance | 1-5m | |
Field of view | 57° | |
| Direction of view | Forward view | |
| Technical parameters of power supply | ||
| Power supply | High capacity lithium battery module | |
| Working voltage | DC7.4V | |
| System operating time | ≥3 hours | |
| Operation environment | ||
| System operating temperature | -10-50℃ | |
| Probe operating temperature | -20-60℃ | |
| Storage temperature | -20-60℃ | |
| Relative humidity | 15-90% | |
| Instrument configuration | ||
| Standard configuration | CP40 Borescopex1,Special instrument casex1,Card readerx1,8G memory cardx1, Rechargeable lithium batteryx1,Battery chargerx1,Documentx1,Military shoulder strapx1,Anti-fall hand strapx1,Megapixel white light insertion tubex1 | |
| Optional configuration RF module,Wireless 3.5-inch display,Wireless 5-inch display | ||
