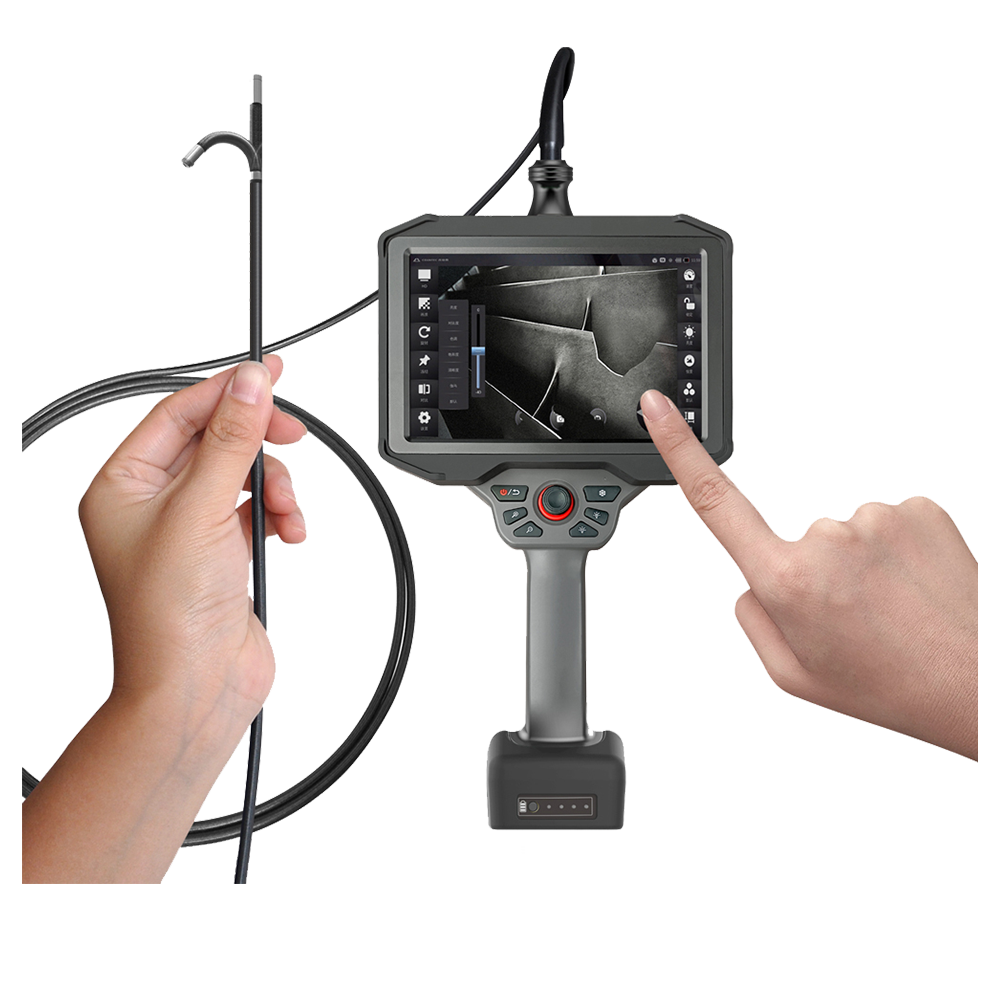

Industrial borescope 3D measurement function handheld videoscope inspection camera

Host system

Display specifications

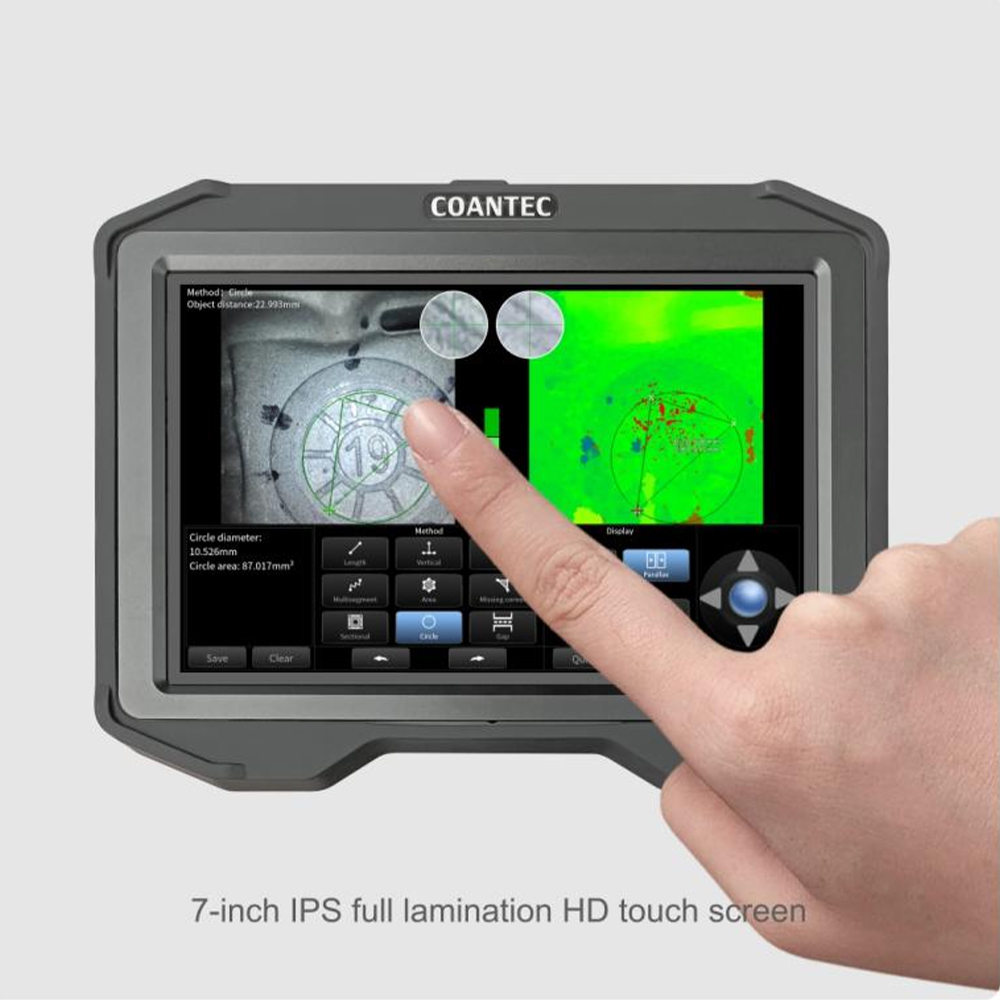

Brand new IPS HD touch screen

Display size

7-inch

Display resolution

1920*1200

Removable display

●

●

User interface

Menu navigation via touchscreen, physical buttons, and joystick

Host storage capacity

Default 16GB, expandable up to 128GB

Host operating memory

 Standard 2GB, expandable up to 4GB

Photography function

●

●

Image storage format

JPG/BMP

Video recording function

●

●

Video storage format

MP4

Real-time image magnification

1-5 times (supports multi-touch pinch-to-zoom gestures)

Adjustable LED brightness levels

 Levels 0-9

Image color adjustment

Adjust image brightness, contrast, hue, saturation,

sharpness, gamma, and restore to default

Manual adjustment of display brightness

●

●

Image modes

Optional modes include default, monochrome, negative, vivid, high contrast, soft

Image rotation

●

●

Image freeze

●

●

Mirroring

●

●

Real-time image comparison

●

●

Time watermark

●

●

Location watermark

●

●

Virtual joystick

●

●

Generate report

●

●

Ruler

No ruler, circular ruler, cross ruler, or reference line

Bluetooth data transmission

●

●

WiFi data transmission

●

●

Battery Level Monitoring (Available in Power On/Off States)

●

●

File operations

Full-screen viewing of images/image zoom/delete/rename/rotate/doodle, etc.

Image zoom

1-5 times zoom (supports multi-touch pinch-to-zoom gestures)

File editing

Text annotation, doodling feature (supports handwritten lines, arrows,

boxes, circular markings, text annotations, brush color and thickness

settings)

User permission management

Administrator, guest, standard user (created by the administrator)

Menu/input language

More than ten languages including Simplified Chinese, English, Japanese,

Korean, French, German, Portuguese, Spanish, Russian, Italian, and Dutch

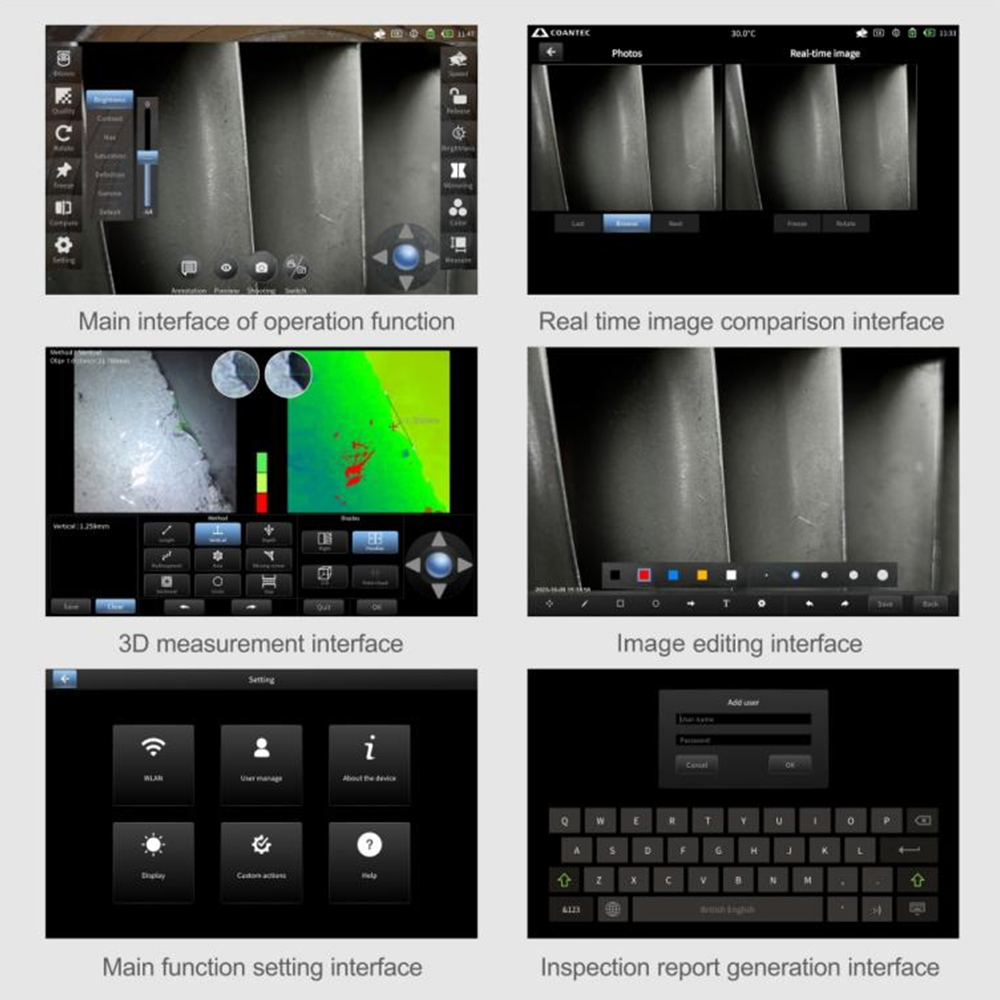

3D measurement system

--

9 measurement methods: Length,Vertical,Depth,

Multisegment,Area,Missing corner,Sectional,Circle

and Gap.3D measurement accuracy 0.01mm,

Measurement error ≤5%

Secondary measurement

--

●

Remote sharing of images and videos

●

●

Video live streaming

●

●

Online upgrade

●

●

Host dustproof and waterproof rating

IP55

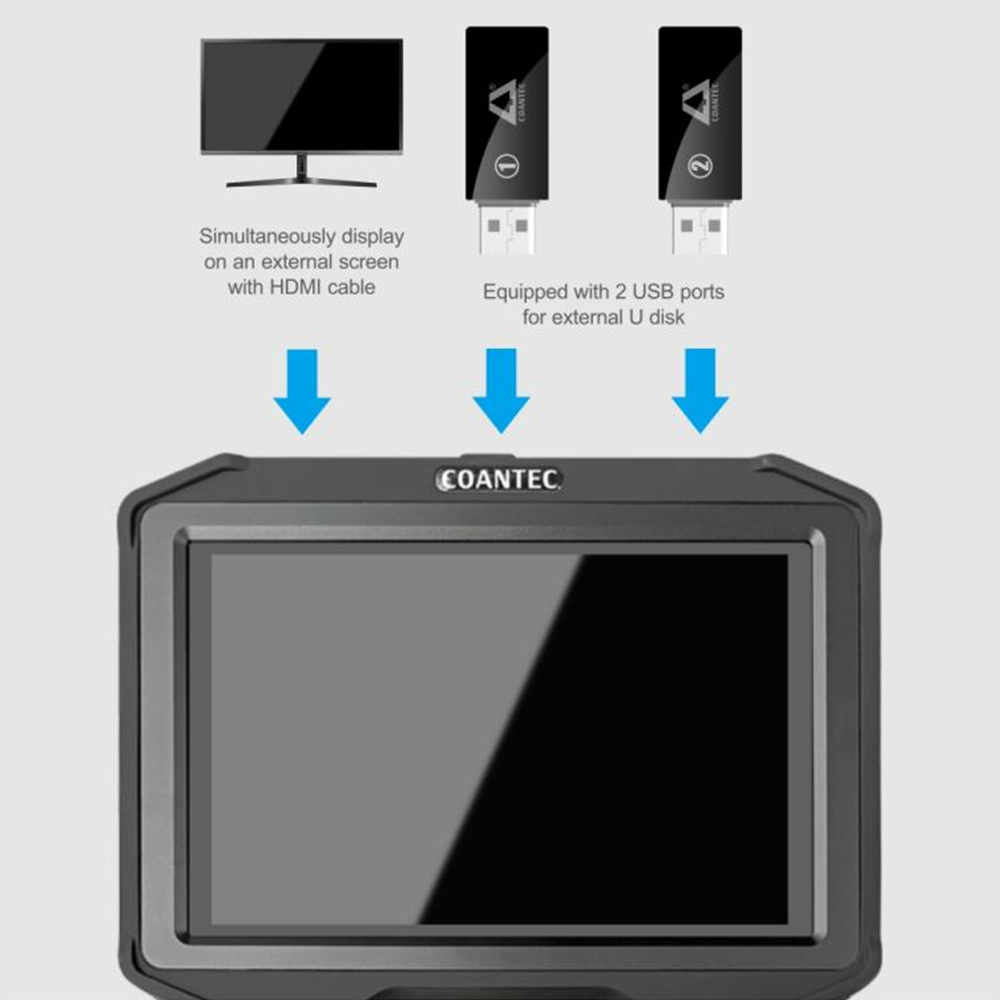

Output port

HDMI video output port

1

3.5mm audio output

1

USB 3.0 port

2

Type C(Data transfer only, not for charging)

1

Size specifications

Host size

350mm*197mm*126mm

Packaging size

551mm*351mm*240mm

Host weight(including battery)

2.1kg

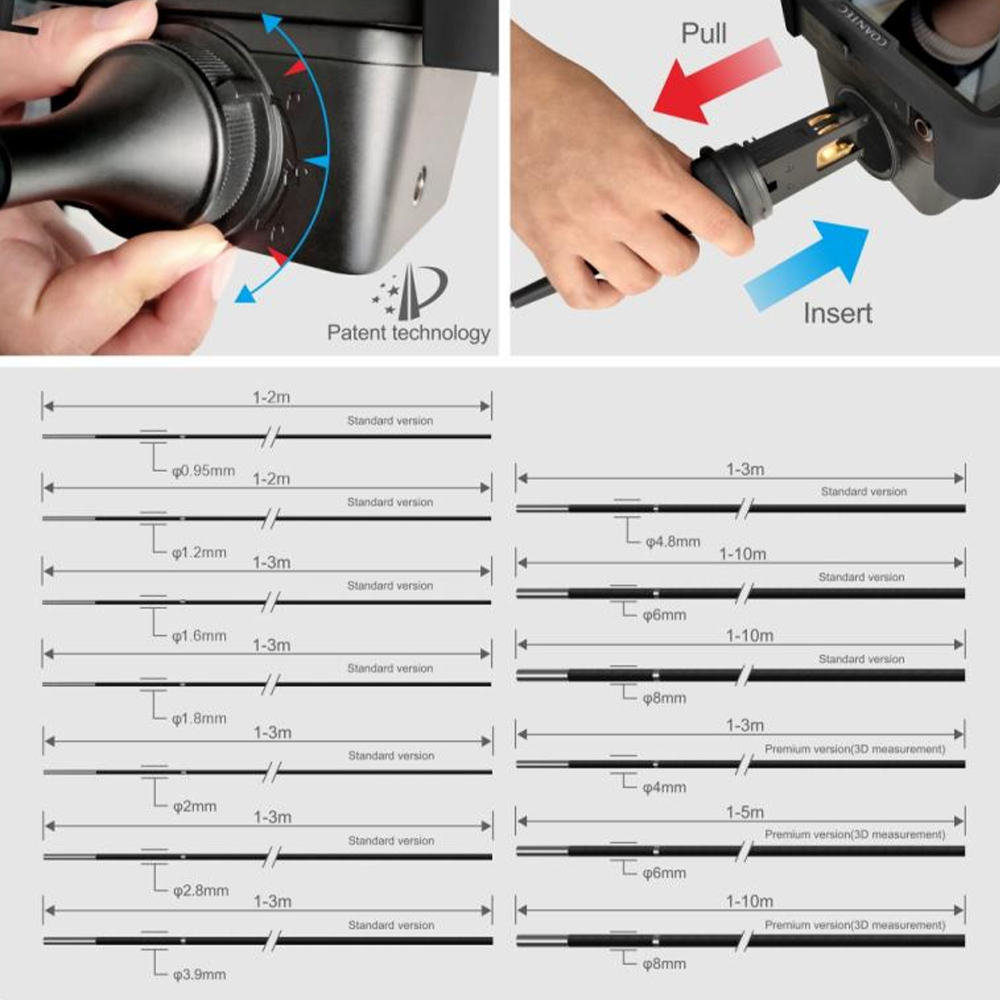

Tip diameter  (±0.1mm)

0.95mm

1m~10m optional (measurement function only supports

insertion tubes with a diameter of over 4mm)

1.2mm

1.6mm

1.8mm

2.0mm

2.8mm

3.9mm

4.8mm

6mm

8mm

Depth of field

5-50mm/5-100mm/10-100mm/50mm-∞

Field of view

70° / 80° / 100° / 120°*

Camera pixels

160K/300K/1M/2M/5M*

Replaceable insertion tube

●

●

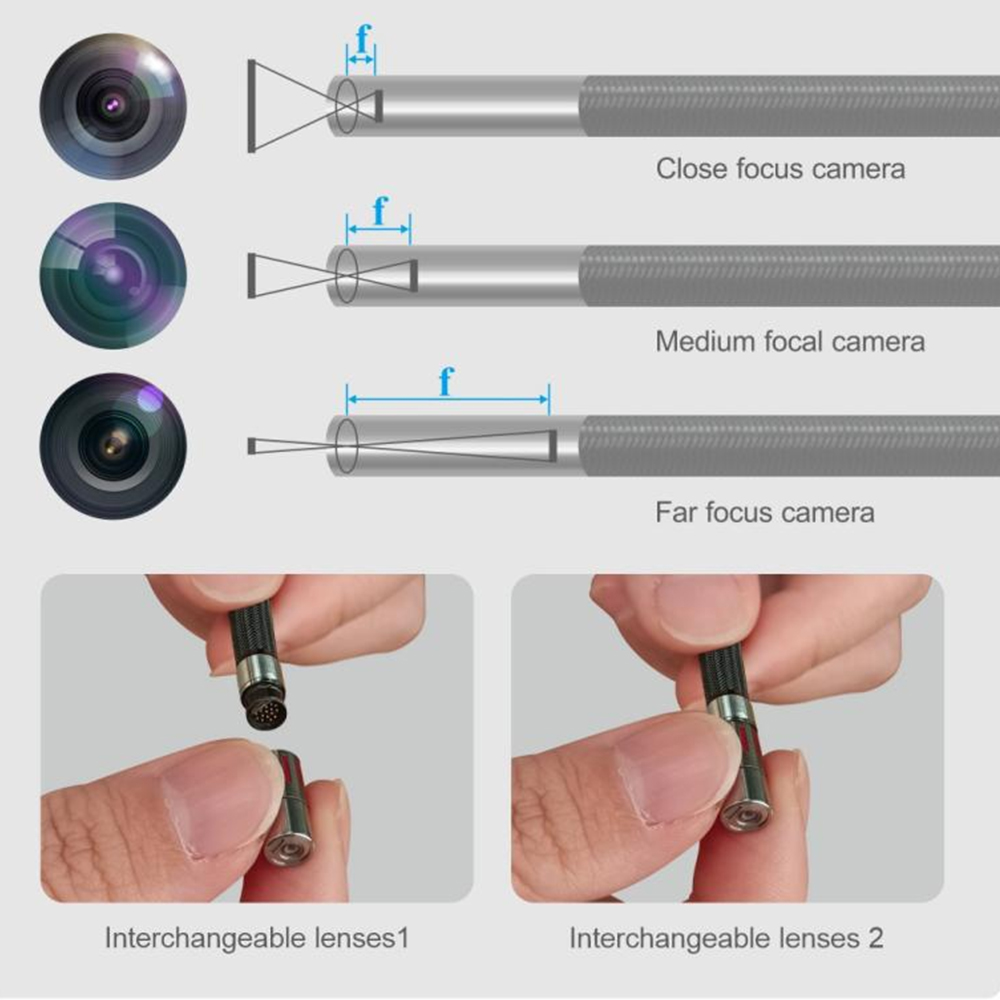

Replaceable lens

●

●

View direction

Direct view/side view/dual view

Lighting source

 Front LED/rear-mounted LED + optical fiber

Light source type

White light/infrared/UV

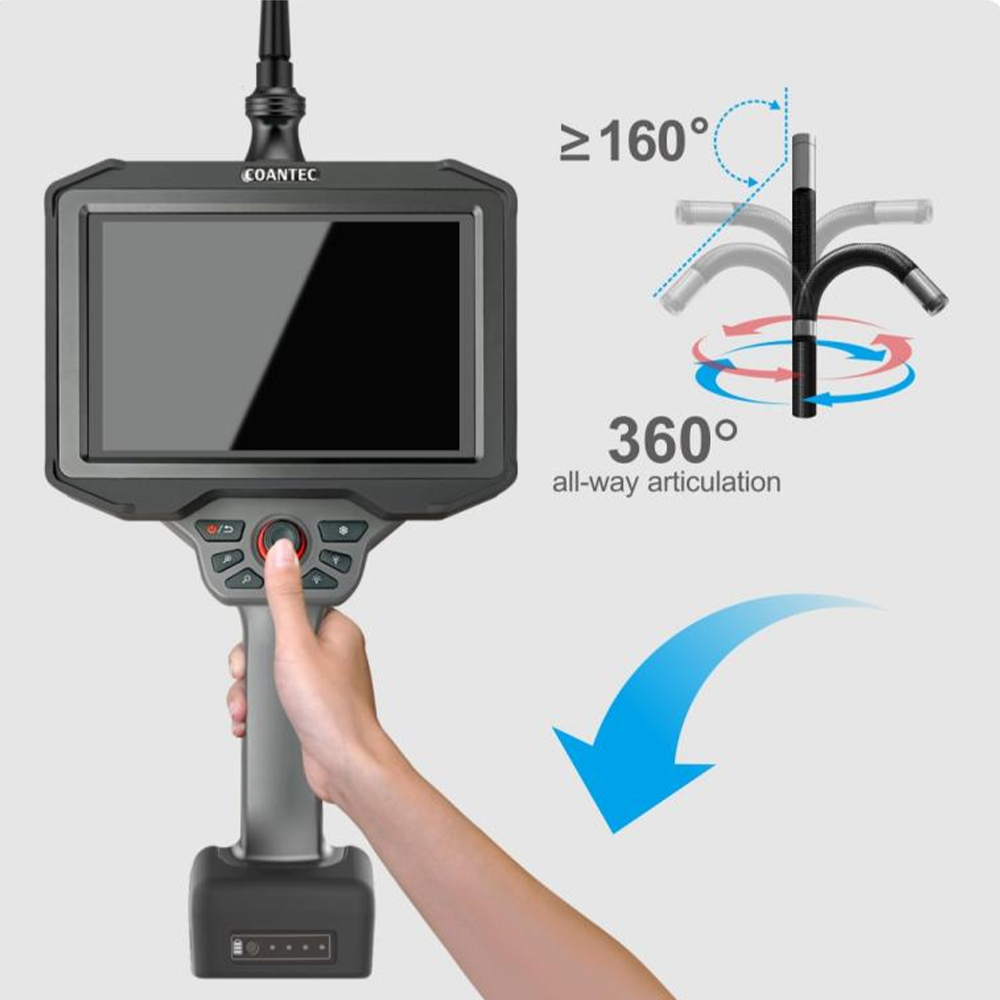

360° all-way articulation

●

●

Electric Probe guidance control

●

●

Tube unidirectional bending angle

 ≥160°*

Probe movement speed

Fast/slow speed adjustable

Probe lock/release function

●

●

Tip material

 Super hard alloy protective shell

Insertion tube material

Tungsten wire wear-resistant braided tube

Dustproof and waterproof rating of insertion tube

IP67

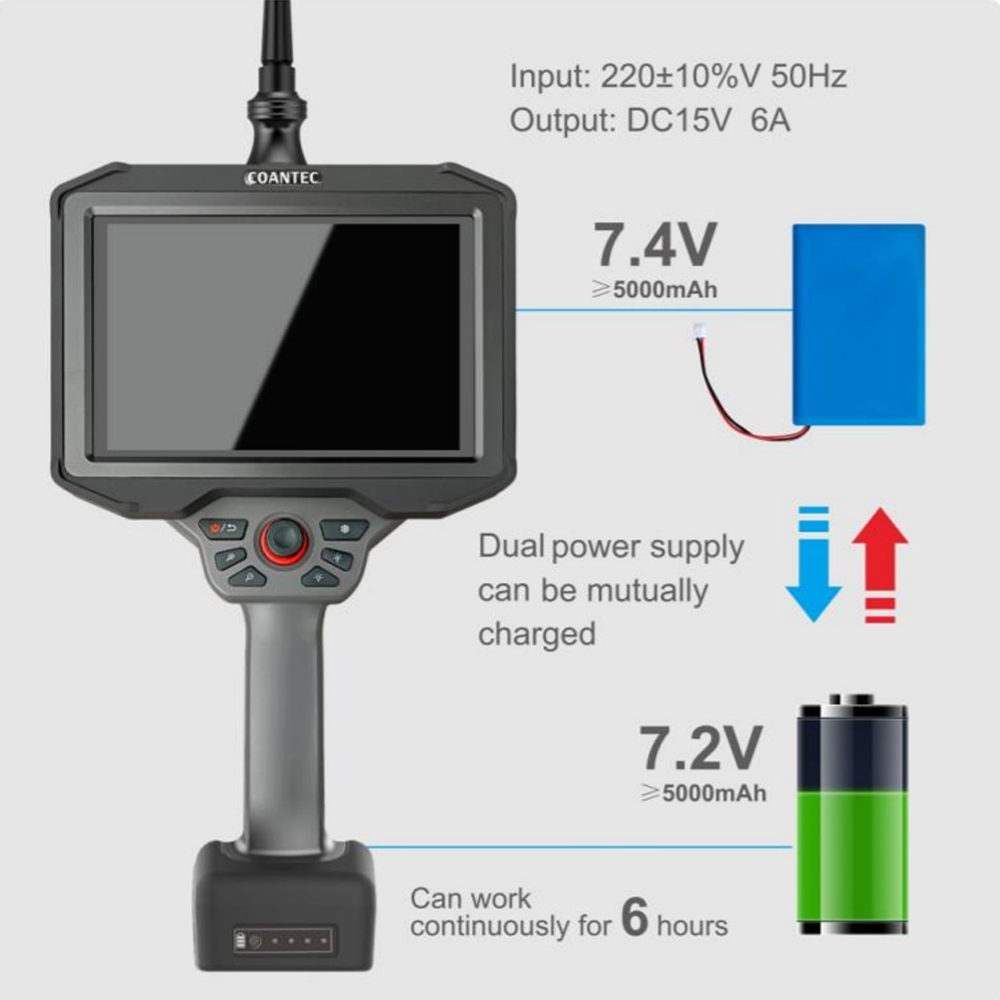

Power Parameters

Power input

INPUT: 220±10%V 50Hz mains electricity

Output

OUTPUT: DC15V 6A

Fast charging

Charging for 5 minutes allows for half an hour of use; a full charge takes 50 minutes

Host battery capacity (non-removable)

Voltage: 7.4V, capacity ≥5000mAh

Handle battery capacity (removable)

Voltage: 7.4V, capacity: ≥5,000mAh

Continuous working time of host

≥6h

Operating Environment

System working temperature

-20°C-60°C

Tip working temperature

-25°C-100°C(temperature alarm optional)

Storage temperature

-40°C-60°C

Relative humidity

Not greater than 95%, no condensation

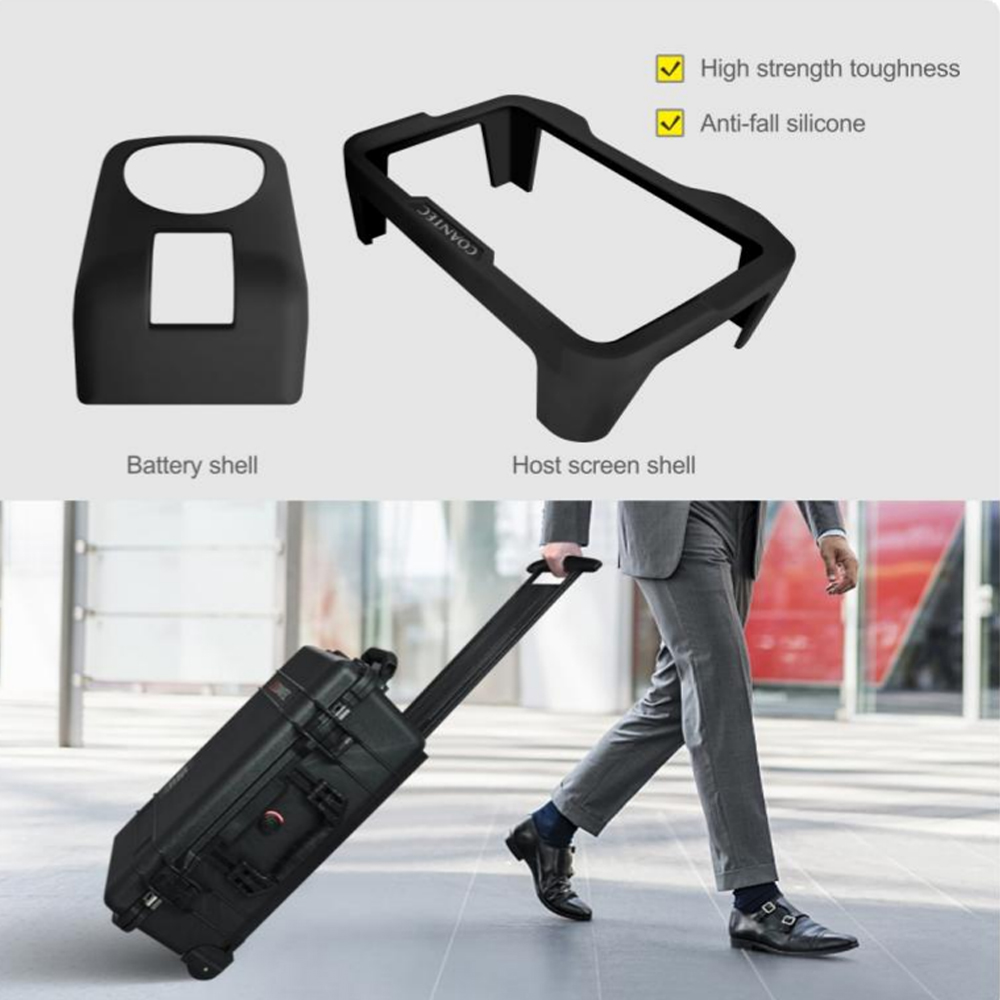

Dedicated instrument case

●

●

USB flash drive

○

○

Power adapter

●

●

Centering device

○

○

Battery pack

○

○

Shoulder strap

●

●

Seat charger

●

●

HDMI cable

●

●

Insertion tube lengths,

diameters, and lighting

modes can be customized

as required

○

○

Optional laser lighting mode

○

○

Insertion tube can

be added with a

graduated scale

○

○

Software customizable

○

○

Display customizable

○

○

Lens customizable

○

○

*For specific parameters (such as illuminance, depth of field, resolution, field of view, working length,

bending angle, etc.) and other requirements, contact relevant personnel for confirmation.
