Excellent Performance
The new human-computer interaction interface, powerful software functions, and user-friendly and concise design make the inspection work more efficient.
Loading

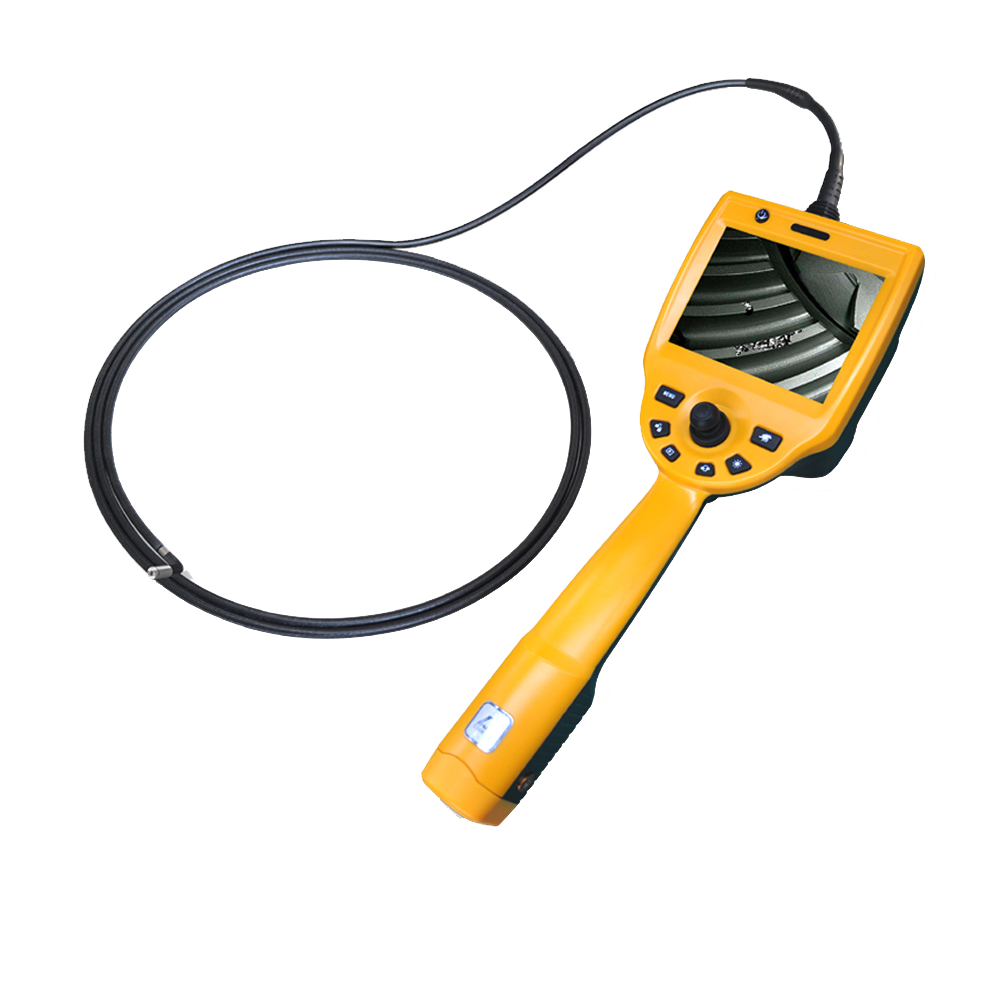

| Product Series | C50 Industrial borescope |
| Display Size | 5-inch HD display |
| Digital Zoom | Support real-time 4x zoom,8x partial zoom when playback |
| PhotoVideo | With photo and video functions,can be captured during recording |
| Video Play | Video playback can fast forward and rewind |
| Image Rotation | 0°/90°/180°/270° |
| Image Preview | List preview mode,fullscreen viewing oplionaldelete/time watemarking/fle rename/add note etc. |
| Insertion tube length | 1-10m |
| Tip guidance capability | 360° all-way guidance |
| Protective Device | Buffer protection device for connecting host and wear-resistant tube |

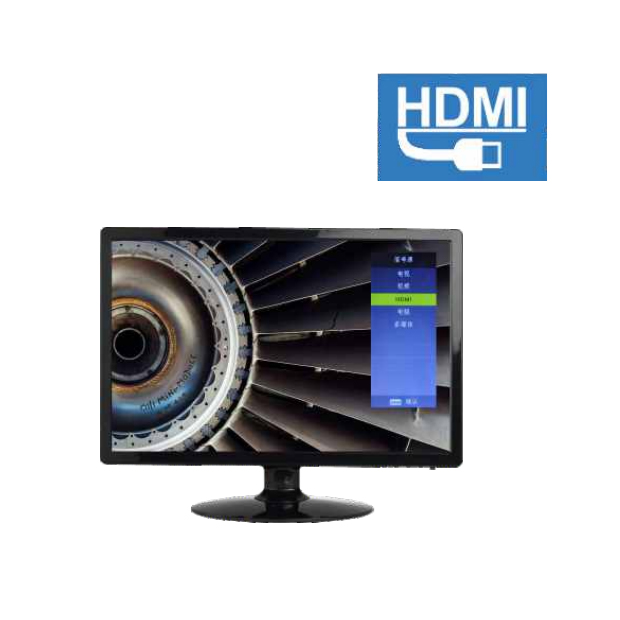

| Output Port | Micro HDMI |

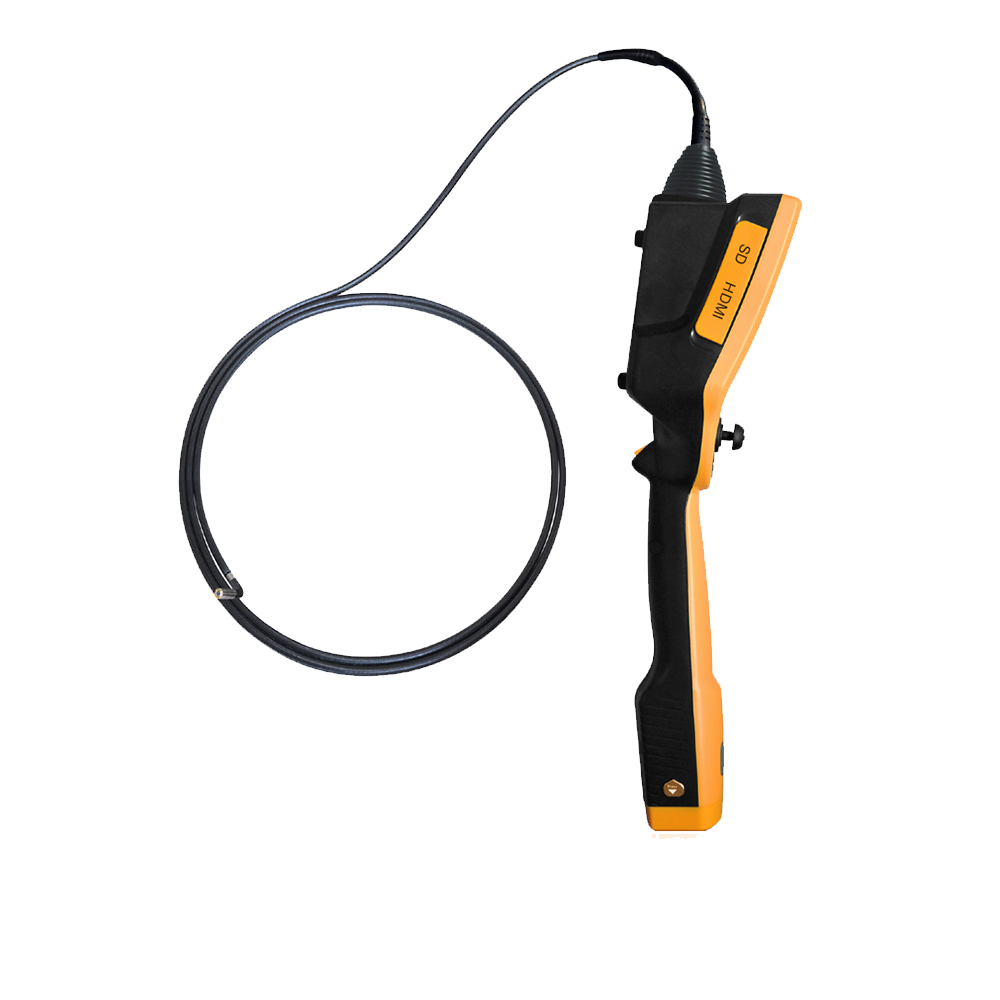

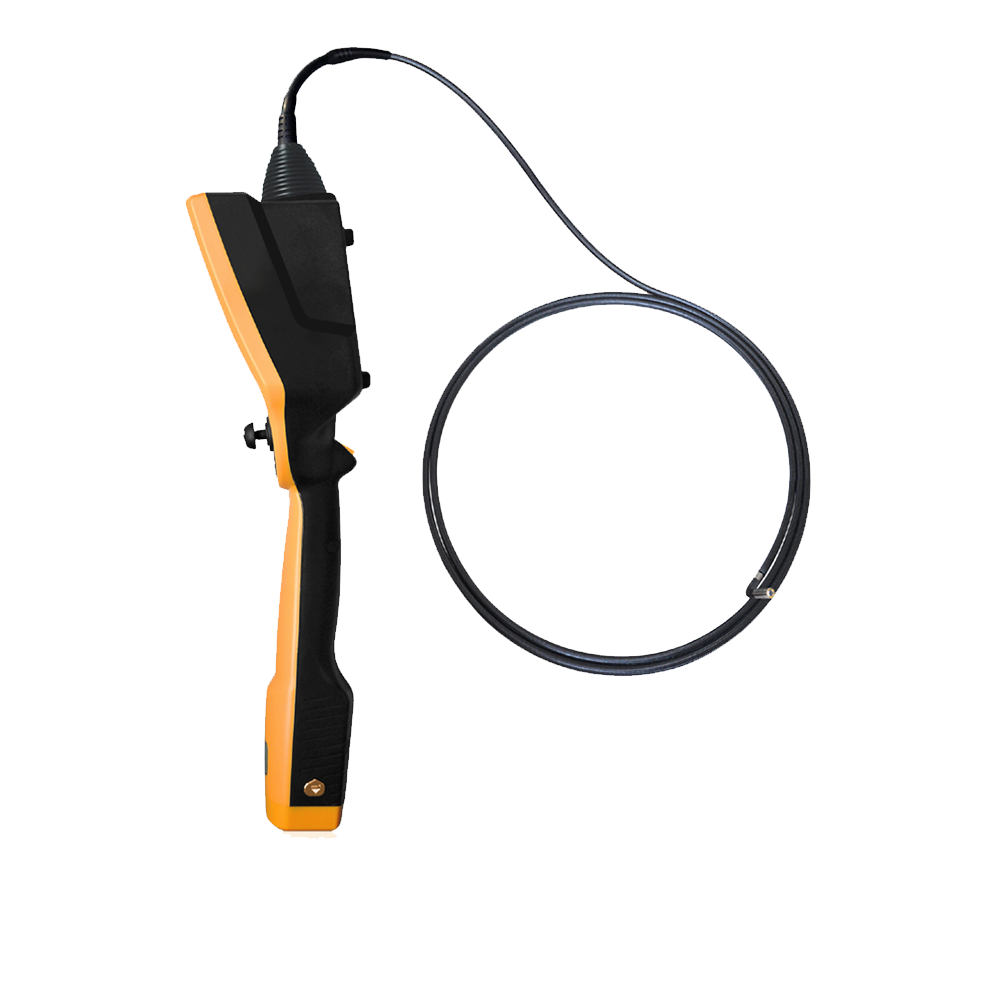

The electric joystick can control the probe to be guided in 360°all-way, with a strong sense of control, flexible steering and precise angle, and it has one-key lock, step-by-step fine adjustment, fast and slow adjustment, automatic reset, OK confirmation, menu navigation function, making inspection work easier.
The new human-computer interaction interface, powerful software functions, and user-friendly and concise design make the inspection work more efficient.
The probe part adopts a laser welding process with more than 100 points, and each point is accurately welded in place in strict accordance with the standard, ensuring the reliability of the welding spot welding and the strength of the welding, and effectively guaranteeing thestability and reliability of the probe processing and the overall product.
The navigation menu design is simple and clear, easy to understand and easy to use, novices can get started without training. Support ten languages: Simplified Chinese,Traditional Chinese,English,Japanese,Korean, German, French,Portuguese, Spanish, Russian. 0.1 second automatic exposure, automatic noisereduction, fast capture of the real details of the detected object, and feedback through high-definition pictures.

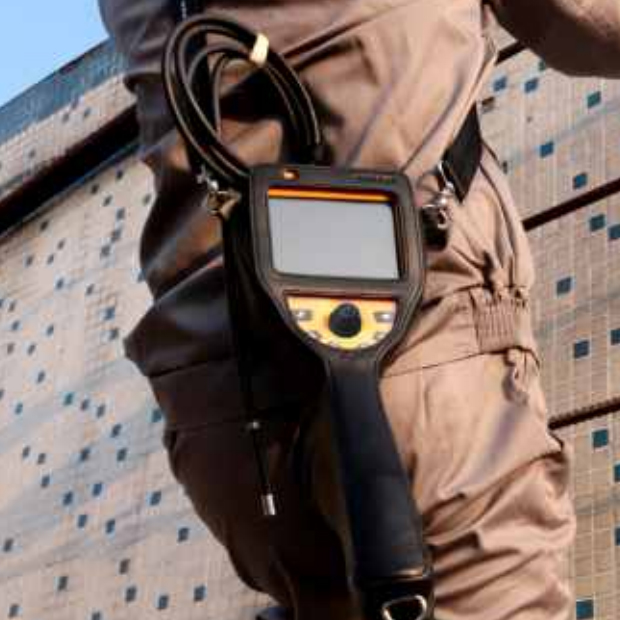

One hand-held design,the whole machine (with battery) weighs only 1.35kgs, optional leather shoulder bag, safe and portable,Whether it's checking the fan gearbox on a 100-meter tower or a complex large machine, the C50 Industrial Videoscope is designed to make it easier to use.

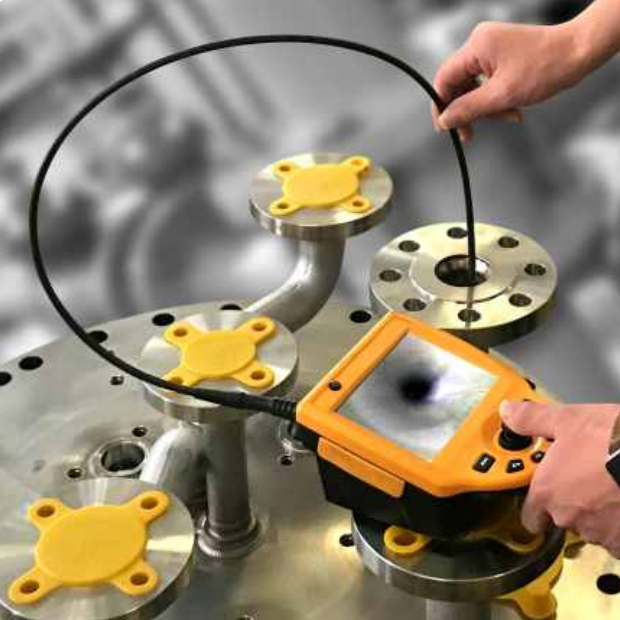

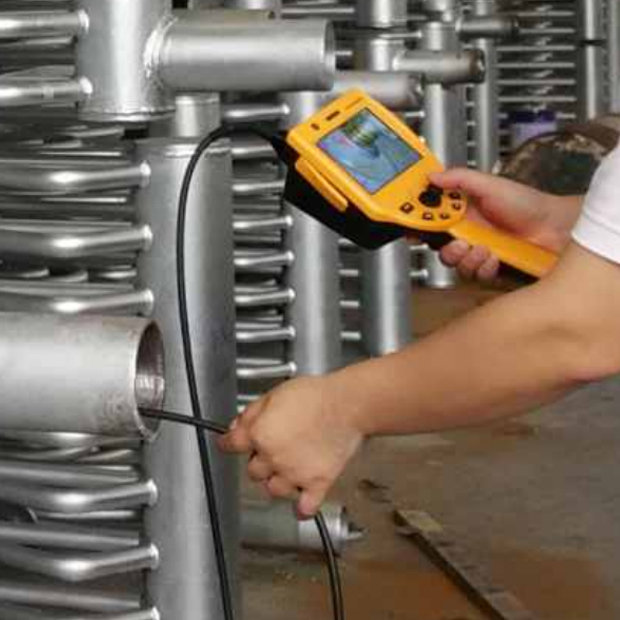

It can be widely used in aerospace, special inspection industry, energy and power, automotive aftermarket,automobile manufacturing, shipbuilding,railtransit,petrochemical industry,food and drugmachinery,mold casting,mechanical processing,construction engineering,police safety, military equipment,testing of municipal pipelines,university research institutes and many other fields.
| Host | |||||||
| Display Dimension | 5-inch HD display | ||||||
| Digital Zoom | Support real-time 4x zoom,8x partial zoom when playback | ||||||
| LED Brightness Level | 0-7 level adjustment | ||||||
| Auxiliary Measurement Function | Cross cursor guide | ||||||
| PhotoVideo | With photo and video functions,can be captured during recording | ||||||
| Video Play | Video playback can fast forward and rewind | ||||||
| Document Format | Image:JPEG/BMP;Video:MP4 | ||||||
| Image Rotation | 0°/90°/180°/270° | ||||||
| Image Preview | List preview mode,fullscreen viewing oplionaldelete/time watemarking/fle rename/add note etc. | ||||||
| Output Port | HDMI | ||||||
| Storage Medium | Standard 8G capacity SD card,maximum support 32G | ||||||
| Menu Language | Simplified Chinese、Traditional Chinese、English、Japanese,Korean, | ||||||
| French,German,Portuguese,Spanish,Russian,ltalian,Dutch etc. | |||||||
| Protective Device | Buffer protection device for connecting host and wear-resistant tube | ||||||
| Emergency Lighting | Glare LED emergency lighting | ||||||
| System Security | Protect power-on password lock function | ||||||
| Host Dimension | 380mm*135mm*85mm | ||||||
| Package Dimension | 600mm*395mm*235mm | ||||||
| Host Weight | 1.45kg(standard 6020 tube) | ||||||
| Tube | |||||||
| Probe Diameter(±0.1mm) | φ3.9 | φ4.8 | φ6 | φ8 | |||
| Tube Length | 1-3m | 1-3m | 1-5m | 1-10m | |||
| Tube Material | Tungsten alloy wire wear-resistant braided tube | ||||||
| Camera Pixels | 1,000,000 | ||||||
| Tube | |||||||
| View Direction | Forward | Forward/Side | Forward/Side | Forward/Side | |||
| Depth of Field | 5-100mm | 8-80mm(Standard)/7-150mm(Optional) | |||||
| Field of View | 120° | 110°/70° | 110°/70° | 110°/70° | |||
| Lighting Mode | Rear-mounted LED, optical fber | Rear-mounted LED, optical fiber | Rea-mounted LED, opical fiber | Rear-mounted LED, opical fber | |||
| Joystick Control | 360°all-way articulation | ||||||
| Probe Unidirectional Bending Angle | ≥150°±10° | ||||||
| Bending Lock | One-key lock | ||||||
| Step Regulation | Step regulation between high-speed and low-speed bend | ||||||
| Bending Control Mode | Electric control | ||||||

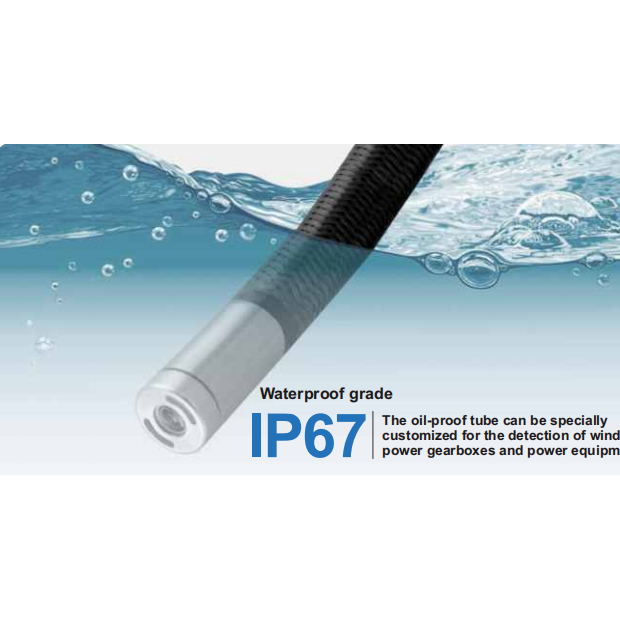

| Probe Waterproof Level | IP67 | ||||||
| Power | |||||||
| Power Supply | Rechargeable lithium battery(with battery reverse protection) | ||||||
| Battery | 3.7V,3200mAh | ||||||
| System Operating Time | ≥4H | ||||||
| Operation Environment | |||||||
| Machine Operating Temperature | -10℃-50℃ | ||||||
| Probe Operating Temperature | -20℃-60℃ | ||||||
| Storage Temperature | -20℃-60℃ | ||||||
| Relative Humidity | 15%-90% | ||||||
| Configurations | |||||||
| Standard Configurations | C50 videoscope x1,instrument case x1,ithium battery x2sets,chargerx1,card reader x1, | ||||||
| 8G SD card x1,user manualx1,precautions for use x1 | |||||||
| Optional Configurations | Mcro HDM cable,Hand-held casing.High-grade instument case (with insert tube stbrage tray).Ppe Centralizer | ||||||
