Lightweight and flexible
It is made of ABS material, shockproof and resistant tofalling. lt is sturdy and durable. Compact structure, light andeasy to carry.
Loading
| Product Series | X1 Handheld Endoscope with Semi-Rigid Snake Camera |
| Display | Connect mobile phone |
| Mobile Phone System | Android and IOS |
| Image Zoom | The image can be pinched in/out for easy observation of local details |
| Brightness Adjustment | Brightness adjustment key,1~4 level adjustable |
| Product Dimension | 156mm*56mm*48mm |
| Product Weight | 0.34kg(includes battery);1.29kg(includes instrument case) |
| Resolution | 1280*720,960*720 |
| Time Display | Support |
| Image Rotation | Mobile phone touch keys control image rotation |
| Battery Capacity | 2200mAh,3.7V |

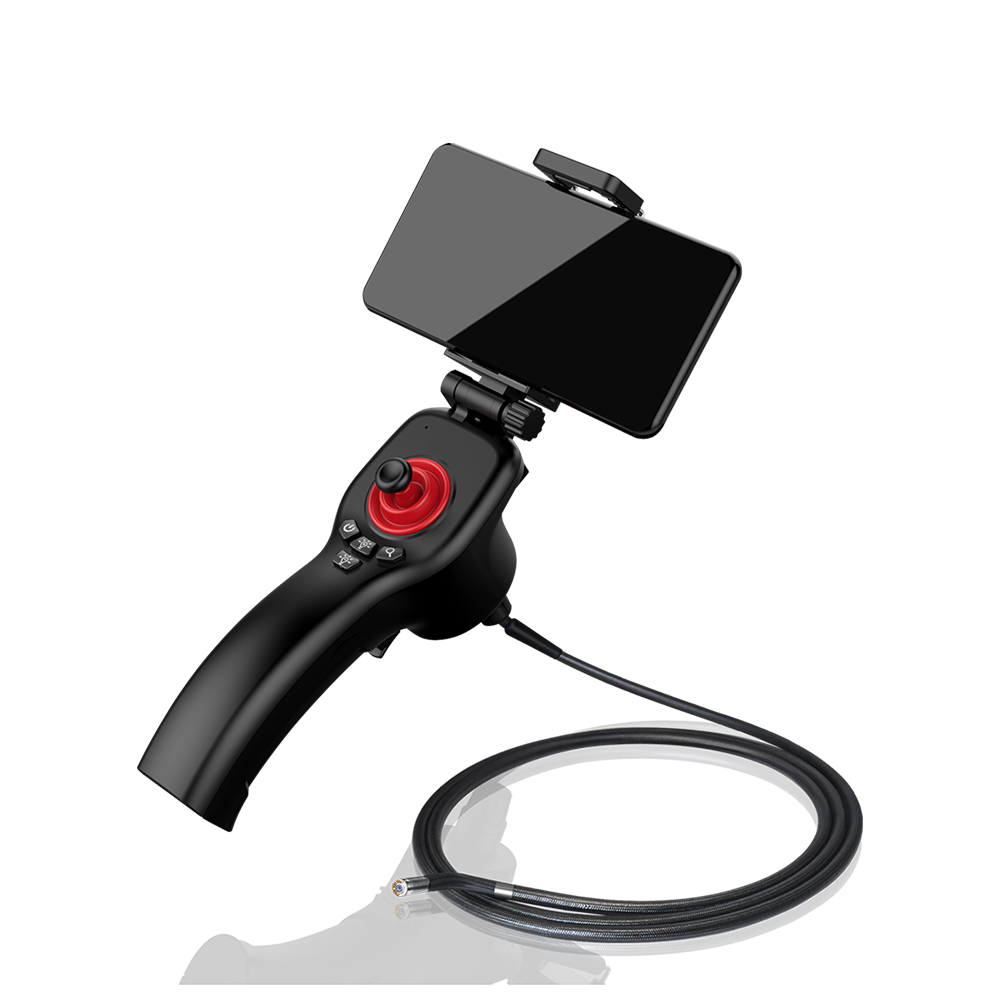

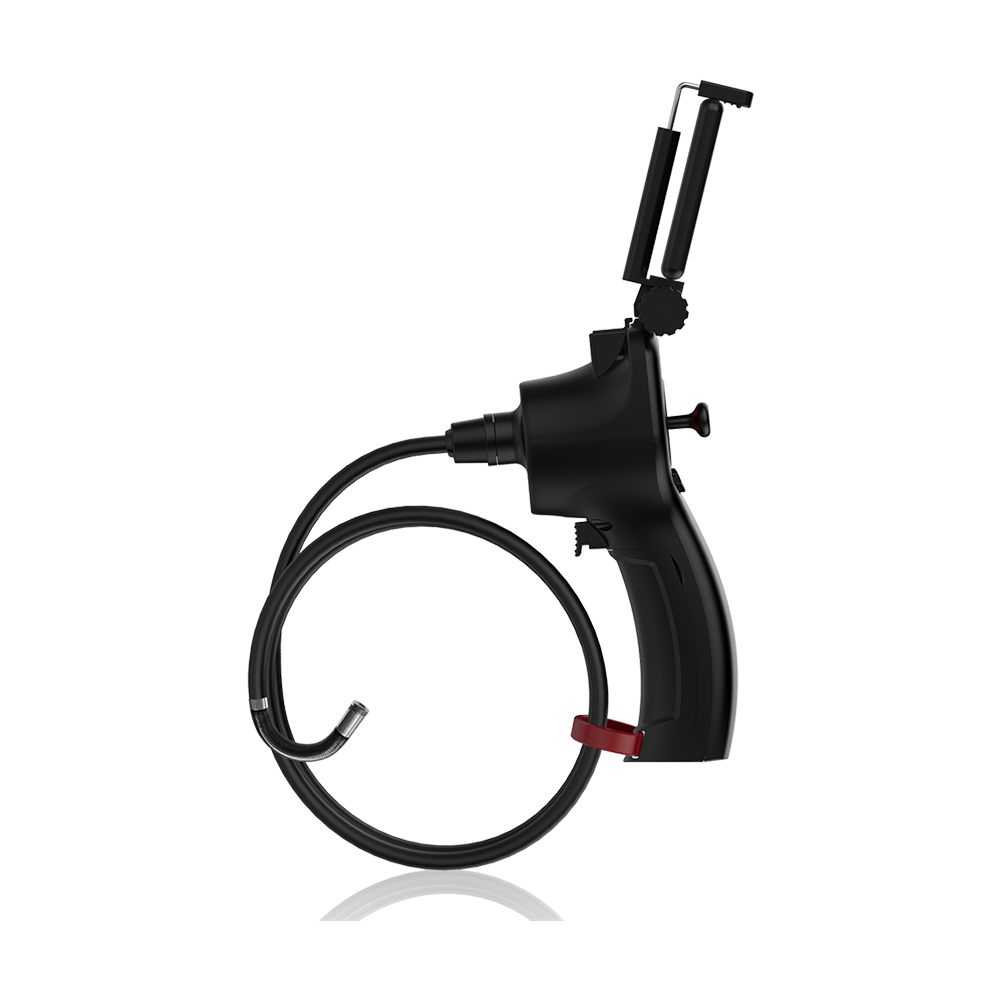

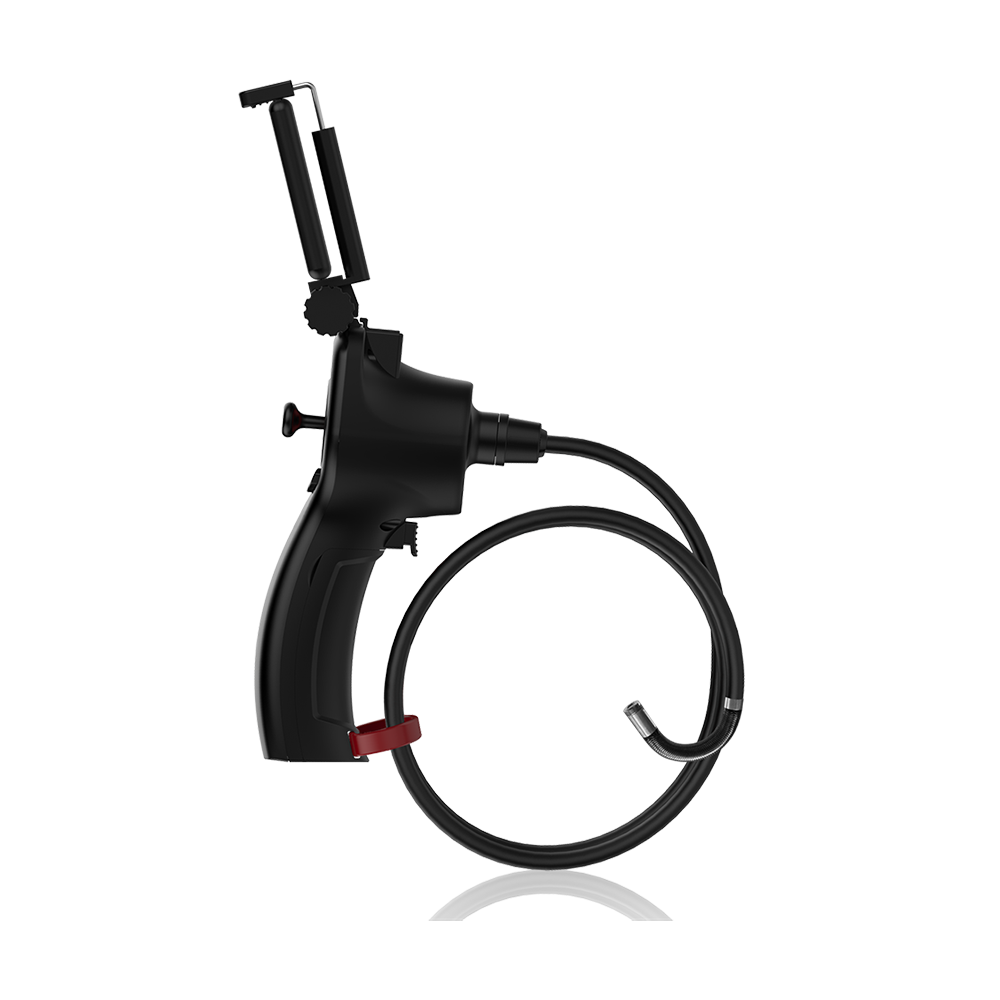

X1 series is a new product that combines industrial borescopewith mobile phone to realize image:inspection. lt usesmechanical joystick to control the 360 rotation of the probeUsers can observe the internal situation of the object in realtime through the mobile phone, and can take photos andvideos with one click, can view and share pictures and videofiles. lt is convenient to use and easy to operate, applicable tovarious scenarios such as vehicle maintenance,sewerinspection,homeappliancemaintenance.industrialinspection, etc.
It is made of ABS material, shockproof and resistant tofalling. lt is sturdy and durable. Compact structure, light andeasy to carry.

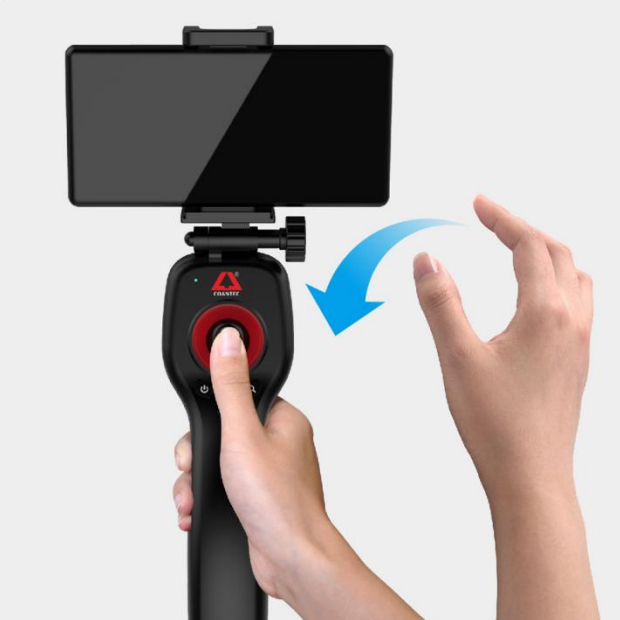

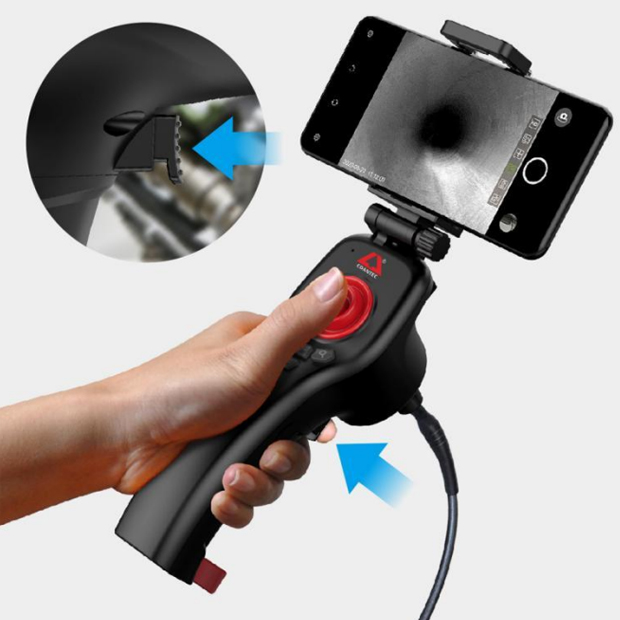

The gun grip with ergonomic handheld design is moresuitable for palm radian and brings more comfortable grip.One-click photography and video recording are moreconvenient and fast.

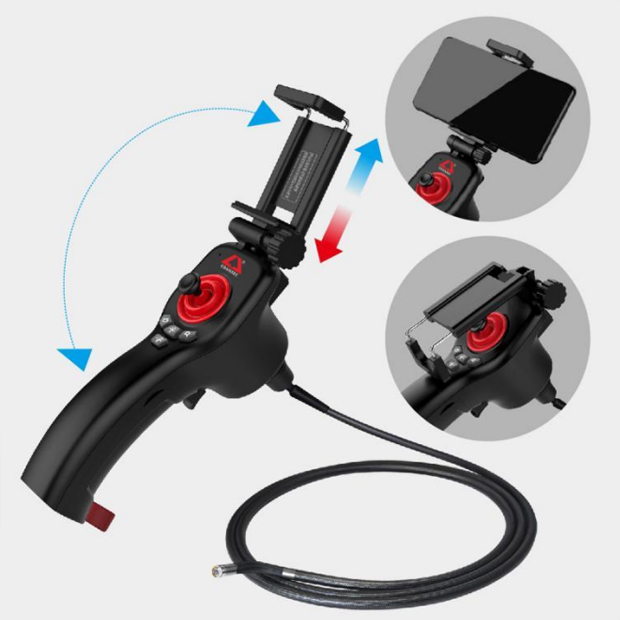

The mobile phone is fixed on a rotatable telescopic support,which can be rotated back and forth to easily adjust the viewingangle.lt is suitable for mobile phones of different specifications.

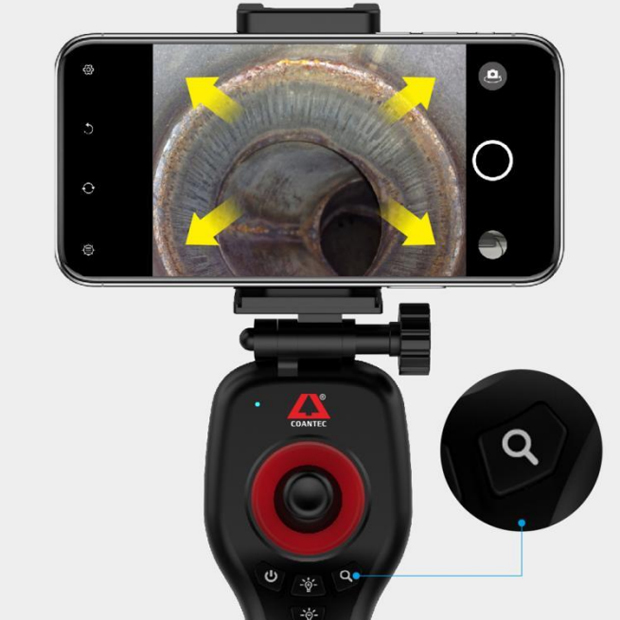

The image scaling physical button above the grip canenlarge and reduce the real-time detection image, which isconvenient for local observation.

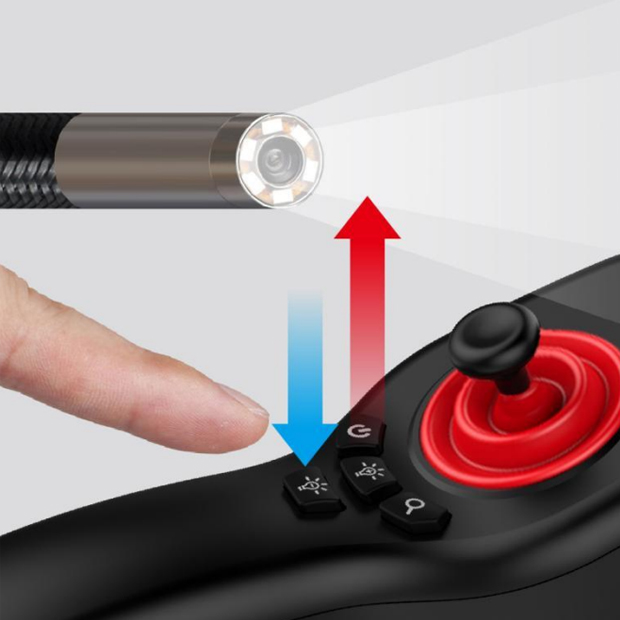

Adjust the current light brightness through the plus andminus buttons, without cycle adjustment, saving time andeffort.

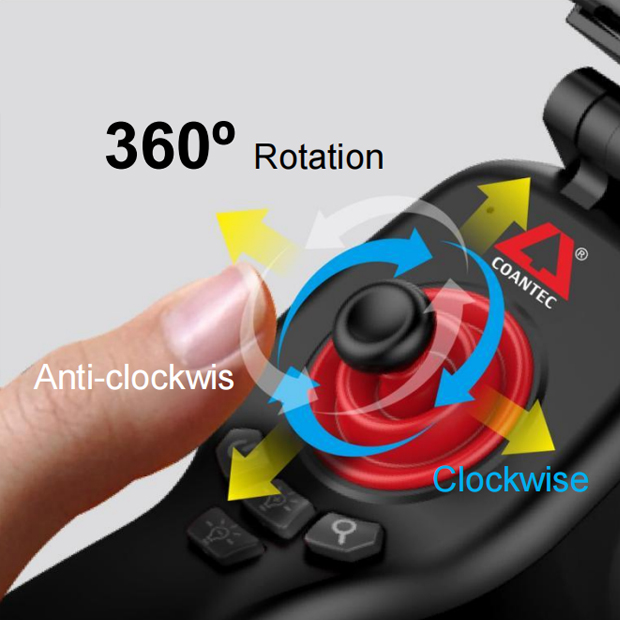

Manual control probe turns flexibly, the control angle isaccurate,the response is sensitive without delay, and has agood operating experience.

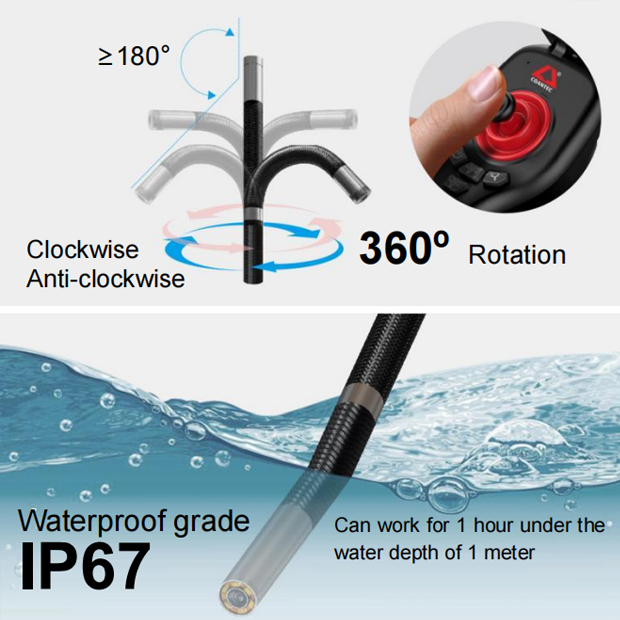

360°steering probe,which is convenient for omnidirectionalobservation of the detection target without dead angle. Theprotection grade ofnon-metallic operating tube can reach lP67which is dust-proof and can work for 1 hour under 1m waterdepth.

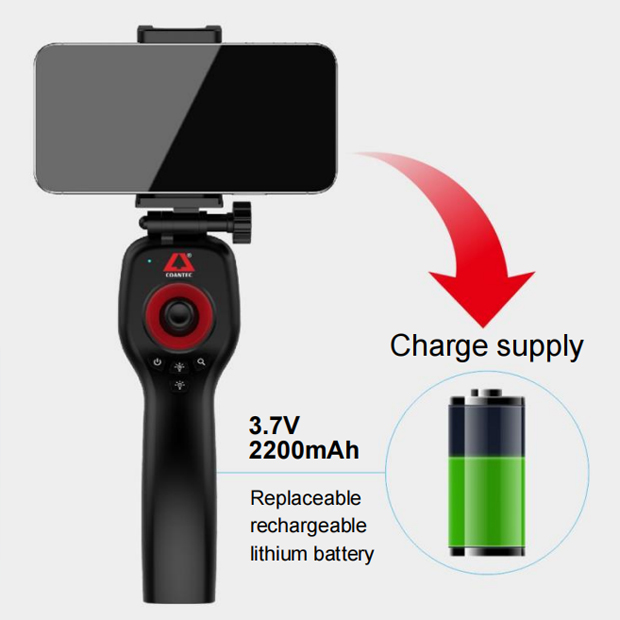

Use replaceable rechargeable lithium battery, it can support thephone to charge when the battery is low, so as to achieve anultra long standby and lasting life.

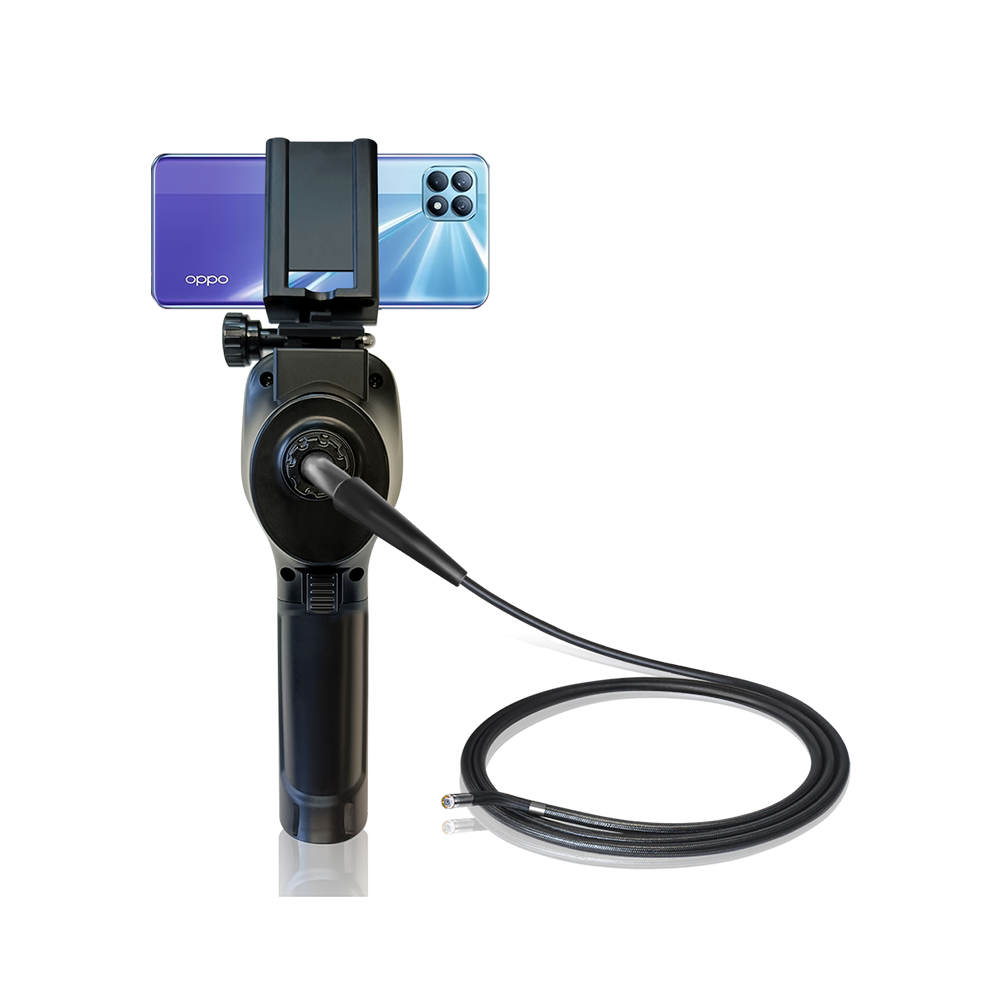

Special storage design is adopted at the end of the handlewhich is convenient to quickly arrange and fix the tubemaking the inspection work orderly.
Download and install the mobile phone APP software (BothAndroid and Apple lOS systems are usable), and you canobserve real-time images, take photos, videos, share files andother operations.
| Host | |
| Display | Connect mobile phone |
| Mobile Phone System | Android and IOS |
| Image Zoom | The image can be pinched in/out for easy observation of local details. |
| Brightness Adjustment | Brightness adjustment key,1~4 level adjustable |
| Product Dimension | 156mm*56mm*48mm |
| Product Weight | 0.34kg(includes battery);1.29kg(includes instrument case) |

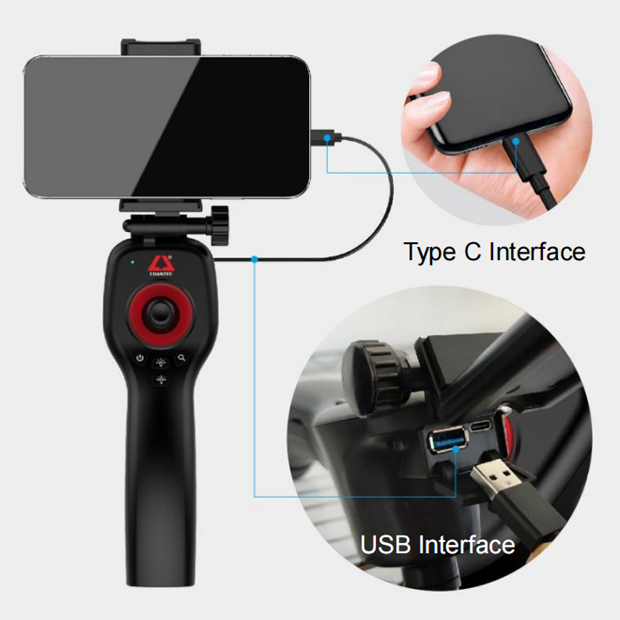

| Output interface | USB2.0 data interface (Note:Type C interface is only used for charging) |
| Software | |
| Resolution | 1280*720,960*720 |
| Time Display | Support |
| Image Rotation | Mobile phone touch keys control image rotation |
| Image Recording | Taking image and video |
| File Deletion | Support |
| File Sharing | Support |
| Video Playback | Previous video,play/pause,next video,switch horizontalvertical screen,fast forward/fast backward |
| Language | Simplified Chinese,Traditional Chinese,English,German,French,Japanese,Korean,Spanish, Italian,Russian |
| Power Supply | |
| Power Supply | Lithium battery |
| Battery Capacity | 2200mAh,3.7V |
| Battery Working Time | Around 3 hours |
| Insertion Tube | |
| Probe Diameter | 6.6mm |
| Probe Material | Hard alloy |
| Tube Material | Wear-resistant tube |
| Tube Length | 1m |
| Camera Pixels | 1,000,000 Pixels |
| View Direction | Forward-view |
| Depth of Field | 10-100mm |
| View Angle | 120° |
| Lighting Mode | Front LED light guiding |
| Probe Articulation | 360°all way |
| Probe Bending Angle in One Direction | ≥180° |
| Joystick Control Model | Mechanical control |
| Temperature Display | Support |
| Compatibility | Tube can't be replaced |
| Protection Grade | Probe IP67,Host IP55 |
| Protective Device | Buffer protection device for connecting host and wear resistant tube |
| Operating Environment | |
| Host Operating Temperature | -20℃~50℃ |
| Tip Operating Temperature | -25℃~70℃ |
| High Temperature Alarm | When the probe temperature is higher than 90℃,the temperature display font changes to red,stop using |
| Stock Temperature | -40℃~60℃ |
| Standard Accessories | Hostx1,Instrument casex1,Type C data cablex1,Charge cablex1,Apple data cablex1,Adapterx1, Rechargeable lithium batteryx1,User manualx1. |
